Grower Tip
- Place the sensor probe near canopy height, away from direct fan airflow, grow lights and humidifier mist.
- Set each port's minimum and maximum levels before configuring climate triggers or schedules.
- Use a 2.4GHz Wi-Fi network for remote app control, alerts and climate data.
- Add the UIS Control Plug to automate compatible outlet-powered equipment through an available port.
Features
Connect and program up to four compatible UIS devices separately from one controller.
Temperature, humidity and VPD triggers can dynamically adjust compatible fan speeds or grow-light brightness.
Use 2.4GHz Wi-Fi or Bluetooth for advanced programs, alerts, notifications, climate graphs and data access.
Timers, cycles, daily schedules, minimum and maximum levels, and dynamic transitions support detailed environmental routines.

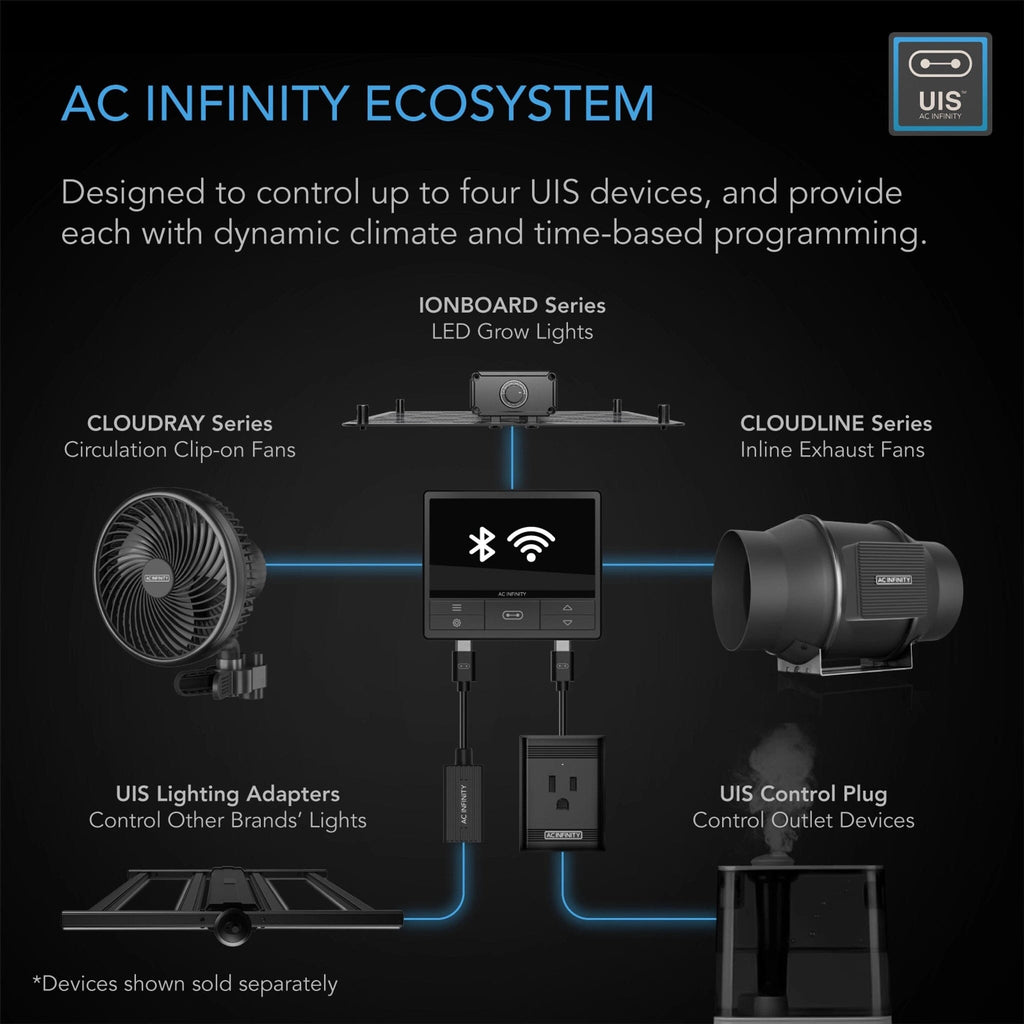

Connect compatible AC Infinity fans, grow lights, humidifiers and adapters across the UIS ecosystem.
The controller draws 12V power from a connected compatible UIS device and uses just 1W.
-
1
Connect the sensor
Plug the temperature and humidity probe into the designated sensor port and position it in the monitored growing zone.
-
2
Connect a UIS device
Plug the first compatible device into one of the four ports; the connected device supplies power to the controller.
-
3
Select the port
Press the port button until the display shows the device you want to program.
-
4
Choose a mode
Select ON, AUTO, VPD, timer, cycle or schedule mode, then adjust its settings with the arrow buttons.
-
5
Connect the app
Pair by Bluetooth or 2.4GHz Wi-Fi to access advanced programs, alerts, notifications and climate data.
-
6
Add more devices
Connect additional UIS equipment and repeat the port-specific setup for each device.
How many devices can Controller 69 Pro manage?
This model has four UIS ports and independently programs up to four compatible devices. Each port can run its own mode and settings. The Controller 69 Pro+ is the separate eight-port option for growers who need to coordinate more equipment from one controller.
Which devices are compatible?
It supports compatible AC Infinity UIS equipment and adapters, including CLOUDLINE inline fans, CLOUDRAY circulation fans, IONBEAM and other UIS grow lights, CLOUDFORGE humidifiers, UIS Control Plugs and lighting adapters. Older compatible EC-motor fans may require the correct Molex-to-UIS adapter.
Does it need its own power adaptor?
Normally, no. The controller accepts 9–18V, consumes 1W and receives 12V power from a connected compatible UIS device. A compatible fan or humidifier can power it; an appropriate adaptor is an alternative when no connected device supplies power.
Does the WiFi work on Australian networks?
The controller connects to a 2.4GHz Wi-Fi network and also supports Bluetooth. Many Australian routers broadcast both 2.4GHz and 5GHz bands, so select or enable the 2.4GHz network during setup when using remote app control.

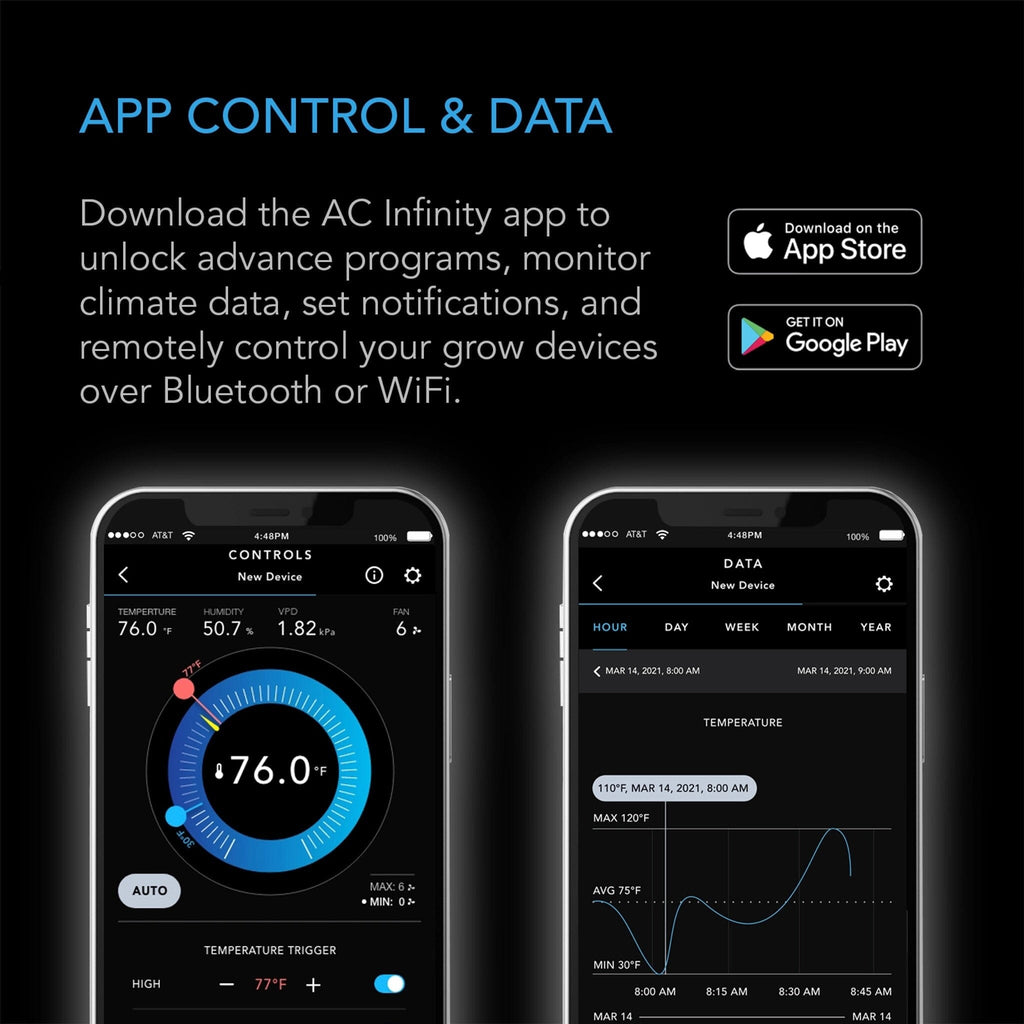

What can the AC Infinity app do?
The app provides advanced programming, alarms, notifications and climate data alongside the controller's onboard modes. You can configure device-specific schedules, cycles and climate triggers, then monitor temperature, humidity and VPD information through a connected phone.
Description
- A digital controller designed to equip AC Infinity devices with smart controls to produce the optimal environment.
- Control up to four devices from fans to grow lights and provide each with their own independent programming.
- Automate devices to dynamically change speed and brightness levels in response to temperature, humidity, and VPD.
- Additional programming includes grow cycles, scheduling, timers, minimum levels, and custom transitions.
- Pair with the AC Infinity app via Bluetooth or WiFi to unlock advance programs, set alarms, notifications, and view climate data.
PRODUCT DESCRIPTION

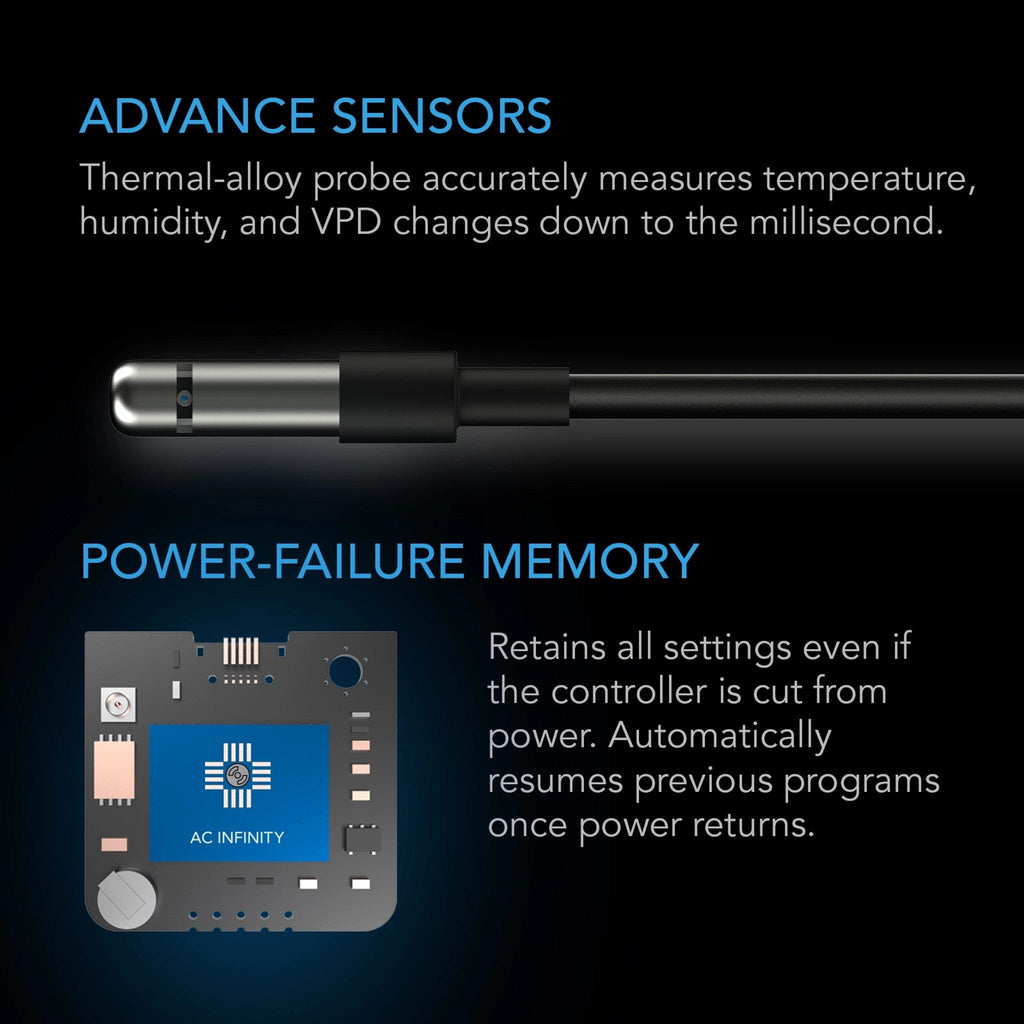

A next-gen controller designed to provide AC Infinity devices with smart programming to produce the most optimized environment. This central command unit connects with up to four different devices from fans to lights to provide each with independent climate and time-based programming. The backlit display reads temperature in Fahrenheit or Celsius and can be switched off while programs run in the background. Built with a kickstand and includes hardware to be hung on walls. The 12-foot sensor probe with thermal-alloy head accurately detects current temperature and humidity. It also detects VPD (vapour pressure deficit), which measures ambient temperature, relative humidity, and the plant’s leaf temperature in order to determine the optimal atmosphere. This allows you to monitor growing conditions more closely than if you were to rely on temperature and humidity alone. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
INTELLIGENT PROGRAMMING
Connect up to four devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature, humidity, and VPD. Set minimum baseline levels that your devices will constantly run at, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth or WiFi to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.
COMPATIBILITY
Devices within the UIS™ ecosystem which includes all AC Infinity LED grow lights and EC fans are compatible. Includes two adapter dongles to connect with EC-motor fans built with 4-pin Molex connectors. Compatible AC Infinity series devices include:
- AIRLIFT Series – Shutter Exhaust Fans
- CLOUDFORGE Series – Environmental Humidifiers
- CLOUDLIFT Series – Floor Wall Circulation Fans
- CLOUDLINE Series – Inline Duct Fans
- CLOUDRAY Series – Clip-on Circulation Fans
- CLOUDWAY Series – Whole House Fans
- IONBEAM Series – LED Grow Light Bars
- IONGRID Series – Halo LED Grow Lights
- IONBOARD Series – LED Grow Light Boards
- UIS Control Plug – Control Outlet Devices (0=Off, 1-10=On)
- UIS Lighting Adapters – Control Other Brand Lights (HLG Compatible)
Note : This controller does not have its own power supply but gets its power from a Fan or Humidifier (AC Infinity only) to power it. Alternatively there is a adapter you can use to power it.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | CONTROLLER 69 Pro |
| Product Model | CTR69P |
| UPC Code | 819137023659 |

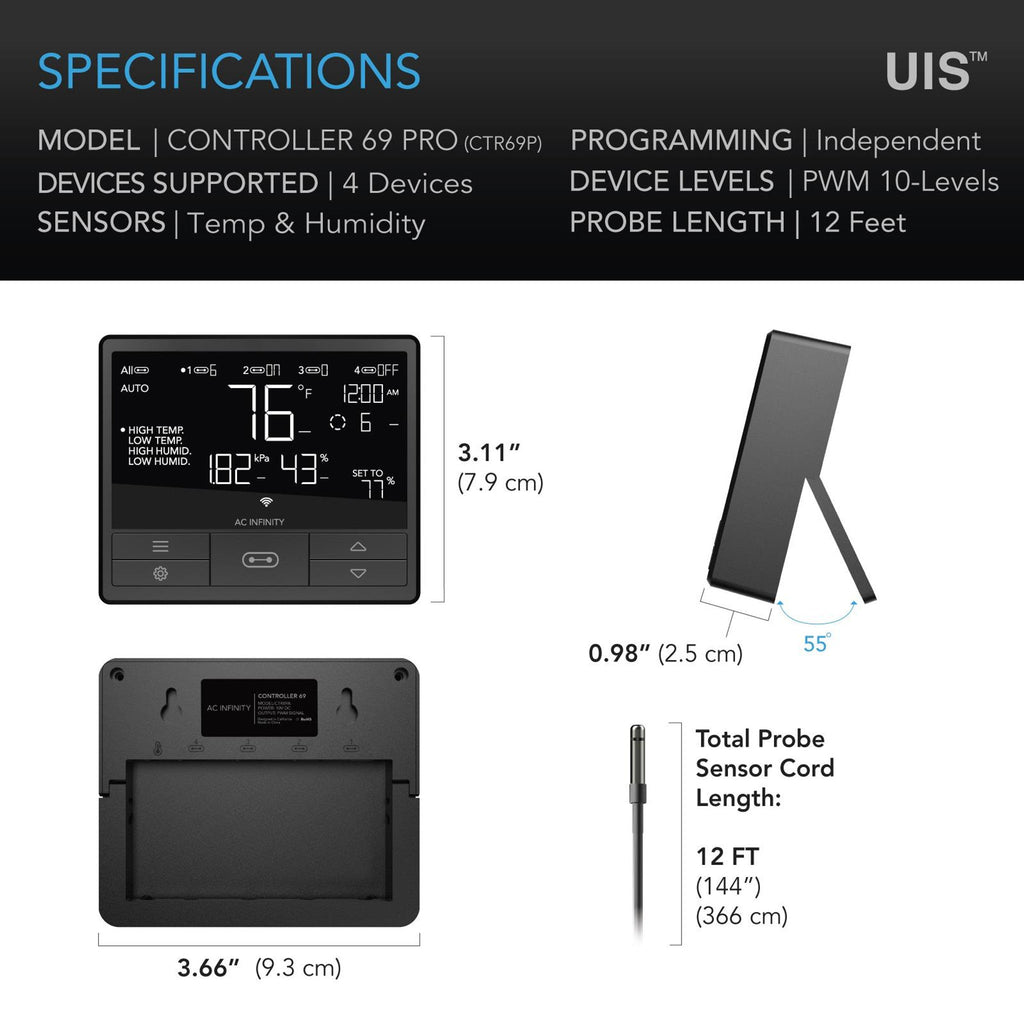

| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Maximum Devices Controlled | 4 |
| Max Power Supported | 10 W |
| Programming Temperatures | 32 to 140°F |
| Operating Voltage | 9 to 18V |
| Power | 1 W |
| Current | 0.1 A |
| Power Input | 12V from Device |
| Operating Humidity | 35 to 85% RH |
| App Connection | 2.4 Ghz WiFi |
| FCC Cert. (Whole Product) |
 PDF |
| Product Manual | |
| Product Manual |
PDF |
