Sigilventus EC Silenced Fan With Speed Controller - 150mm (6")

Save $80.03
SigilventusSKU: SG-S0594

Black Friday Sale ends--:--:--Or when stock runs out!
Price:
Sale price$444.92 Regular price$524.95
Bulky Item
⚡ Black Friday Sale ⚡
10% to 20% Off Site Wide
Prices are marked down!
Ends Midnight 30th Nov
Stock:
In stock Usually shipped within 1-3 days.
ordersFast Shipping Australia Wide
samedayPremium Customer Service
discreetDiscreet Packaging

You may also need

Description

introducing the Sigilventus EC Silenced Fan 150mm (6")

The SIGILVENTUS SILENCED FAN is simply designed to make the wrapped EC motor fan work quietly with no-humming, no vibration and no airflow loss.

Due to the use of the selected high density acoustic foam, it has been proved to be one of the quietest inline fans in the horticulture industry.

ENGINEERED SILENCED BODY
Using durable piano wire springs to attach EC fan motor to the steel silencing housing, it simply makes the whole fan vibration-free.

The acoustic foam used inside is Eco and fire-proof for safety operation and meeting the standard of the application in HVACR industry.

INTELLIGENT AND UNIVERSALLY COMPATIBLE
It supports universal ventilation systems by offering 0-10vdc control signals, as well as PWM and Potentiometer and offers adaptors for other 3pins EC fan controllers and RJ45 controllers.

BEST HYDROPONIC VENTILATION SOLUTION EVER
SigilVentus Silenced Fans are all built with EC motor fan, which has the up-to-date EC technology.

Unlike traditional AC motor or badly built EC/DC motor, it is totally free of buzzing at low speeds.

And due to years of specialized EC tech research and development, SigilVentus offers the most cost-effective EC solution and proved to be the most affordable EC silenced fan on the market and best in its class.

SPECIFICATIONS

Model SE-A150-J01
Dimension 547mm (L) x 243mm(H)
Duct Size 6“|150mm
Rated Voltage 110V~120V | 220V~240V
Max. Power C. 40W
Frequency 50Hz|60Hz
Max. Speed 5000RPM
Max. Airflow 350CFM | 594M3H
Static Pressure 51mmH2O | 500Pa
Signal Outputs PWM, 0-10V, POT, FG
MAX. Noise 50dBA[1M-INLET]
Housing Material Steel
Acoustic Foam Fire-Proof
Motor Type EC Motor
Net Weight 5.0kgs
IP Rating IPX4
Installation 4 Hanging Brackets
Certifications ETL, CE, SAA



INSTALLATION ADVICE

A detachable fast clamp is one of our recommended selected accessory for hard/PVC duct installation, which can be detached from the fan for easy cleaning, maintenance, and repair.

LAYOUT

Estimate shipping

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Abe
Sigilventus 6 inch silenced fan

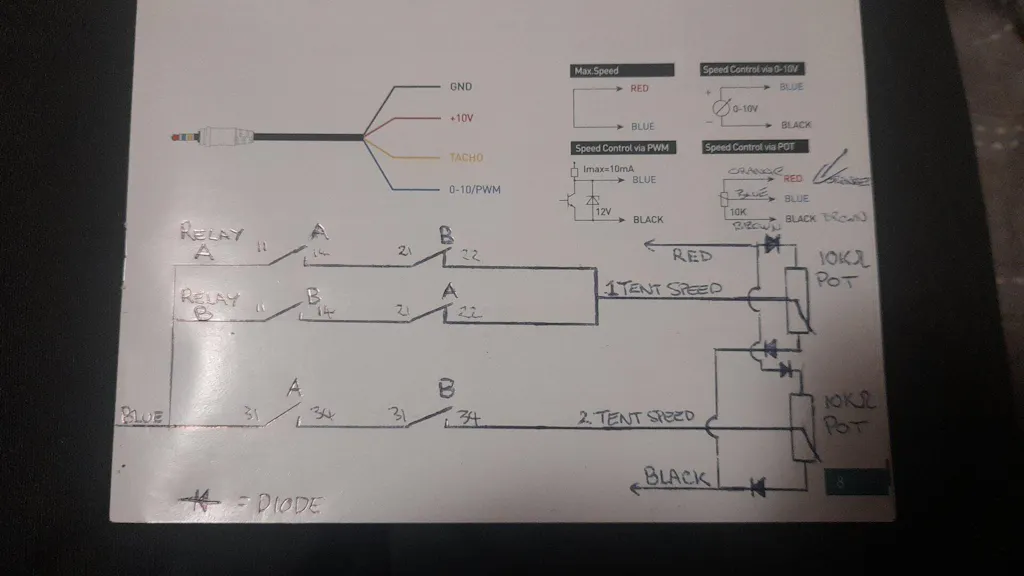

I use this fan to control airflow from two 4ft² tents each tent has a shutter that is triggered by temp/humidity and i wired a control circuit using two 10k ohm pots ,one pot is 1 tent speed and second pot is 2 tents fan speed .
Ive added the wiring schematic .
The fan moves a lot of air quickly and is very quiet i was plesantly surprised and i like the multitude of control options given .
