Grower Tip
- Vent your inline fan's exhaust straight out the window to push heat and odour outside instead of recirculating it into the room.
- Keep the duct run short by mounting the kit on the window nearest your fan — you'll hold stronger airflow and less noise.
- Match your ducting to the fan size, 100mm or 150mm, so the coupler seats snugly with no air leaks.
Features
The sliding extension plate reaches from 66cm out to 155cm, fitting vertically or horizontally in windows and sliding doors.

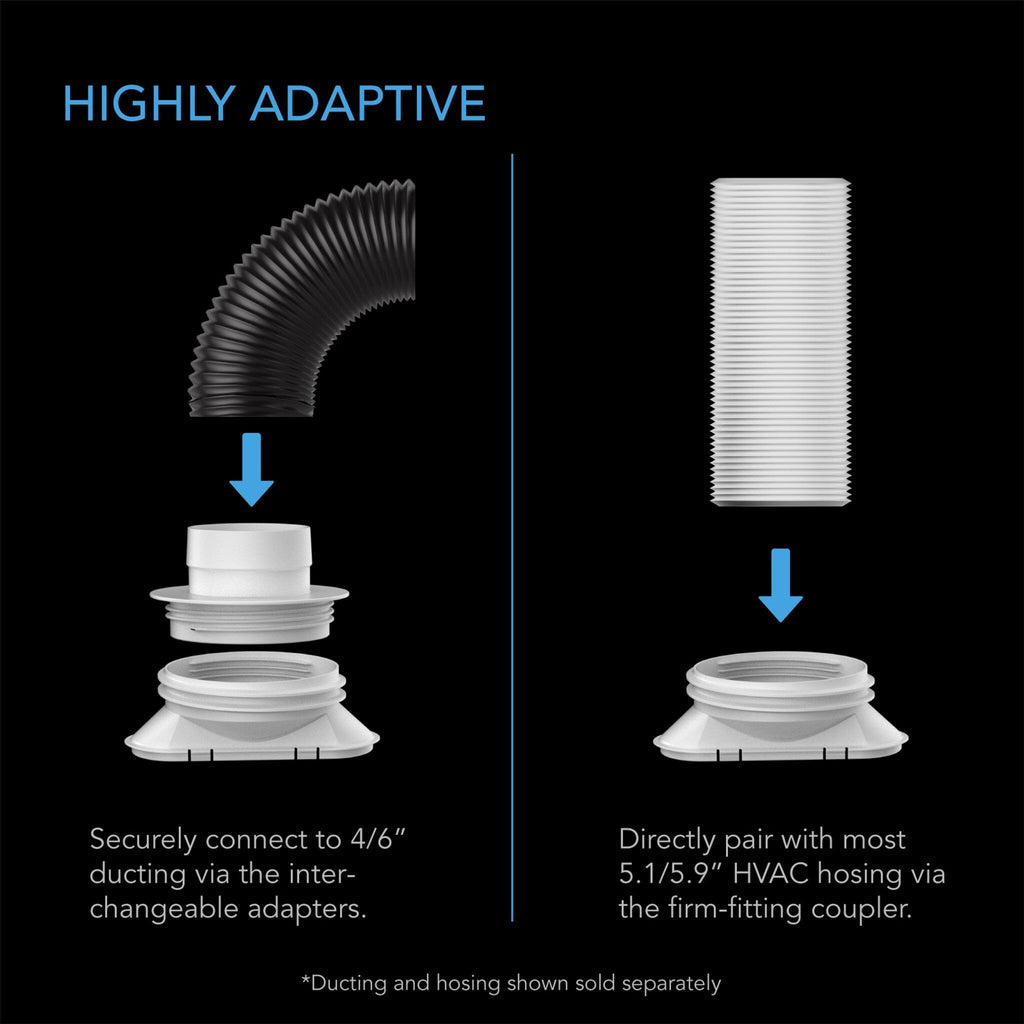

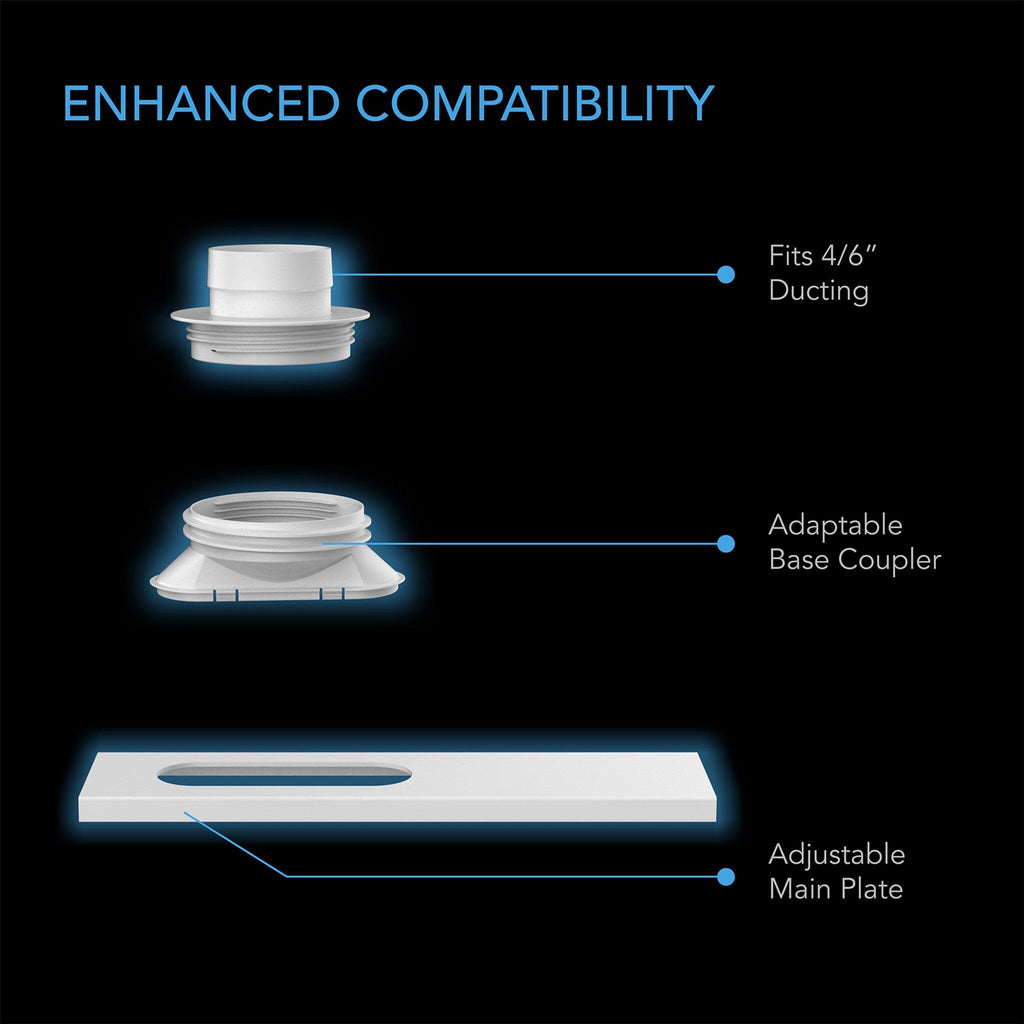

The base coupler and two adapters connect 4" (100mm) and 6" (150mm) ducting, plus most 5.1" and 5.9" AC and dryer hoses.

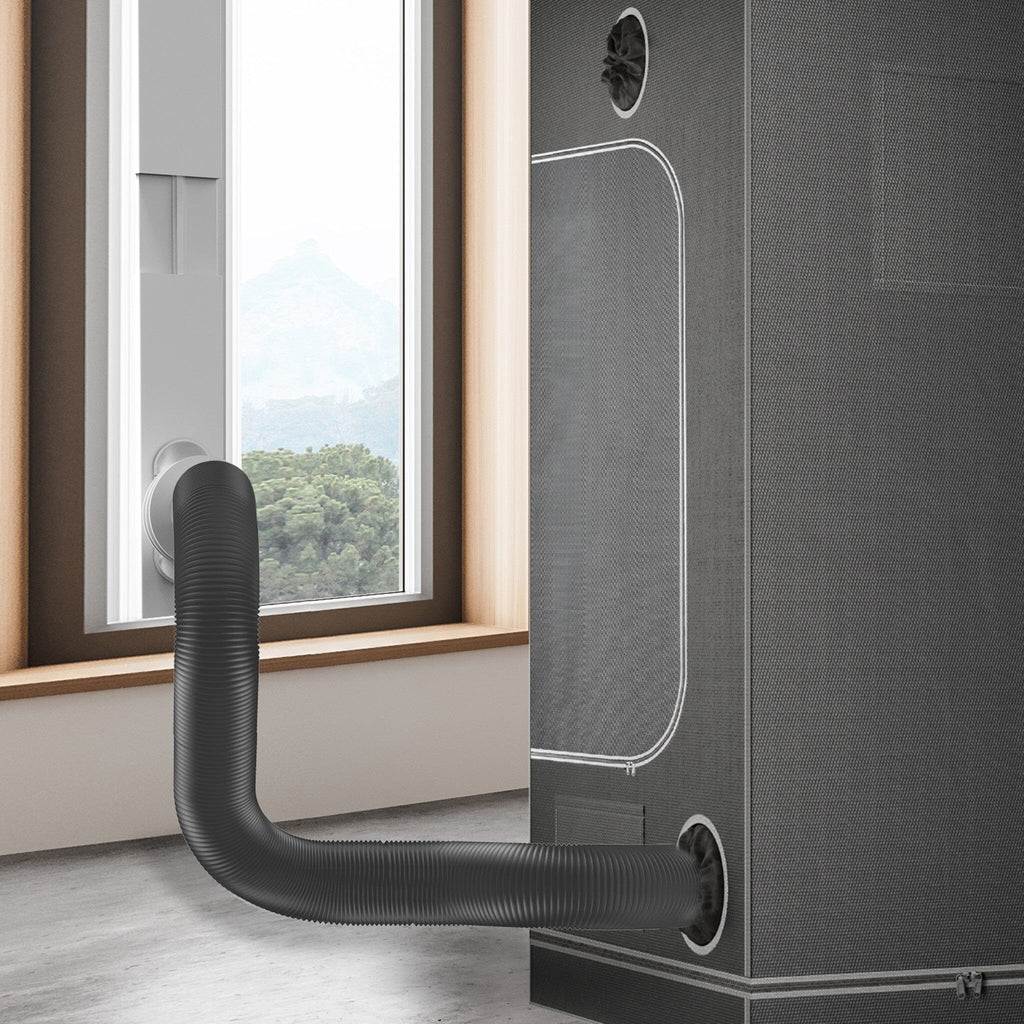

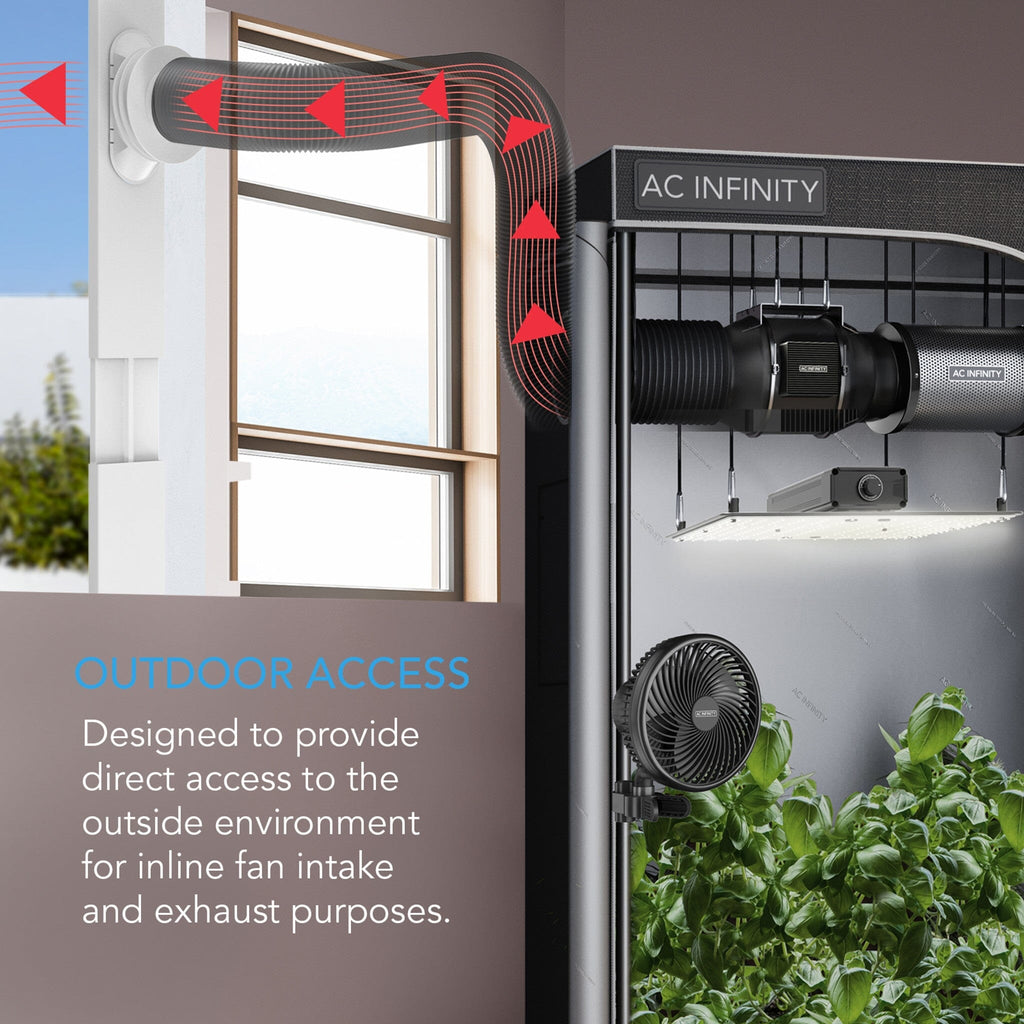

Works as an exhaust to expel stale, warm air or as an intake to draw fresh outside air into your grow space.
The heavy-duty frame blocks debris and is rated from -10°C to 70°C for year-round window protection.
Suits inline fans, portable air conditioners and dryers across grow tents, homes, offices and rec rooms.
-
1
Pick your window
Choose a window or sliding door close to your inline fan to keep the duct run as short as possible.
-
2
Fit the frame
Set the main plate in the opening, slide the extension plate out to fill the gap, then close the window onto it.
-
3
Choose the adapter
Attach the base coupler, then fit the 4" or 6" duct adapter (or AC hose adapter) that matches your setup.
-
4
Connect the ducting
Push your flexible ducting onto the adapter and secure it with a clamp so the joint stays airtight.
-
5
Seal and test
Close any gaps around the frame, switch on the fan, and check that air flows freely out the window.
What duct and hose sizes does it fit?
The two included adapters connect to 4" (100mm) and 6" (150mm) ducting, and the base coupler accepts most 5.1" and 5.9" AC and dryer hoses, so it suits standard inline-fan and portable-AC setups.
How large a window can it cover?
The main plate is 43cm long and the extension plate slides from 66cm out to 155cm. That fits most windows and sliding doors, mounted either vertically or horizontally.
Can I use it for both intake and exhaust?
Yes. The kit supports two-way airflow, so you can run it as an exhaust to expel warm, stale air or as an intake to pull fresh outside air into your grow space.
Will it work with a portable air conditioner or dryer?
Yes. Beyond inline fans it connects to portable air-conditioner and dryer hoses through the 5.1" and 5.9" hose openings, so it's useful around the home and office too.
Is it durable enough to leave fitted year-round?
The heavy-duty frame is rated from -10°C to 70°C and is built to block debris and handle changing weather conditions, so it can stay fitted in the window through all the seasons without needing to be removed.
Description

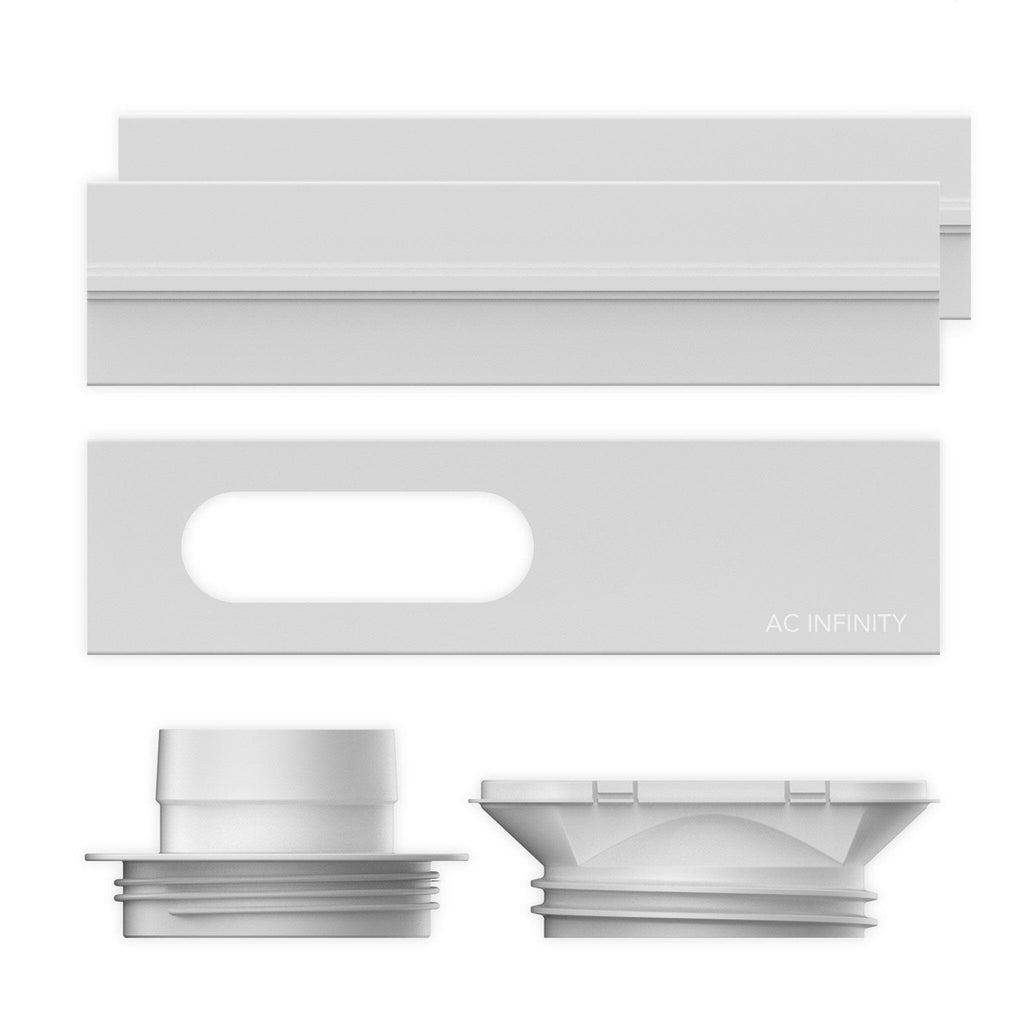

- A duct window kit designed to pair with inline fans for ventilation to the outside environment.
- Constructed for exhaust and intake purposes to help effectively expel odors and draw in fresh air.

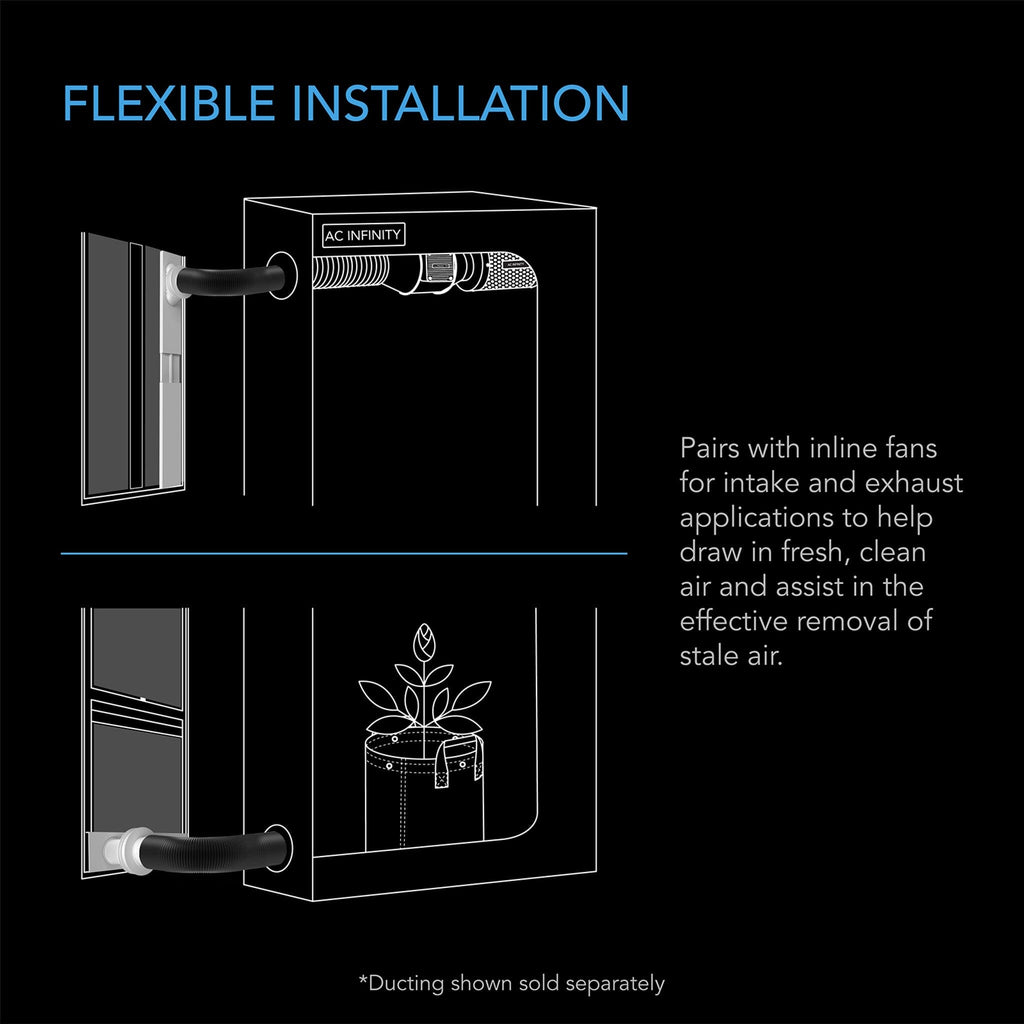

- Adjustable rail can extend to adaptively fit vertically or horizontally in windows and sliding doors.
- Durable frame crafted to block debris from entering your home and handle harsh weather conditions.
- Fits 4/6” ducting and most 5.1/5.9” hoses for use with AC units, dryers, and growing equipment.
PRODUCT DESCRIPTION
A window vent kit designed to assist inline fans in effectively ventilating air to the outside environment. Capable of assisting exhaust and intake functions, this kit efficiently supports the removal of stale air and influx of fresh outside air. The sliding track plates effortlessly extend for vertical or horizontal installation to comfortably fit most window sizes as well as sliding doors. Built for durability, the heavy-duty frame is constructed to withstand debris and varying environmental conditions for year-round protection. Multiple duct adapters can effectively fasten onto the highly compatible base coupler to smoothly pair with industry standard ducting and air conditioning hoses.
APPLICATIONS
This ventilation kit fits securely within window frames and sliding glass doors to intake and exhaust air from inline fans, portable air conditioners, dryers, and more in grow tents, homes, offices, and rec rooms. The base coupler and two included adapters are built to connect to 4” and 6” ducting, as well as 5.1” and counterclockwise 5.9” AC hoses in HVAC and growing setups.

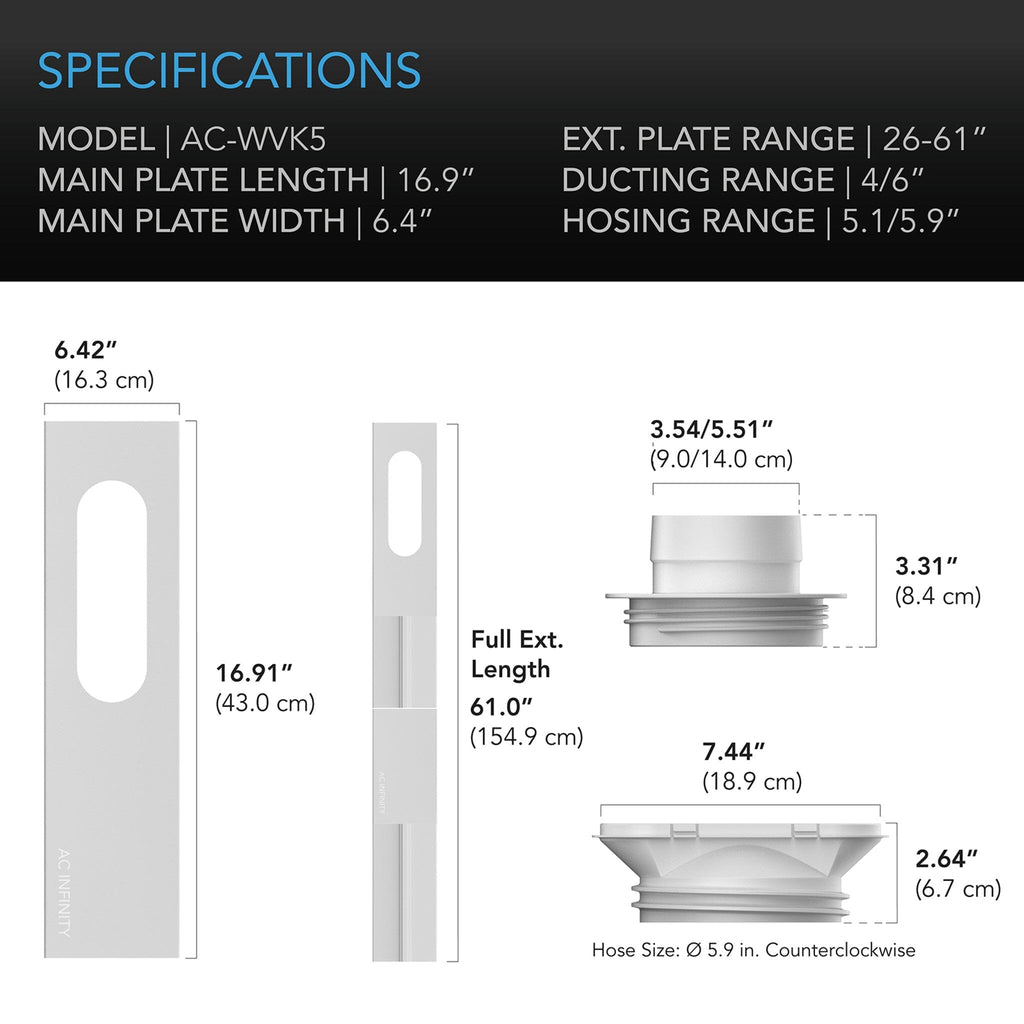

| Product Identification Window Duct Kit, Adjustable Vent Port for inline fans | |
| Manufacturer | AC Infinity Inc. |
| Product Name | Window Duct Kit |
| Product Model | AC-WVK5 |
| UPC Code | 819137024021 |
| Product Dimensions | |
| Main Plate Length | 16.91 in. (43.0 cm) |
| Main Plate Width | 6.42 in. (16.3 cm) |
| Extension Plate Range | 26-61 in. (66.1-155.0 cm) |
| Duct Opening Size | Ø 4/6 in. (Ø 10.2/15.3 cm) |
| Hose Opening Size | &Ø 5.1 in. (Ø 13.0 cm) / Ø 5.9 in. Counterclockwise (Ø 15.0 cm) |
| Product Performance and Technical Specs | |
| Color | White |
| Operating Temperature | 14-158°F / -10 to +70 Celsius |
| Product Manual | |
| Product Manual |
 PDF |
