Grower Tip
- Check your light's driver first: MOSO or MEANWELL drivers use this Type-B adapter; self-branded drivers need the Type-A instead.
- After the first light is on the controller, daisy-chain further RJ11/12 lights using that brand's own method.
- A firmware update via the AC Infinity app may be needed before your controller recognises the adapter.
Features
Lets a UIS controller run third-party grow lights that use RJ11/12 connectors with resistor dimming.
Adds light cycles, scheduling and temperature/humidity triggers to a connected light through the controller.
Pairs with WiFi UIS controllers for phone control, data graphs and alerts via the AC Infinity app.
Ships with a 10-foot RJ11/12 extension cord to reach lights mounted away from the controller.

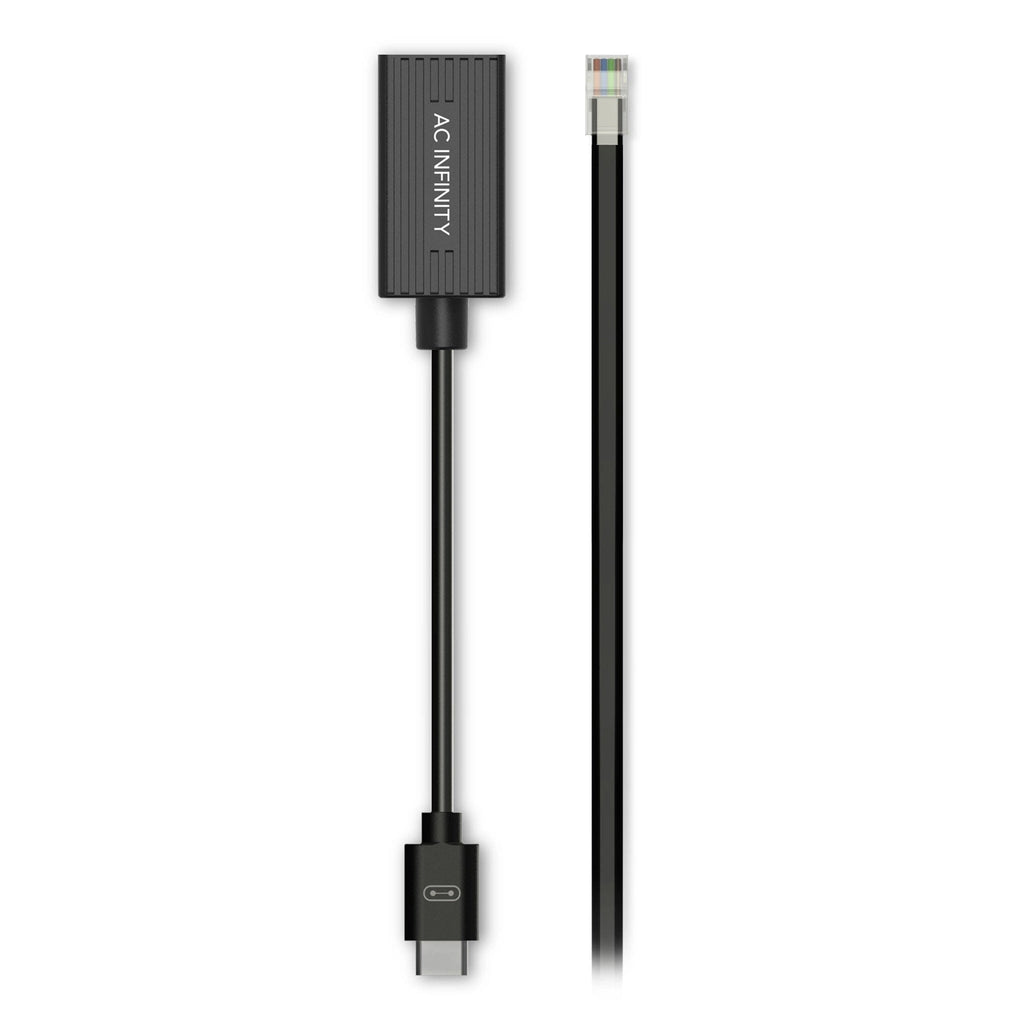

A male UIS end plugs into the controller; the female RJ11/RJ12 end connects to the light.
-
1
Check compatibility
Confirm your light uses an RJ11/12 connector with a resistor dimmer (MOSO/MEANWELL driver).
-
2
Connect the light
Plug the adapter's RJ11/12 end into the light, using the included extension cord if needed.
-
3
Connect the controller
Plug the UIS end into a spare port on your Controller 69/69 Pro.
-
4
Update and program
Update the controller firmware via the app if prompted, then set your light schedule and triggers.
Which lights work with it?
Most RJ11/12 lights with resistor (MOSO/MEANWELL) dimmers — for example Mars Hydro FC/SP/TS and Spider Farmer SE/SF models with those drivers. Spectrum-control and PWM/0-10V lights are not compatible.
What's the difference between Type-A and Type-B?
Type-B is for resistor-dimmer lights; Type-A is for PWM or 0-10V dimmers. Check your light's driver — the wrong type won't dim correctly.
Do I need a controller?
Yes. It connects to a UIS controller like Controller 69, 69 WiFi or 69 Pro, and a separate UIS device is required to power the controller.
Will my light dim through its full range?
Usually, but each brand's dimming protocol differs, so some lights have a limited dimming range. A controller firmware update via the app may be needed.
Description
An adapter dongle designed to connect our UIS controllers to grow lights from other manufacturers. The Type-B adapter works only with grow lights with RJ11 and RJ12 connectors that use resistor dimmers; see below for compatibility list.
By connecting your lighting fixture to one of our controllers, you can automate it with light cycles, scheduling, and dynamic responses to temperature and humidity. It will also join the UIS platform of smart controllers and grow equipment, all working together to create the ideal environment for your plants.
Our WiFi-enabled smart controllers allow you to monitor and control your grow on your phone from anywhere while providing data charts and alert notifications via the AC Infinity app. Once your first light has connected to the controller, you can control additional RJ11 or RJ12 connector light’s using that manufacturer’s daisy chain method.
Includes a 10-foot RJ11/12 extension cord. Compatible with our controllers with UIS connectors like CONTROLLER 69, CONTROLLER 69 WiFi and CONTROLLER 69 PRO; an additional UIS device is required to power the controller.

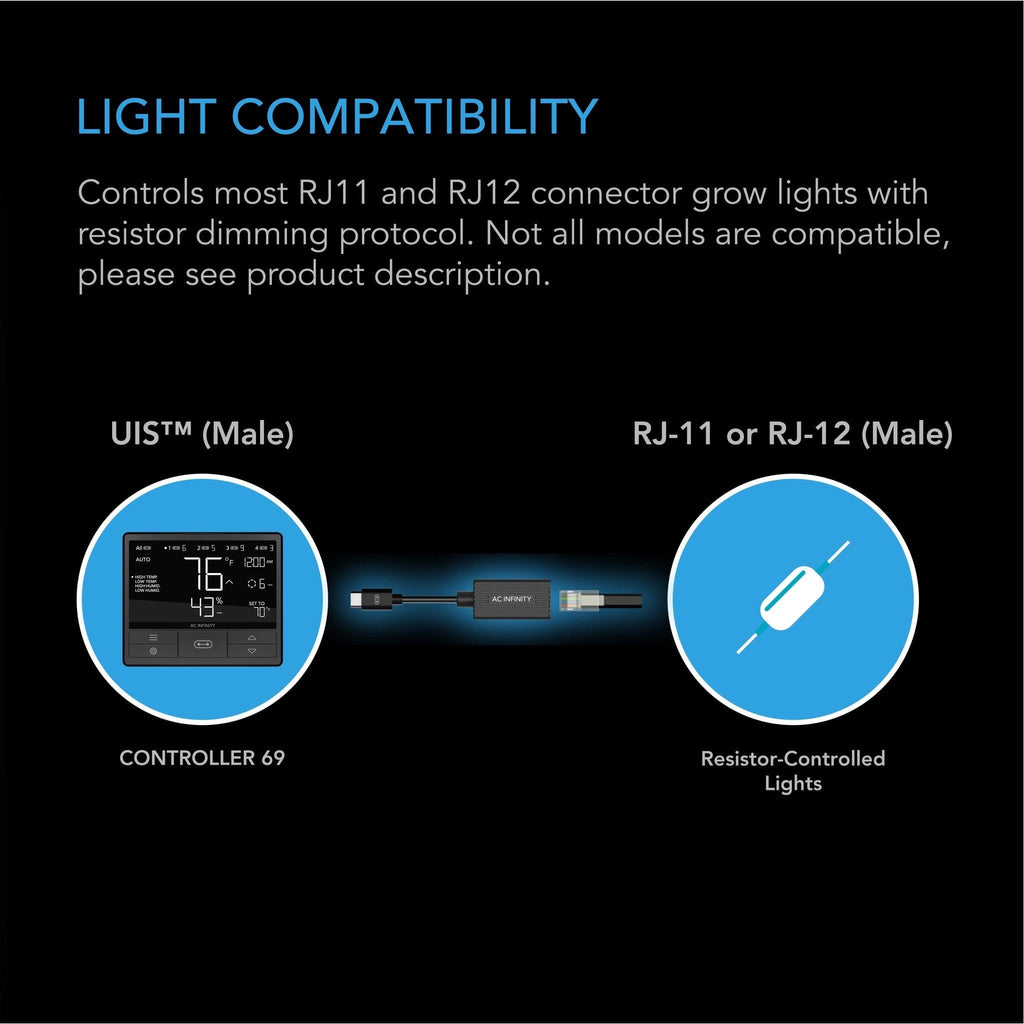

LIGHT COMPATIBILITY
Most RJ11 and RJ12 connector grow lights using the resistor dimming standards can work with the Type-B lighting adapter. However, each light manufacturer's dimming protocol is different so some may have a limited dimming range with our controllers. Lights that have spectrum control or utilizing a PWM or voltage protocol are not compatible. See our other lighting adapters or the UIS control plug if your light is not compatible. A firmware update via the AC Infinity app may be required for your UIS controller to work with this dongle. Compatible lights include, but are not limited to:
KEY FEATURES
- Enables UIS™ controllers to work with RJ11 and RJ12 connector grow lights with resistor dimmers.
- Control previous gen grow lights using resistor dimming technology. Compatibility list coming soon.
- Automate light cycles, scheduling, and climate triggers; unlock data graphs and alert notifications via our app.
- Monitor and control your grow on your phone from anywhere with our latest WiFi-enabled UIS controllers.
- Our ecosystem of controllers and grow equipment work together to create your plant's ideal environment.
- CHILLED TECH - GROWCRAFT Series that are compatible with their Push-Lock Dimmer to RJ12 Adaptor (Model GC-DIM-TM-RJ12-1).
- HLG - HLG Scorpion and HLG 350 use Type A adapter, not B
- MARS HYDRO - FC, FC-E, SP, and TS Series Models with MOSO/MEANWELL drivers. See our Type-A adapter if your model has a MARS HYDRO driver.
- MIGRO - ARAY Series
- SPIDER FARMER - SE and SF Series Models with MOSO/MEANWELL drivers. See our Type-A adapter if your model has a SPIDER FARMER driver.
- MORE MODELS ADDED SOON!
Once you have added an RJ 11 or 12 adapter on your HLG led grow light, you can then add this little adapter and connect your HLG Lamp direct to the Controller 69 from AC Infinity and control the power and on/off settings from your phone from anywhere using the WIFI connected controller.
All BRANDS listed above are registered trademarks of their respective companies. AC Infinity does not claim any affiliation with these brands.

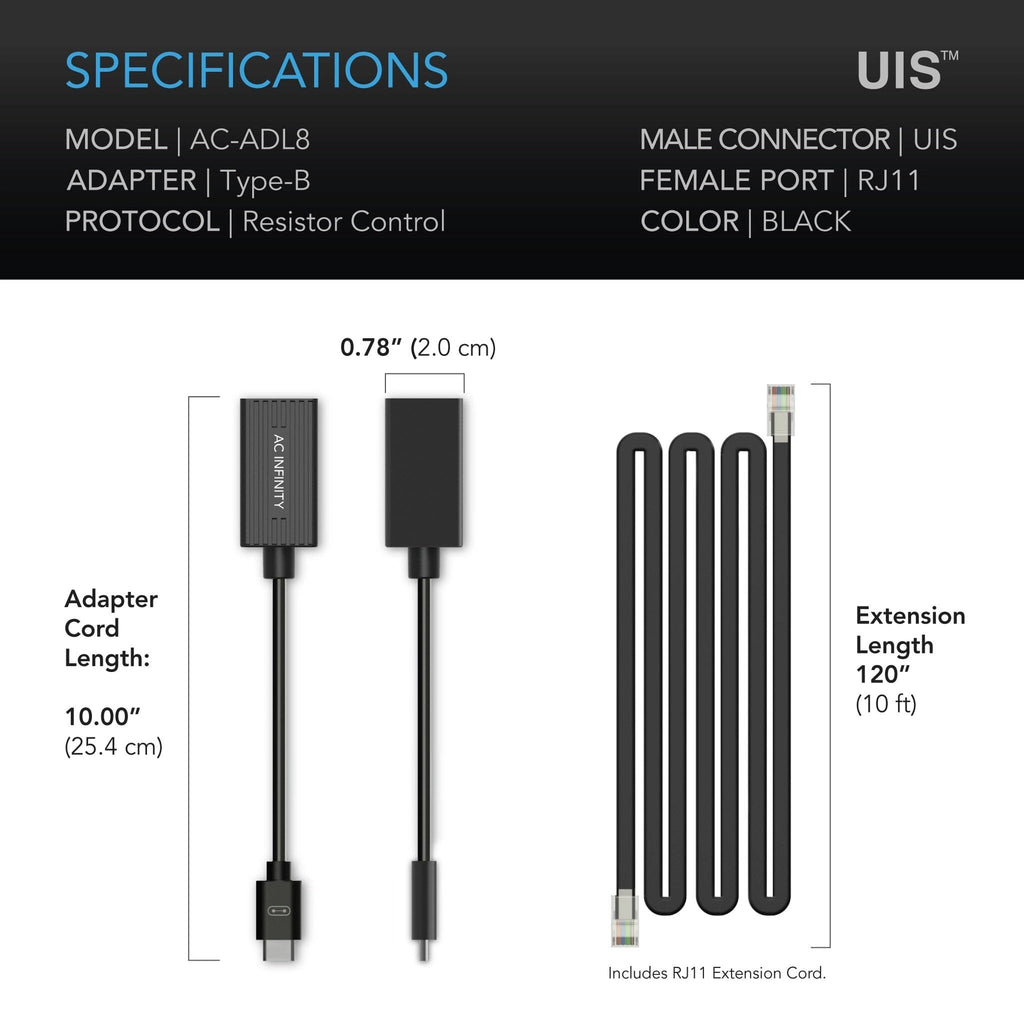

| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | RJ11/12 to UIS Port Adapter, Type-B |
| Product Model | AC-ADL8 |
| UPC Code | # |
| Product Dimensions | |
| Total Length | 10 in. (25.4 cm) |
| Molex Depth | 0.30 in. (0.8 cm) |
| UIS Depth | 0.26 in. (0.7 cm) |
| Product Performance and Technical Specs | |
| Male End | UIS |
| Female End | RJ11, RJ12 |
