Grower Tip
- Hold off running the filter until odours actually appear — saving the carbon bed early stretches the time between refills.
- Slip a prefilter cloth over the mesh for intake duty, or stuff it inside the body when the filter runs on exhaust.
- Reverse the flanges now and then to work the whole carbon bed — lay it flat with the stopper seated so nothing spills.
- Mounting in a humid space? Hang the filter as high as you can and let the fan pull through it.
Features

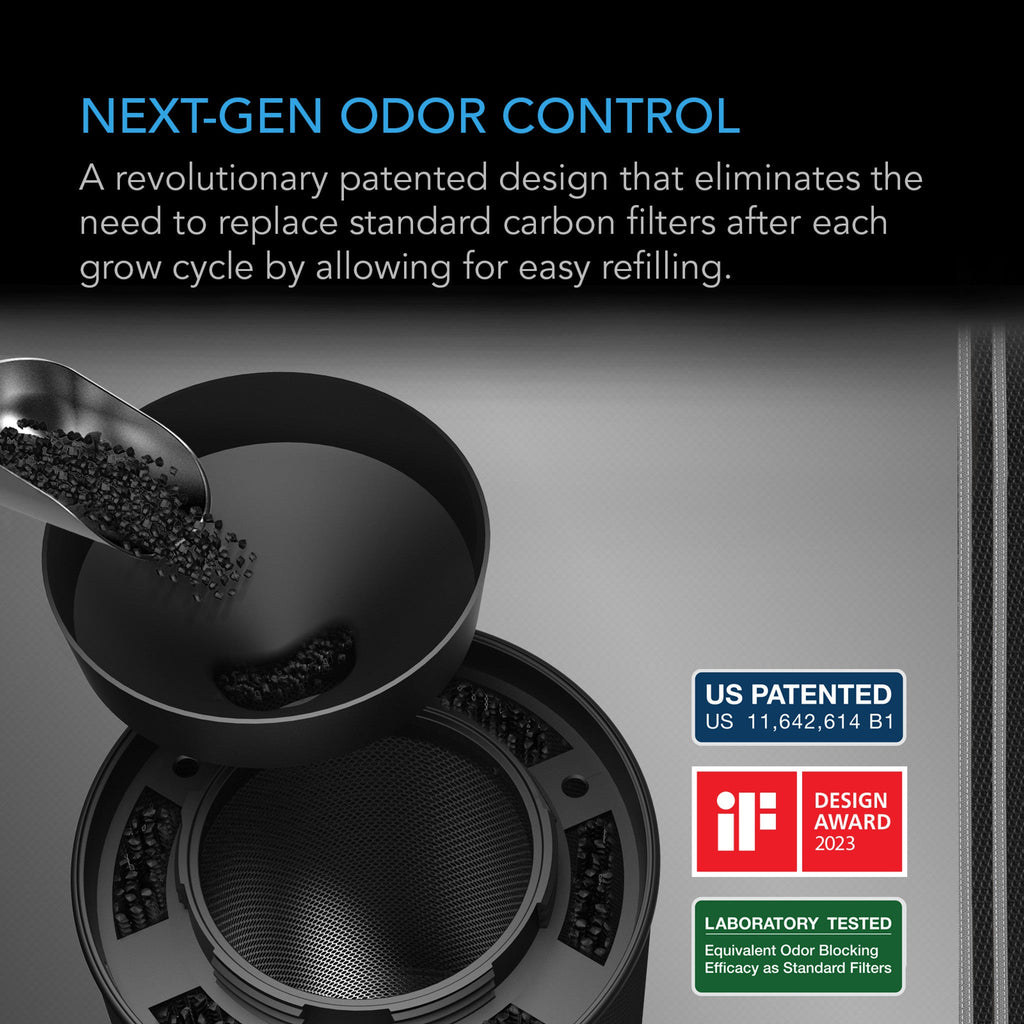

The iF Award-winning patented design refills with loose charcoal through a twist-off port flange, ending the cycle of buying and binning whole duct filters.
A 38mm bed of RC412 Australian virgin charcoal with a high adsorption rate — and one full refill ships in the box.
The expanded chamber achieves factory carbon compression on its own, lab-tested to block odours as effectively as standard sealed filters.
Hexagonal mesh maximises air passthrough on 100mm (4-inch) ducting, suiting both intake and exhaust setups up to 210 CFM.
Two layers of galvanised steel mesh with a sandblasted gunmetal finish and rubber-sealed aluminium flanges stand up to humid grow tents.
The aluminium flanges swap end for end so the whole carbon bed gets used, stretching the time between refills.

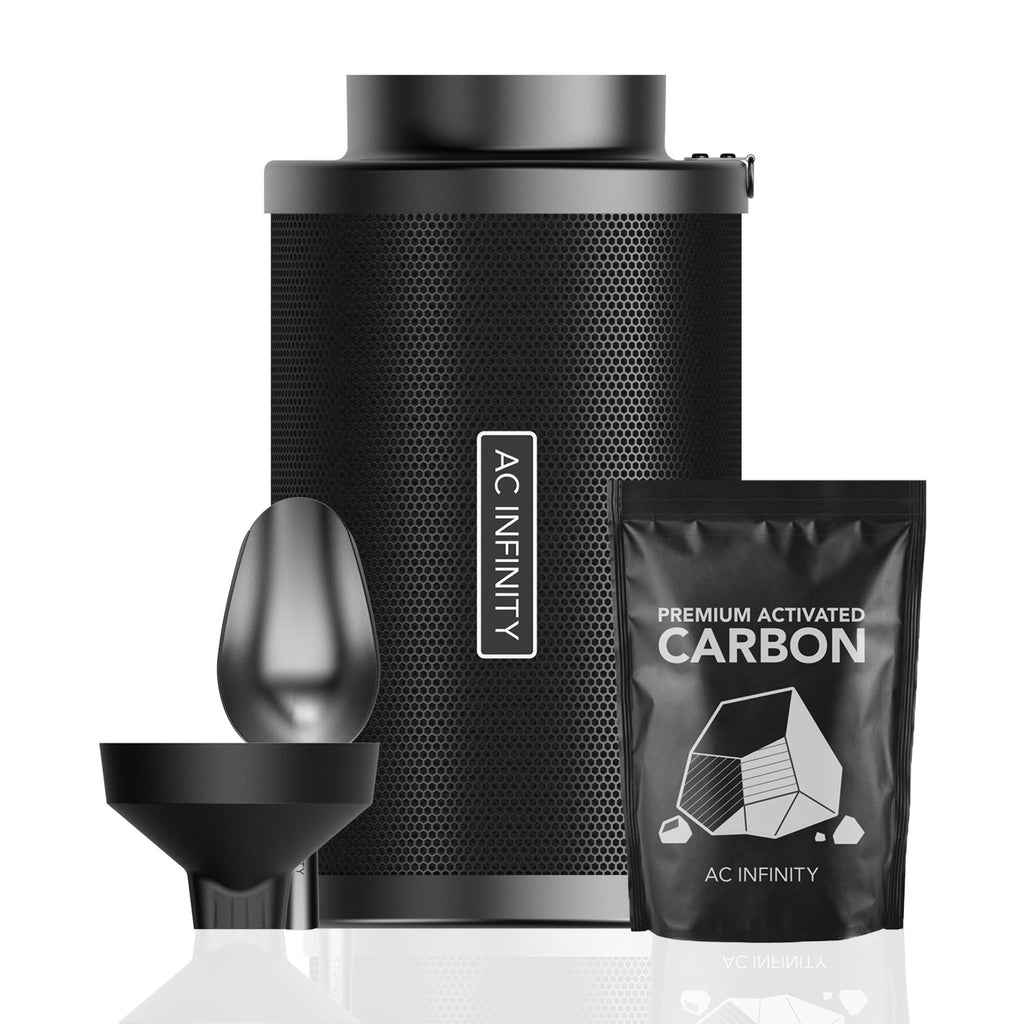

Includes one charcoal refill, two washable prefilter cloths, two hanging straps, two rope clips, and a steel scoop and funnel for mess-free refills.
Used charcoal tips straight into the compost, and refill bags cost a fraction of a replacement filter.
-
1
Fit the prefilter
For intake setups, slip a prefilter cloth over the filter so all the mesh is covered; for exhaust, stuff the prefilter inside the filter body instead.
-
2
Connect fan or ducting
Slide your ducting or inline fan's port over the flange and secure with duct clamps — a wrap of foil tape first gives extra hold.
-
3
Position it

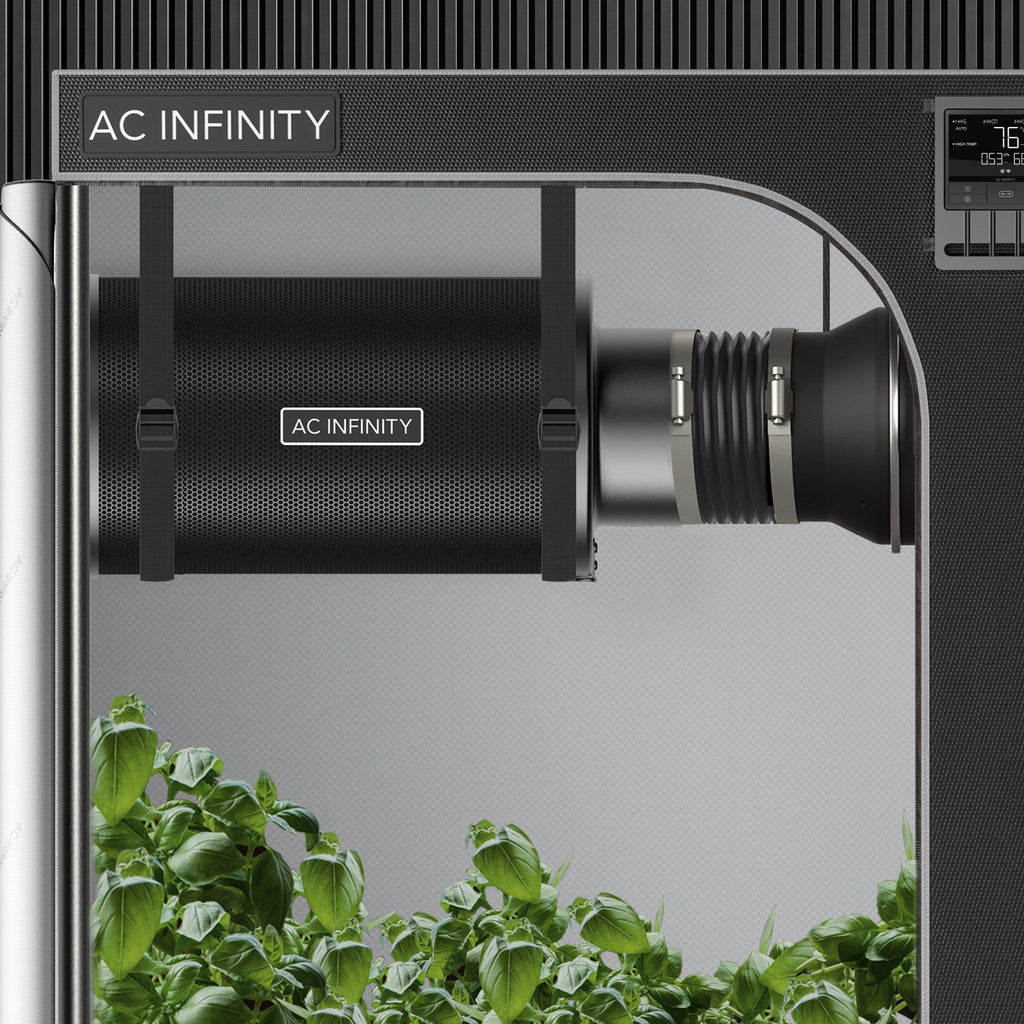

Hang inside the tent on the fan's intake end, or outside on the exhaust end. In humid spaces, mount the filter as high as possible.
-
4
Hang it up
Loop the straps around a support bar and lock them through the ladder locks, or clip the rope-clip carabiners straight onto the flange hooks.
-
5
Refill when odours return

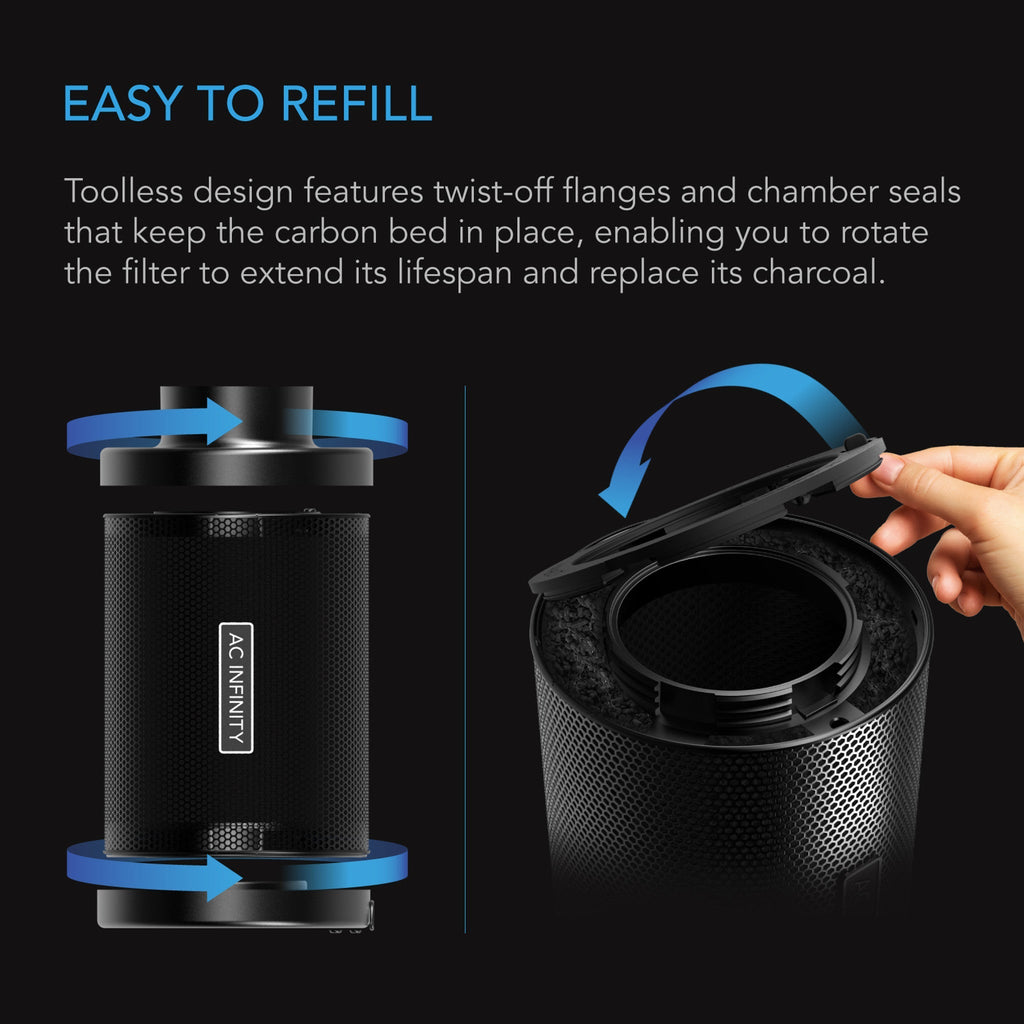

Twist off the port flange, remove the stopper, compost the spent carbon, then funnel in fresh charcoal — packed firm, never past the plastic barrier.
How is this different from a standard carbon filter?

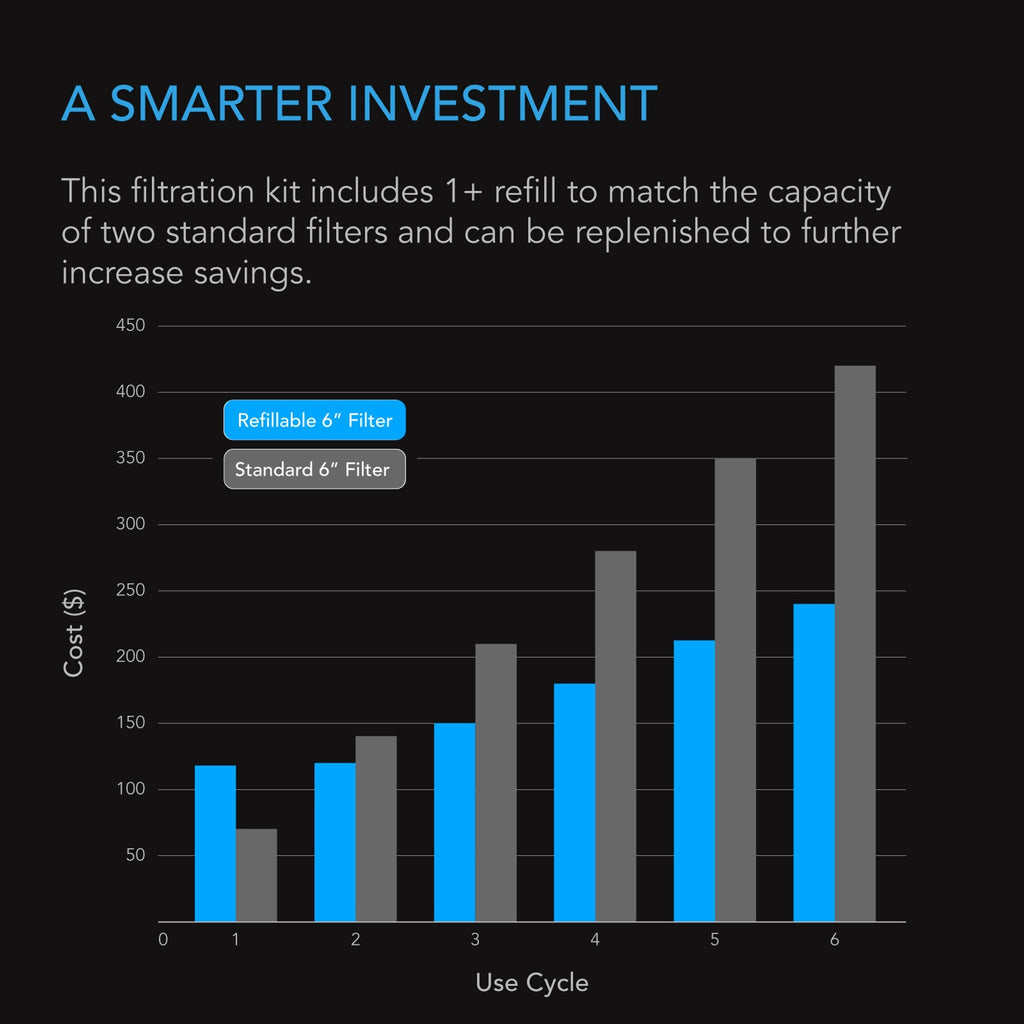

A standard duct filter is a sealed unit — once the carbon is spent, the whole thing is binned. This kit refills through a twist-off port flange with loose Australian charcoal instead, and the included refill gives it the filtration capacity of two standard filters. Refill bags cost a fraction of a new filter, and the spent carbon can be composted.
Which charcoal refill do I need?
The 8lb (about 3.6kg) bag of AC Infinity 1200+ IAV Australian charcoal gives this 100mm filter two full refills — it's the same RC412 grade that ships in the kit. One refill is already included in the box, so you're set for the first carbon change before you need a bag.
What fan should I pair with it?
Match the filter to your fan's duct size: this is the 100mm (4-inch) model, rated to 210 CFM, and it connects straight to a Cloudline PRO S4 or T4 inline fan or via 100mm ducting. The refillable line also comes in 150mm (6-inch) and 200mm (8-inch) sizes if your setup runs bigger ducting.
How long does the carbon last?
Expect one to two grow cycles between refills, depending on fan speed and how often the filter runs. Refill once odours first start slipping through. To stretch each fill further, wash the prefilter cloths, reverse the flanges now and then, and hold off running the filter until plants actually smell. A little black dust on arrival is shipping residue — it clears after first use.
What's included in the kit?
The 100mm filter itself (30.0 x 17.9cm with 4.0cm flanges), one charcoal refill, two washable prefilter cloths, two hanging straps, two rope clips, and a steel scoop and carbon funnel for refilling. AC Infinity backs it with a two-year warranty.
Description
A wholly original replenishable carbon filter designed to permanently replace standard duct filters. This iF Award-winning patented structure can be regularly refilled to offer a cost-effective and sustainable solution for unwanted odours in your grow tent. The charcoal fan filter kit also includes 1+ refill, making it as efficient as two standard inline carbon filters while proving more affordable.
You can purchase additional refills at a fraction of the price of an entirely new carbon scrubber to further increase the value of this kit. Features an expanded chamber that enables you to achieve factory carbon compression and the same lab-tested levels of odour-blocking effectiveness as standard carbon filters. This also eliminates the need for you to actively compress your replacement charcoal and facilitates the refilling process.
ECO-FRIENDLY DESIGN
This first-of-its-kind filtration system removes the need to routinely purchase replacement filters and dispose of the old units. Each carbon filter features premium-grade Australian virgin charcoal and comes with 1+ refill. Its activated charcoal utilises an enhanced surface area with a higher adsorption rate to help extend the time between refills. Further lengthen the charcoal bedding’s lifespan by reversing the filter’s easy-to-remove flanges. You can compost the used supply when replacing the charcoal to maximise its utility even further.
HIGHLY DURABLE BUILD

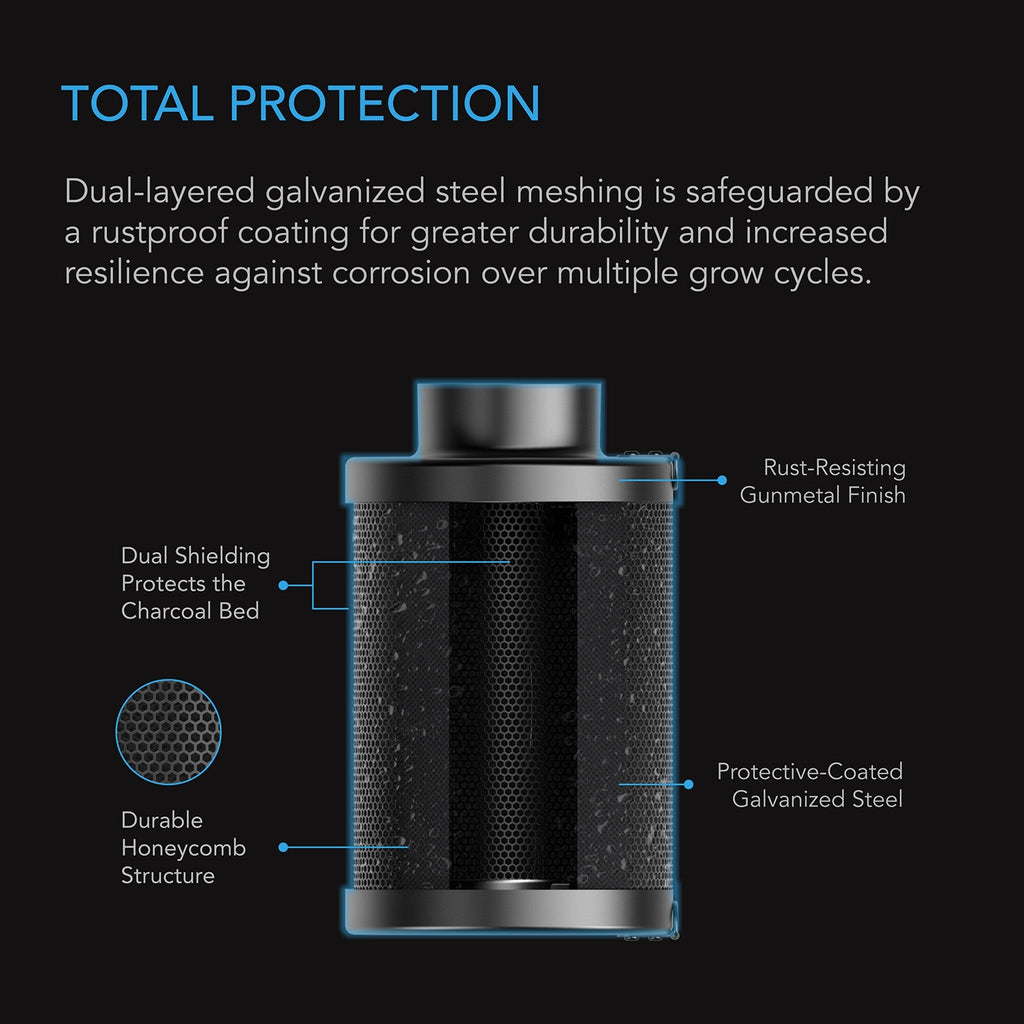

The activated charcoal is safely locked within your odor filter by aluminium flanges and a secure rubber seal. The filter itself employs two layers of galvanised steel meshing with a sandblasted finish to protect the charcoal bedding. These multiple layers work together to effectively block odours in even the most humid environments by ensuring increased resistance to rust and corrosion.
APPLICATIONS
This refillable carbon filter pairs with 4” inline duct fans and ducting to improve air quality in hydroponic grow rooms and grow tents. The kit includes a convenient funnel and scoop set and one charcoal refill for continuous odour scrubbing. Additional refills are available for purchase
KEY FEATURES
- Reusable carbon filter features a patented design that eliminates the need to replace entire filters.
- Includes 1+ refill to match the filtration capacity of two standard 4” carbon filters while costing less.
- Removable twist-off flanges support easy, tool-free refilling using the included funnel and scoop.
- Larger chamber is lab-tested to block odours as effectively as standard filters with no compression required.
- Dual-layered steel mesh with protective coating withstands high humidity in grow
tents through many grow cycles.

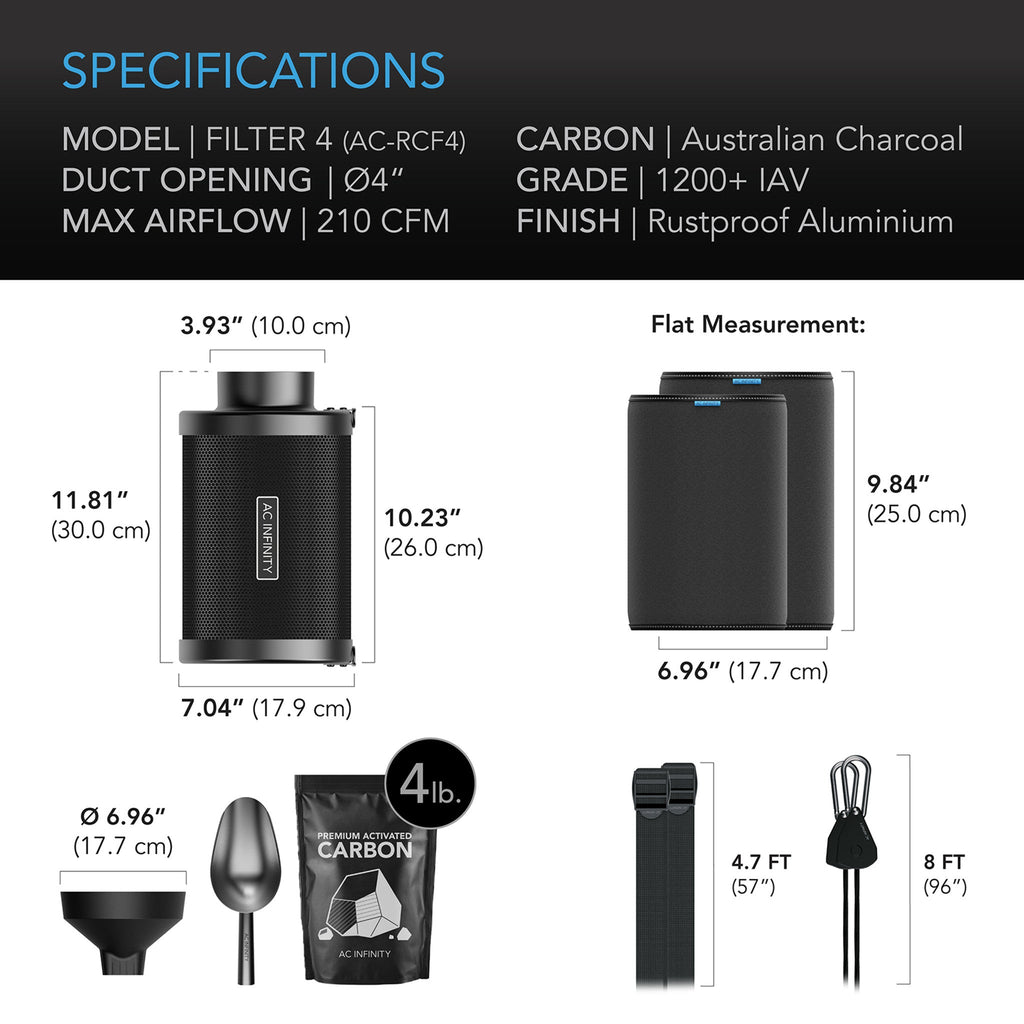

| Product Identification Refillable Carbon Filter 4" / 100 MM | |
| Manufacturer | AC Infinity Inc. |
| Product Name | Refillable Carbon Filter 4" |
| Product Model | AC-RCF4 |
| UPC Code | 819137024168 |
| Product and Mounting Dimensions | |
| Duct Opening Size | 4" |
| Total Dimensions | 11.81 x 7.04 in. (30.0 x 17.9 cm) |
| Flange Length | 1.57 in. (4.0 cm) |
| Product Performance and Technical Specs | |
| Flange Material | Aluminum |
| Flange Design | Reversible |
| Mesh Material | Rust-Resistant Galvanized Steel with Gunmetal Finish |
| Carbon Type | Australian Virgin RC412 |
| Carbon Grade | 1200+ IAV |
| Carbon Thickness | 38mm |
| Maximum Airflow | 210 CFM |
| Product Manual | |
| Product Manual |
 PDF |
