Features
The 120mm fan delivers 52 CFM airflow for targeted cooling around electronics and ventilated cabinets.
Listed at 18 dBA, the fan balances component cooling with low operating noise.
The inline controller provides low, medium and high settings plus power-off control.
Dual-ball bearings support horizontal or vertical positioning for top exhaust or targeted airflow.
A standard USB connection and 1.8m lead support convenient placement near compatible powered electronics.
The additional USB port supports daisy-chaining up to four fans from one suitable USB power source.
-
1
Choose airflow direction
Lay the fan flat for top exhaust or stand it upright for targeted cooling, then flip it to reverse airflow direction.
-
2
Keep airflow open
Position the fan beside an open vent or ventilated cabinet; fully enclosed cabinets cannot exchange enough air.
-
3
Connect USB power
Plug the fan into a dedicated USB port rated at 500mA or higher.
-
4
Select a speed
Use the inline controller to choose low, medium or high airflow for the required cooling and noise level.
-
5
Add fans if needed
Daisy-chain up to four MULTIFAN units on suitable USB power, keeping downstream fan controllers set to high.
Can the MULTIFAN S3 run from a standard USB port?
Yes. Connect it to a dedicated USB port rated at 500mA or higher. Some electronics keep their USB ports powered while the main device is off, so the fan may continue running until switched off using its inline controller.
How many MULTIFAN units can be daisy-chained?
Up to four fan units can share one suitable USB power source through their additional USB ports. Dual-fan models count as two fans. When units are chained, set the controllers on fans nearest the power source appropriately and avoid exceeding the documented limit.
Can the fan operate horizontally or vertically?
Yes. Its dual-ball bearings support horizontal and vertical positioning. Lay it flat over a ventilated electronic device to exhaust rising heat, or stand it upright to direct airflow towards a component or confined area requiring circulation.
Can it be used with filters or outdoors?
No. The manufacturer does not specify the MULTIFAN for filters, outdoor installations or through-wall mounting. It is intended for ventilating electronics and open or vented indoor cabinets. Keep its airflow path clear and do not stack equipment directly on the fan.
Can the airflow direction be reversed?
Yes. Flip the fan around to change between intake and exhaust airflow. Choose the orientation that moves warm air away from the equipment and allows replacement air to enter; a fully enclosed cabinet still needs ventilation openings.
Description
The ultra-quiet cooling fan can be positioned to stand upright or laid flat to cool various electronics and components.

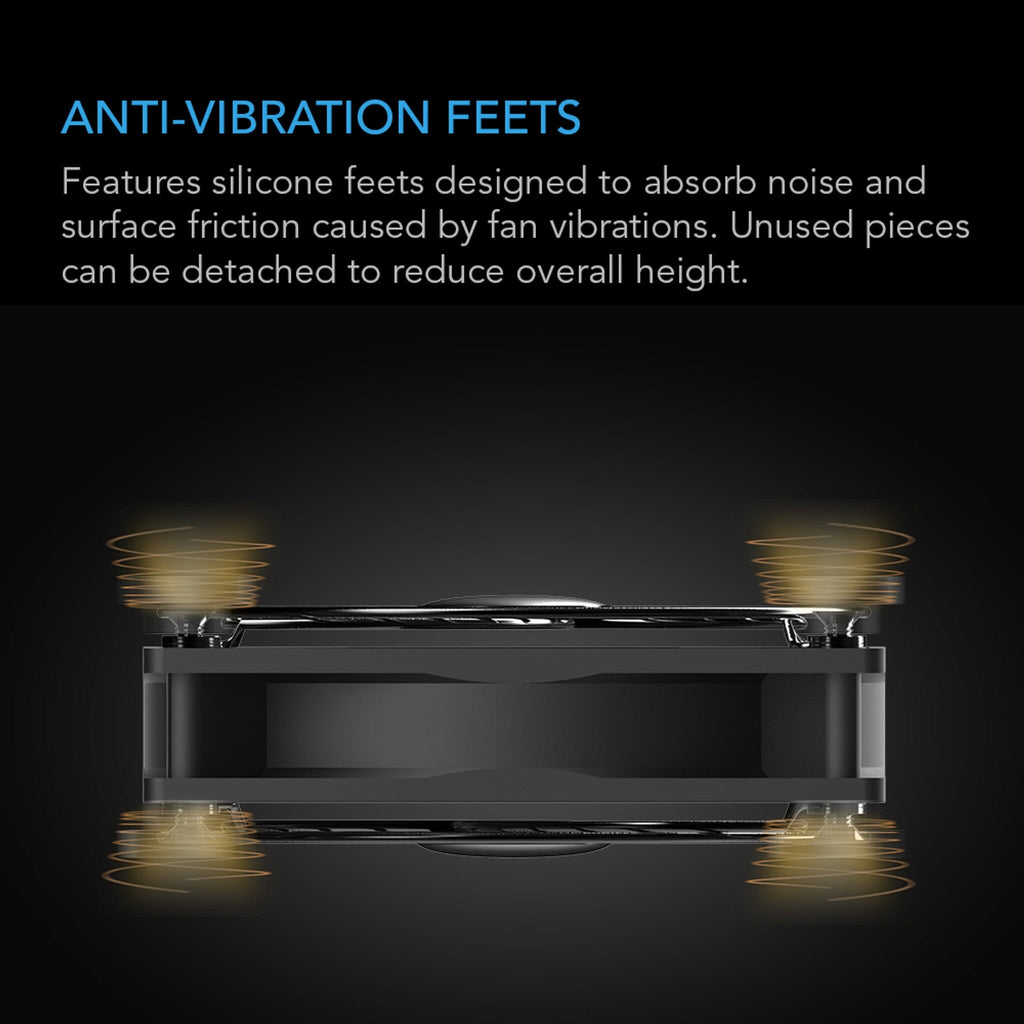

Features a multi-speed controller with power switch. Includes eight large anti-vibration rubber feet and a 6-foot power cord. The USB plug can be plugged into the USB ports found behind popular electronics such as receivers and video game consoles.
Each unit contains an additional USB port, up to four fans can be daisy chained together to share the same power source.
This fan system is CE and RoHS certified and contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.
Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903.

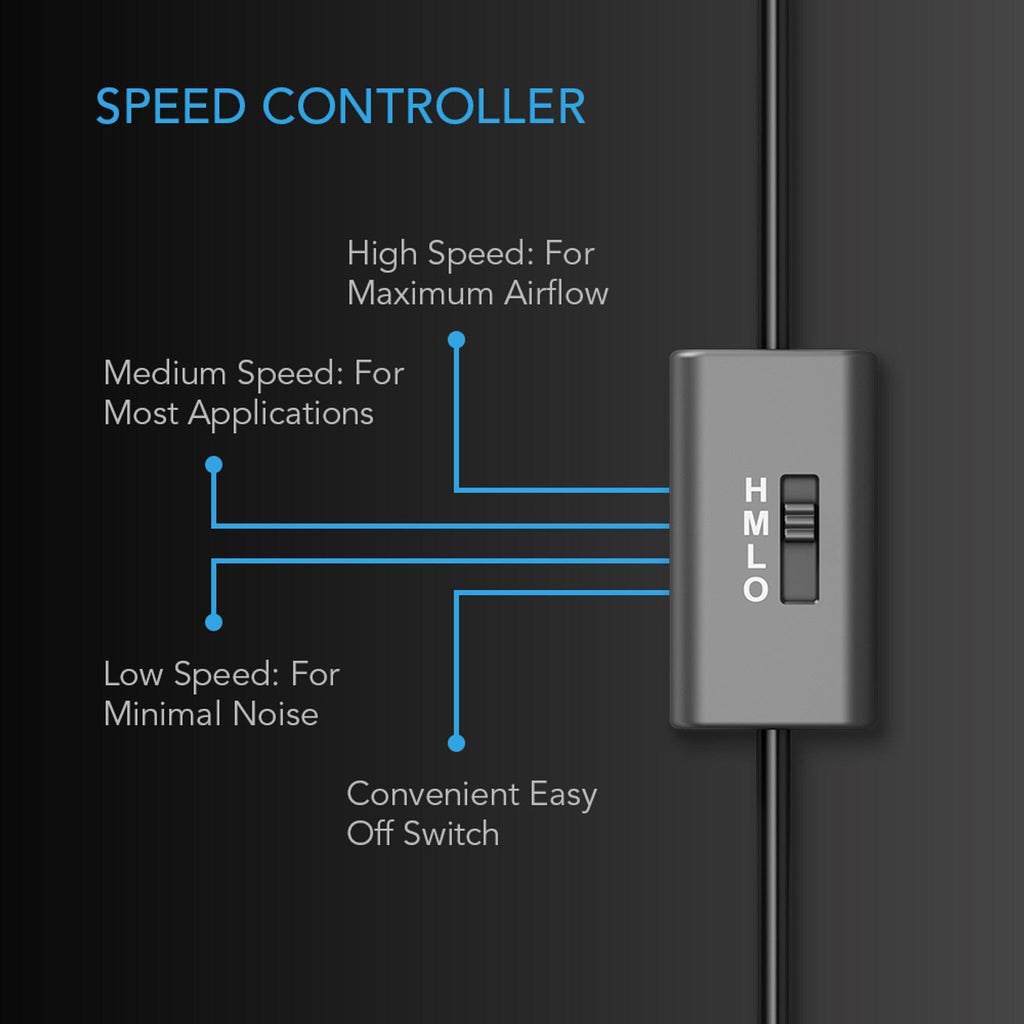

SPEED CONTROLLER
The fan includes an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.
CONNECTING ADDITIONAL UNITS

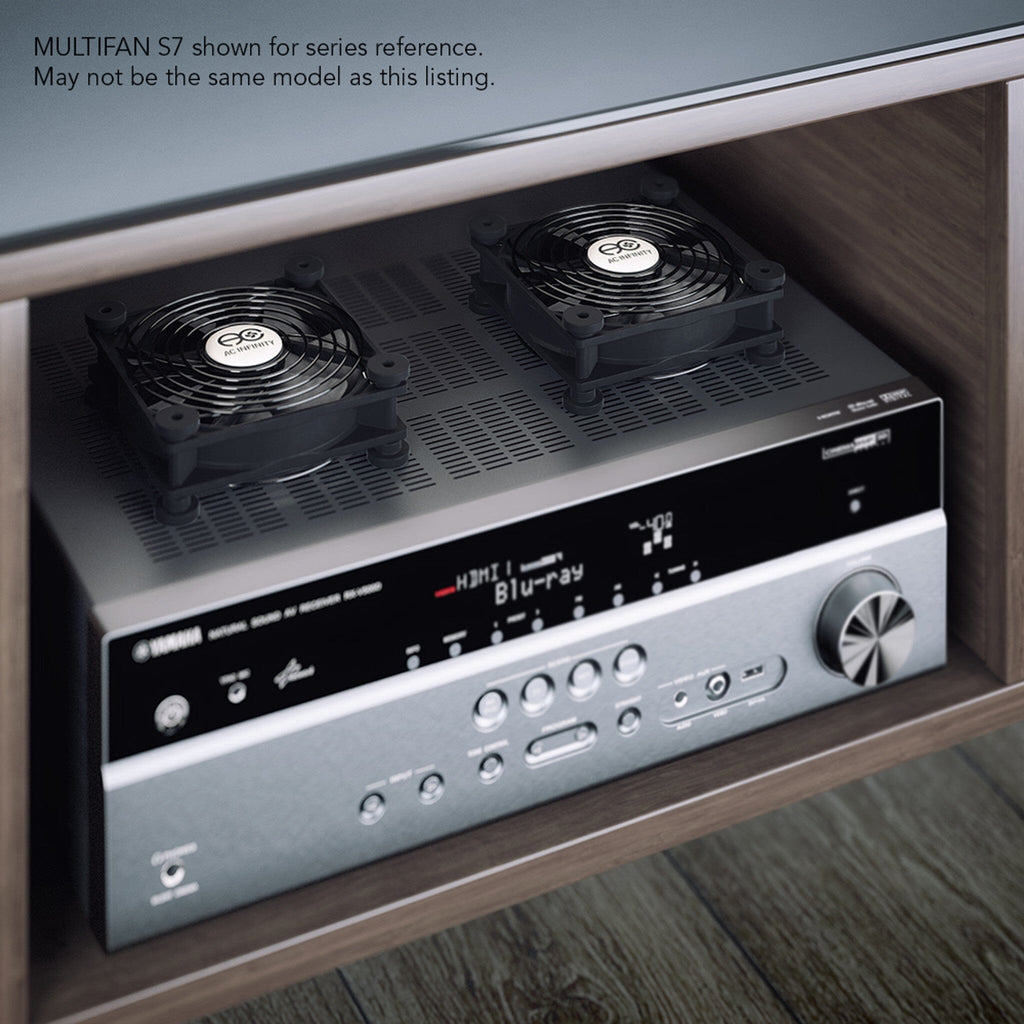

For electronics and components that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.
APPLICATIONS

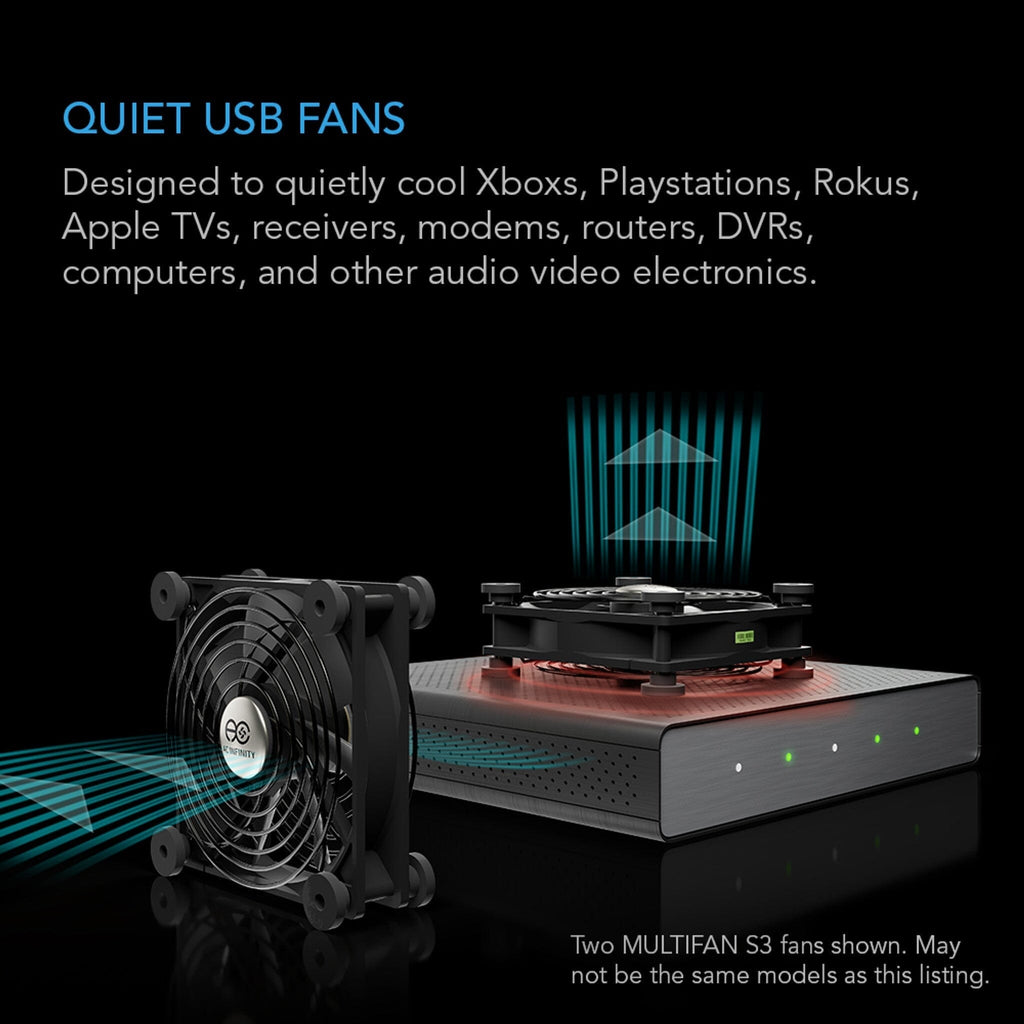

This ultra-quiet cooling fan is popular in a variety of electronics and components such as receivers, DVRs, video game consoles, modems, computers, amplifiers, and other audio video equipment.
KEY FEATURES
- Ultra-quiet UL-certified USB fan designed to cool various electronics and components.
- Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.

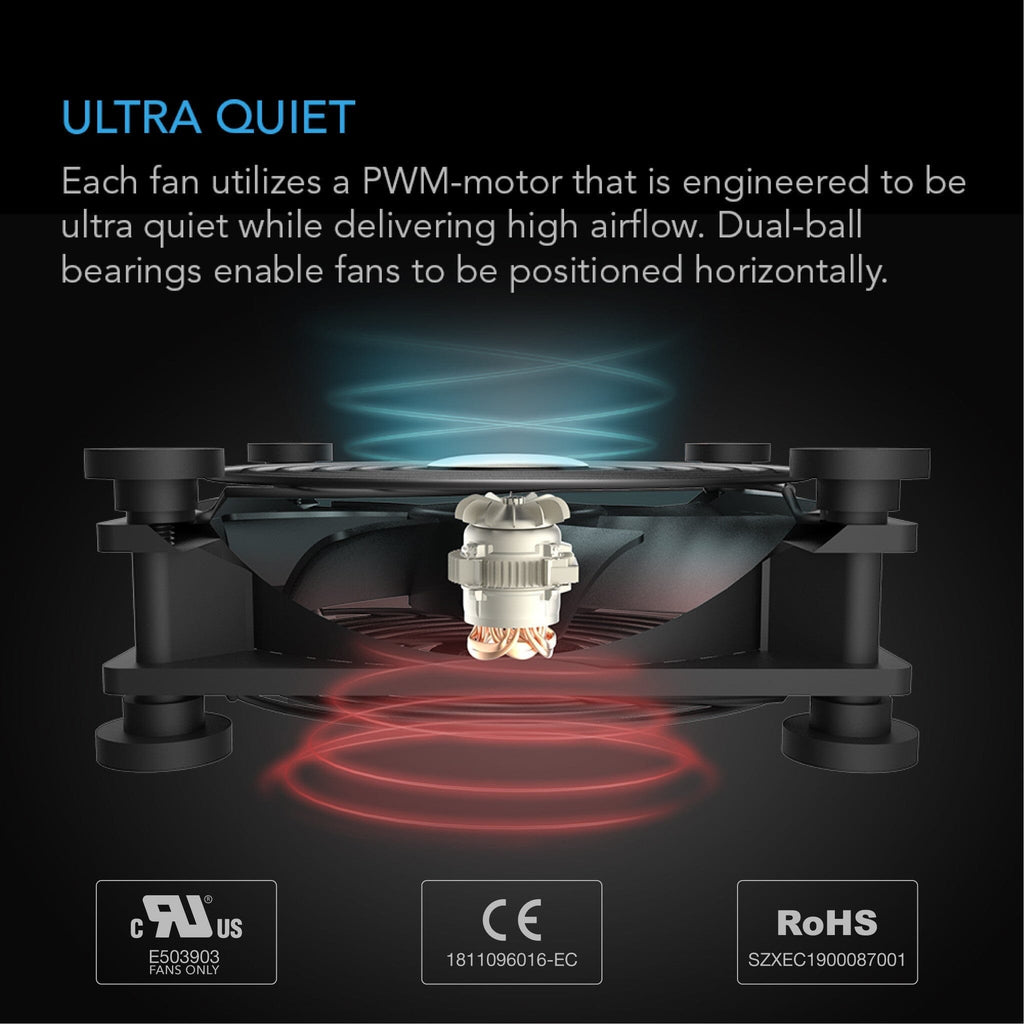

- Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
- USB plug can power the fan through USB ports found behind popular AV electronics and game consoles.
- Fan Size: 4.7 x 4.7 x 1 in. | Airflow: 52 CFM | Noise: 18 dBA | Bearings: Dual Ball
| Product Identification Multifan S3 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | MULTIFAN S3 |
| Product Model | AI-MPF120A |
| UPC Code | 854759004310 |

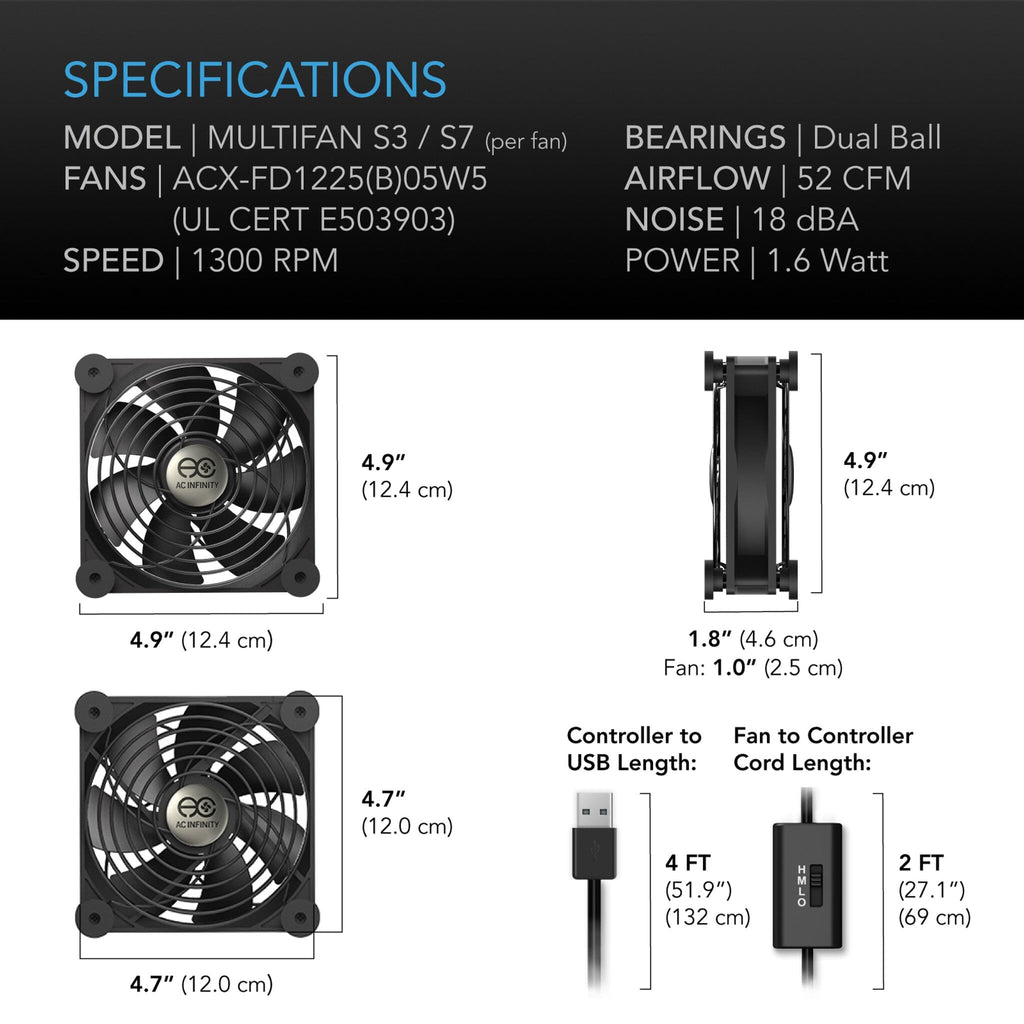

| Product Dimensions | |
| Total Dimensions | 4.7 x 4.7 x 1.0 in. (12.0 x 12.0 x 2.5 cm) |
| Hole to Hole Distance | 4.14 x 4.14 in. (10.5 x 10.5 cm) |
| Screw Hole Size | Ø 0.17 in. (Ø 0.4 cm) |
| Cord Length | 72 in. (6 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 52 CFM |
| Total Noise | 18 dBA |
| Speed | 1300 RPM |
| Operating Voltage | 3 to 7V DC |
| Power | 1.6 W |
| Current | 0.32 A |
| Wall Adapter Input | 100 to 240V AC |
| Static Pressure | 1 mm-H2O |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 158°F |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| UL Certification (Fans Only) |
 PDF |
| CE Certification (Whole Product) |
PDF |
| RoHS Cert. (Whole Product) |
PDF |
| Product Manuals | |
| Fan Unit Manual |
PDF |
