Grower Tip
- Hang the light at least 30cm above the canopy, starting near 40% for seedlings, 80% for vegetative growth and 100% for flowering.
- Plan around 120x120cm vegetative coverage or 90x90cm flowering coverage, then adjust height and intensity for the crop's response.
- Remote-mount the removable driver outside the tent when you want to shift its heat away from the growing area.
Features
The 896-diode array combines Samsung LM301H EVO white LEDs with 395nm UV, 660nm red and 730nm far-red diodes.
Covers up to 120x120cm in vegetative growth and 90x90cm in flowering inside a reflective grow space.
The included schedule controller provides ten intensity settings plus daily scheduling and gradual sunrise and sunset transitions.
Mount the driver on the fixture or remotely on a suitable wall to manage placement and heat distribution.
Compatible with Controller 69, Controller 69 Pro, Controller 69 Pro+ and Controller AI+ for central programming and supported app features.
The steel-and-aluminium bar frame supports passive cooling, magnetic accessory mounting and IP65 protection from dust and liquids.
This Grow Kings model accepts 100–277V AC at 50/60Hz and ships with an Australian power plug.
-
1
Choose the driver position
Decide whether to mount the removable driver on the fixture or remotely on a structurally sound, unobstructed wall.
-
2
Secure the driver
Fit the supplied brackets to the driver, fasten them to the frame or wall, then connect the locking driver lead.
-
3
Hang the fixture
Clip the wire hangers to the four corner anchors and attach both carabiners to the tent's roof support beams.
-
4
Set the hanging height
Position the light at least 30cm above the canopy, then adjust for plant stage and response.
-
5
Connect the controller
Link the LED driver to the included schedule controller with the supplied UIS extension cable.
-
6
Connect Australian power
Plug the supplied Australian lead into a suitable outlet matching the 100–277V AC, 50/60Hz input range.
-
7
Program the light
Set the clock, choose an intensity level and configure the daily schedule or sunrise and sunset transition.
What area does the IONFRAME EVO4 cover?
The IONFRAME EVO4 covers up to 120x120cm, or 4x4ft, during vegetative growth and 90x90cm, or 3x3ft, during flowering. The manual's starter guide assumes the fixture is hung at least 30cm above the plants. Actual placement and intensity should be adjusted for the crop and its response.
Does this version include an Australian plug?
Yes. The Grow Kings AU configuration ships with an Australian power plug and accepts 100–277V AC at 50/60Hz, so no travel adapter is needed. These regional details come from the live Australian Shopify record and take precedence over North American product listings that may show a different plug.
Is a light controller included?
Yes. The included schedule controller provides ten brightness levels, ON and OFF modes, a repeating daily schedule and gradual sunrise and sunset transitions. It connects directly to the LED driver with the supplied UIS extension cable and can mount magnetically to the IONFRAME or attach to a suitable wall.
Which UIS controllers work with the EVO4?
The IONFRAME series is compatible with Controller 69, Controller 69 Pro, Controller 69 Pro+ and Controller AI+. These controllers can provide central UIS programming, while Wi-Fi-equipped models add supported remote app access. The EVO4 includes male-to-male UIS cables for connecting its driver to a compatible controller.
Can the LED driver be mounted outside the grow tent?
Yes. The removable driver can attach to the fixture frame or mount remotely on a structurally sound wall with the supplied brackets and extension cable. Remote placement helps move the driver's heat away from the growing area. Keep the mounting point clear of obstructions and follow the manual's fixing instructions.
Can I add IONBEAM light bars to the frame?
Yes. IONBEAM LED bars can mount magnetically to the IONFRAME's steel frame for supplemental lighting. Their controller can connect to the included schedule controller with a UIS extension lead, allowing the bars to follow the grow light's schedule. Choose the bar size and spectrum that suit the coverage gap you want to address.
Description

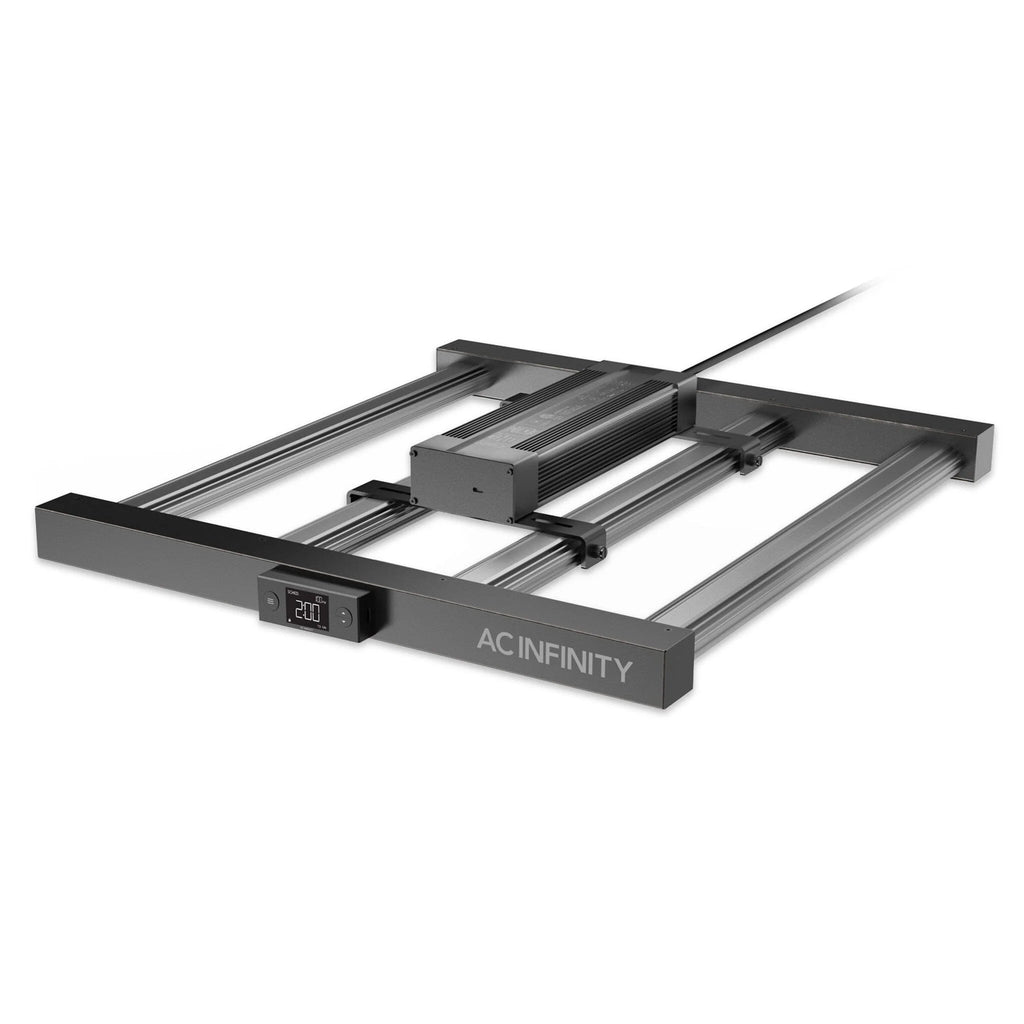

An indoor plant grow light designed for grow tents and large grow spaces to improve your plant's growth rate and its yields.
Utilises Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots. Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation.
This heat dissipation is supported by its steel and aluminium build, which enables magnetic mounting and is IP-65-rated to withstand humid environments. This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications.
The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately).

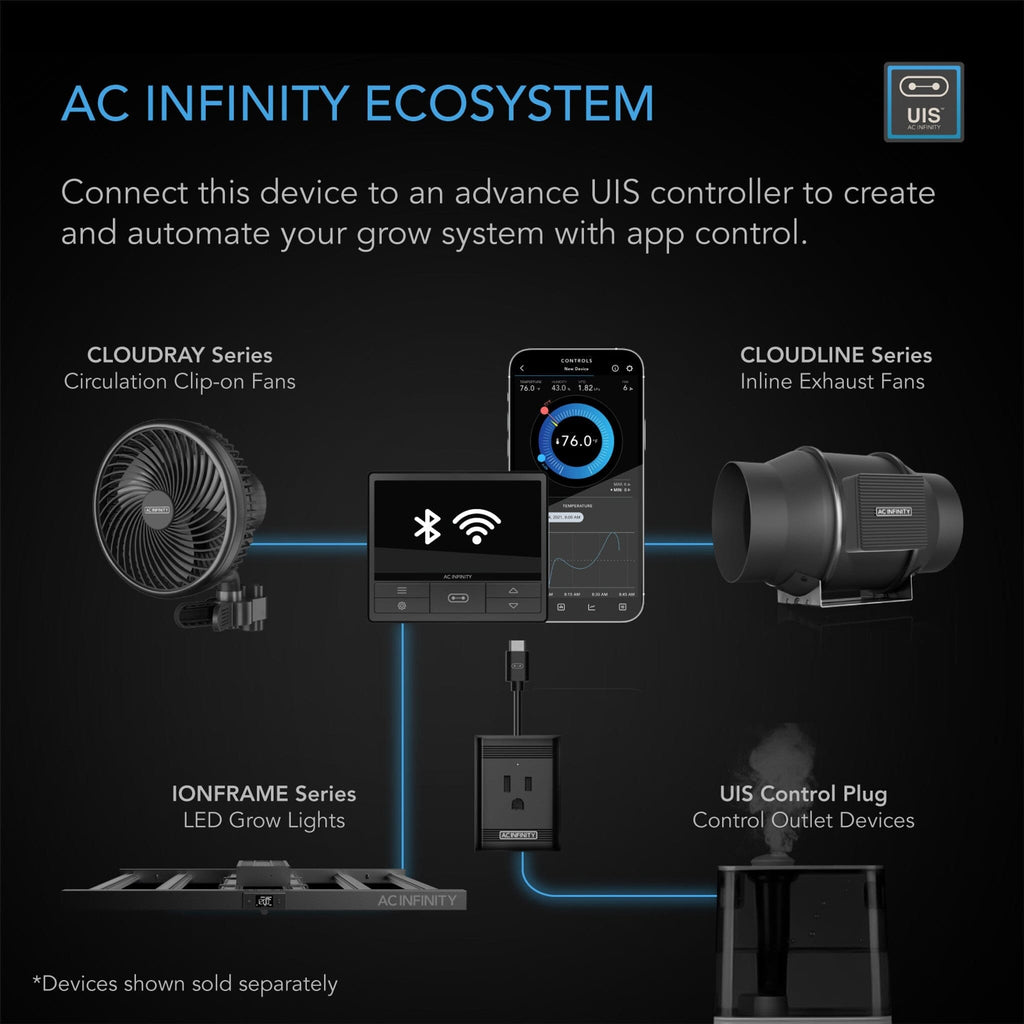

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
INDUSTRY-LEADING LED CHIPS

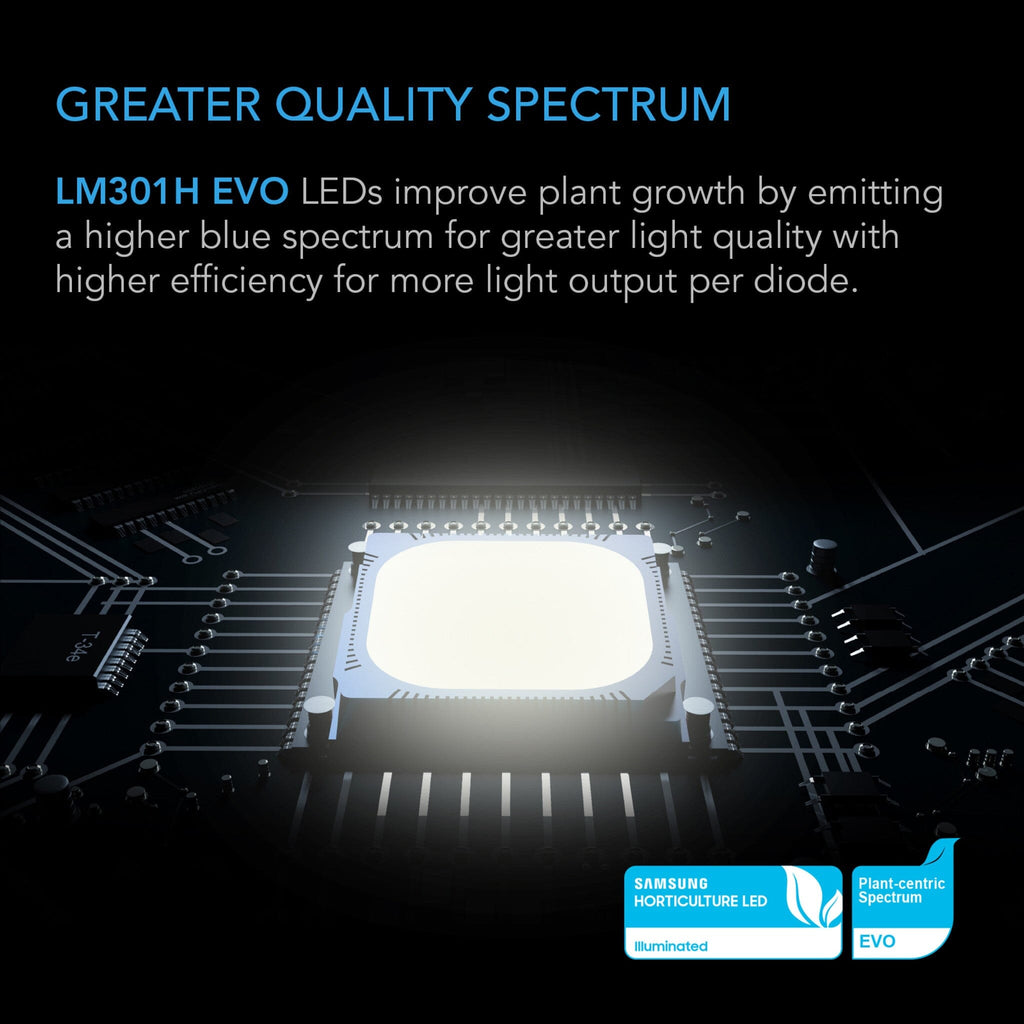

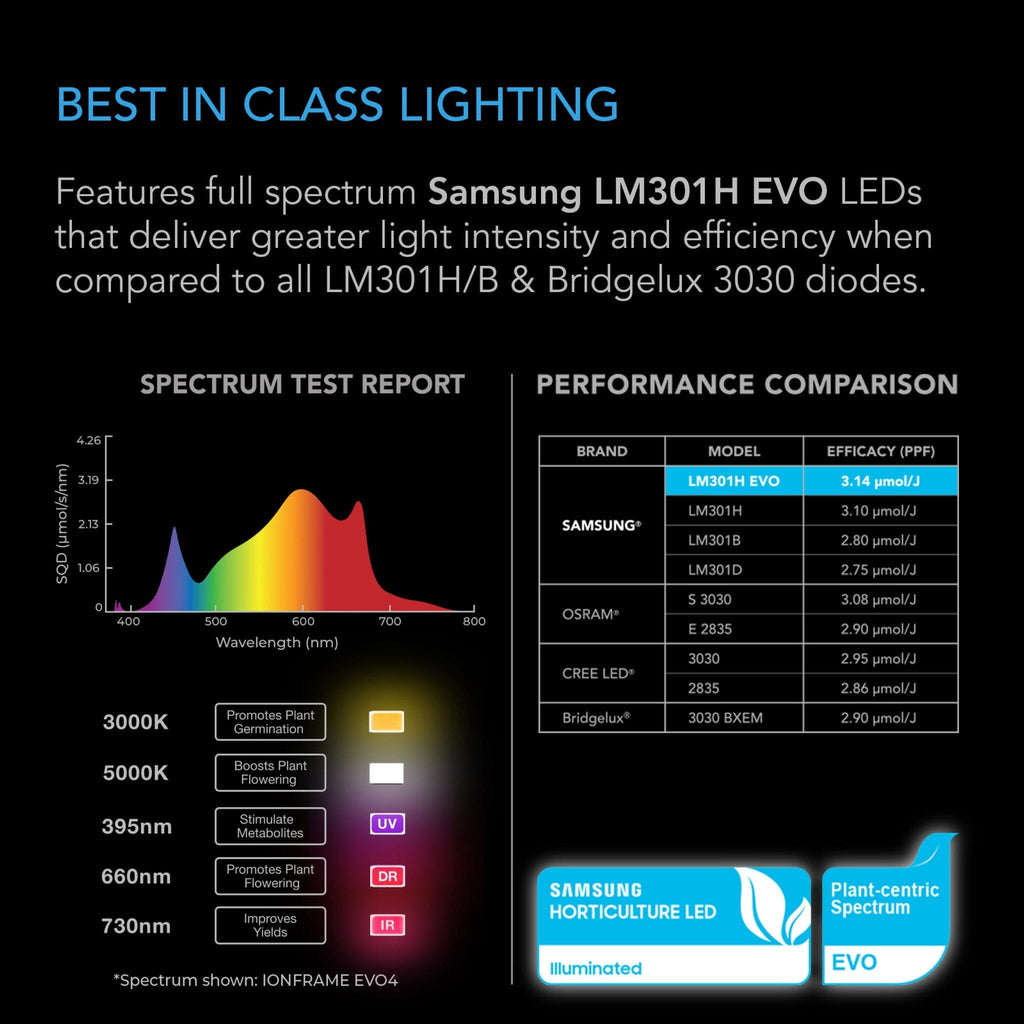

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (4) 395 nm UV diodes, (28) 660 nm and (4) 730 nm OSRAM red diodes to complete its full spectrum light output.
SCHEDULE AND BRIGHTNESS CONTROLS

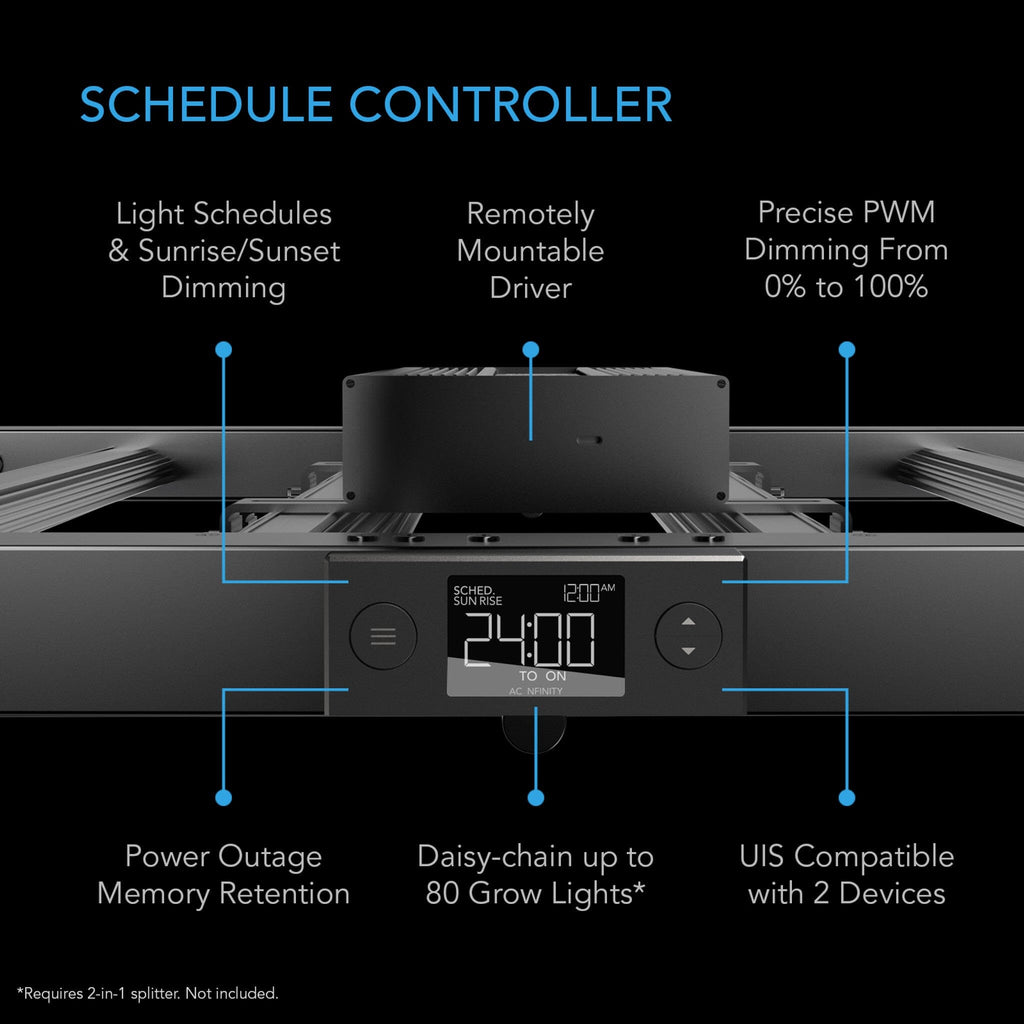

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customise this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement. Use this grow light with an advance UIS controller like CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
KEY FEATURES
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.

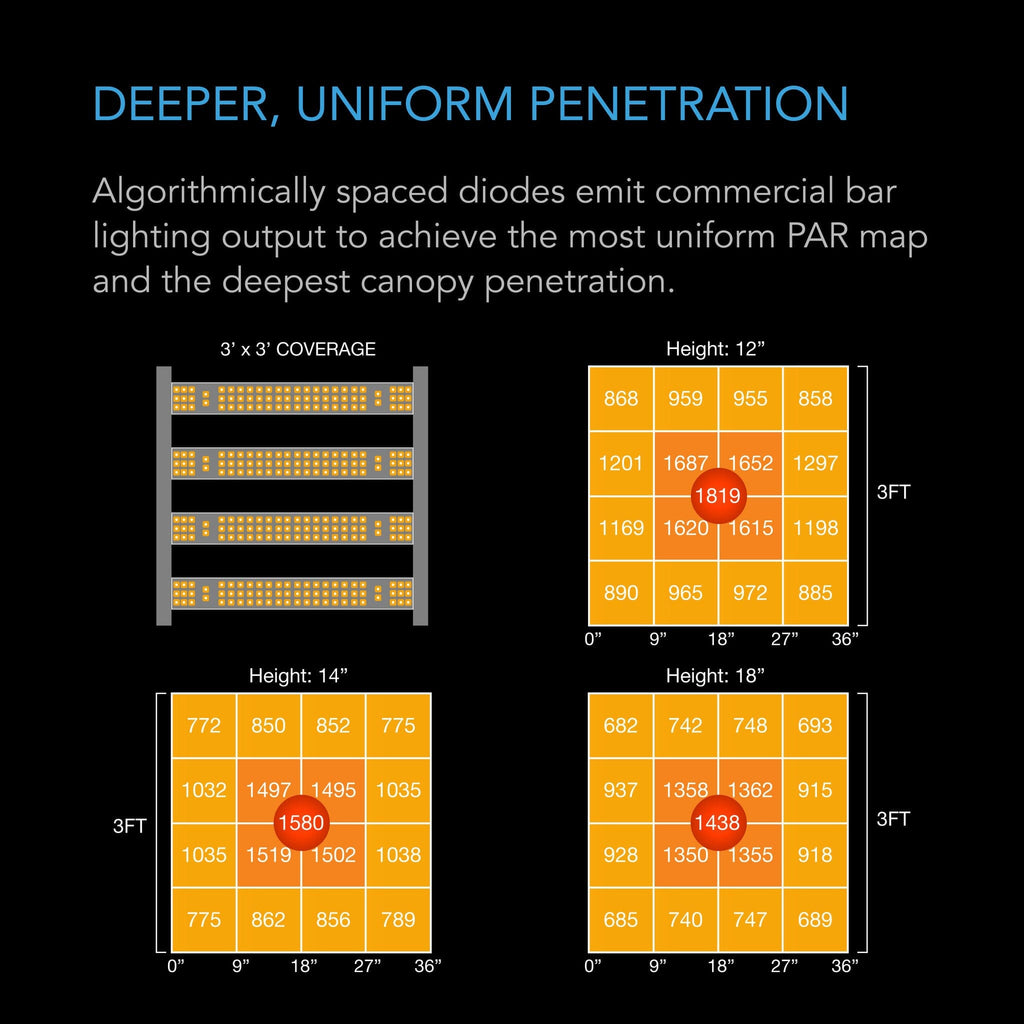

- Bar-style fixture with algorithmically spaced diodes optimised for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 120x120 CM (4 x 4 ft.) Veg. Coverage | 90x90 Cm (3 x 3 ft.) Flower Coverage | Samsung LM301H EVO Chips | 896 Diodes | 300W | 1819 PPFD | ETL Cert. 5021417
- Ships w. Australian Power-plug, nothing needed to connect and use today.
| Product Identification IONFRAME EVO4 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME EVO4 |
| Product Model | AC-IF4K |
| UPC Code | 819137024052 |

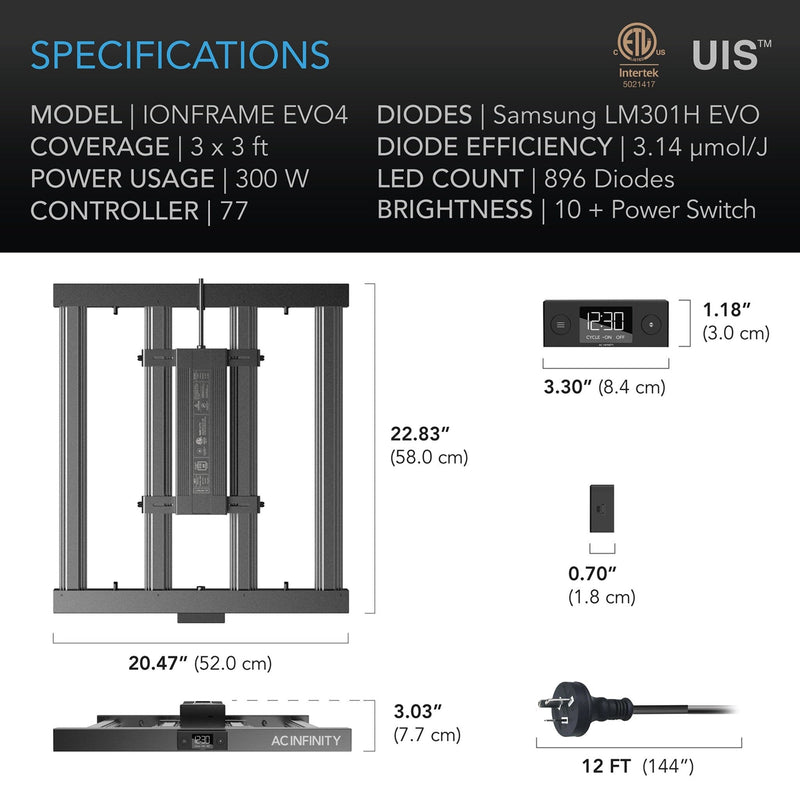

| Product and Mounting Dimensions | |
| Light Dimensions | 20.47 x 22.83 x 2.99 in. (52.0 x 58.0 x 7.6 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 90 x 90 Cm (3 x 3 ft.) |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 896 |
| Chip Count (EVO 3000K) | 360 |
| Chip Count (EVO 5000K) | 500 |
| Chip Count (Seoul 395 nm) | 4 |
| Chip Count (OSRAM 660 nm) | 28 |
| Chip Count (OSRAM 730 nm) | 4 |
| LED Driver | SOSEN-320W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 1819 PPFD |
| Wattage | 300 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.0 A Max. |
| Controller | Schedule Controller |
| Power Connector Type | Australian Power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| ETL Certification |
 PDF |
| Product Manual | |
| Product Manual |
PDF |
