Grower Tip
- Start around 45.7cm above the canopy at 40% for seedlings, 80% vegetative and 100% flowering, then adjust for crop response.
- Remote-mount the driver on a structurally sound wall when you want its heat source positioned away from the fixture.
- Use the schedule controller's sunrise and sunset mode to ramp between the programmed minimum and maximum intensity levels.
- Magnetically mount compatible IONBEAM bars to the frame when adding supplementary intensity or spectrum.
Features
Algorithmically spaced bars distribute light across a rectangular canopy while reducing concentrated hotspots.
Samsung LM301H EVO white diodes combine with 395nm, 660nm and 730nm supplementary diodes for full-spectrum output.
The guide lists 90x150cm vegetative, 60x120cm flowering and 30x90cm coverage with supplemental CO₂.
The included controller provides ten intensity levels, daily schedules and gradual sunrise and sunset transitions.
The SOSEN 320W driver can remain frame-mounted or move to a suitable wall using the supplied extension lead.
Connect a compatible UIS controller for app-based automation, shared programming and grow-system integration.
The 100–277V AC, 50/60Hz fixture is supplied with an Australian power plug and carries an IP65 rating.
-
1
Check the support
Confirm the tent roof bars or overhead structure can securely support the 41x83cm fixture before installation.
-
2
Position the driver
Fit the driver to the centre columns, or mount it on a structurally sound wall with the supplied bracket and lead.
-
3
Hang the fixture
Clip the wire hangers to all four corner anchors, then attach the rope-clip carabiners to the roof support bars.
-
4
Connect the controls
Join the driver to the light and connect its UIS port to the included schedule controller using the supplied cable.
-
5
Power the light
Plug the Australian power lead into a suitable outlet only after the fixture, driver and controller cables are secure.
-
6
Set the programme
Enter the current time, choose intensity levels and configure the daily schedule or sunrise and sunset transition.
-
7
Add UIS control
Connect a compatible UIS controller when app access, grow recipes or shared environmental automation are required.
What area does the IONFRAME EVO3 cover?
The stage guide lists up to 90x150cm for vegetative growth, 60x120cm for flowering and 30x90cm when using supplemental CO₂ at 1200ppm or higher. The 60x120cm flowering footprint matches a 2x4ft grow area. Actual mounting and intensity should be adjusted for the crop and environment.
What comes with the EVO3?
The package includes the IONFRAME EVO3 fixture, schedule controller, LED driver, driver bracket and extension lead, rope clips, wire hangers, two UIS cables, wire ties and mounting hardware. These parts support either frame-mounted or remote driver placement and the manual's standard single-driver connection sequence.
Is this the Australian-voltage version?
Yes. The Grow Kings listing specifies a 100–277V AC, 50/60Hz input and an Australian power plug, so no plug adapter is required for the supplied unit. The fixture is rated at 280W. Secure all connections and complete the hanging setup before connecting it to power.
What can the included schedule controller do?
It provides ten brightness levels, ON and OFF intensity settings, daily schedule times and gradual sunrise and sunset transitions. A compatible UIS controller such as Controller 69 Pro can add AC Infinity app access, shared automation and more advanced programming across connected grow devices.
Can the driver be mounted away from the light?
Yes. The driver can remain on the centre columns or mount on a structurally sound wall using the supplied bracket, screws and extension lead. Remote placement changes the driver's position without changing the fixture's controller connection, light output settings or Australian power requirements.
Description

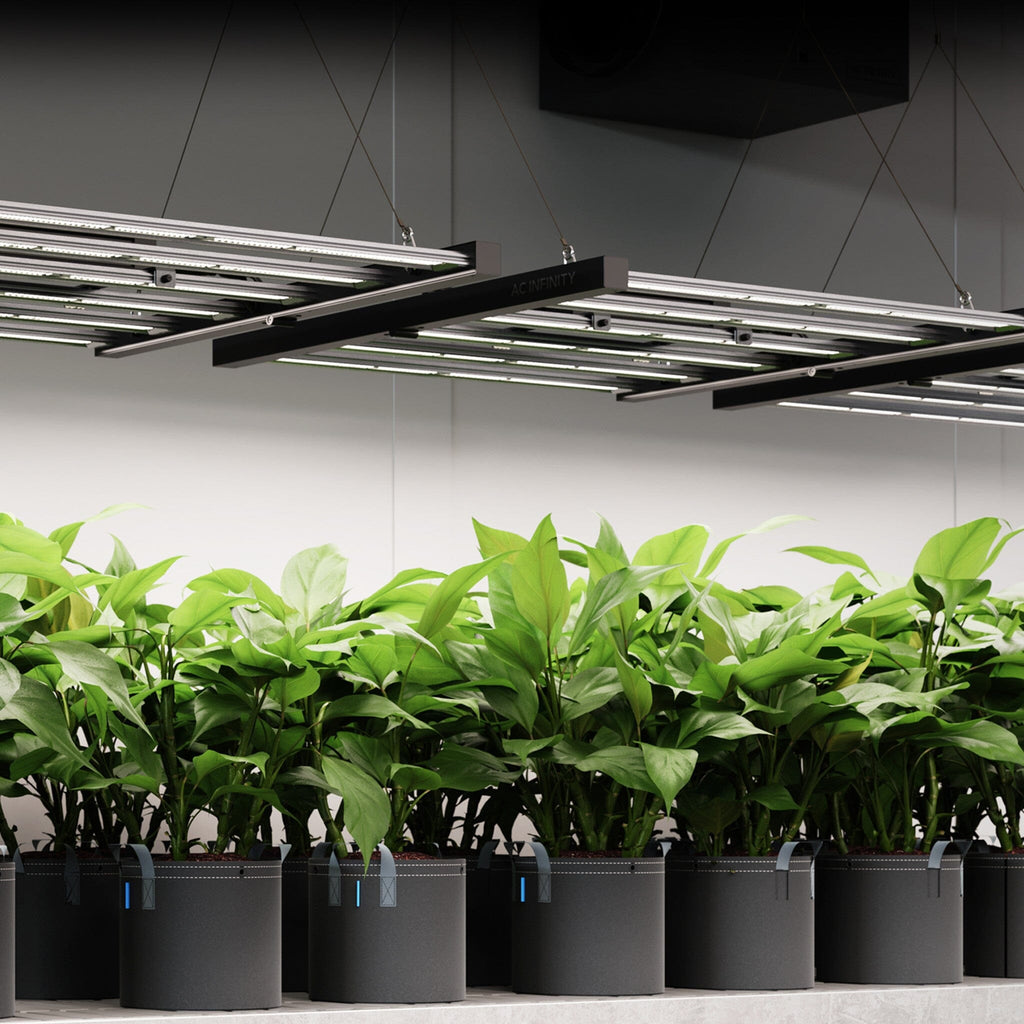

An indoor plant grow light designed for grow tents and large grow spaces to improve your plant's growth rate and its yields.

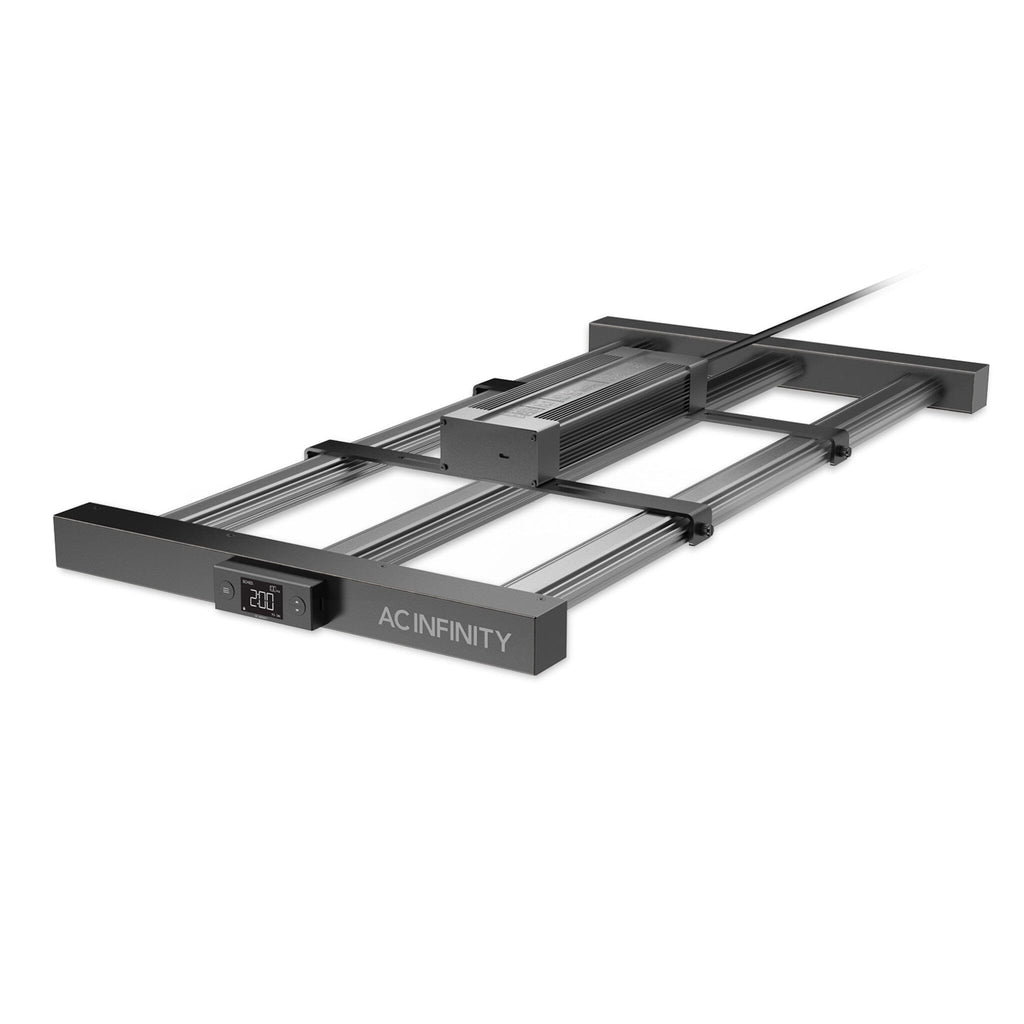

Utilises Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots.
Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminium build, which enables magnetic mounting and is IP-65-rated to withstand humid environments.
This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications. The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately).

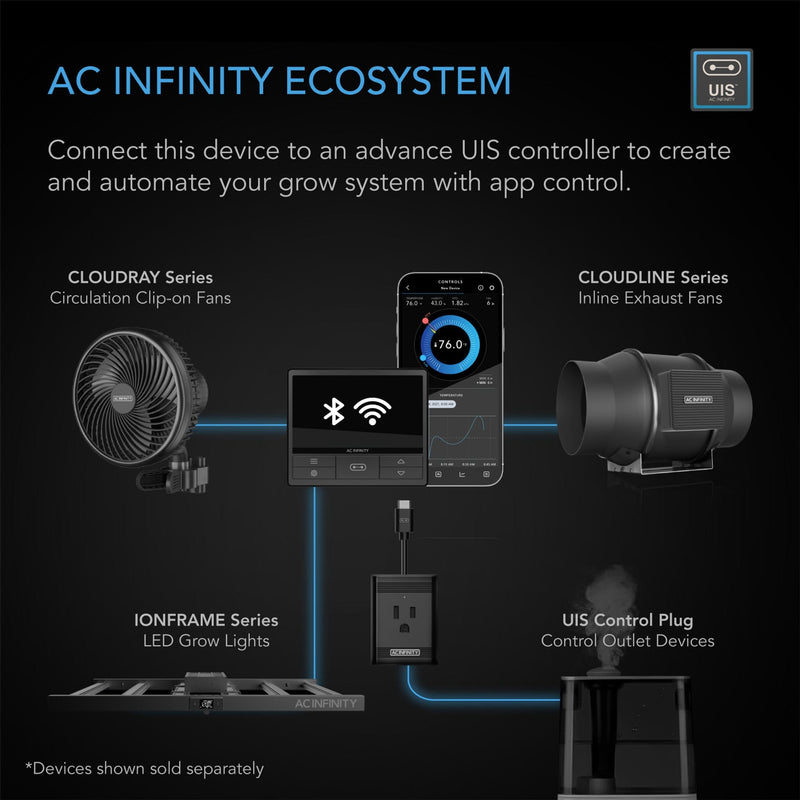

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
INDUSTRY-LEADING LED CHIPS

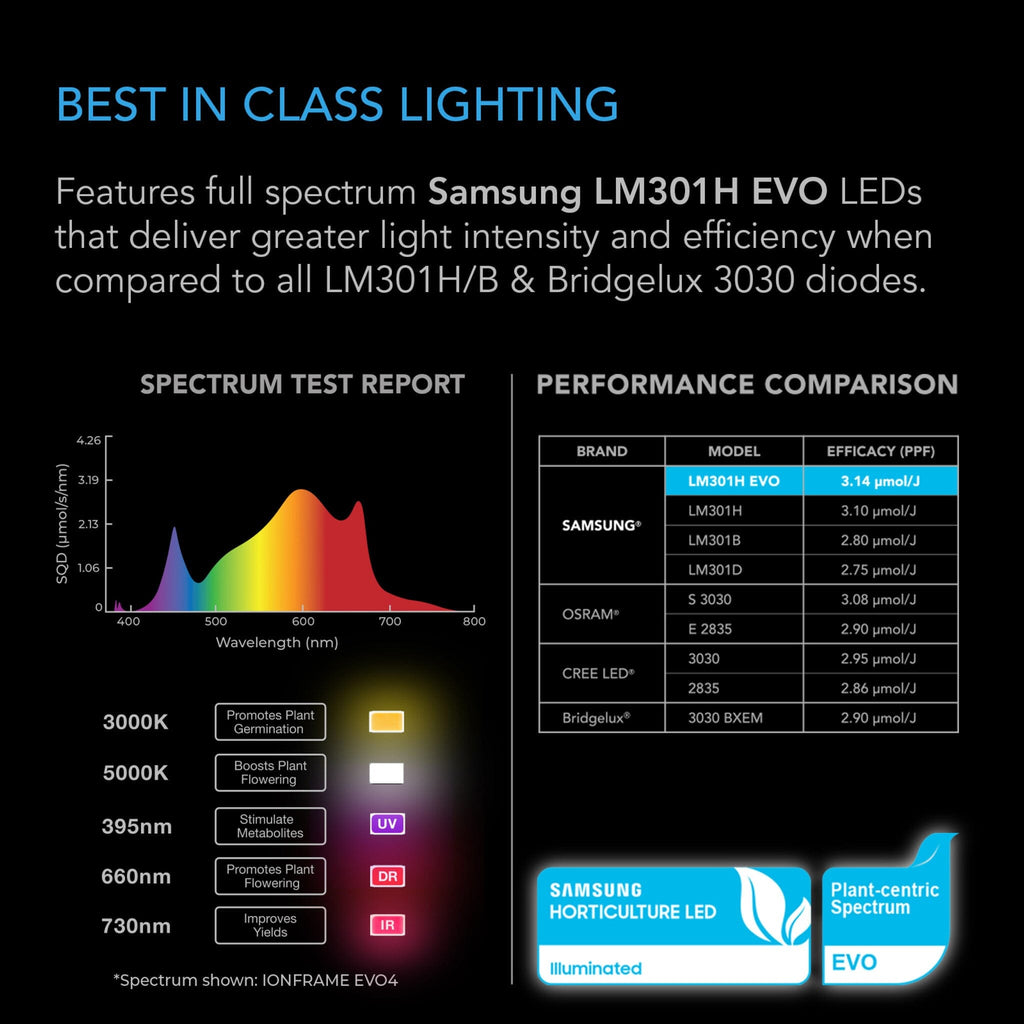

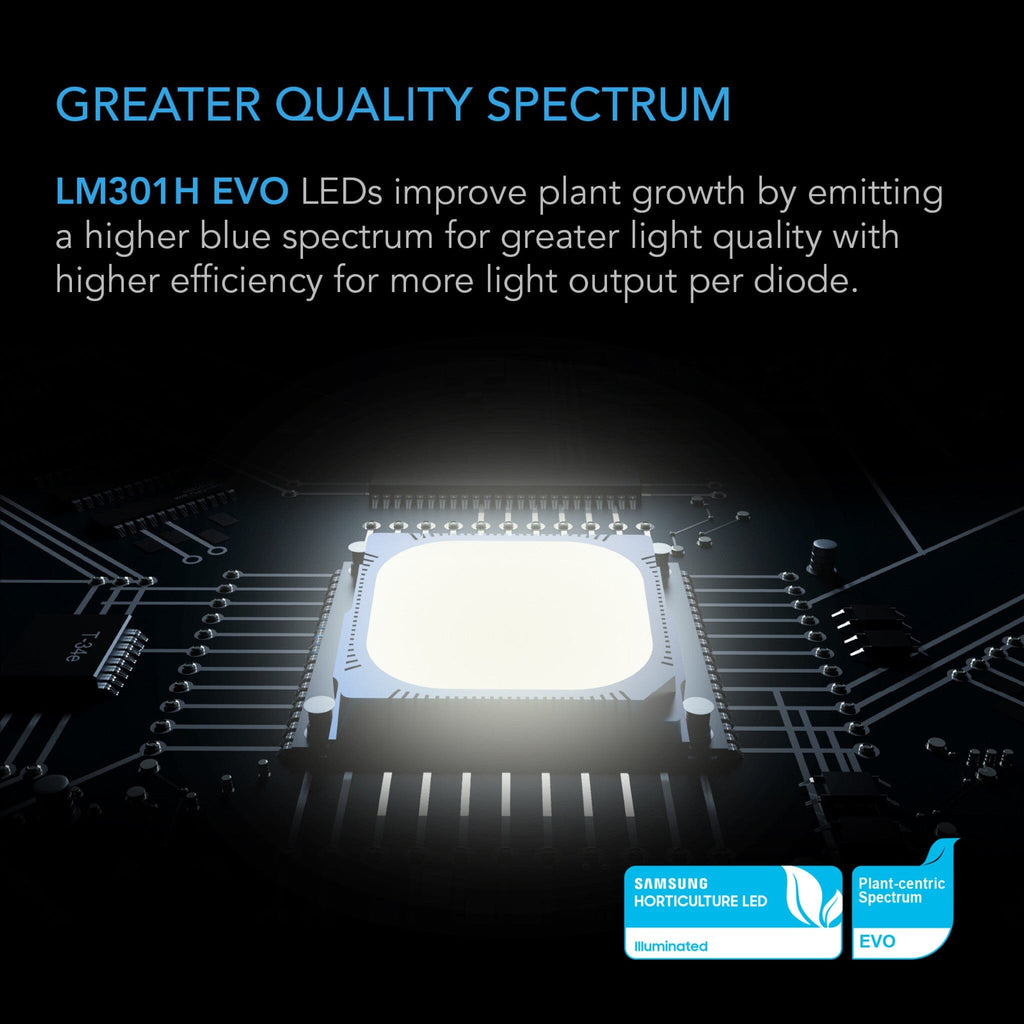

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (3) 395 nm UV diodes, (27) 660 nm and (3) 730 nm OSRAM red diodes to complete its full spectrum light output.
SCHEDULE AND BRIGHTNESS CONTROLS

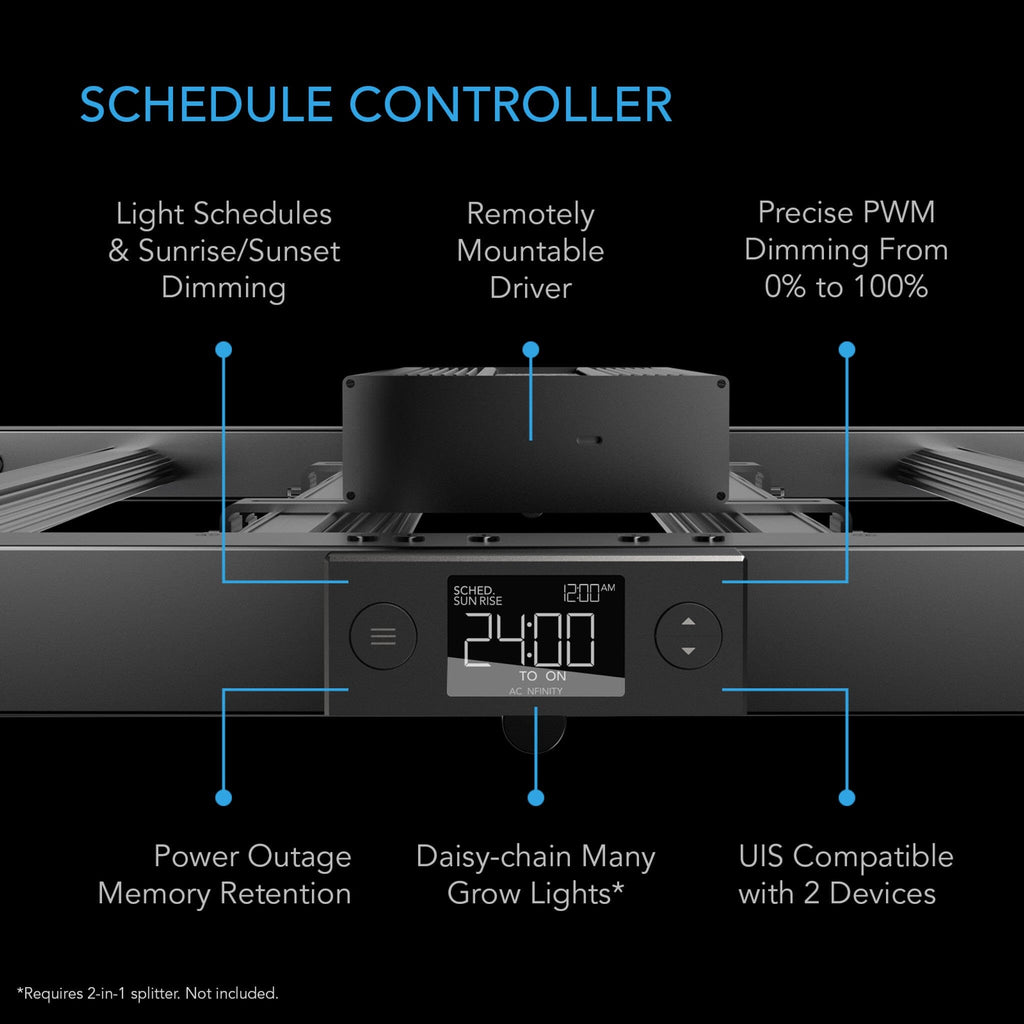

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customise this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement. Use this grow light with an advance UIS controller like CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
KEY FEATURES
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.

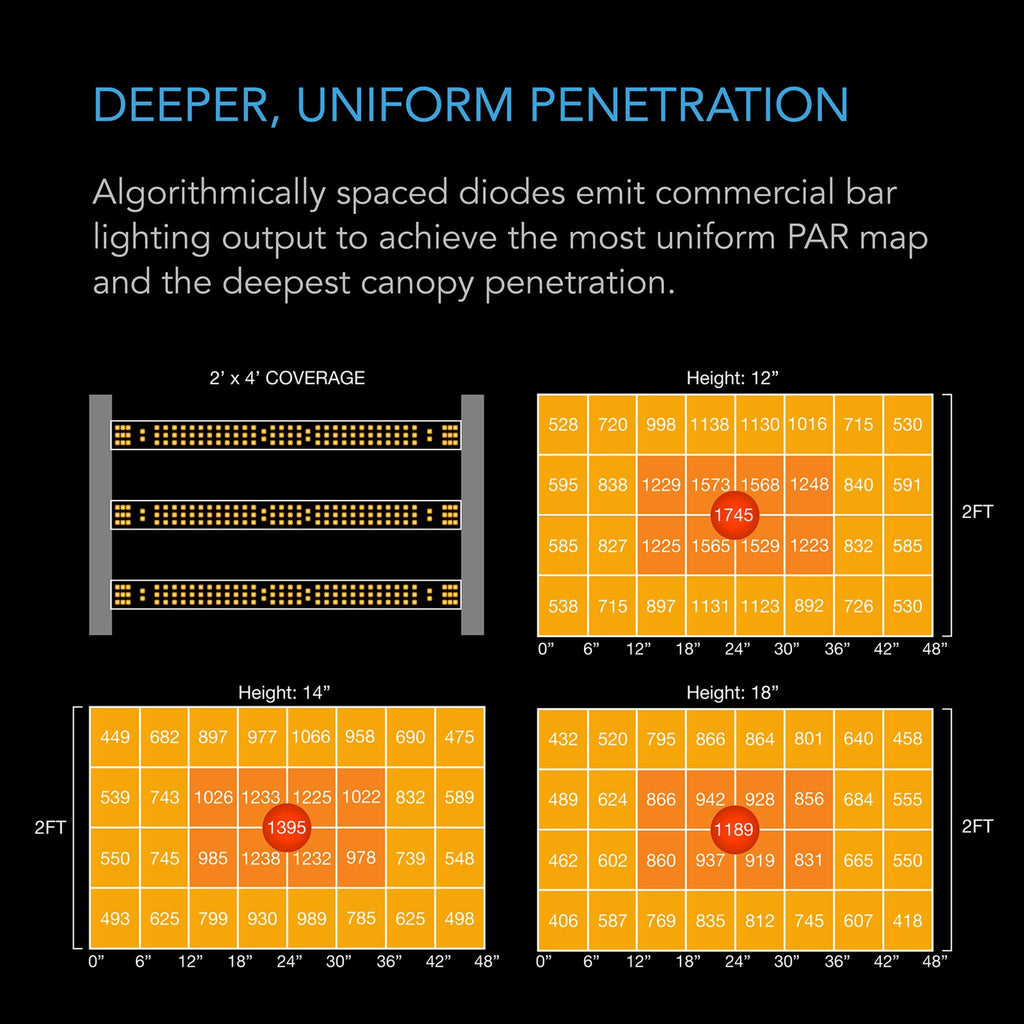

- Bar-style fixture with algorithmically spaced diodes optimised for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 90x 150 CM (3 x 5 ft.) Veg. Coverage | 60 x 120 Cm (2 x 4 ft.) Flower Coverage | Samsung LM301H EVO Chips | 840 Diodes | 280W | 1745 PPFD | ETL Cert. 5021417
- Ships w. Australian Power-plug, nothing needed to connect and use today.
| Product Identification IONFRAME EVO3 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME EVO3 |
| Product Model | AC-IF3K |
| UPC Code | 819137024045 |
| Product and Mounting Dimensions | |

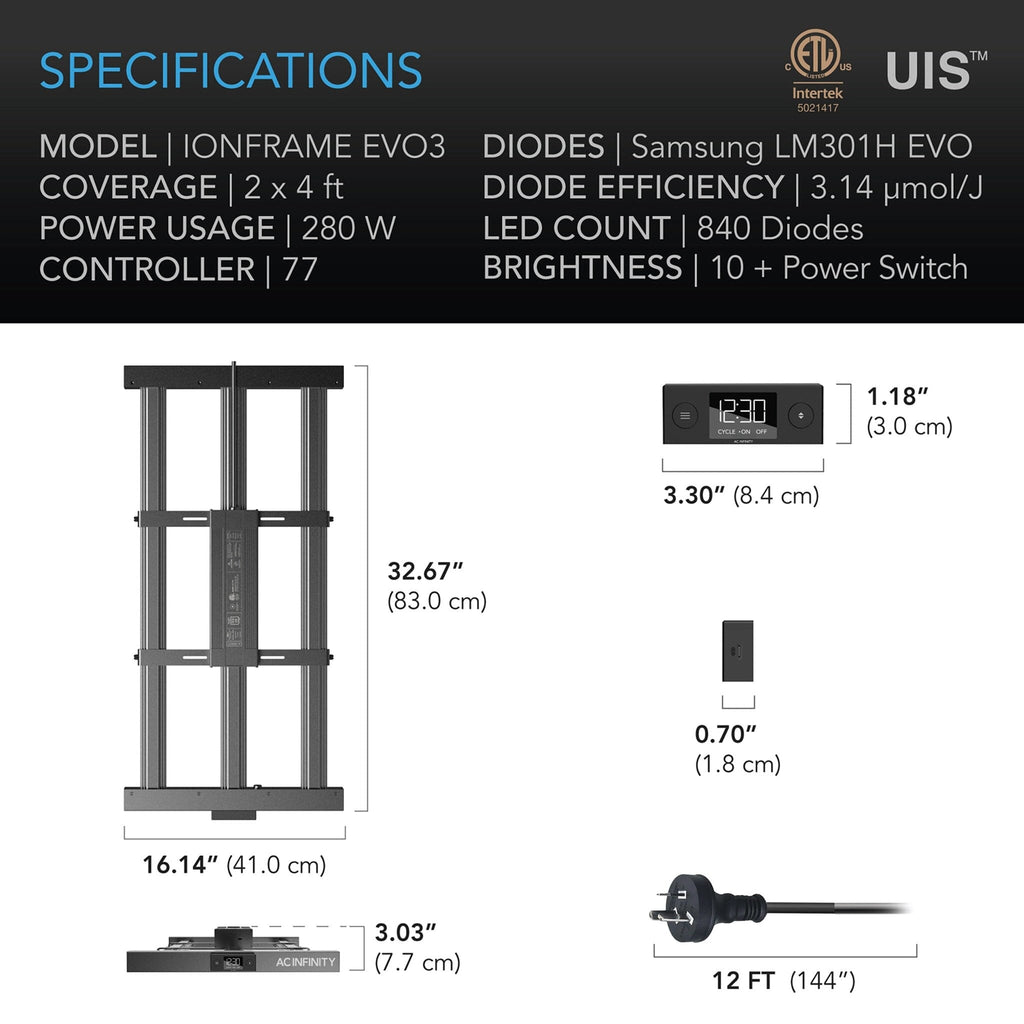

| Light Dimensions | 16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 60x 120 CM / 2 x 4 ft. |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 840 |
| Chip Count (EVO 3000K) | 537 |
| Chip Count (EVO 5000K) | 270 |
| Chip Count (Seoul 395 nm) | 3 |
| Chip Count (OSRAM 660 nm) | 27 |
| Chip Count (OSRAM 730 nm) | 3 |
| LED Driver | SOSEN-320W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 1745 PPFD |
| Wattage | 280 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 2.8 A Max. |
| Controller | Schedule Controller |
| Power Connector Type | Australian power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| ETL Certification |
