Grower Tip
- For dynamic placement, start around 46cm above seedlings at 40%, increasing to 80% vegetative and 100% flowering as plant response allows.
- Use UIS mode with a compatible smart controller for schedules, grow cycles and app control.
- Before connecting in Australia, fit a suitable AU travel adapter; the supplied US Type-A plug is not directly compatible.
Features
Uses 1,024 Samsung LM301H diodes across 3000K, 6500K, 660nm and 730nm channels for full-cycle lighting.
A 430W board designed for 122 x 122cm | 4 x 4ft reflective grow-tent coverage.
The driver adjusts output from 0–100% in 20% increments for stage-specific intensity control.
UIS connectivity adds schedules, cycles and app control with compatible Controller 69 Pro, 69 Pro+ or Controller AI+ units.
The unibody aluminium board dissipates heat without a fan, while IP65 sealing suits humid grow-tent conditions.
Accepts 100–277V AC at 50/60Hz; the supplied US Type-A plug requires a suitable Australian travel adapter.
-
1
Attach the hangers
Insert the supplied steel hooks into the board's end-cap slots. Use a second person when positioning the S44 on tent supports.
-
2
Set the height
Begin around 46cm above the canopy for dynamic placement, then adjust height and intensity for the crop and its response.
-
3
Connect the driver
Join the light, driver and power lead securely, keeping cables clear of sharp edges, heat and moving equipment.
-
4
Prepare Australian power
Confirm the supply meets 100–277V AC, 50/60Hz and fit a suitably rated AU travel adapter; one is not included.
-
5
Choose intensity
Turn the driver knob from UIS to select 20%, 40%, 60%, 80% or 100% output.
-
6
Add smart control
Connect the included UIS male-to-male cord between the driver and a compatible UIS controller, then select UIS mode.
What area does the IONBOARD S44 cover?
The IONBOARD S44 is rated for a 4 x 4ft footprint, equivalent to roughly 122 x 122cm, in a reflective grow tent. Its 430W board is the S44 model sized for this coverage. Final hanging height and intensity should still be adjusted to the crop, growth stage and plant response.
Will this light work with Australian power?
The driver accepts 100–277V AC at 50/60Hz and is rated at 1.80A at 240V. This Grow Kings listing is supplied with a US NEMA 1-15 Type-A plug, so it needs a suitably rated Australian travel adapter before connection. The adapter is not included.
Which AC Infinity controllers are compatible?
The IONBOARD S44 is a UIS device. AC Infinity currently pairs it with Controller 69 Pro, Controller 69 Pro+ and Controller AI+. A compatible controller adds schedules, grow cycles and app control; without one, the light can still be dimmed manually at the driver.
What comes in the box?
The manual lists the IONBOARD grow light, LED driver, two rope clips, two stainless-steel hanging hooks, one UIS male-to-male cord, four hook-and-loop ties and one wire-tie set. A compatible smart controller and Australian travel adapter are not included.
What hanging height and intensity should I start with?
For dynamic placement, the manual starts at about 46cm above the canopy. Its guide uses 40% for seedlings, 80% for vegetative growth and 100% for flowering. Treat these as starting points because the right setting varies with plant type, growing method and plant response.
Description
A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximise plant yields.
Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately).

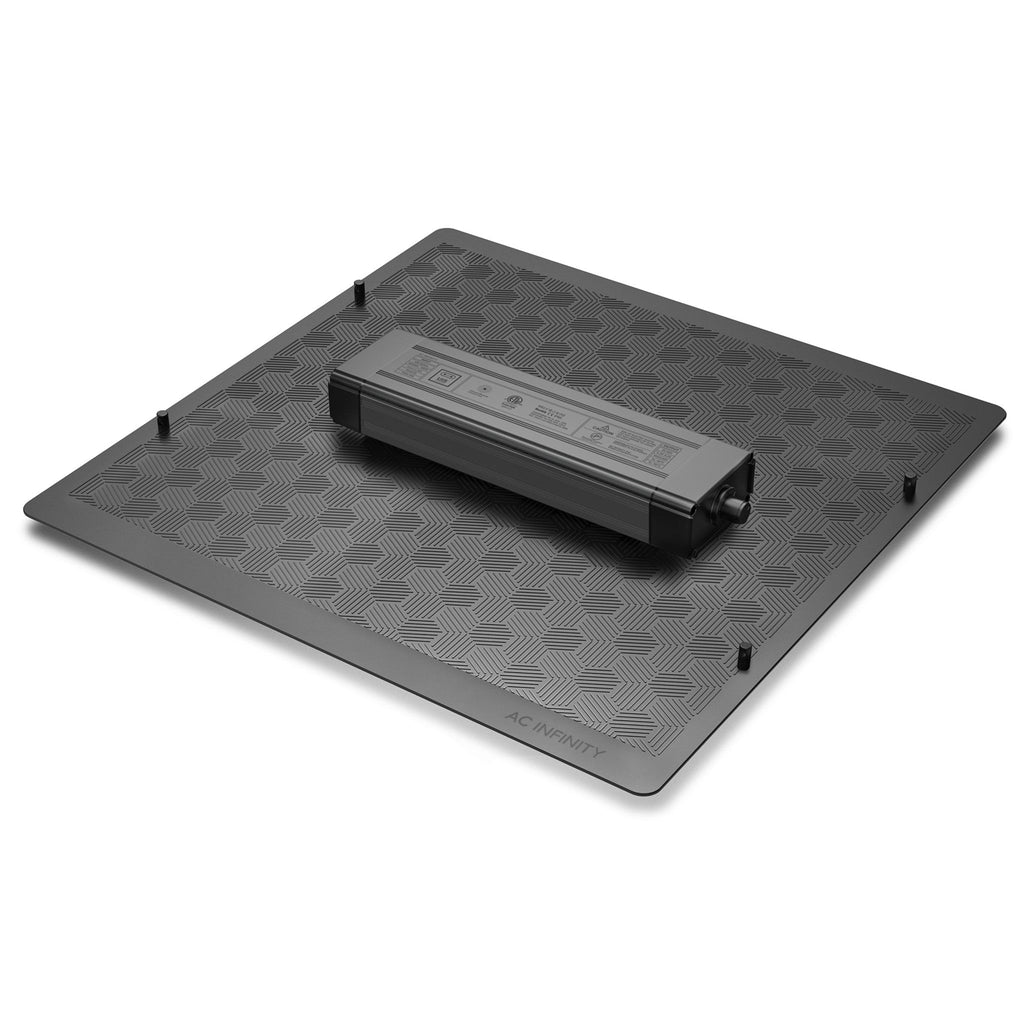

Built on a fanless, unibody aluminum board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers.

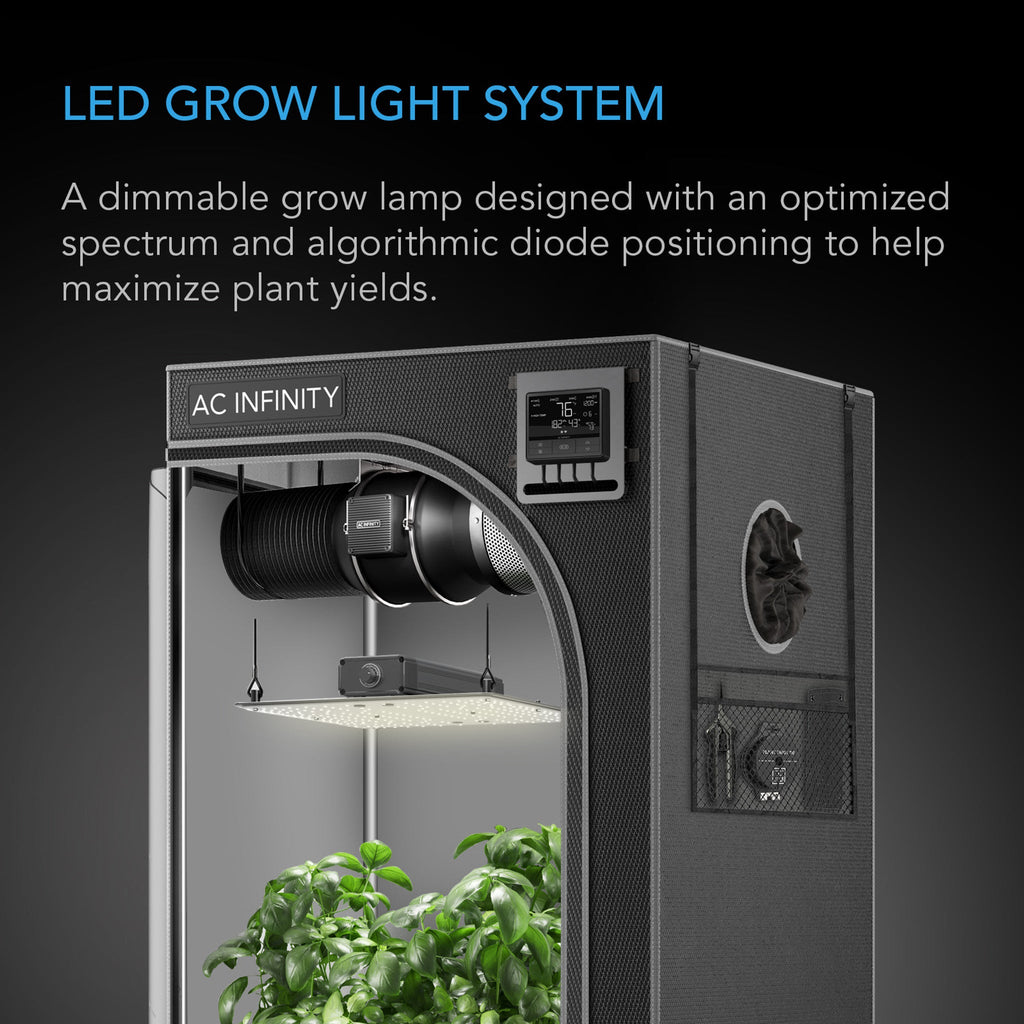

This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables.

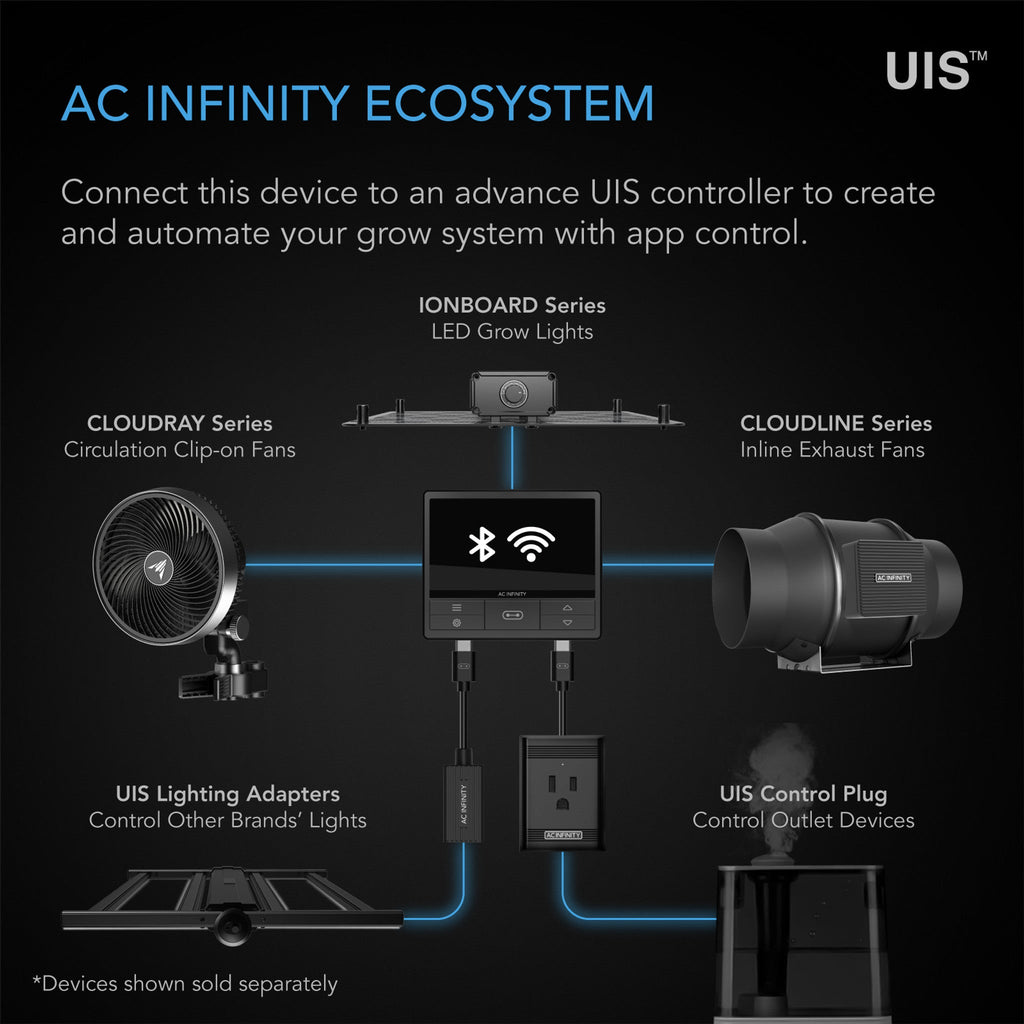

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

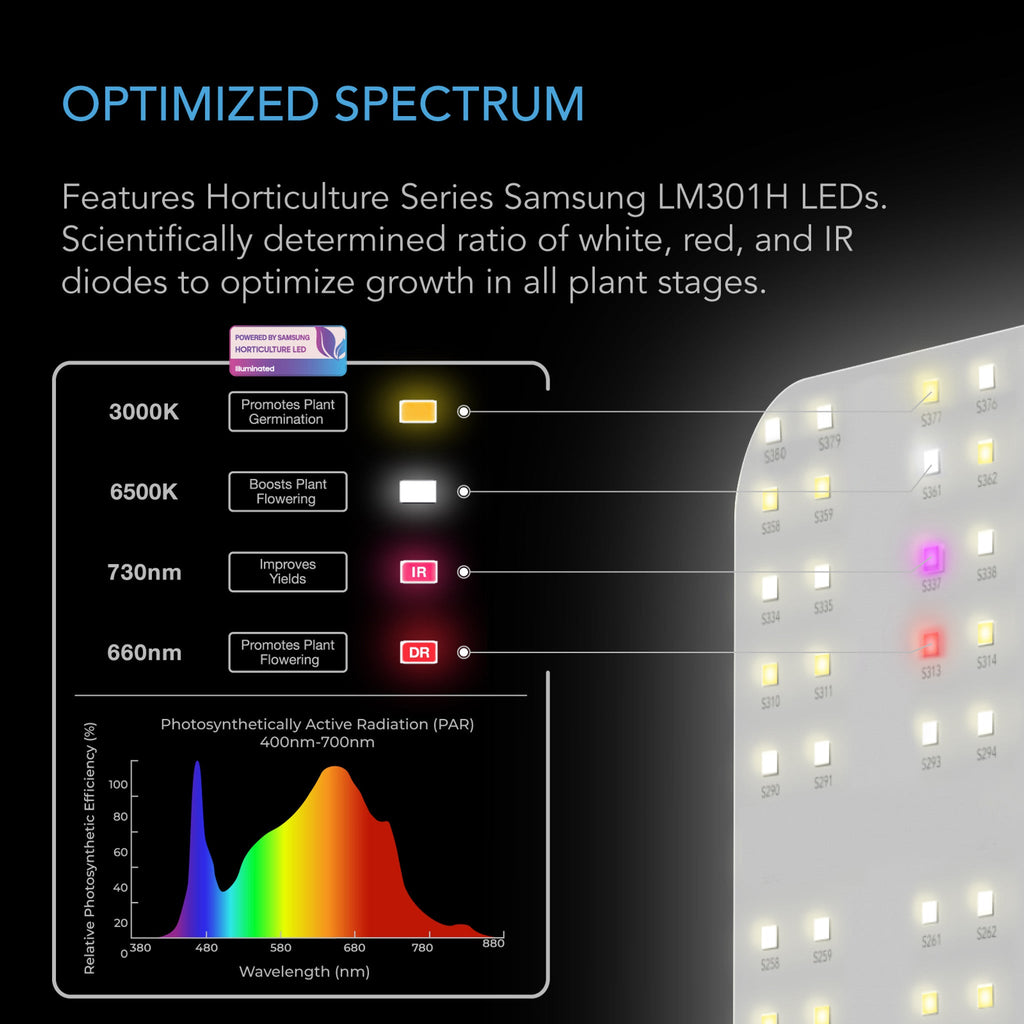

Optimised Spectrum
Each light contains Horticulture Series Samsung LM301H 3000K and 6500K white diodes specifically formulated to help maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.
Future Ready Controls

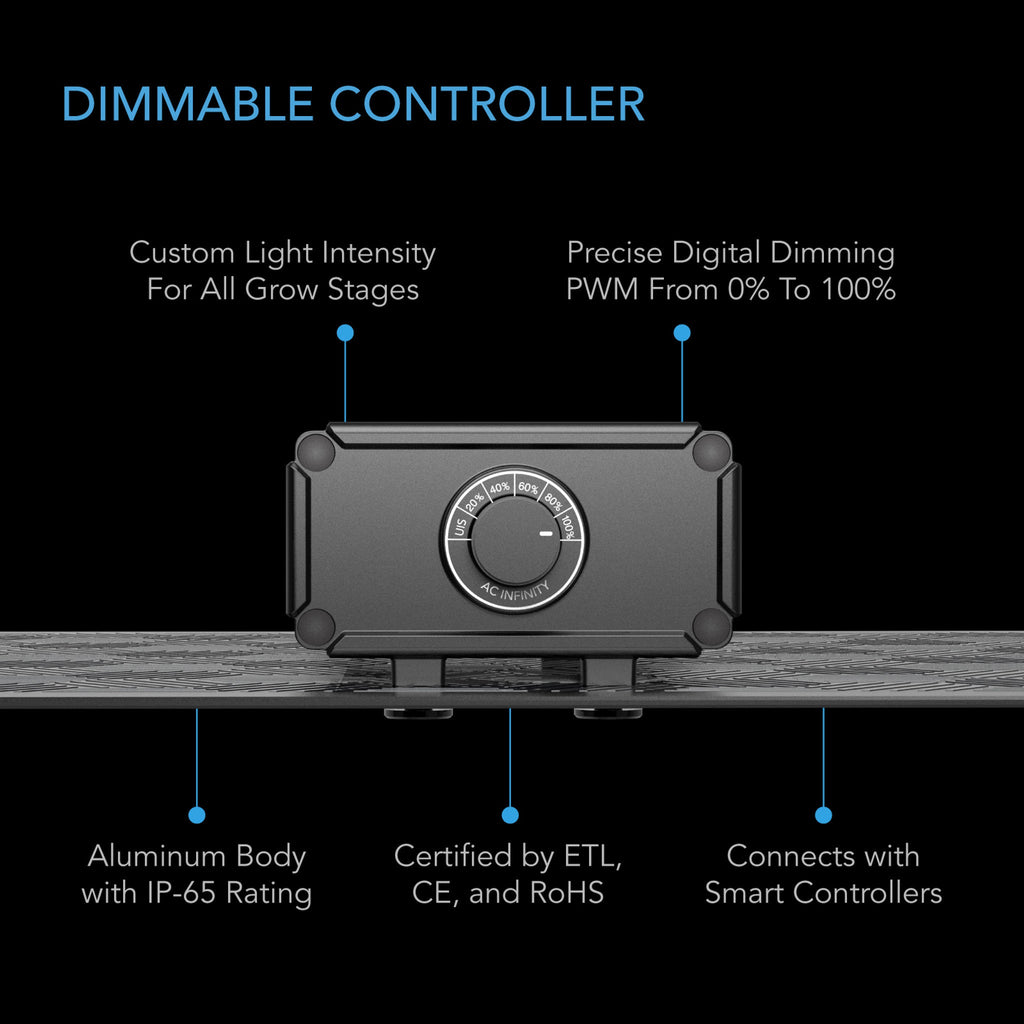

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.
Key Features
- Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximise plant yields.
- Utilises full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimised for all plant stages.

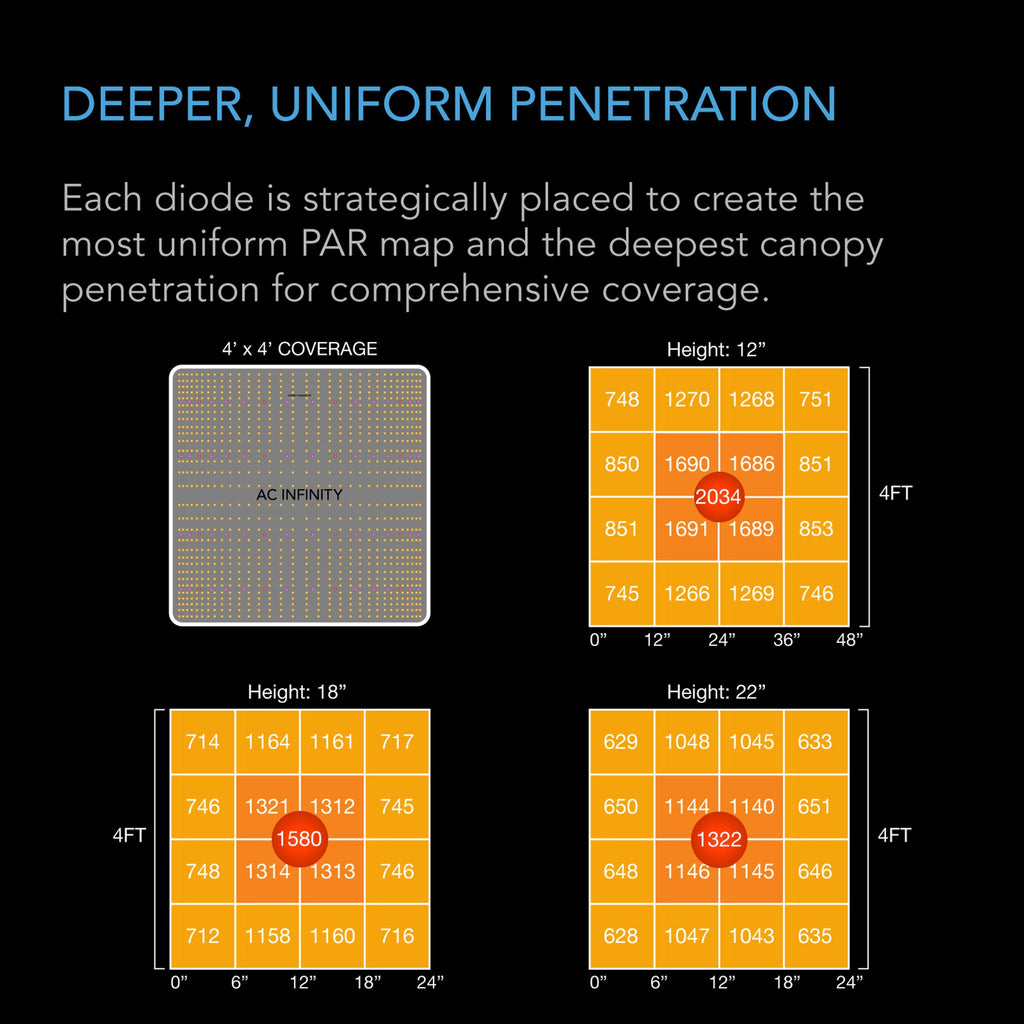

- Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
- Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
- Constructed on a unibody aluminium board and IP-65 rated for grow environments with higher humidity and heat.
This light connects with the controller 69 for full control via controller or on your phone. Controller not incl.
| Product Identification AC Infinity Ionboard S44 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBOARD S44 |
| Product Model | AC-IBS44 |
| UPC Code | 819137022546 |

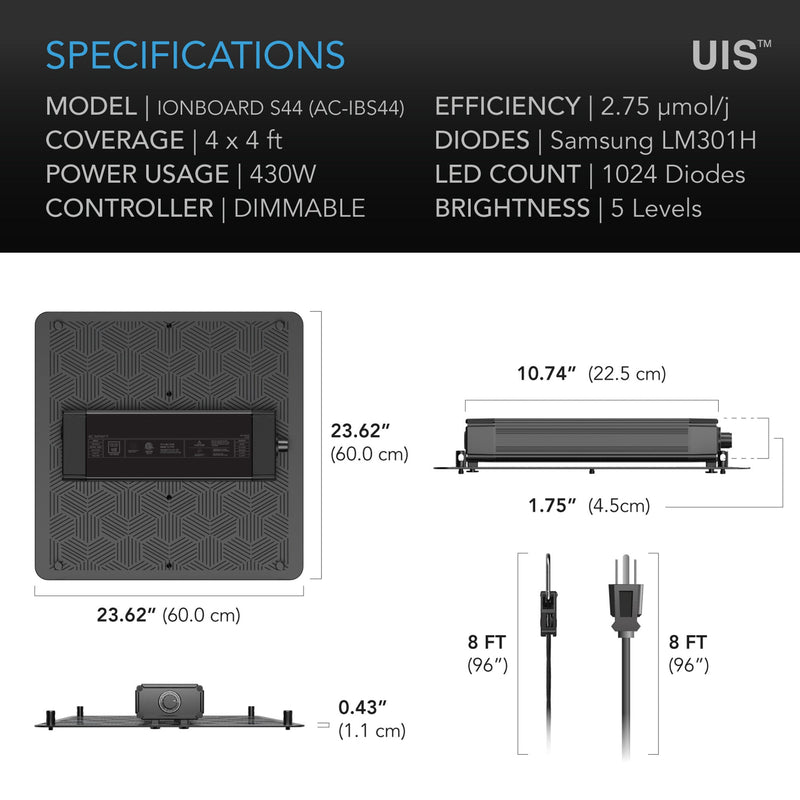

| Product and Mounting Dimensions | |
| Light Dimensions | 23.62 x 23.62 in. (60.0 x 60.0 cm) |
| LED Board Thickness | 0.43 in. (1.1 cm) |
| Driver Dimensions | 10.74 x 1.75 in. (22.5 x 4.5 cm) |
| Product Performance and Technical Specs | |
| Coverage | 4 x 4 ft. |
| Diodes | Samsung LM301H |
| LED Chip Count | 1024 |
| LED Driver | AC Infinity Proprietary Driver IB-400 |
| Efficiency | 2.75 µmol/j |
| PPFD | 2034 PPFD |
| Spectrum | 660nm, 730nm, 3000K, 6500K |
| Wattage | 430 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.60 A @ 120V | 1.80 A @ 240V | 1.56 A @ 277V |
| Controller | Digital Dimming Timer |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
| ETL Cert. (Whole Product) |  PDF |
| Product Manual | |
| Product Manual |
PDF |
NOTE THIS LIGHT COMES WITH USA PLUG - TRAVEL ADAPTER NOT INCLUDED.
