Grower Tip
- Use the manual's 46cm starting height with 40% for seedlings, 80% for vegetative growth and 100% for flowering.
- Turn the dimmer to UIS when connecting a compatible controller, so the controller can manage intensity and schedules.
- Match the 60x60cm coverage with a reflective tent, then adjust hanging height and output as plant response changes.
Features
The Australian S22 listing pairs 272 Samsung LM301H diodes with a 100W driver for full-cycle lighting.
Its 30x30cm board is rated to illuminate a 60x60cm reflective grow-tent footprint.
The driver provides 20%, 40%, 60%, 80% and 100% output, plus UIS mode for compatible smart control.
Connect the supplied UIS cable to Controller 69 Pro, Controller 69 Pro+ or Controller AI+ for schedules and app control.
The sealed unibody aluminium board passively dissipates heat without an onboard fan and carries an IP65 rating.
The Grow Kings model has an Australian plug and accepts 100–277V AC at 50/60Hz.
-
1
Disconnect power
Keep the power lead unplugged while installing, moving or adjusting the fixture.
-
2
Fit the hanging hooks
Insert the supplied steel hooks into the board's slotted end caps, then hang them over the tent support beams.
-
3
Add adjustable hangers
Loop the rope clips around the support beams and attach their carabiners to the steel hooks when height adjustment is needed.
-
4
Connect power
Plug the light into a suitable Australian outlet and select 20–100% output with the driver knob.
-
5
Add smart control
Connect the supplied UIS cable to a compatible controller, then turn the dimmer knob to UIS for programmed operation.
How much power does the IONBOARD S22 use, and what area does it cover?
The Australian Grow Kings listing specifies a 100W draw and 60x60cm coverage inside a reflective grow tent. The light board itself measures 30x30cm and uses 272 Samsung LM301H diodes with a five-level dimming driver for full-cycle lighting.
Does this S22 work with Australian power?
Yes. This Grow Kings version is listed with an Australian Type I plug and a 100–277V AC, 50/60Hz input range. That covers standard Australian mains supply. Use the supplied power lead and keep electrical connections dry and undamaged during operation.
Which AC Infinity controllers can run the light?
The IONBOARD S22 is a UIS device and includes a male-to-male UIS cable. It can connect directly to compatible UIS controllers including Controller 69 Pro, Controller 69 Pro+ and Controller AI+. Turn the driver knob to UIS so the connected controller can manage intensity, schedules and supported app functions.
Can I dim the IONBOARD S22 without a smart controller?
Yes. The driver knob provides five manual output settings: 20%, 40%, 60%, 80% and 100%. The separate UIS position either switches the light off or passes control to a connected UIS controller, allowing programmed intensity and scheduled activation.
What comes with the light?
The package includes the IONBOARD grow light, LED driver, two stainless-steel hanging hooks, two rope clips, four hook-and-loop ties, a wire-tie set and a male-to-male UIS cable. This covers fixed or height-adjustable hanging plus direct connection to a compatible UIS controller.
Description
A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximise plant yields.
Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately).

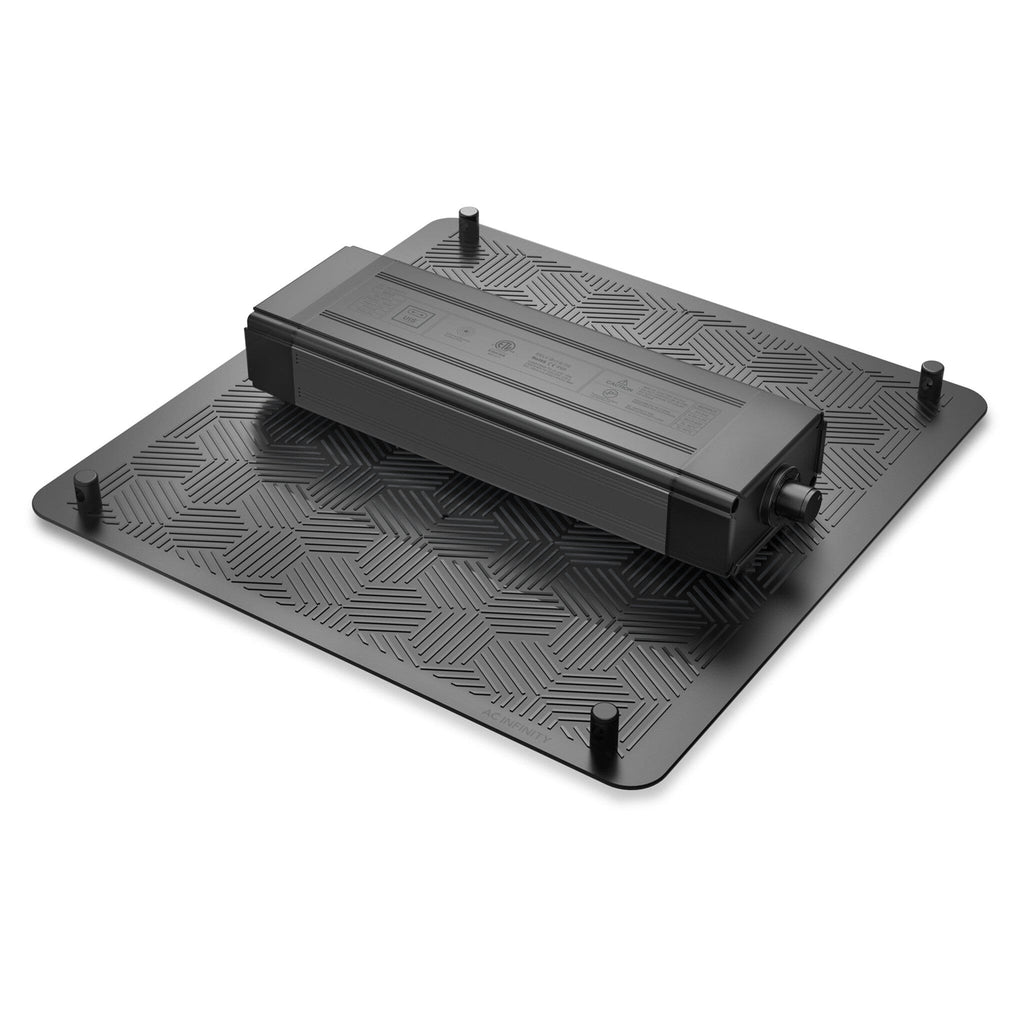

Built on a fanless, unibody aluminium board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers.

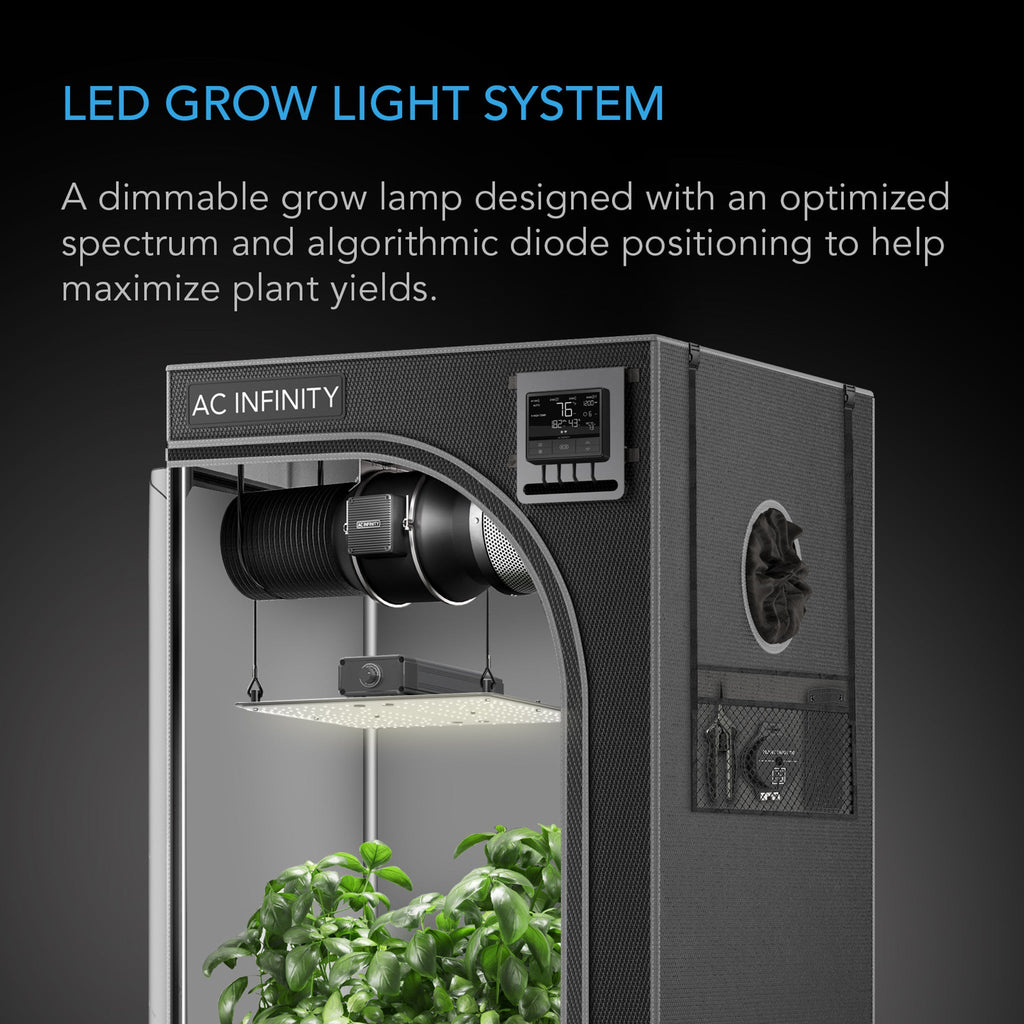

This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables.

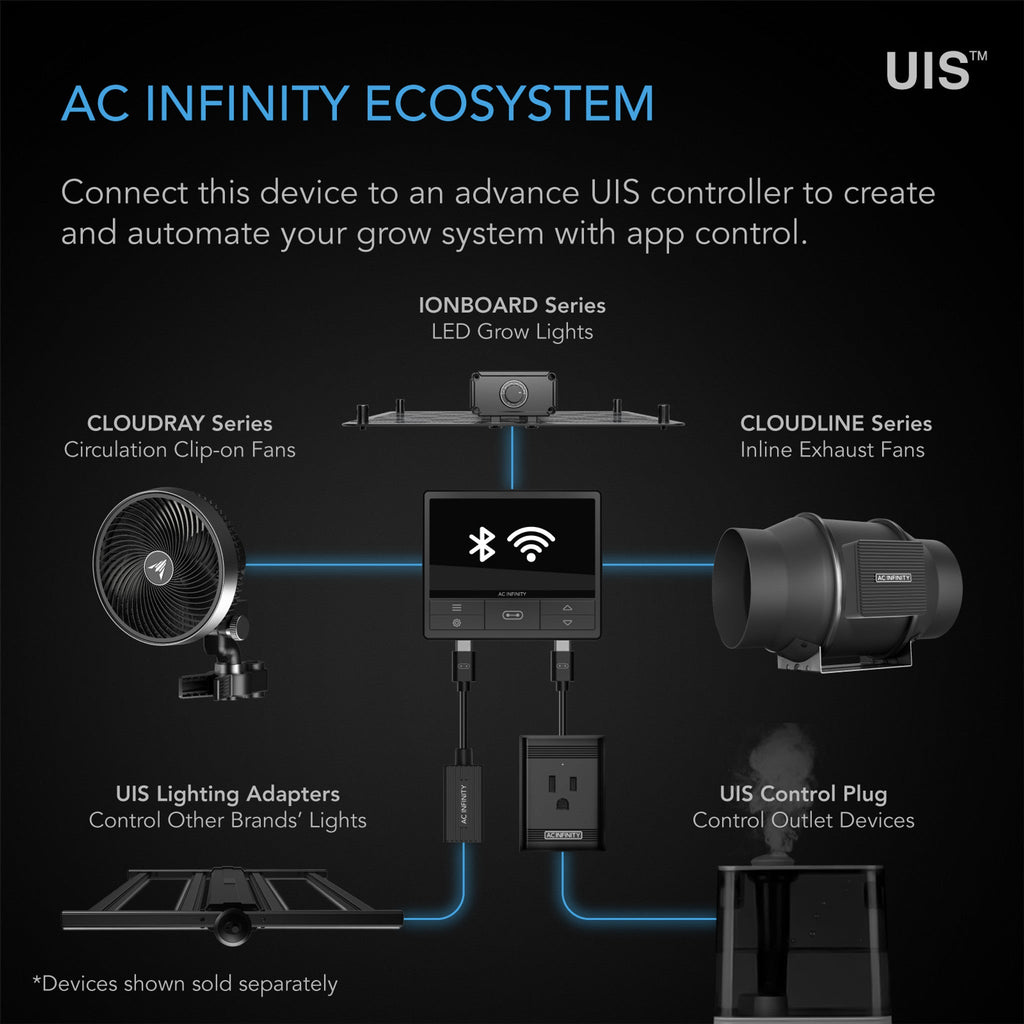

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

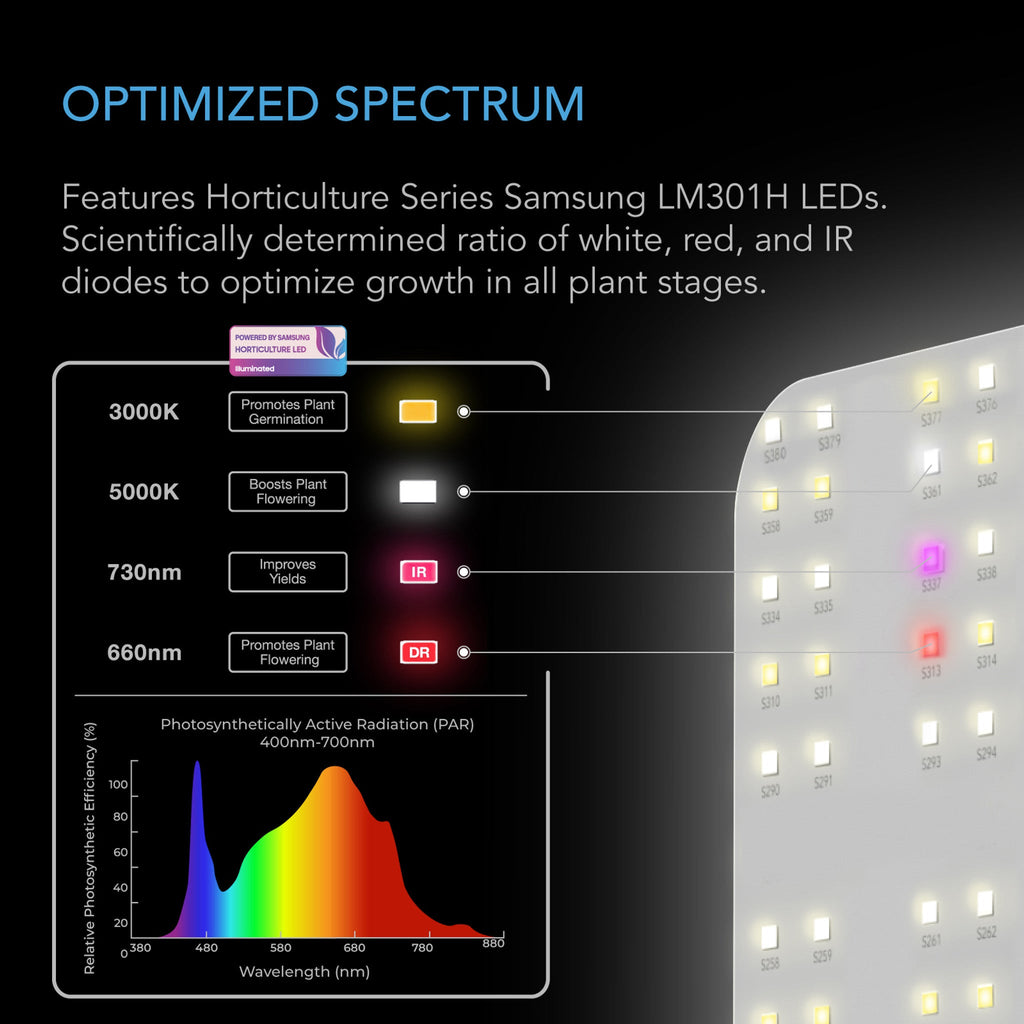

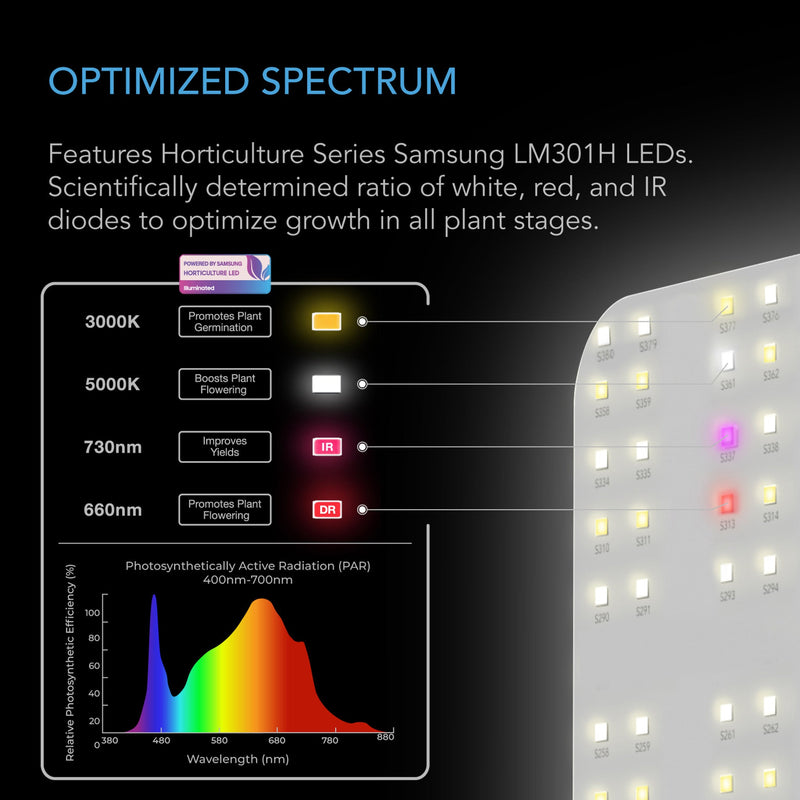

OPTIMIZED SPECTRUM
Each light contains Horticulture Series Samsung LM301H 3000K and 5000K white diodes specifically formulated to help maximise plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.
FUTURE READY CONTROLS

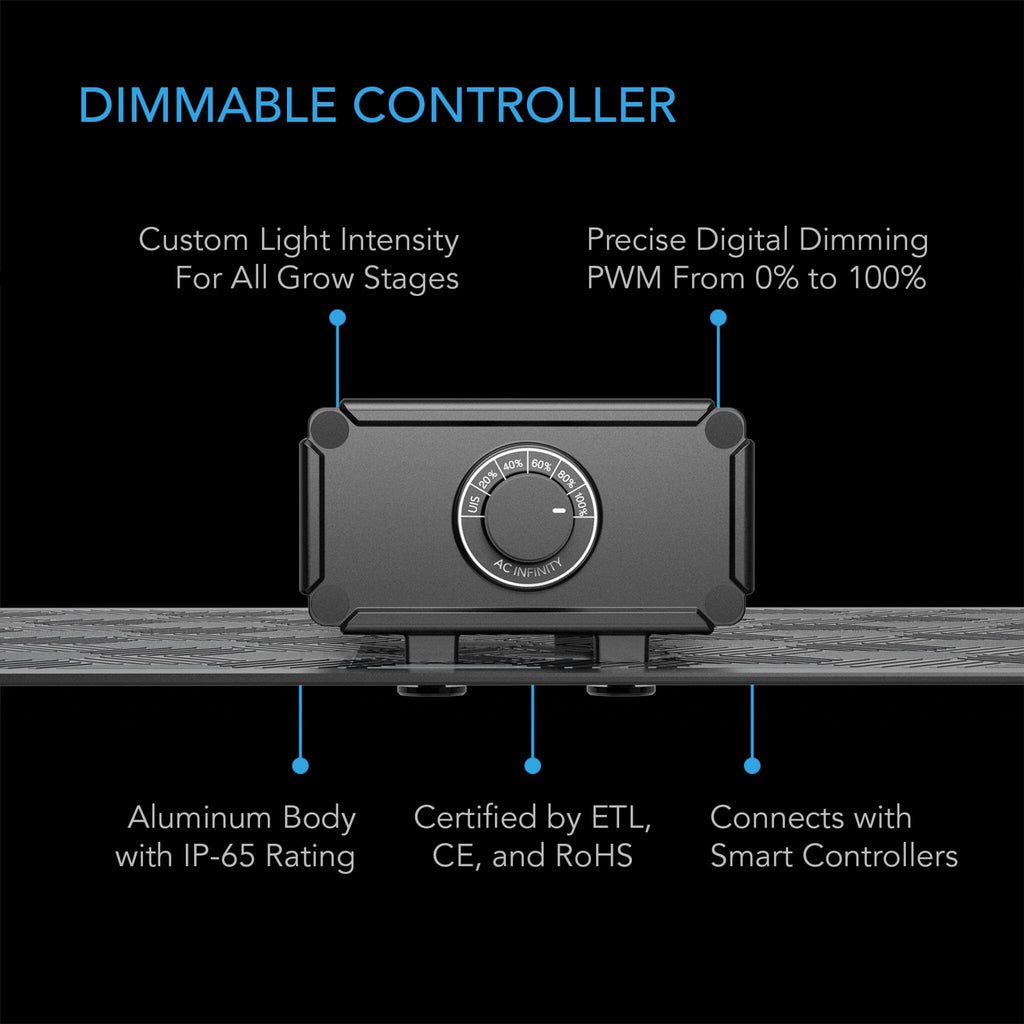

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.
KEY FEATURES
- Dimmable LED grow light designed with an optimised spectrum and diode positioning, to maximise plant yields.
- Utilises full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimised for all plant stages.

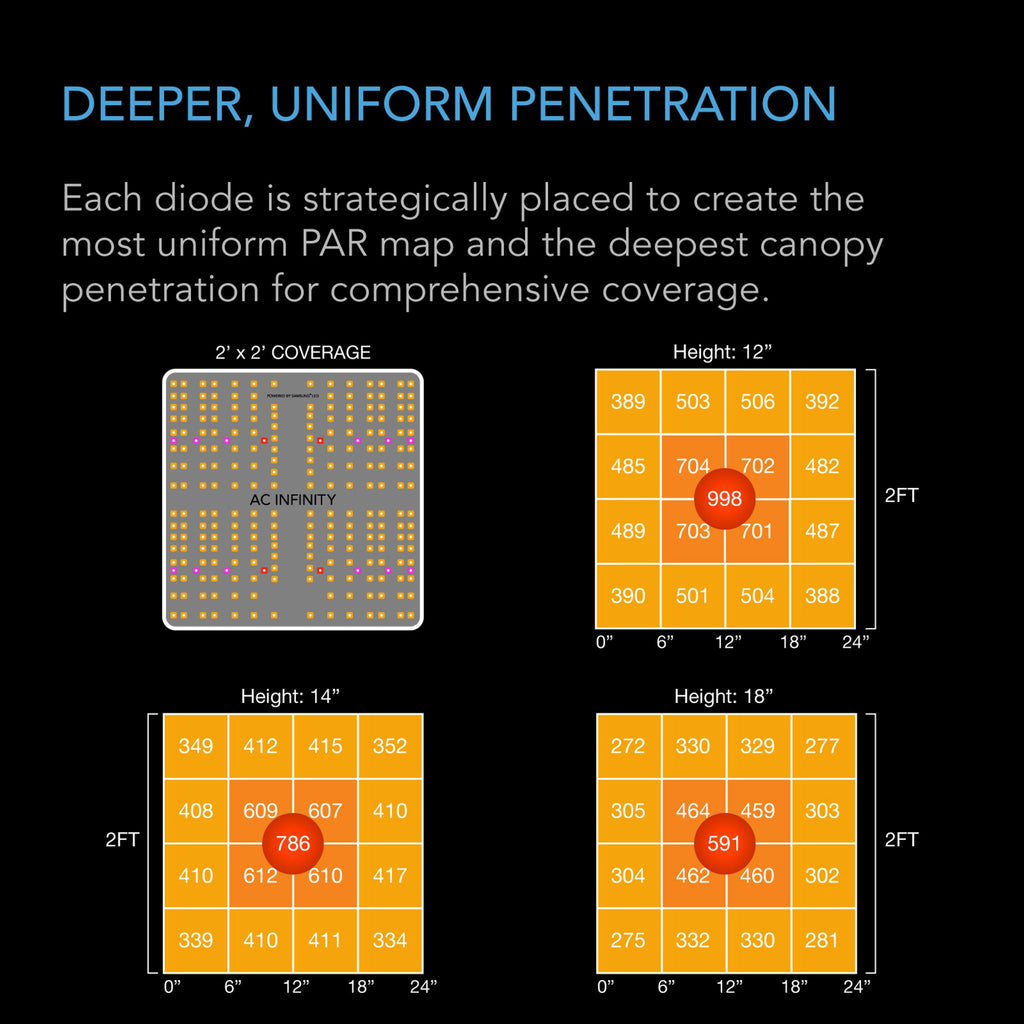

- Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
- Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
- Constructed on a unibody aluminium board and IP-65 rated for grow environments with higher humidity and heat.

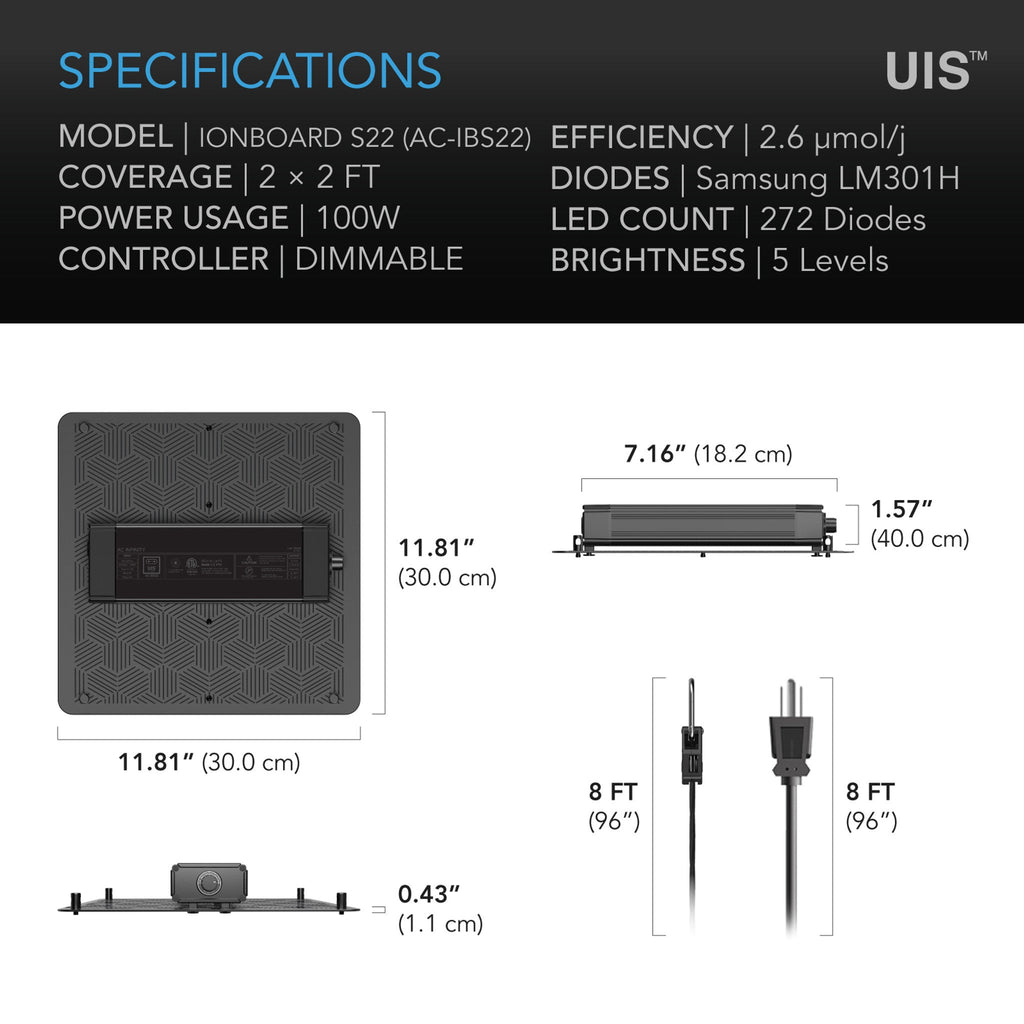

| Product Identification Ionboard S22 by AC Infinity | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBOARD S22 |
| Product Model | AC-IBS22 |
| UPC Code | 819137022515 |
| Product and Mounting Dimensions | |
| Light Dimensions | 11.81 x 11.81 in. (30.0 x 30.0 cm) |
| LED Board Thickness | 0.43 in. (1.1 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 2 x 2 ft. 9 ( 60 x 60 cm ) |
| Diodes | Samsung LM301H |
| LED Chip Count | 272 |
| LED Driver | AC Infinity Proprietary Driver, Model GTS-100 |
| Efficiency | 2.7 µmol/j |
| PPFD | 998 PPFD |
| Spectrum | 660nm, 730nm, 3000K, 5000K |
| Wattage | 100 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V |
| Controller | Digital Dimming Timer |
| Power Connector Type | Australian Power Plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
| ETL Cert. (Whole Product) |  PDF |
| Product Manual | |
| Product Manual |
|
