Grower Tip
- Mount the bars above dim corners or beside the canopy for targeted supplemental lighting.
- Start at a lower intensity near young plants, then adjust distance and output while watching plant response.
- Use the included schedule controller, or connect a compatible UIS controller for integrated programming.
Features
The kit supplies four 40.7cm bars delivering 42W total output across a flexible layout.
Each bar uses 18 Samsung diodes combining 3000K and 5000K full-spectrum light.
The included controller adjusts output across ten steps and supports schedule plus sunrise and sunset modes.
Magnetic ends attach to steel tent poles or the supplied mounting bars through grow-tent canvas.
The light bars carry an IP65 rating for protected operation in indoor growing environments.
This Grow Kings model includes an Australian plug and accepts 100–240V, 50/60Hz input.
The supplied UIS connection supports integration with compatible AC Infinity smart controllers.
-
1
Build the light chain
Connect the single-corded bar to the first dual-corded bar, then link the remaining bars with the supplied extension cords.
-
2
Secure each connection
Tighten the twist-on collars around every joined power connector.
-
3
Mount the bars
Attach them to steel tent poles or position mounting bars outside the canvas and align the magnets inside.
-
4
Connect the controller
Join the EC power adapter to the light chain and the included schedule controller.
-
5
Power the system
Plug the Australian power adapter into a suitable outlet, set the clock and choose an intensity or daily schedule.
-
6
Add UIS control
Connect the adapter to a compatible UIS controller with the included cable when central automation is preferred.
How many light bars are included?

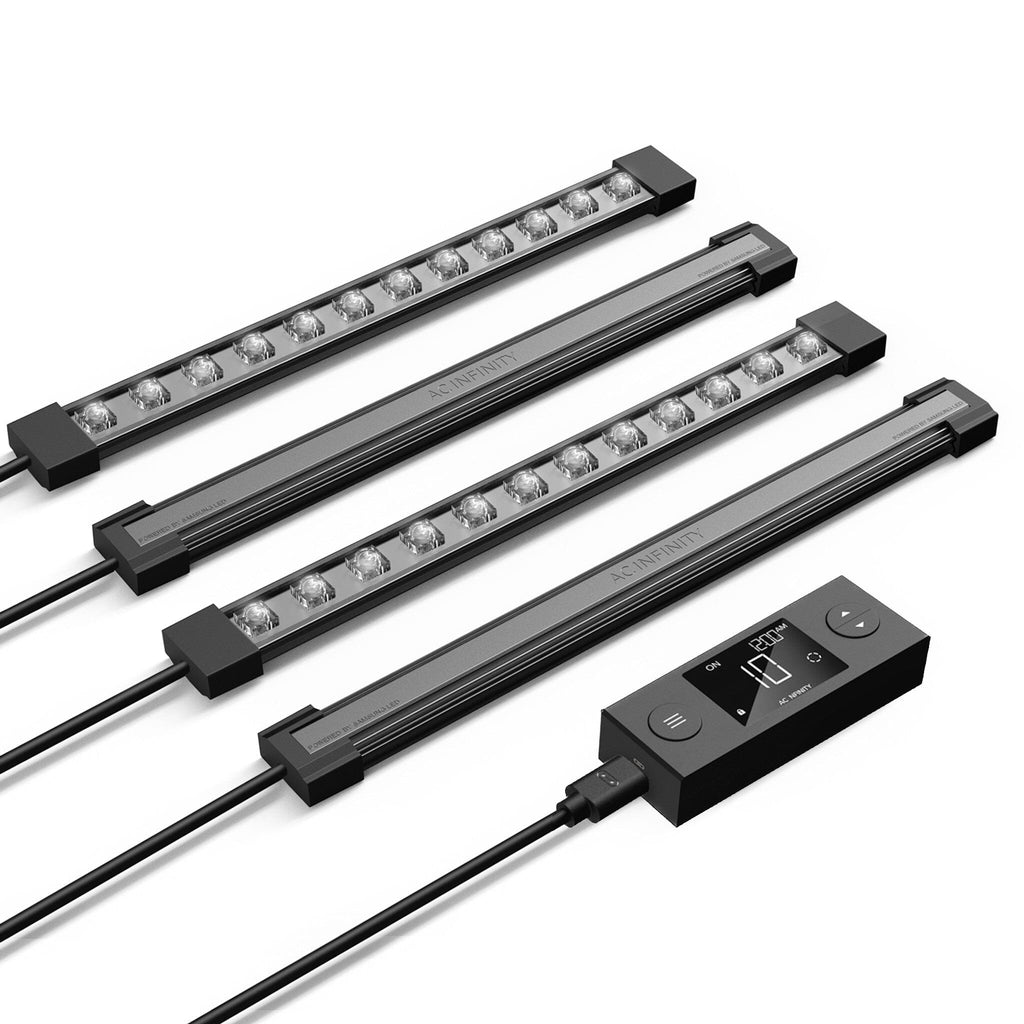

The IONBEAM S16 kit contains four LED bars, each approximately 40.7cm long and 2.75cm wide. Together they draw 42W. The kit also includes mounting bars, bar extension leads, a schedule controller, power adapter and mounting accessories.
Does this version work with Australian power?
Yes. The Grow Kings Australian listing specifies an Australian plug and a 100–240V, 50/60Hz power input. Those regional details take precedence over US pages that may show a US plug. Use the supplied AU power adapter rather than substituting another regional lead.
Can the IONBEAM S16 fit the AC Infinity Humidity Dome XL?
Yes. The matching Humidity Dome XL has moulded top divots and clip holes for IONBEAM light bars. The S16 kit provides four bars, while the dome can position matched bars over the 72-cell propagation tray for compact seedling and clone lighting.
Is a controller included?
Yes. A schedule controller is supplied with ten intensity levels plus ON, OFF, SCHEDULE and SUNSET/RISE modes. The bars are also UIS compatible, so growers can connect them to a supported AC Infinity environmental controller for central programming and app features.
Where should the bars be placed?
For supplemental lighting, mount the bars above dim corners, beside the canopy, or around inter-canopy and under-canopy areas. Plant species and stage affect the best distance and output, so begin conservatively and adjust intensity while monitoring the crop rather than using one fixed setting for every grow.
Description
Multi-purpose LED bar lighting designed for use as inter-canopy, supplemental, or primary grow lighting to boost light coverage. When optimally positioned, this kit will help maximize your plant’s growth and yields.
Each light bar has heavy-duty construction and is IP65-rated to resist water and dust entry, enabling it to withstand humid climates. Its unibody housing and aluminum board host a row of full-spectrum Samsung LM301H EVO LEDs while also dissipating heat to extend the diodes’ lifespan.
The kit includes a lighting controller, four LED grow light bars, and four steel bars that enable flexible mounting on any surface in grow tents. Includes mounting screws to be used as primary lighting in smaller grow setups.
Also compatible with our humidity domes for use in seed germination and propagation applications.

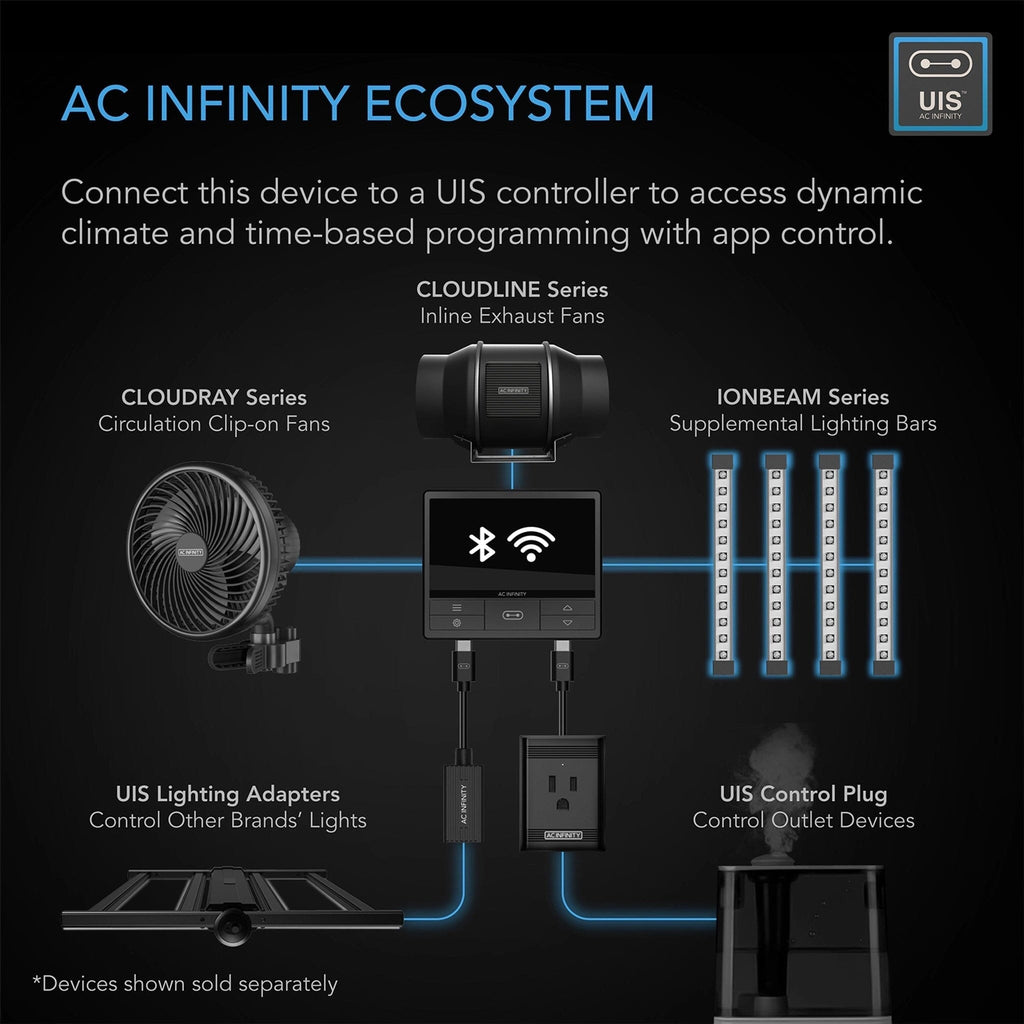

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.
COMPLETE LIGHTING COVERAGE

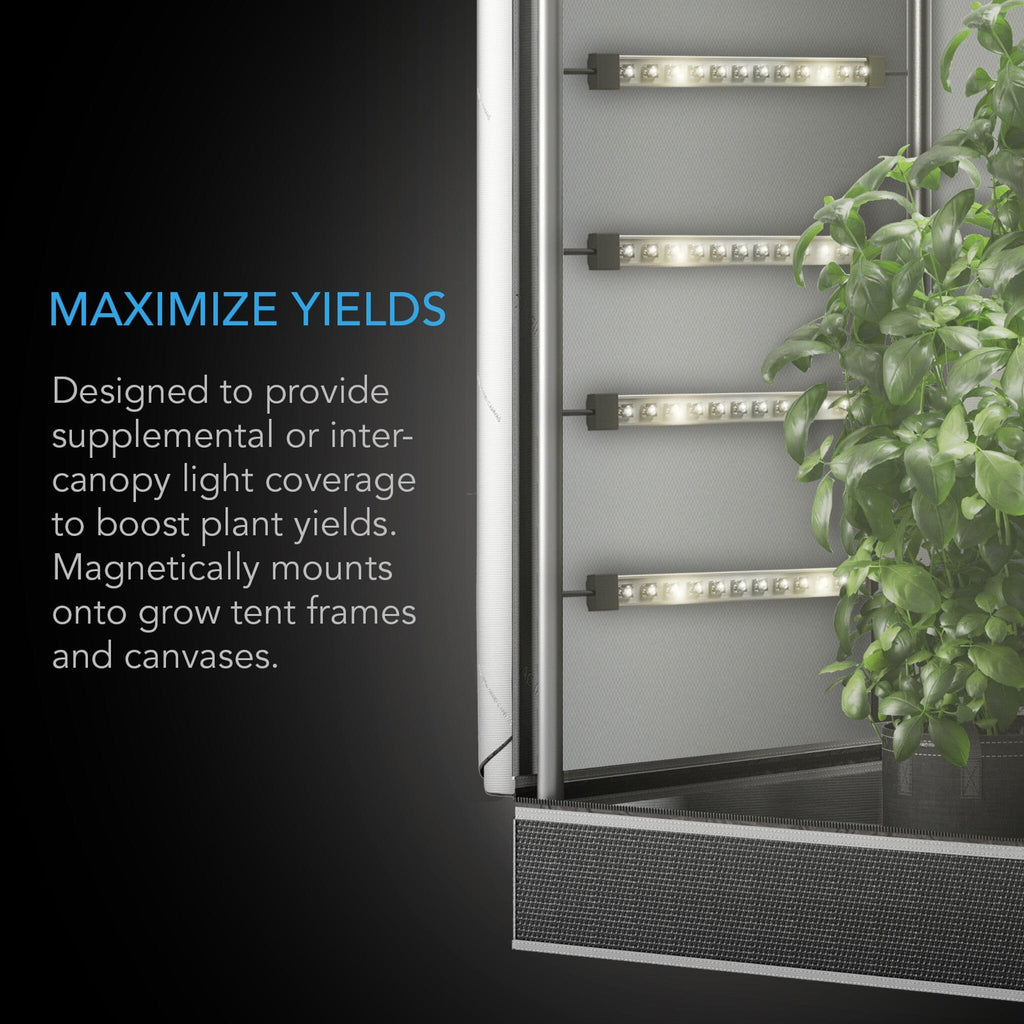

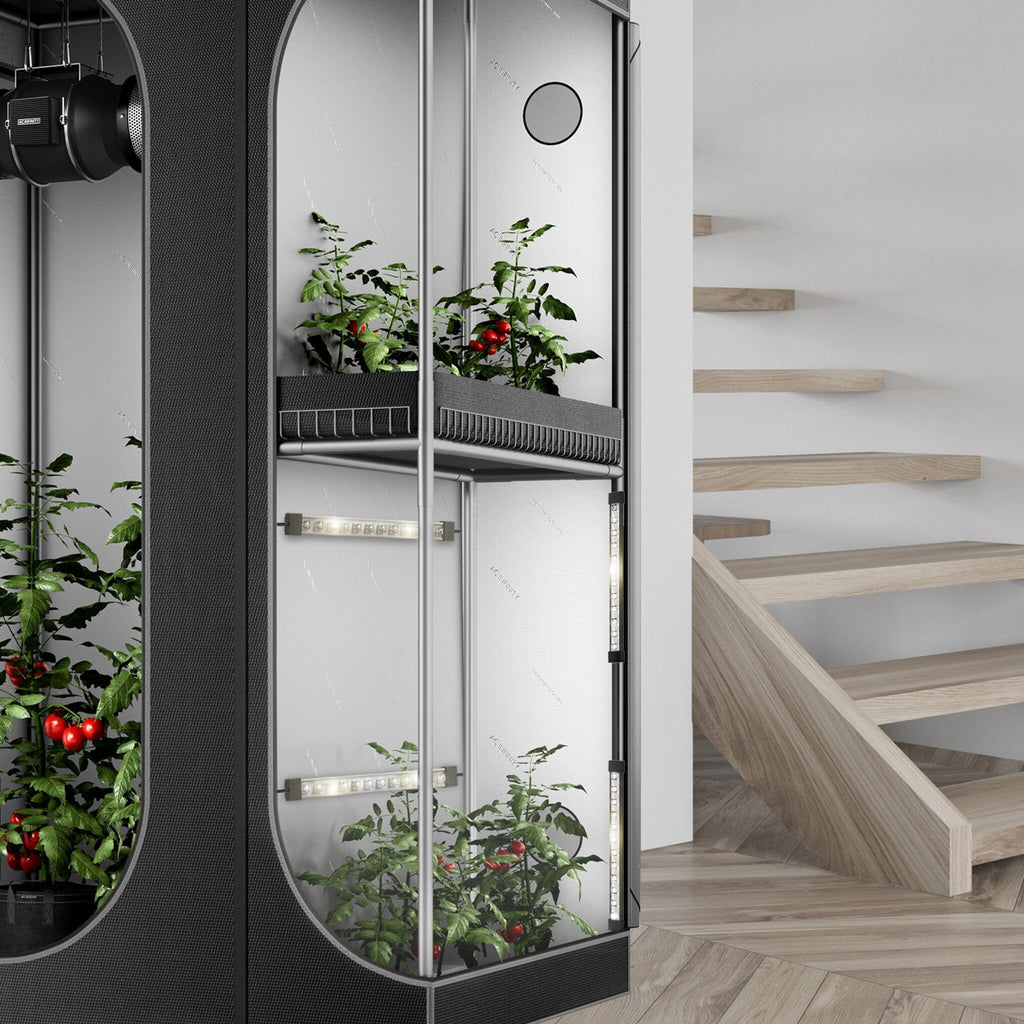

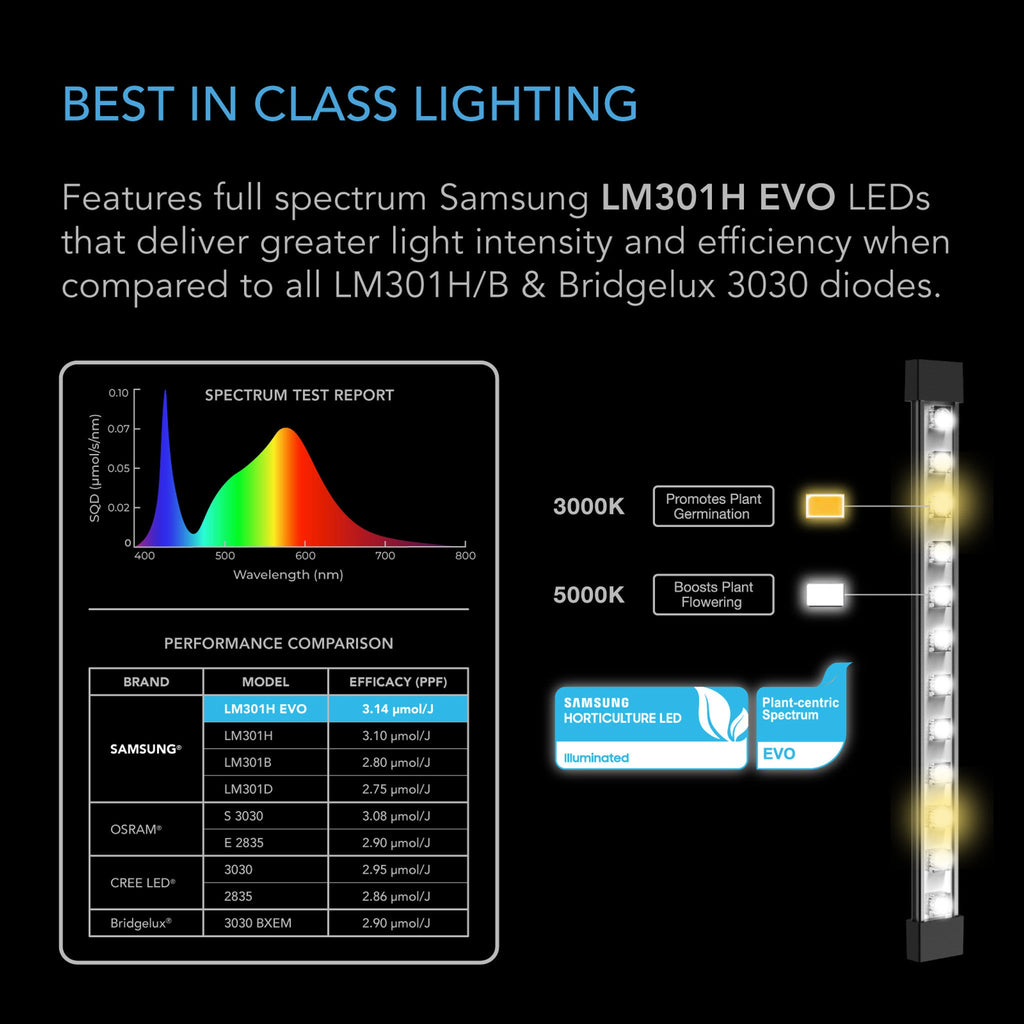

Magnetically mounts on grow tent frames and canvases when using the included steel bars. Provide extended coverage to inter-canopy areas that your primary lights have trouble reaching. Each LED grow light bar is built with genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. You can also link additional grow light bars to extend your reach or add more support lighting.
SMARTER CONTROLS

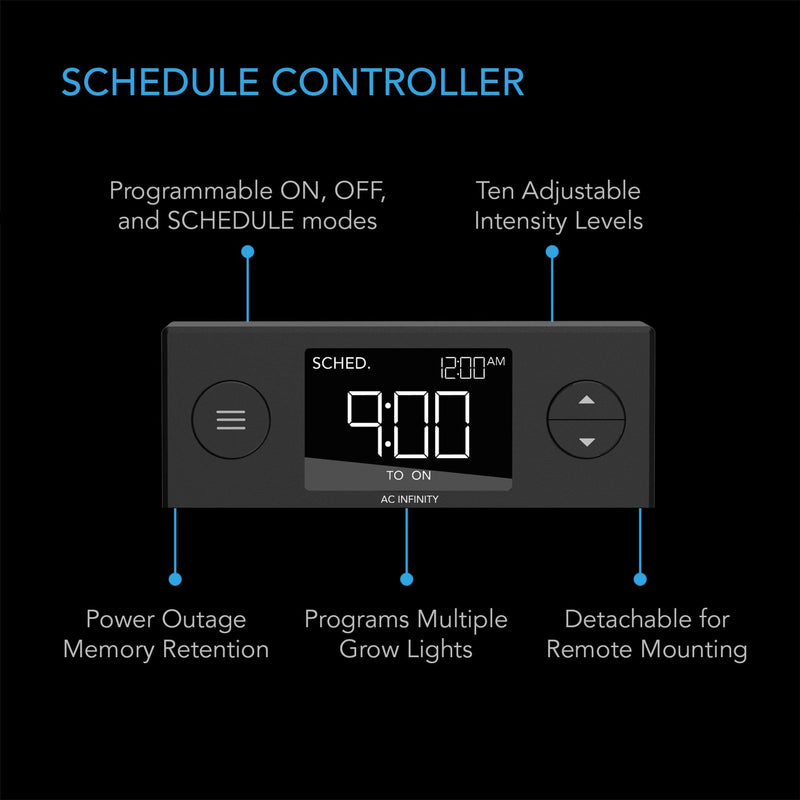

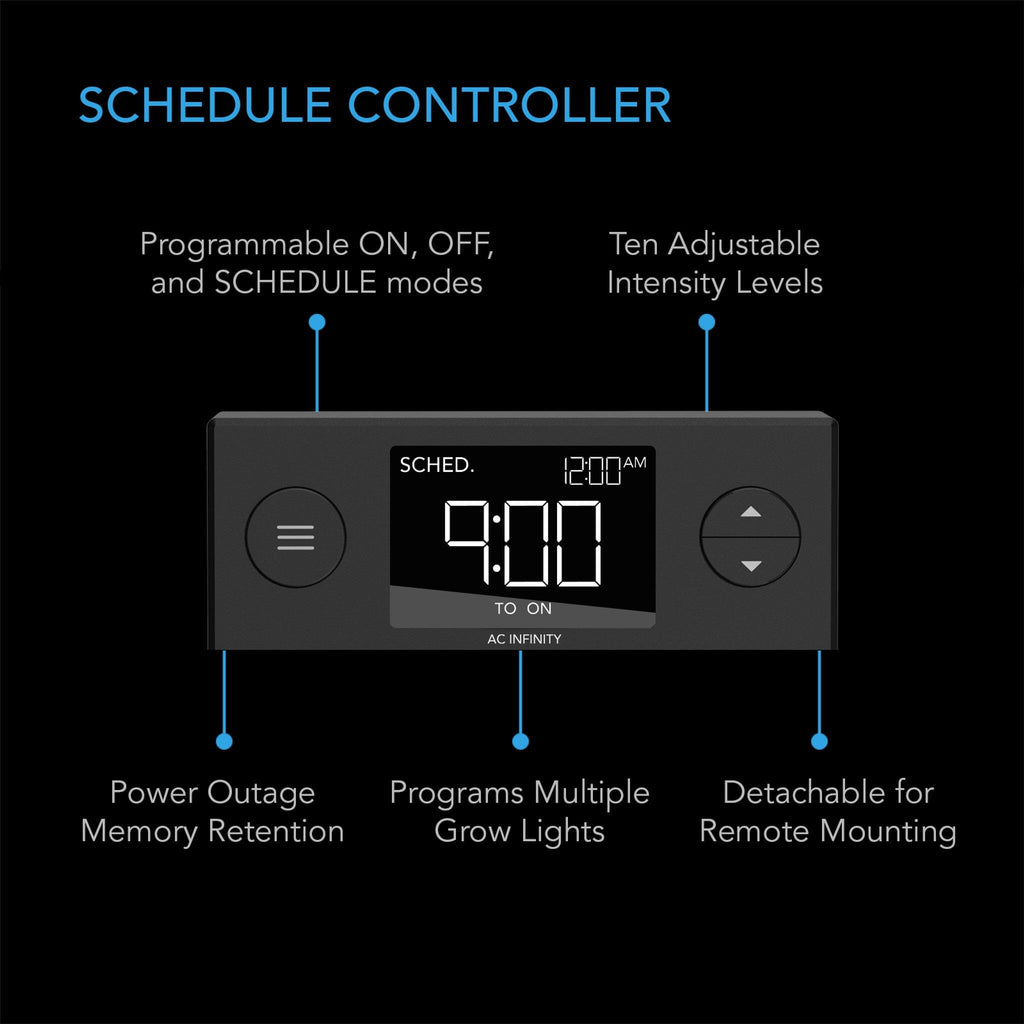

This kit includes an intuitive controller that features ten brightness intensity levels with OFF, ON, and SCHEDULE modes. Its built-in port can connect to UIS controllers to integrate with other grow equipment and access dynamic climate triggers, grow cycles, and schedules. Connect to the app to control your devices from anywhere, as well as unlock advance automations, alerts, climate charts, CSV data export, and more!
KEY FEATURES
- Four 16” LED bars designed for inter-canopy or supplemental lighting to boost plant yields.
- Provides expanded light coverage to areas that your primary grow lights have trouble reaching.
- Can magnetically mount onto your grow tent's frame or canvas using the included steel bars.
- Utilizes Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE for powerful lighting with unmatched efficiency.
- Features a digital controller with ten light intensity levels and daily schedule programming.
This unit has been updated and now ships with Samsung LM301H EVO Diodes and a digital display schedule controller.
To extend the cords between the lights, purchase a 12v / 5.5 mm cable extension cord. We currently dont sell these and its not directly supported.
Comes with Australian Power cord

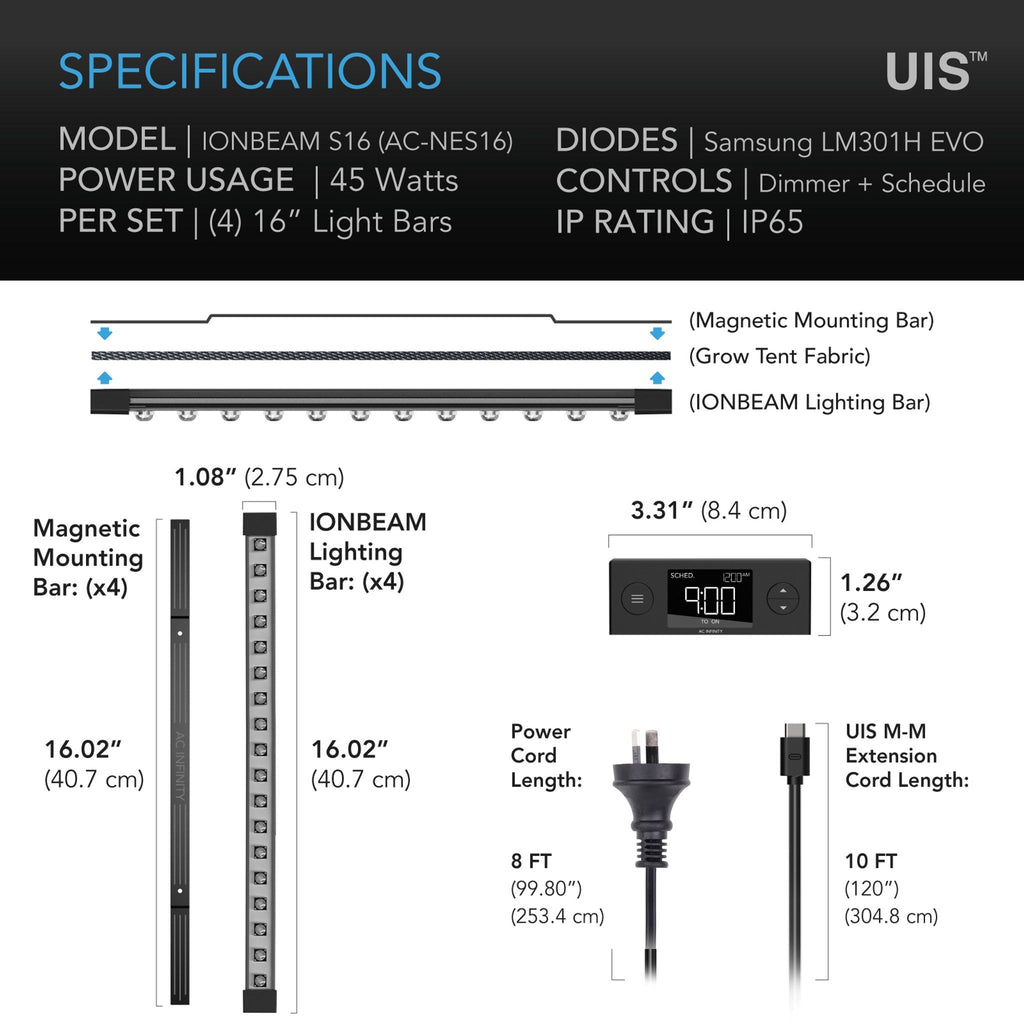

| Product Identification Ionbeam S16 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBEAM S16 |
| Product Model | AC-NES16 |
| UPC Code | 819137023369 |
| Product and Mounting Dimensions | |
| Light Dimensions | 16.02 x 1.08 in. (40.7 x 2.75 cm) |
| Controller Dimensions | 3.31 x 1.26 in. (8.4 x 3.2 cm) |
| Power Cord Length | 99.8 in. (253.4 cm) |
| Connector Cord Length | 9.1 in. (23.2 cm) |
| Product Performance and Technical Specs | |
| Diodes | Samsung LM301H EVO |
| LED Chip Count | 18 per bar |
| Spectrum | 3000K, 5000K |
| Wattage | 42 W |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Controller | Dimming Schedule Controller |
| Power Connector Type | Australian Power plug |
| Waterproof Rating | IP65 |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
| Product Manual | |
| Product Manual |
 PDF |
