Grower Tip
- Mount the four bars around shaded inter-canopy zones to supplement the primary grow light.
- For propagation, spread the bars above the tray for even coverage and begin at a lower intensity.
- Use the daily schedule controller for consistent light timing, or connect a UIS controller for integrated programming.
- Keep magnetic mounts firmly seated and route all cables clear of watering and moving equipment.
Features
Each bar measures 27.9 x 2.75cm, making the kit easy to position around canopies or propagation trays.
Twelve diodes per bar deliver a full 3000K and 5000K spectrum for versatile supplemental or compact primary lighting.
The four-bar system adds targeted light without the footprint of a large overhead fixture.
Integrated magnets and included steel bars support mounting to grow-tent frames, canvas and other suitable surfaces.
Adjust brightness across ten levels and set a daily lighting schedule from the included controller.
Connect to a compatible UIS controller for app access and coordinated grow-environment programming.
The 100–240V, 50/60Hz system is supplied by Grow Kings with an Australian power cord.
-
1
Plan the layout
Choose inter-canopy, supplemental or propagation positions that target areas needing more light.
-
2
Mount the bars
Use the integrated magnets with the included steel bars, or the supplied screws on a suitable surface.
-
3
Connect the system
Link all four bars to the included controller and connect the Australian power cord.
-
4
Set the intensity
Start at an appropriate lower level, then adjust across the ten settings for the plants and mounting distance.
-
5
Set the schedule
Select ON or SCHEDULE mode and program the daily lighting period.
-
6
Add UIS control
Connect a compatible UIS controller when app access or integrated environmental programming is required.
What is included with the IONBEAM S11?

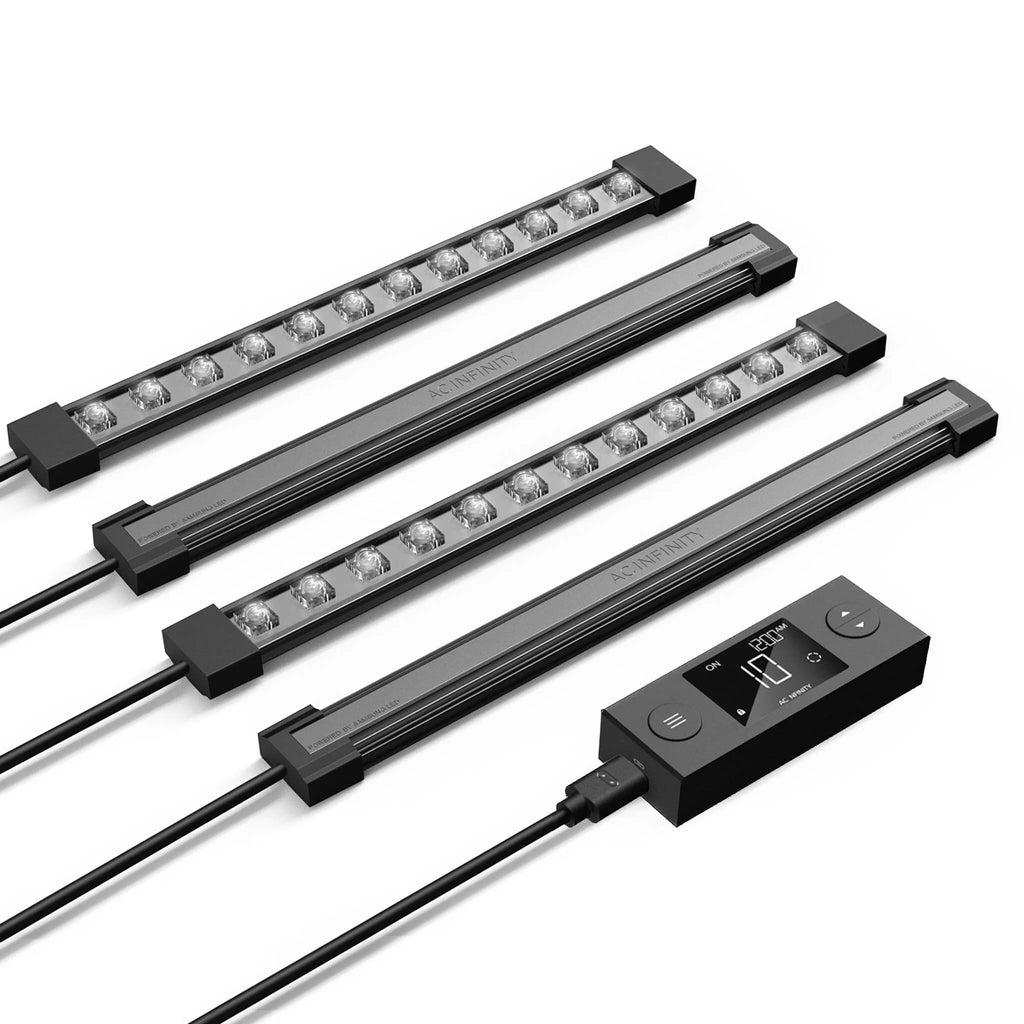

The kit includes four 28cm full-spectrum LED light bars, a digital dimming and schedule controller, steel mounting bars and mounting screws. The Grow Kings Australian-market unit also includes the appropriate Australian power cord for its 100–240V, 50/60Hz power supply.
Is the S11 a primary or supplemental grow light?
It can provide inter-canopy or supplemental lighting where a main fixture does not reach, and it can serve as primary lighting in compact setups. Its four small bars are especially useful for propagation trays and for directing light around plants rather than only from overhead.
What output and spectrum does it use?
The kit draws 30W total. Each of the four bars contains 12 Samsung LM301H EVO diodes and combines 3000K and 5000K light for a full spectrum. Each bar measures 27.9 x 2.75cm and carries an IP65 ingress-protection rating.
How do the bars mount?
Integrated magnets let the bars attach to a grow-tent frame. The included steel bars also create mounting points through tent canvas or on other suitable surfaces, while the supplied screws support fixed installation. Plan cable routes before mounting so every connection reaches the controller safely.
Can I connect it to Controller 69 Pro?
Yes. IONBEAM is part of the UIS ecosystem, and Controller 69 Pro can manage compatible UIS grow lights through an available port. This adds app access and broader schedules or environmental programming beyond the included ten-level dimming and daily schedule controller.
Description

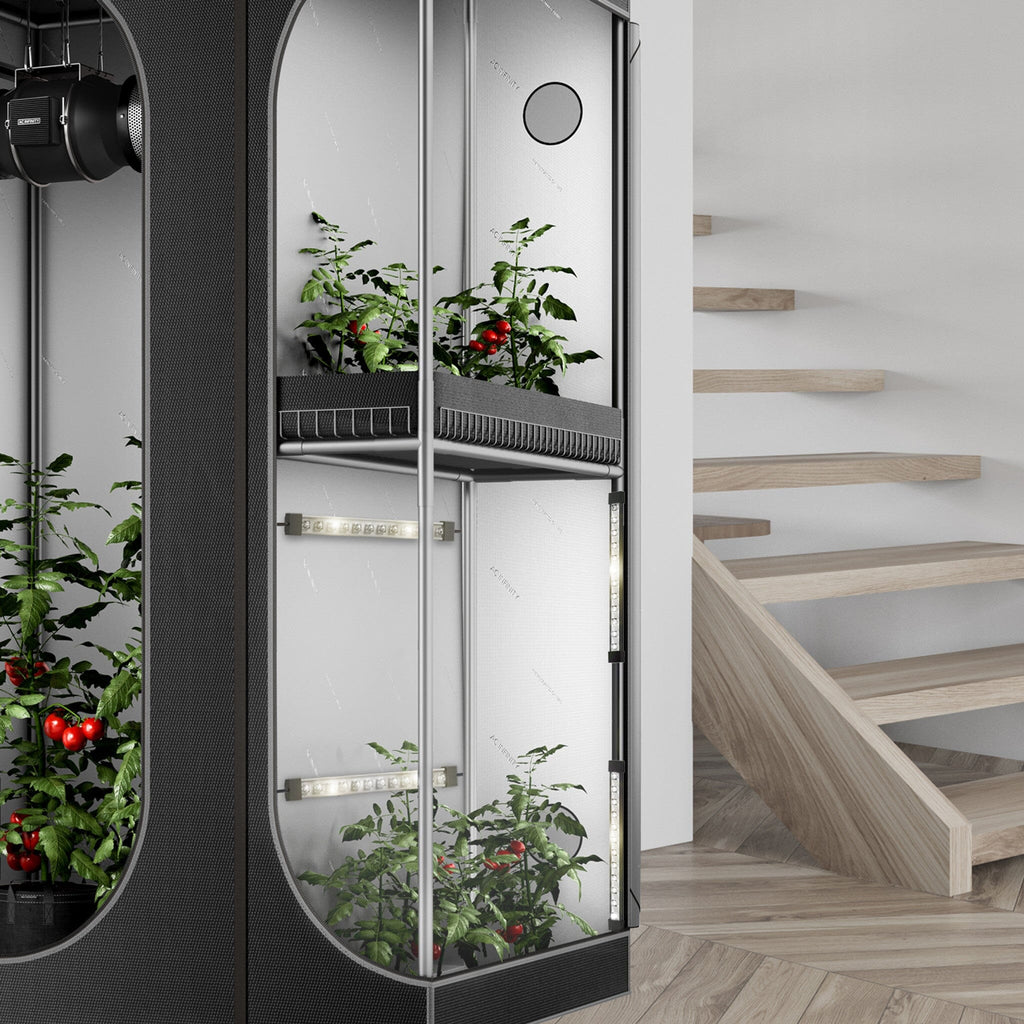

Multi-purpose LED bar lighting designed for use as inter-canopy, supplemental, or primary grow lighting to boost light coverage.
When optimally positioned, this kit will help maximize your plant’s growth and yields. Each light bar has heavy-duty construction and is IP65-rated to resist water and dust entry, enabling it to withstand humid climates. Its unibody housing and aluminum board host a row of full-spectrum Samsung LM301H EVO LEDs while also dissipating heat to extend the diodes’ lifespan.
The kit includes a lighting controller, four LED grow light bars, and four steel bars that enable flexible mounting on any surface in grow tents. Includes mounting screws to be used as primary lighting in smaller grow setups. Also compatible with our humidity domes for use in seed germination and propagation applications.

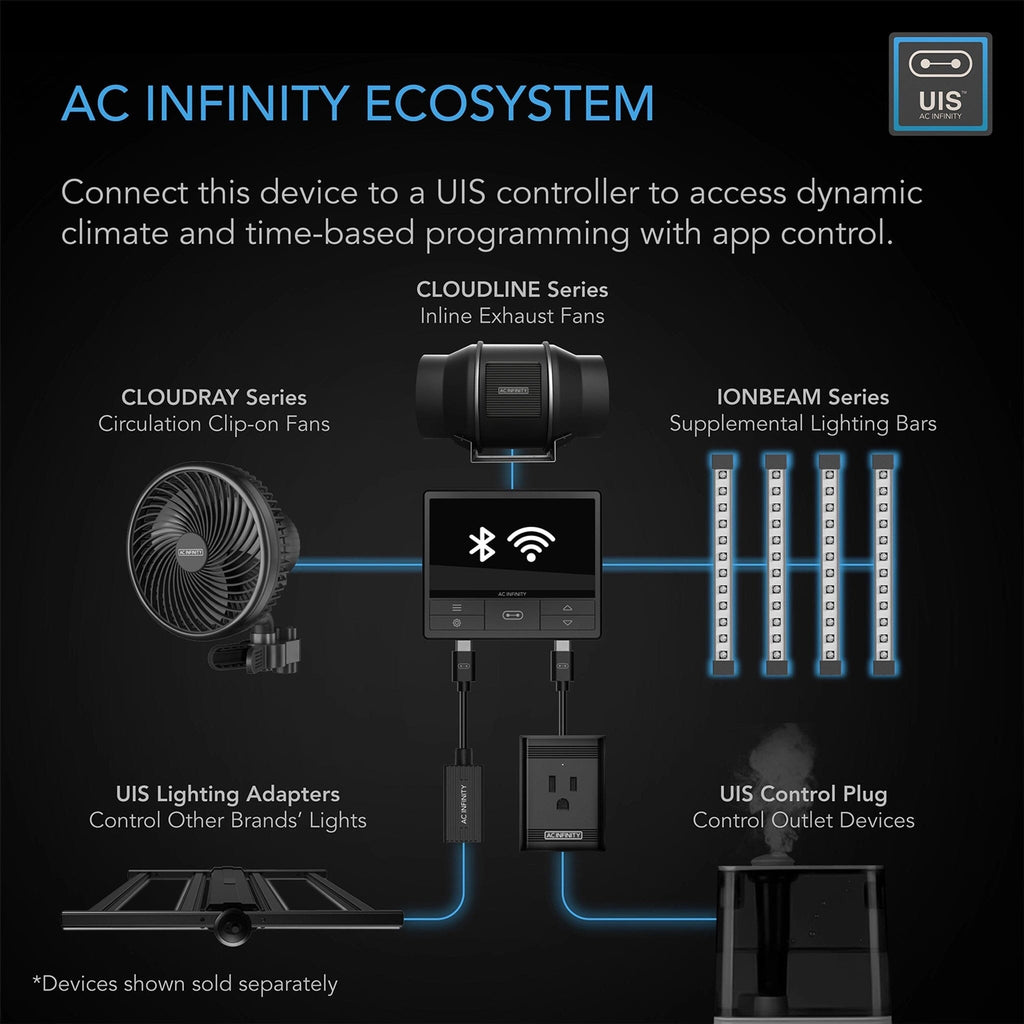

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

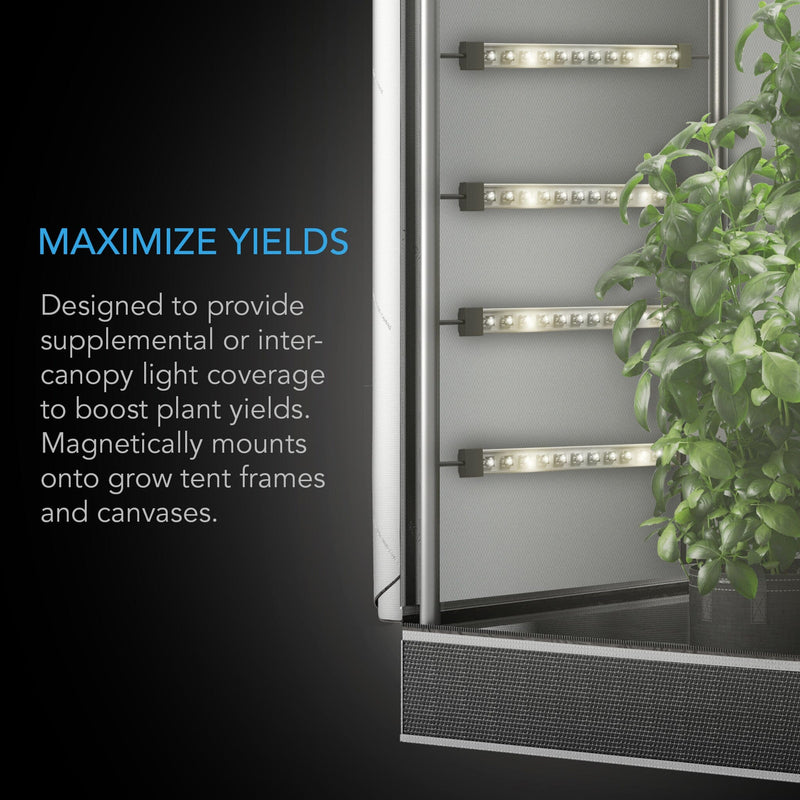

COMPLETE LIGHTING COVERAGE

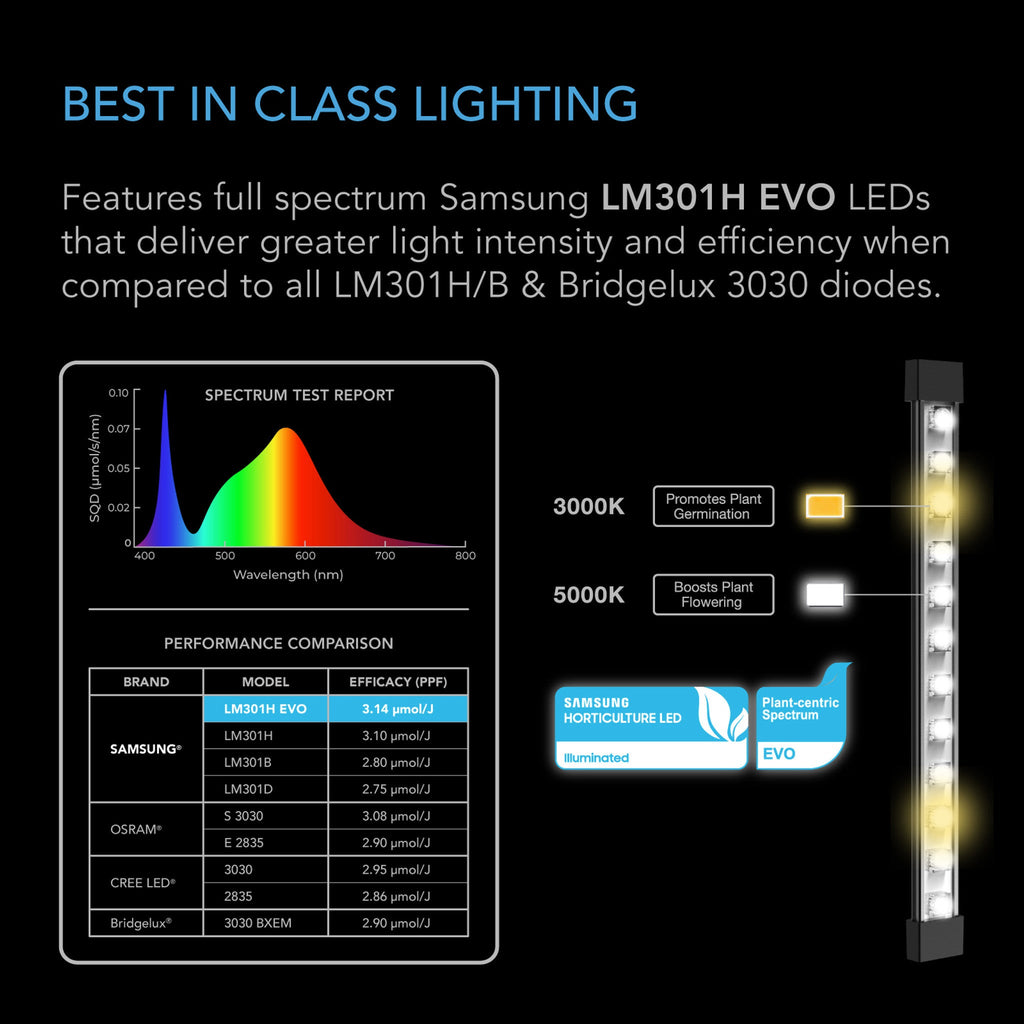

Magnetically mounts on grow tent frames and canvases when using the included steel bars. Provide extended coverage to inter-canopy areas that your primary lights have trouble reaching. Each LED grow light bar is built with genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. You can also link additional grow light bars to extend your reach or add more support lighting.
SMARTER CONTROLS

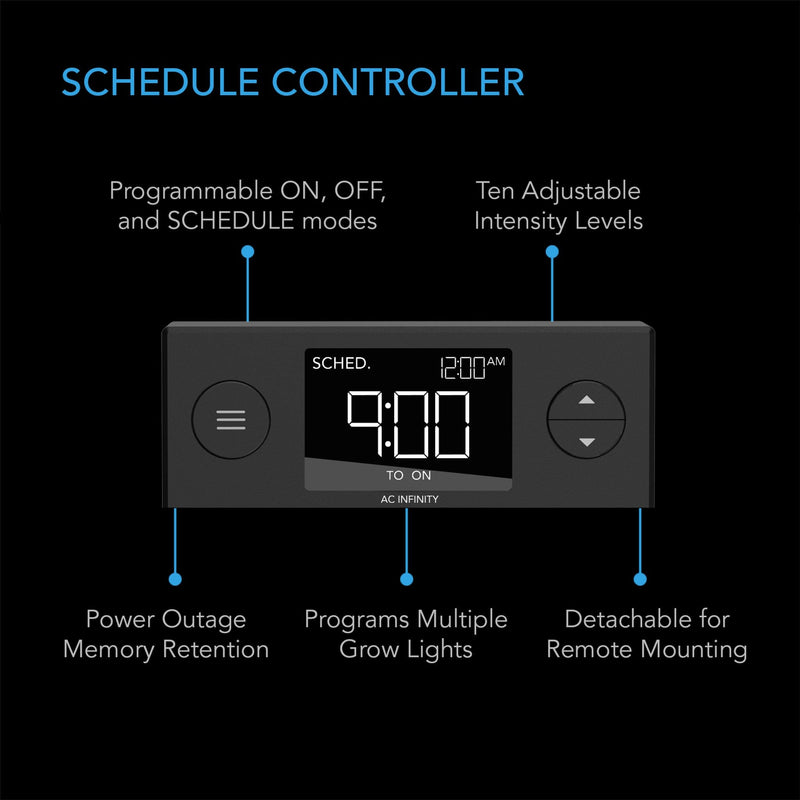

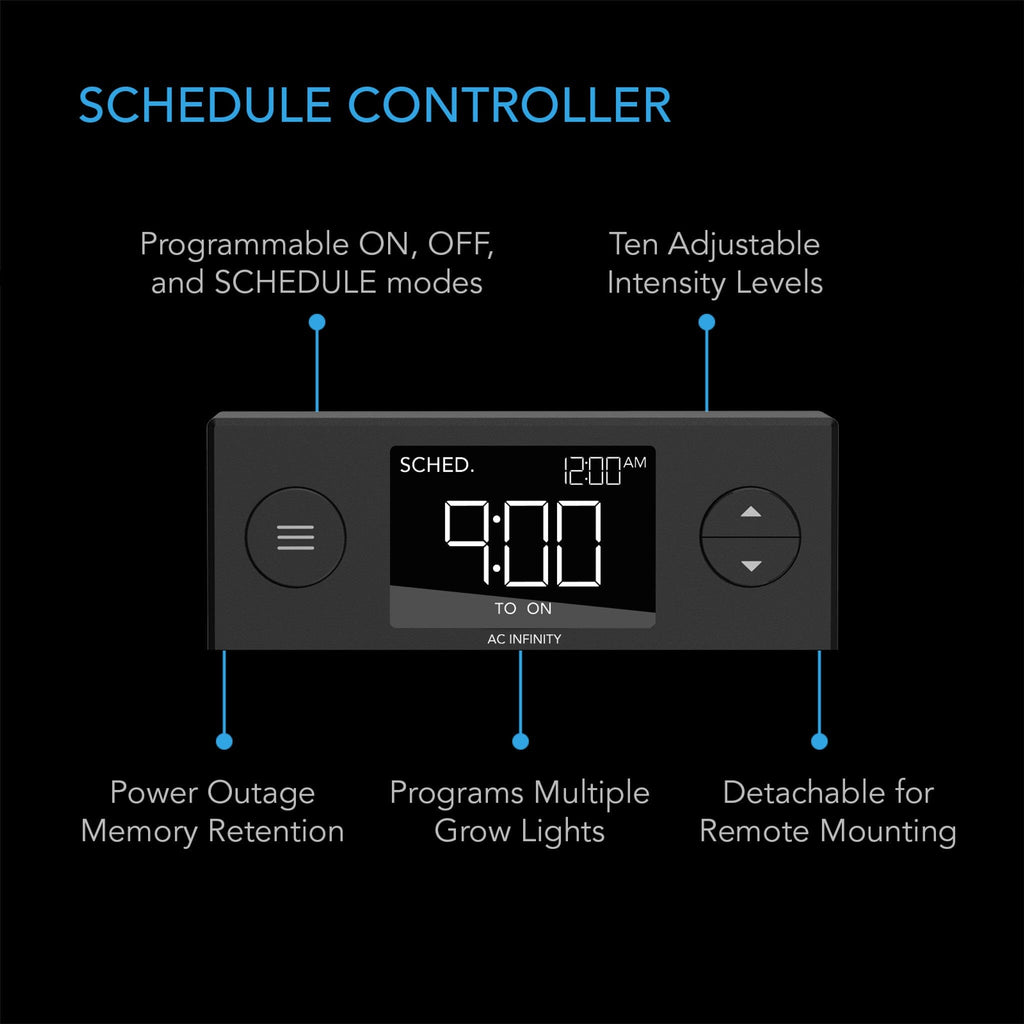

This kit includes an intuitive controller that features ten brightness intensity levels with OFF, ON, and SCHEDULE modes. Its built-in port can connect to UIS controllers to integrate with other grow equipment and access dynamic climate triggers, grow cycles, and schedules. Connect to the app to control your devices from anywhere, as well as unlock advance automations, alerts, climate charts, CSV data export, and more!
KEY FEATURES
- Four 11” LED bars designed for inter-canopy or supplemental lighting to boost plant yields.
- Provides expanded light coverage to areas that your primary grow lights have trouble reaching.
- Can magnetically mount onto your grow tent's frame or canvas using the included steel bars.
- Utilizes Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE for powerful lighting with unmatched efficiency.
- Features a digital controller with ten light intensity levels and daily schedule programming.
To extend the cords between the lights, purchase a 12v / 5.5 mm cable extension cord. We currently dont sell these and its not directly supported.
This unit has been updated and now ships with Samsung LM301H EVO Diodes and a digital display schedule controller.
Add this to the Humidity dome from AC Infinity, or as inter-canopy lighting / extra light in your grow tent.
Comes with Australian Power cord

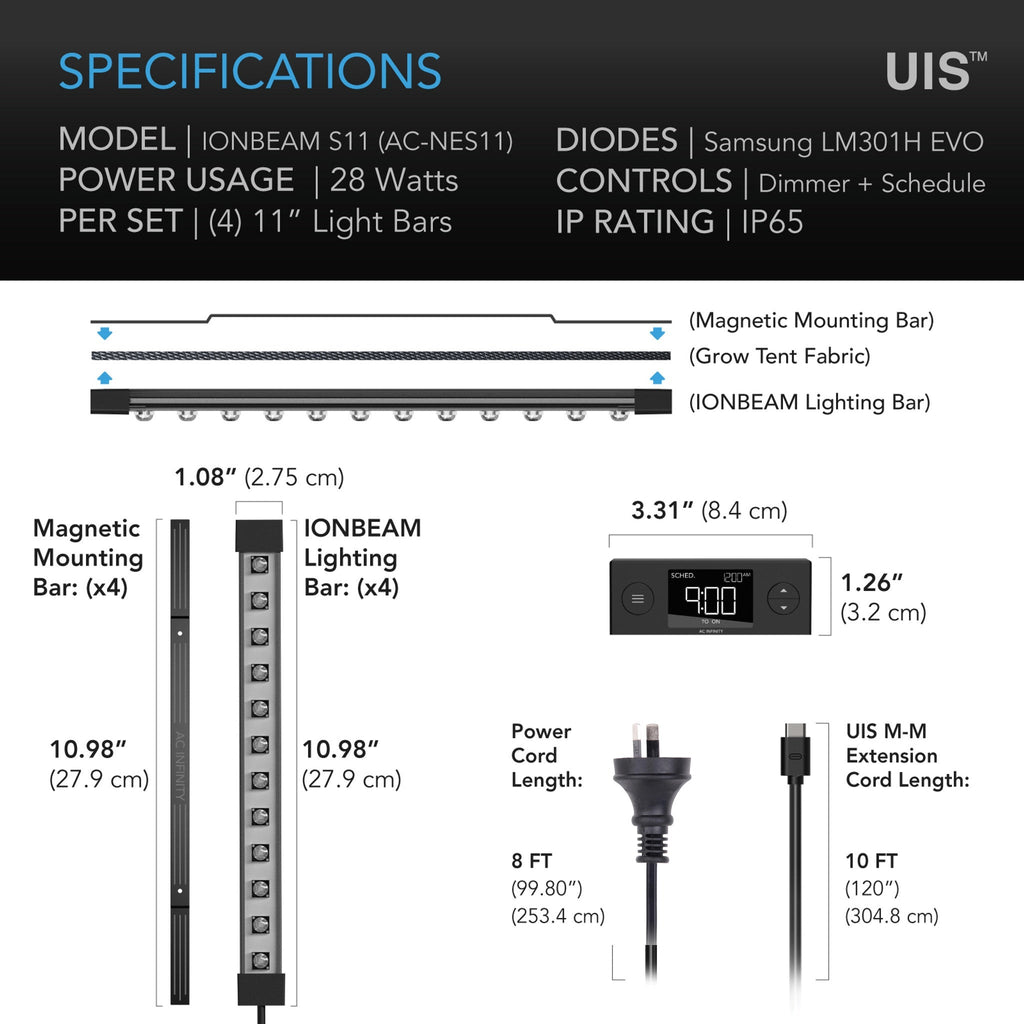

| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBEAM S11 |
| Product Model | AC-NES11 |
| UPC Code | 819137023352 |
| Product and Mounting Dimensions | |
| Light Dimensions | 10.98 x 1.08 in. (27.9 x 2.75 cm) |
| Controller Dimensions | 3.31 x 1.26 in. (8.4 x 3.2 cm) |
| Power Cord Length | 99.8 in. (253.4 cm) |
| Connector Cord Length | 9.1 in. (23.2 cm) |
| Product Performance and Technical Specs | |
| Diodes | Samsung LM301H EVO |
| LED Chip Count | 12 per bar |
| Spectrum | 3000K, 5000K |
| Wattage | 30 W |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Controller | Dimming Schedule Controller |
| Power Connector Type | Australian Power Cord |
| Waterproof Rating | IP65 |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
| Product Manual | |
| Product Manual |
 PDF |
...
