Grower Tip
- Hang the fixture 50-100cm above the canopy and adjust upward as plants stretch — the manual's recommended range.
- Running multi-tier racks or sidewall lighting? Split it into two 360W halves — each runs independently with its own hanging points.
- Start dimmed at 290W over young plants and step up through 430W and 580W as the canopy fills out.
Features

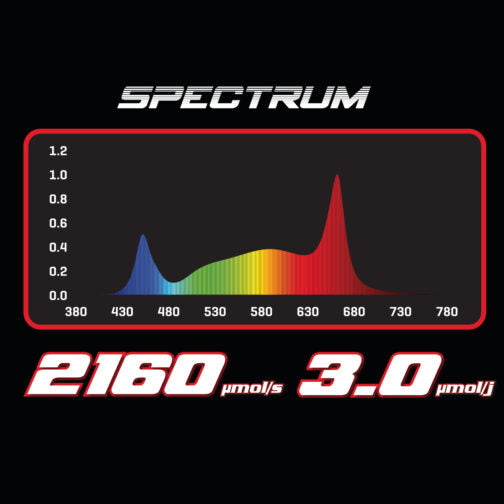

Delivers 2160 µmol/s of full-spectrum light at a class-leading 3.0 µmol/J — strong output without the power bill.

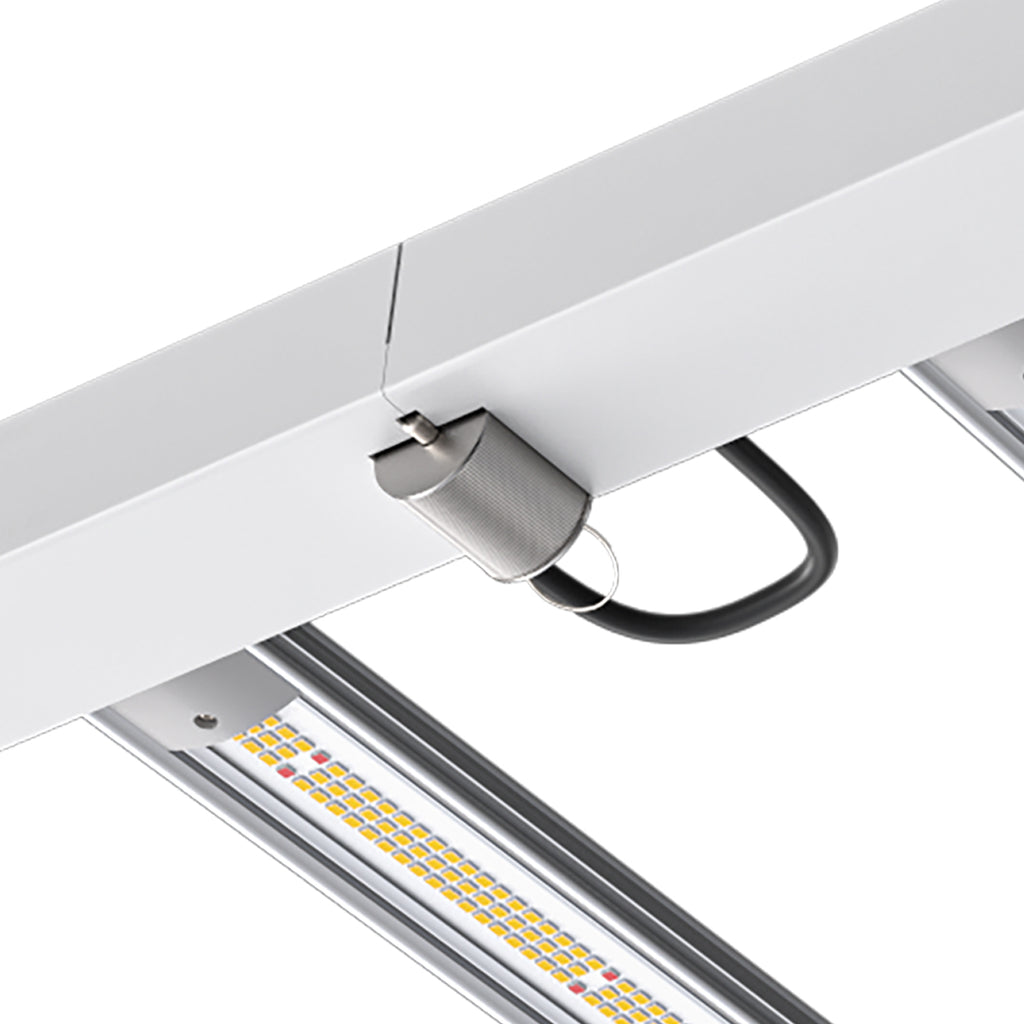

Pull one pin at the centre joint and the 720W fixture becomes two fully independent 360W units.
Run it whole for top lighting, or split for multi-tier racks, sidewall lighting and narrow spaces.
Manual dimmer steps through 290W, 430W, 580W and 720W to match output to growth stage.

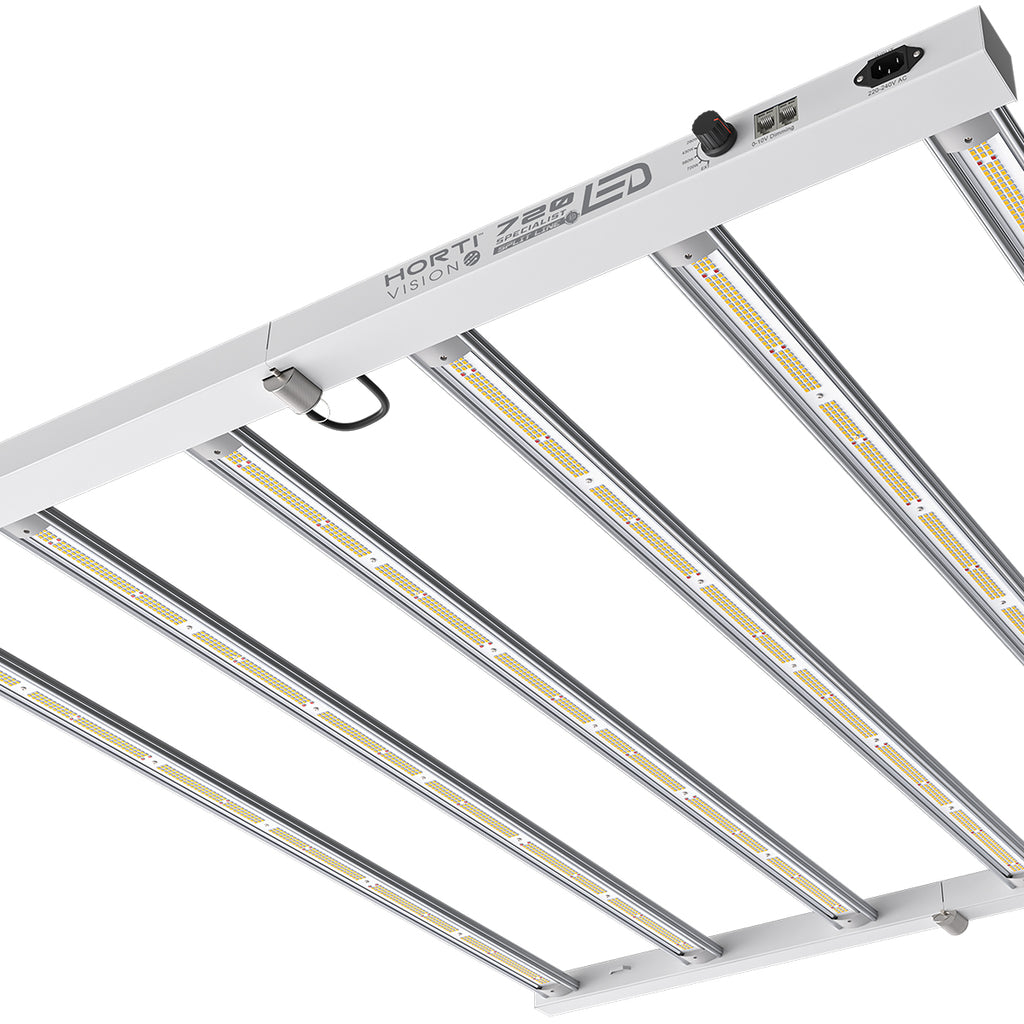

Onboard control ports with an RJ14 network cable included for external lighting control.
Sealed against splash and dust for grow room conditions, with a UL 8800 rated fixture and power supply.
Ships with the fixture, IEC power cord, RJ14 network cable and four hangers.
-
1
Plan the position
Refer to your light plan, prepare the mounting spot and have rope ratchet hangers ready for the four hanging points.
-
2
Unbox carefully
Unfold the fixture on a flat, stable surface. Keep the LED bars away from sharp objects and avoid touching the diodes.
-
3
Switch off the mains
Cut power at the socket before any installation or maintenance work.
-
4
Hang the fixture
Run rope ratchets through the four hanging points, distribute the weight so it hangs level, and set it 50-100cm above the canopy.
-
5
Connect power
Plug the cord into the fixture first, then into the electrical socket.
-
6
To split the fixture

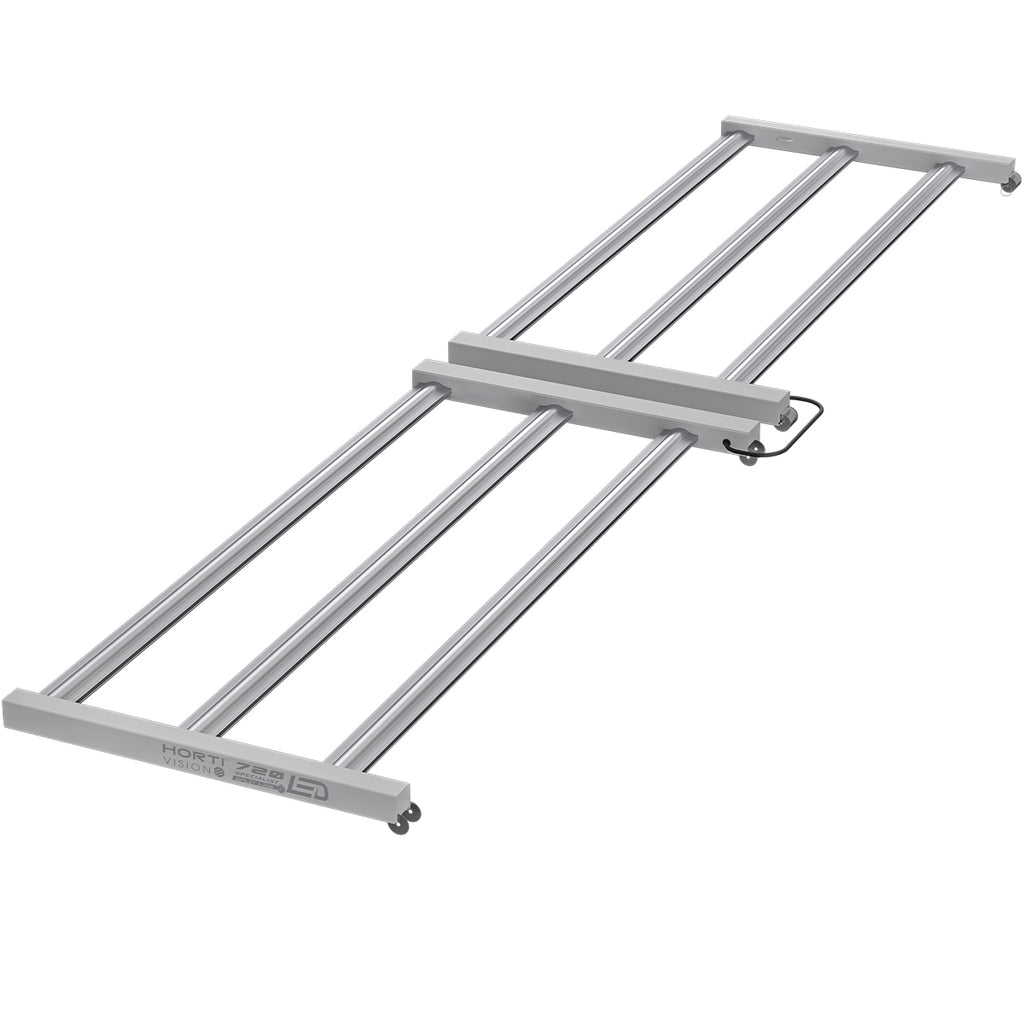

Power off and let it cool 20-30 minutes, then remove the quick-release pin at the centre joint. Each 360W half mounts independently.
How does the split function work?
A quick-release pin sits at the fixture's centre joint. Power off, let the unit cool for 20-30 minutes, then remove the pin — the fixture separates into two fully functional 360W halves, each with its own hanging points. That turns one top light into sidewall or rack lighting without buying a second fixture.
How high should I hang it above the plants?
The manual recommends 50-100cm above the canopy. Start toward the top of that range and adjust as your crop grows — the fixture hangs on rope ratchets through four hanging points, so raising and lowering it takes seconds. Dimming down is the other lever if young plants show light stress.
Can I dim or control it externally?
Both. The onboard manual dimmer steps through 290W, 430W, 580W and 720W, and the fixture carries control ports with an RJ14 network cable included in the box for external lighting control. Hortivision's LED Smart Controller is the matching brand option if you want remote, multi-fixture control from one unit.
Is it waterproof?
It's IP44 rated — sealed against splashes and dust, which suits grow room humidity — and the fixture and power supply are UL 8800 rated. It is not designed to be submerged, and the housing should never be opened: that breaks the water-tight seal and voids the warranty. Clean with a feather duster or soft damp cloth only.
What comes in the box?
The 720W LED fixture, an IEC power cord, an external RJ14 network cable for the control ports, and four hangers. You'll want rope ratchets for height-adjustable hanging — the manual's installation steps are written around them — and they're an inexpensive add-on if you don't already own a set.
Description
The Horti-Vision 720W Specialist Split Line 3.0 LED is a 2160 mol/s fixture with class-leading 3.0 mol/J efficiency.
Its unique quick-release pin design allows the fixture to be used as one 720W light or split into two 360W units. Ideal for top lighting, multi-tier racks, sidewall applications, and indoor grow rooms. This full spectrum LED delivers powerful, uniform coverage for exceptional results from seed to harvest.
Dimmable: 290W – 430W – 580W – 720W
Specifications
