Grower Tip
- Position the board so tent duct ports remain clear before loading equipment.
- Route cords behind the mesh and secure longer runs with the supplied ties.
- Keep the board for controllers, drivers and tools; it does not replace a structural tent bar.
Features

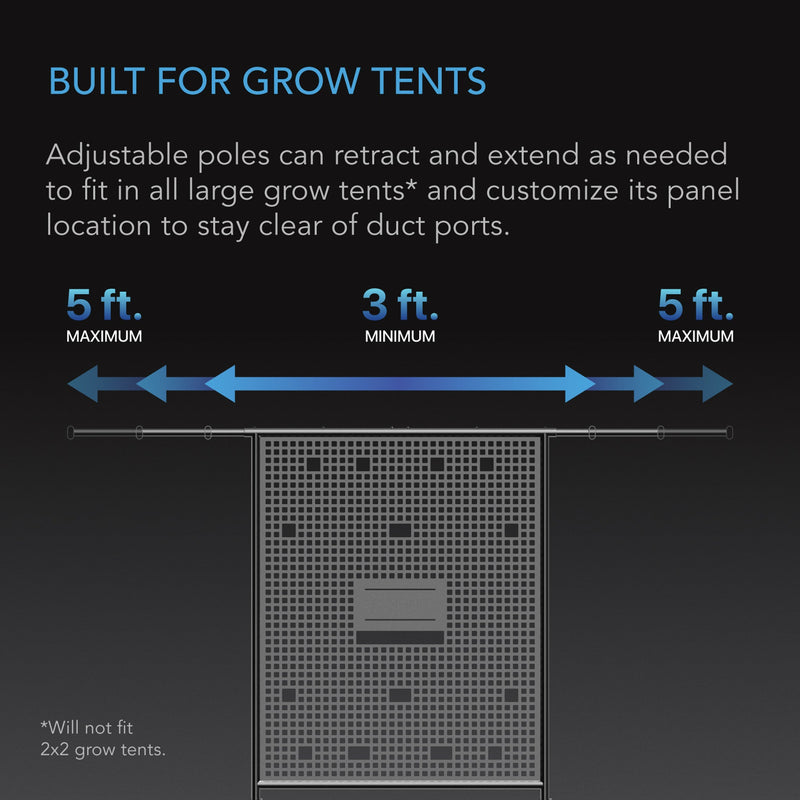

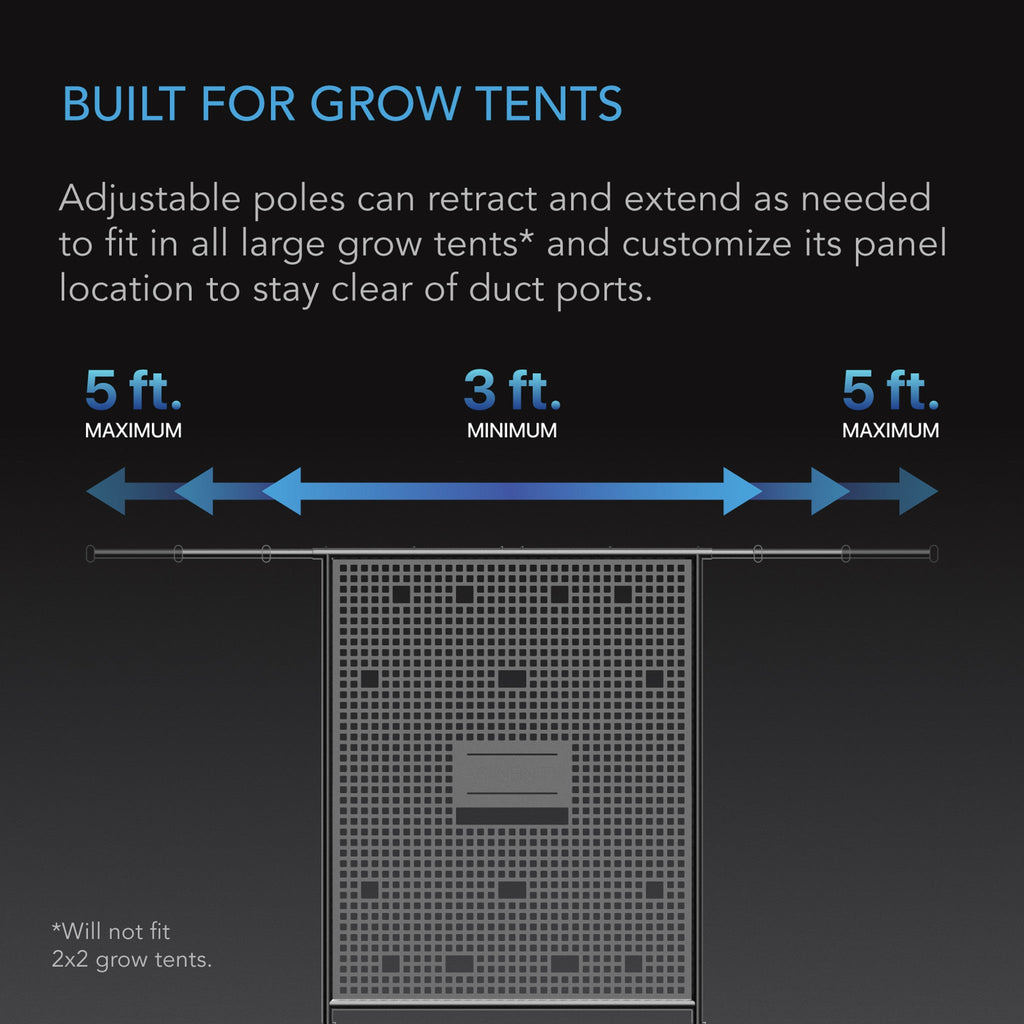

Locking poles extend from approximately 91 to 152cm to suit different grow-tent layouts.
The powder-coated steel frame has a listed total equipment capacity of 22.7kg.
The steel panel supports compatible magnetic backs, screws, hooks, straps and wire ties.
Wide mesh openings route power and sensor cables behind the board and away from the grow floor.

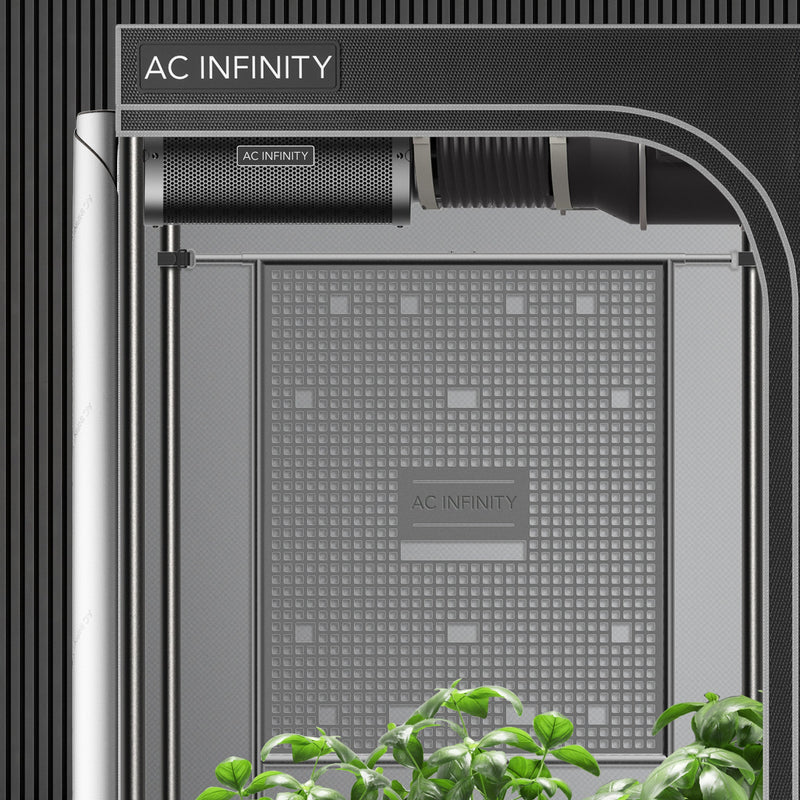

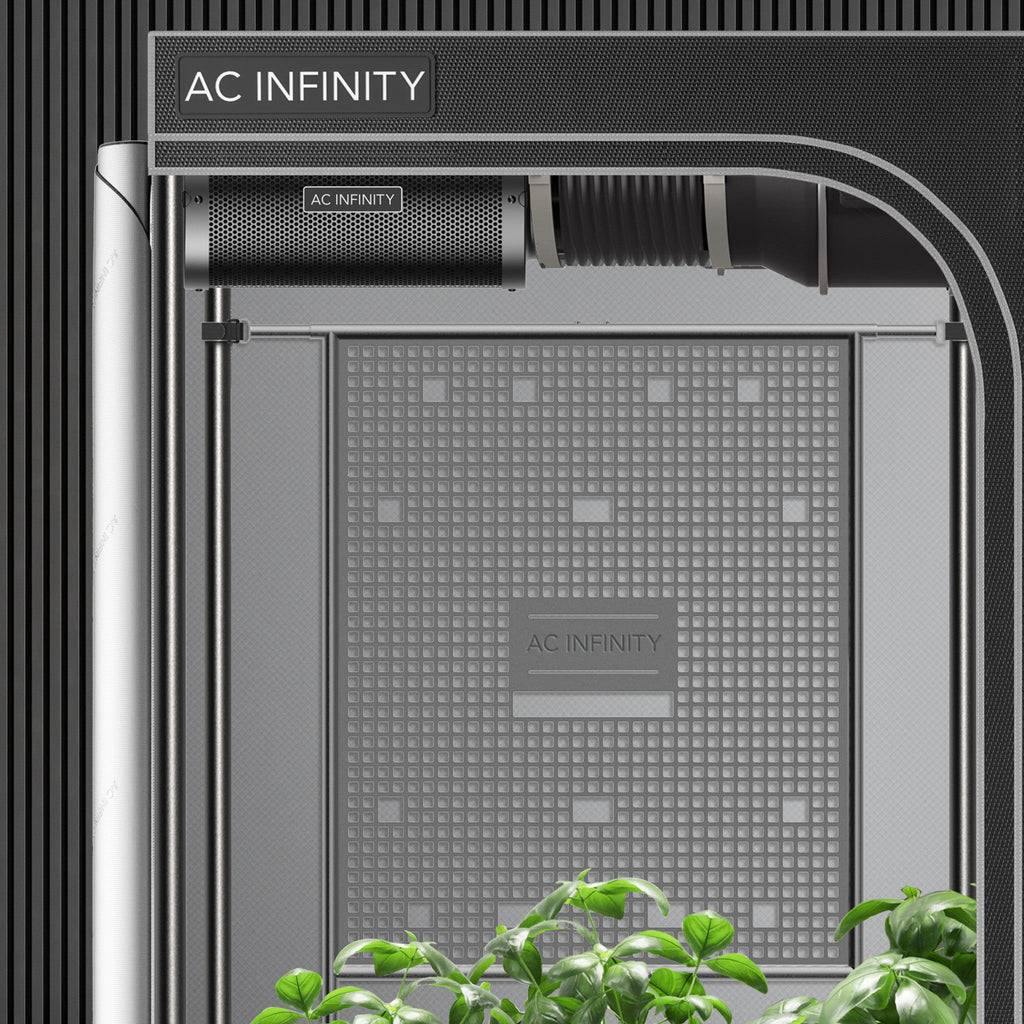

The board can be repositioned around the tent frame to keep ventilation ports unobstructed.
The kit includes hooked poles, stabilising poles, hook-and-loop straps and 20 wire ties.
-
1
Insert the hooked poles
Slide both hooked poles vertically into the openings at the bottom of the gear board.
-
2
Add stabilising poles
Insert the two stabilising poles horizontally into the openings at the top of the board.
-
3
Adjust the span
Extend the poles to fit the tent frame and confirm each adjustment clicks securely into place.
-
4
Secure to the tent
Hook the lower poles around the tent-frame base and fasten the upper poles with the supplied straps.
-
5
Mount and route equipment
Attach compatible devices using screws, magnets, hooks or ties, then route and secure cables behind the board.
What grow tents does the gear board fit?
Its adjustable poles span approximately 91 to 152cm and the product is listed for grow tents up to 5×5. Confirm the available frame width and choose an orientation that keeps doors, plants and duct ports accessible before loading equipment.
What equipment can be mounted on it?
The board is designed for controllers, LED drivers, monitoring devices, cables and hand tools. It is not a replacement for a structural grow-tent bar and should not be used to suspend grow lights or heavy ventilation equipment from the tent roof.
How can devices be attached?
Compatible devices can be secured using magnetic backs, screws, hooks, hook-and-loop straps or wire ties. The central slots support screw mounting, while the steel surface accepts magnetic equipment. Choose a method suited to the device and verify it is secure.
How much weight can the board hold?
The Shopify specification lists a total capacity of 22.7kg. Distribute equipment across the steel grid, secure every item and stay within that limit. The rating does not turn the board into a structural tent support or roof-hanging bar.
Will it block my grow tent's duct ports?
The adjustable frame can be repositioned to keep duct ports unobstructed. Plan the board location before tightening the poles, then check access to ventilation openings, electrical leads and tent doors. Reorient the board if any important opening is restricted.
Description

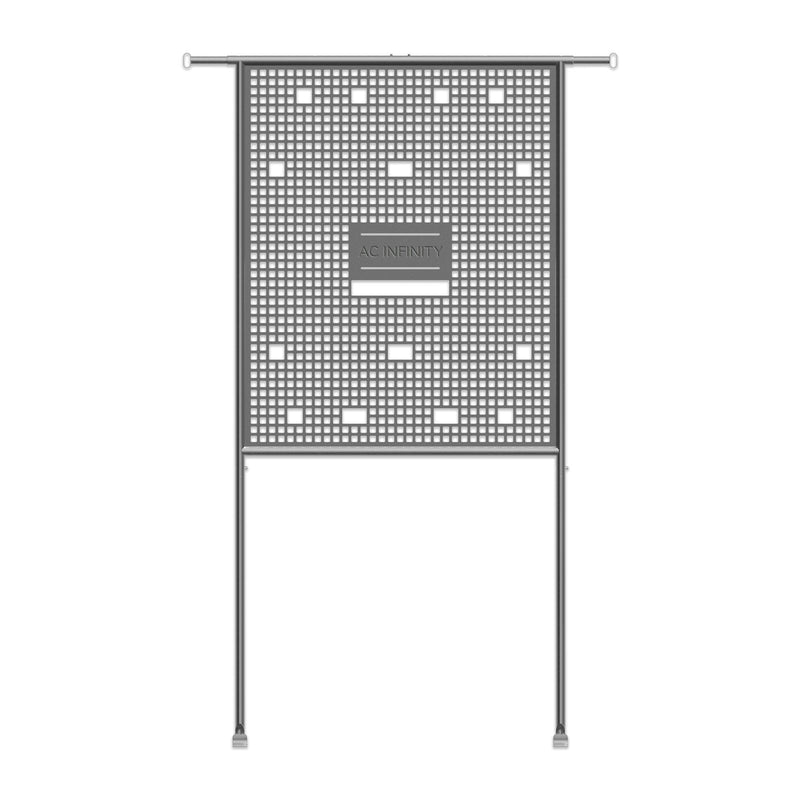

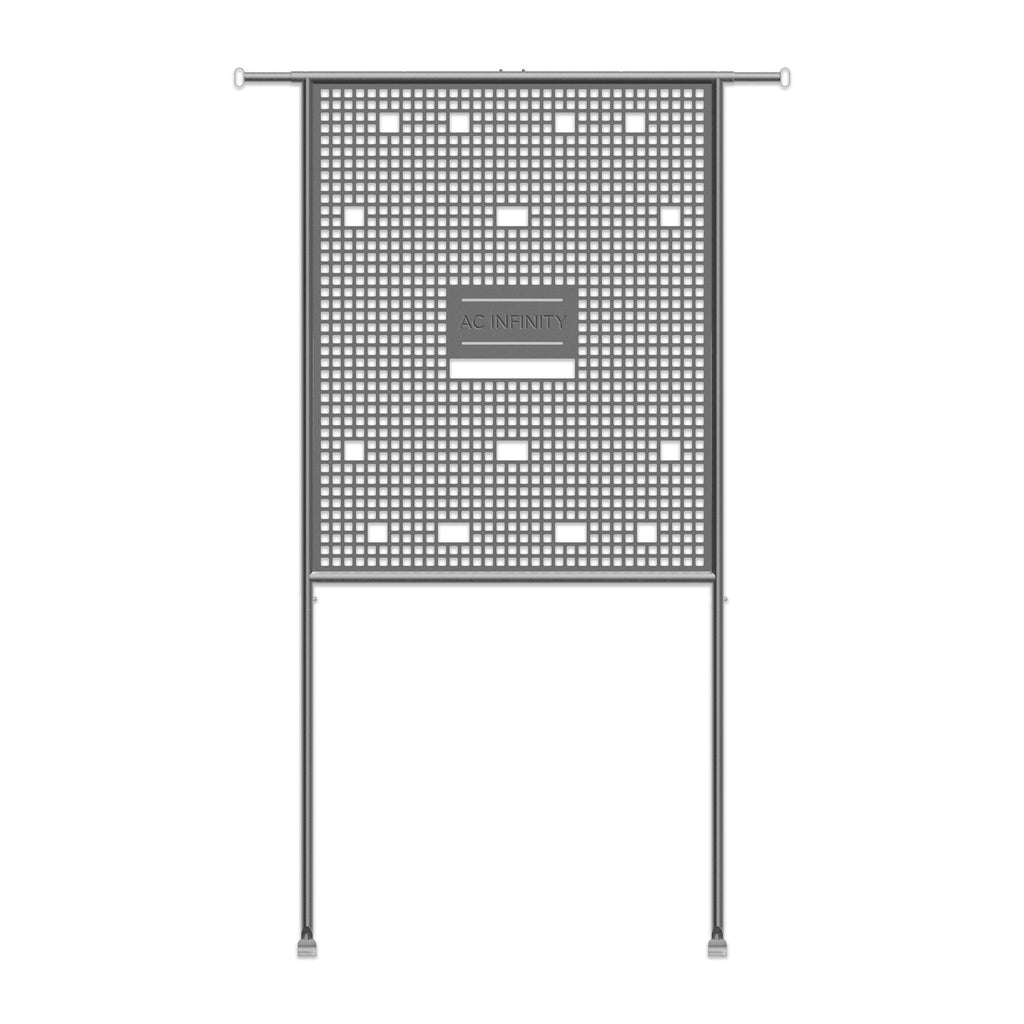

A gear board designed to provide additional support for grow equipment while maximizing tent space.
By using this tent wall mounting system, you can remove floor items from and declutter your grow tent. Secure your accessories and controllers along its sturdy frame and cable manage their cords out of sight through the various-sized mesh openings.
The heavy-duty steel body is built to handle heavier grow devices while enduring consistent exposure to extreme environments. Simply hook the metallic legs to the base of your grow tent, then fasten the stabilising poles for a vertical mounting structure that can be easily adjusted to ensure duct port access.
Applications
Extends up to 5 feet to fit in up to 5x5 grow tents (end to end) to hold a wide variety of devices like smart controllers, LED grow light drivers, and tools. This workstation panel supports multiple mounting methods including magnetic backing, screws, wire ties, and hooks for the utmost flexibility.
KEY FEATURES

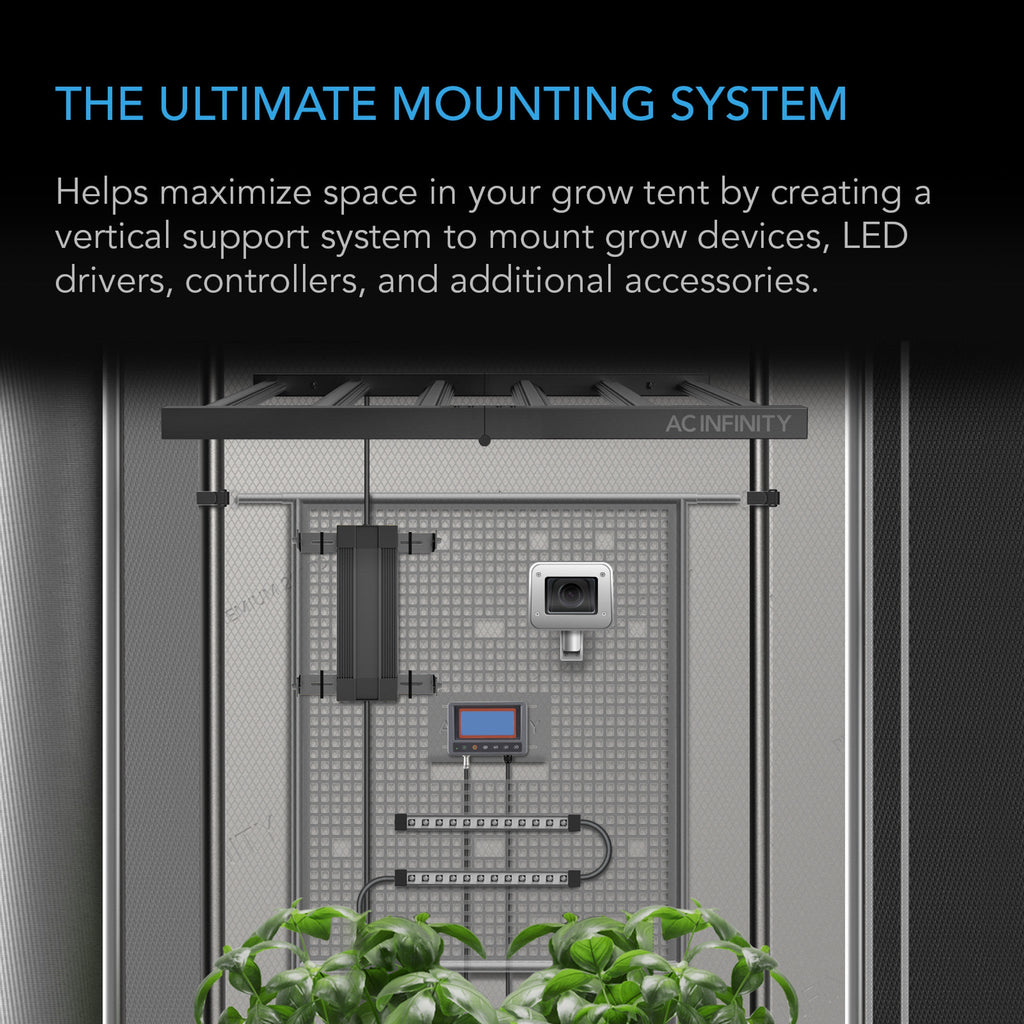

- A gear board panel designed to hang and mount accessories to maximize space within your grow tent.

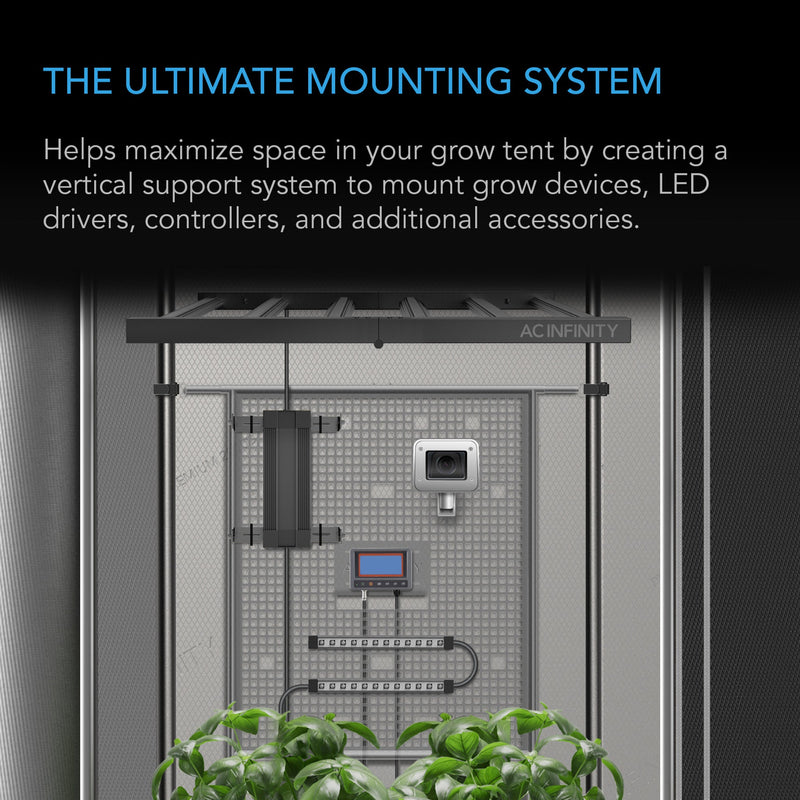

- Creates a vertical support system to securely handle grow devices, controllers, LED drivers, and more.

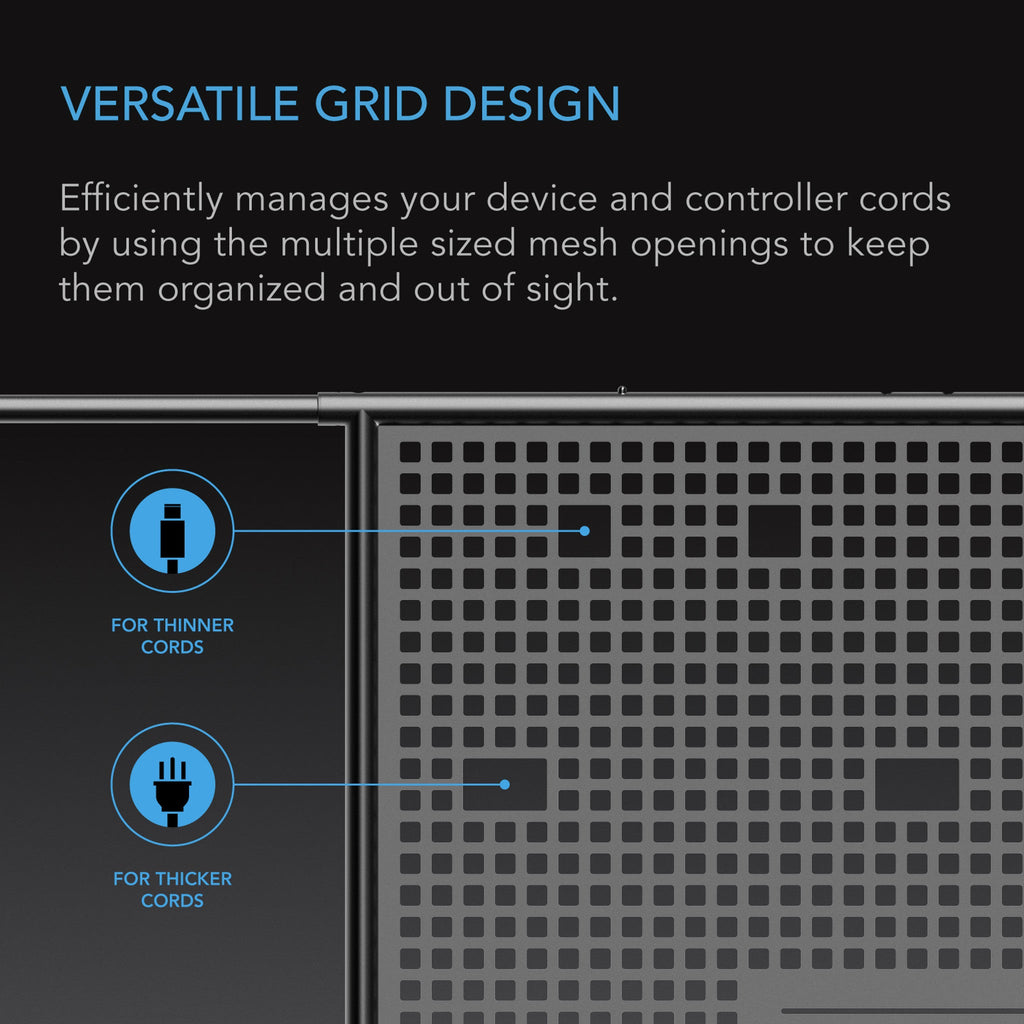

- Convenient wider mesh openings enable efficient cord management for a more organised workspace.
- Adjustable poles effortlessly extend and lock in place to fit any grow tent without blocking duct ports.

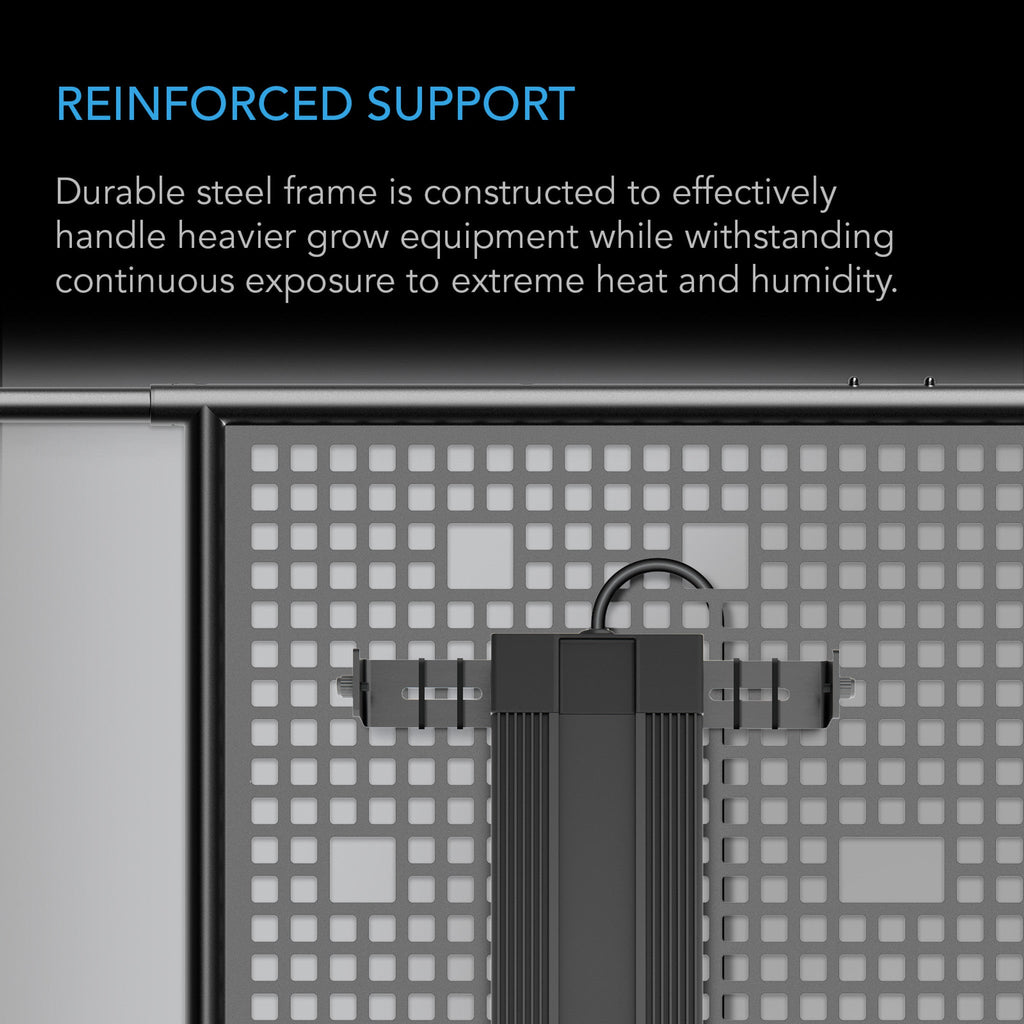

- Powder-coated steel frame constructed to hold heavy equipment and withstand high heat and humidity.

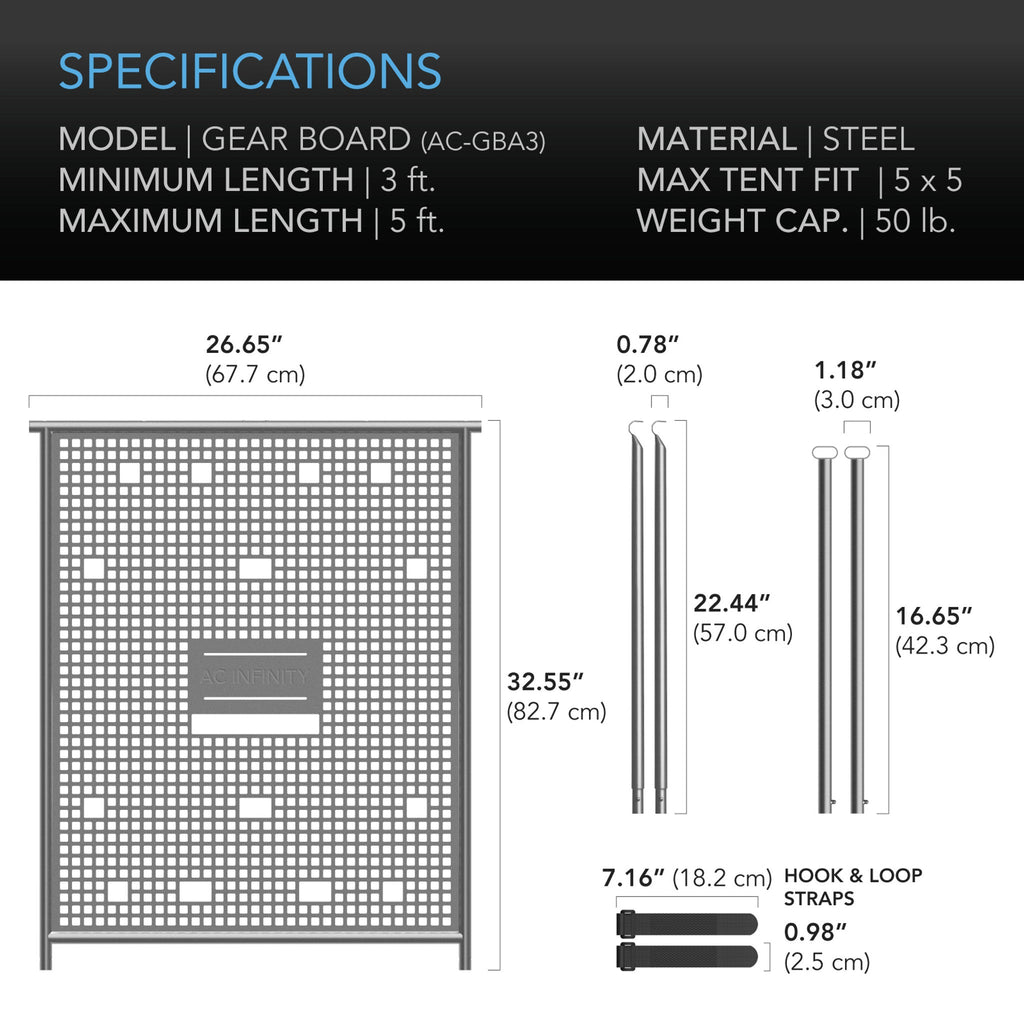

| Product Identification Grow Tent Gear Board | |
| Manufacturer | AC Infinity Inc. |
| Product Name | Grow Tent Gear Board |
| Product Model | AC-GBA3 |
| UPC Code | 819137024465 |
| Product Dimensions | |
| Height | 32.55 in. (82.7 cm) |
| Product Performance and Technical Specs | |
| Weight Capacity | 50 lb. (22.7 kg) |
| Max Grow Tent Fit | 5x5 |
| Max Length | 5 ft. |
| Min Length | 3 ft. |
| Material | Steel |
| Color | Gray |
| Product Manual | |
| Product Manual |
 PDF |
