Grower Tip
- Spread the load across the roof beams at intersecting points — they carry up to 150lb (68kg), enough for big lights, a fan and a filter.
- Close the unused duct ports and use the front zipper cover to keep the tent fully light-proof during the dark period.
- Use a side door or the viewing window to reach and check plants without opening the whole front and upsetting the climate.
Features
Higher-density waterproof 2000D oxford canvas with a front zipper cover and inner light seal blocks light leaks.
Cross-patterned diamond mylar lines the walls to reflect and maximise output from your grow lights.
22mm steel poles — thicker than standard 18mm — and roof beams carry up to 150lb (68kg) across the 5x5.
Zippered doors on both sides give easy access to the 10-plant interior, alongside a 30cm viewing window.
Double-cinched sealable 4in and 8in duct ports handle the strong airflow a 5x5 needs.
Comes with a reflective floor tray, a built-in tool bag and a controller mounting plate with a no-leak cable passthrough.
-
1
Build the frame
Assemble the 22mm steel poles and corner pieces into the tent frame.
-
2
Fit the canvas
Slide the 2000D canvas over the frame and zip it up, seating the inner light-seal flaps.
-
3
Lay the floor tray
Drop the reflective waterproof floor tray into the base to catch spills.
-
4
Hang your gear
Rig your lights, inline fan and filter from the roof beams at intersecting points.
-
5
Set up airflow
Run ducting through the 4in or 8in ports and open an intake; cinch any unused ports closed for light-proofing.
-
6
Mount the controller
Fix your AC Infinity controller to the mounting plate and pass cables through the sealed passthrough.
How big is it and how many plants fit?
It measures 152 x 152 x 203cm (60 x 60 x 80in), a 5x5 ft footprint rated for around 10 plants — the largest Cloudlab, suited to two lights and a full canopy.
What size fan and filter do I need?
It has sealable 4in and 8in duct ports. A 200mm (8in) inline fan and matching carbon filter give the strong extraction a 5x5 with 10 plants needs to control heat and odour.
How much can the roof beams hold?
The 22mm steel frame and roof beams support up to 150lb (68kg) hung at intersecting points, so multiple lights, a fan and a filter can all hang inside.
What's included?
The tent and frame, a reflective waterproof floor tray, a built-in tool bag, two side doors and a controller mounting plate with a no-light-leak passthrough.
Is it fully light-proof?
Yes — the higher-density 2000D canvas, a cover over the front zipper, inner light-seal stitching and double-cinched duct ports all stop light leaking in or out.
Which Cloudlab size should I choose?
The 866 is the largest at 5x5 for around 10 plants. AC Infinity also makes 2x2 (422/722), 3x2 (632), 3x3 (733) and 4x4 (844) tents for smaller spaces.
Description
A grow tent designed to grow plants indoors by providing complete control over climate conditions.
Featuring a quick-view observation window, this grow tent uses a waterproof oxford canvas with a 2000D thickness for higher durability and light-proofing. It also features zippered doors on either side for alternate access to the grow tent interior. Cross-patterned diamond mylar lines the surface of the inner walls, which will reflect and maximise output from your grow light.

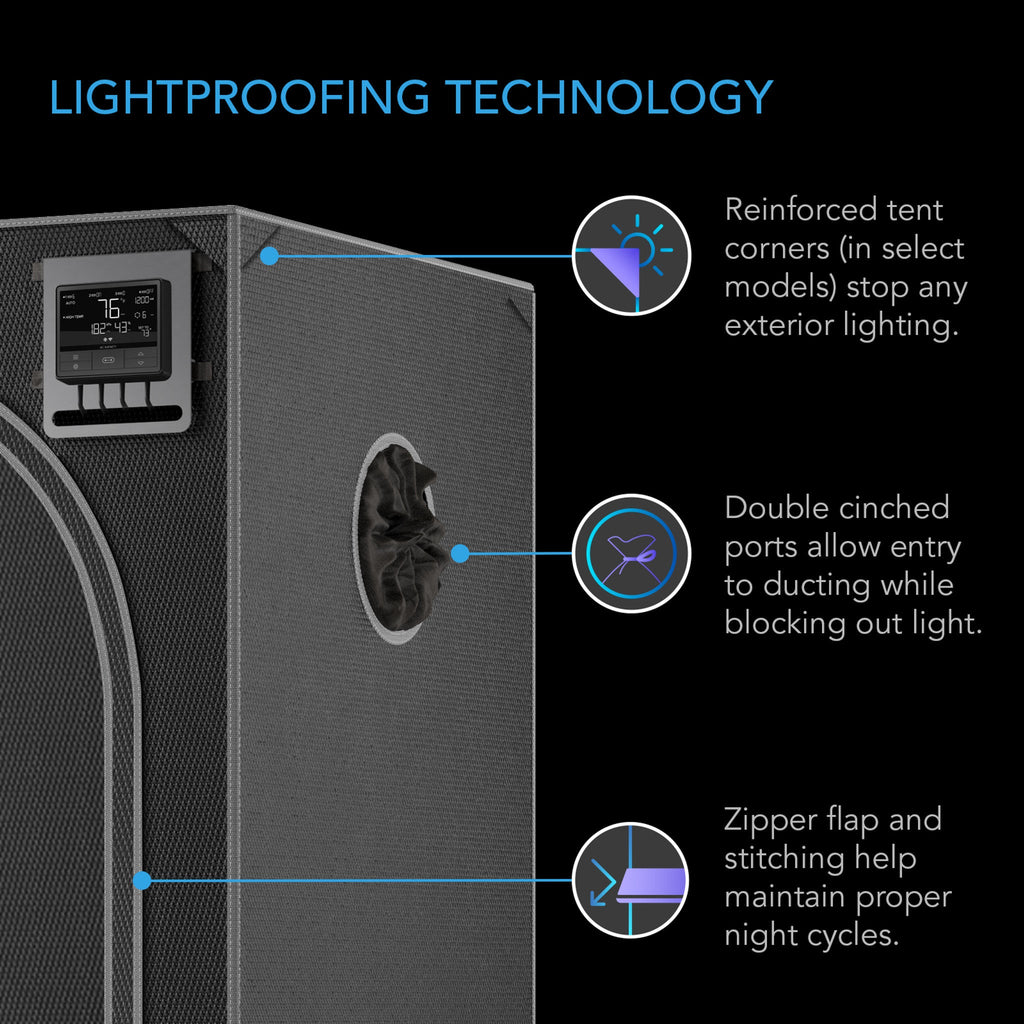

To ensure maximum reflectivity and prevent light leaking, an inner ribbon stitching creates a seal that lines the zippers inside the grow tent.
Additionally, the duct ports’ double cinching design closes them on either side to reinforce the light-proof sealing. Accessories include a waterproof floor tray, a built-in tool bag, and a mounting plate to install your controller onto the grow tent.
PREMIUM BUILD QUALITY

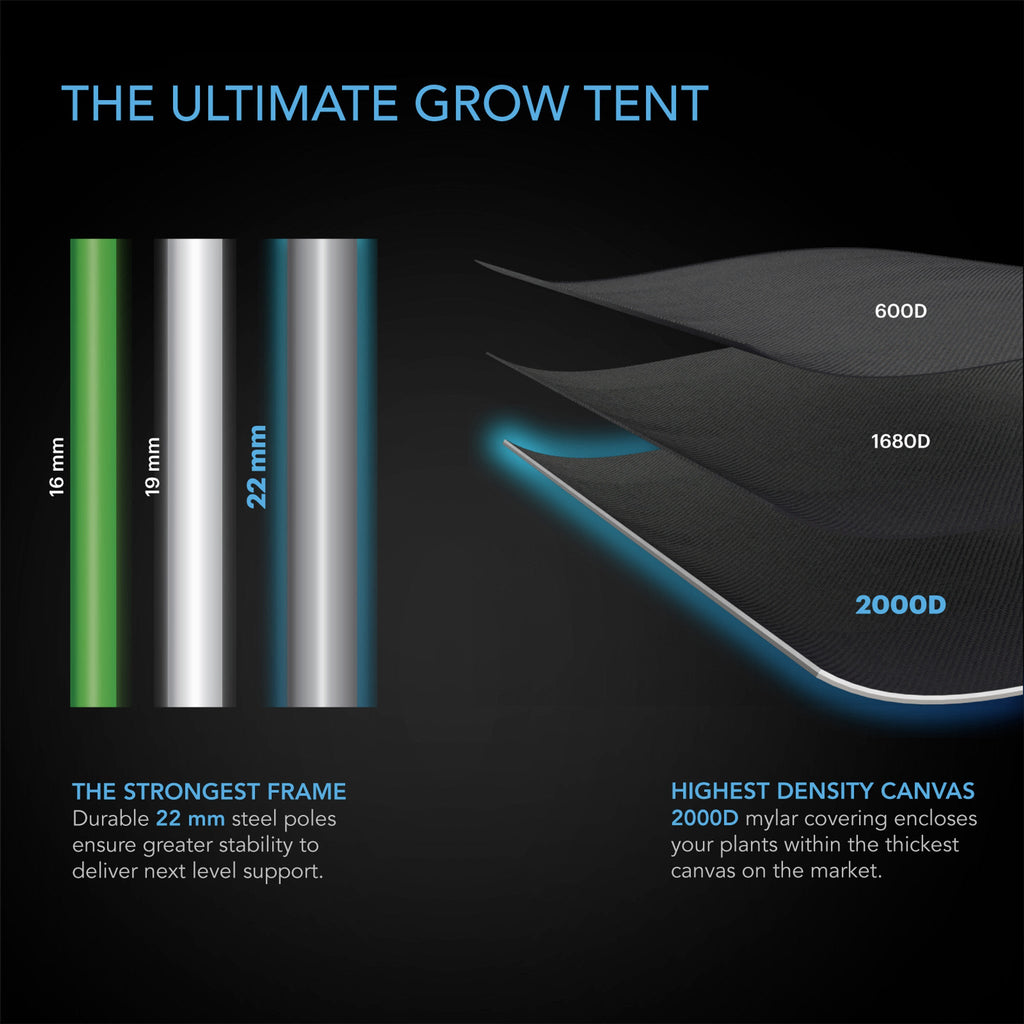

This growing tent is reinforced by its frame’s steel construction, utilising 22 mm diameter poles compared to standard grow tents’ 18 mm poles. The corner pieces share the same rigidity that keeps the tent upright and sturdier than others. This, along with its roof beams, enables up to 150 pounds of grow equipment support when hung at intersecting points. A metallic finish protects the steel poles from long term wear and tear while presenting a clean aesthetic.
APPLICATIONS
The CLOUDLAB series enables you to grow your desired plant year-round and is specially made for gardening indoors. Place it in any room in your home such as your closet, basement, guest room, or garage. Opening the air venting screen or pairing the floor duct port with an intake fan will allow fresh air to enter the grow tent. Peel back the window flap to track progress while preserving the climate of the inner space, where the tool bag stores and organises your grow accessories.
KEY FEATURES
- An advanced grow tent designed to create optimal climate conditions for year-round plant cultivation indoors.
- Features durable frame that uses 50% thicker steel poles and carries 2x more weight than standard grow tents.
- Higher density 2000D canvas prevents light leaks while diamond mylar amplifies light reflectivity.

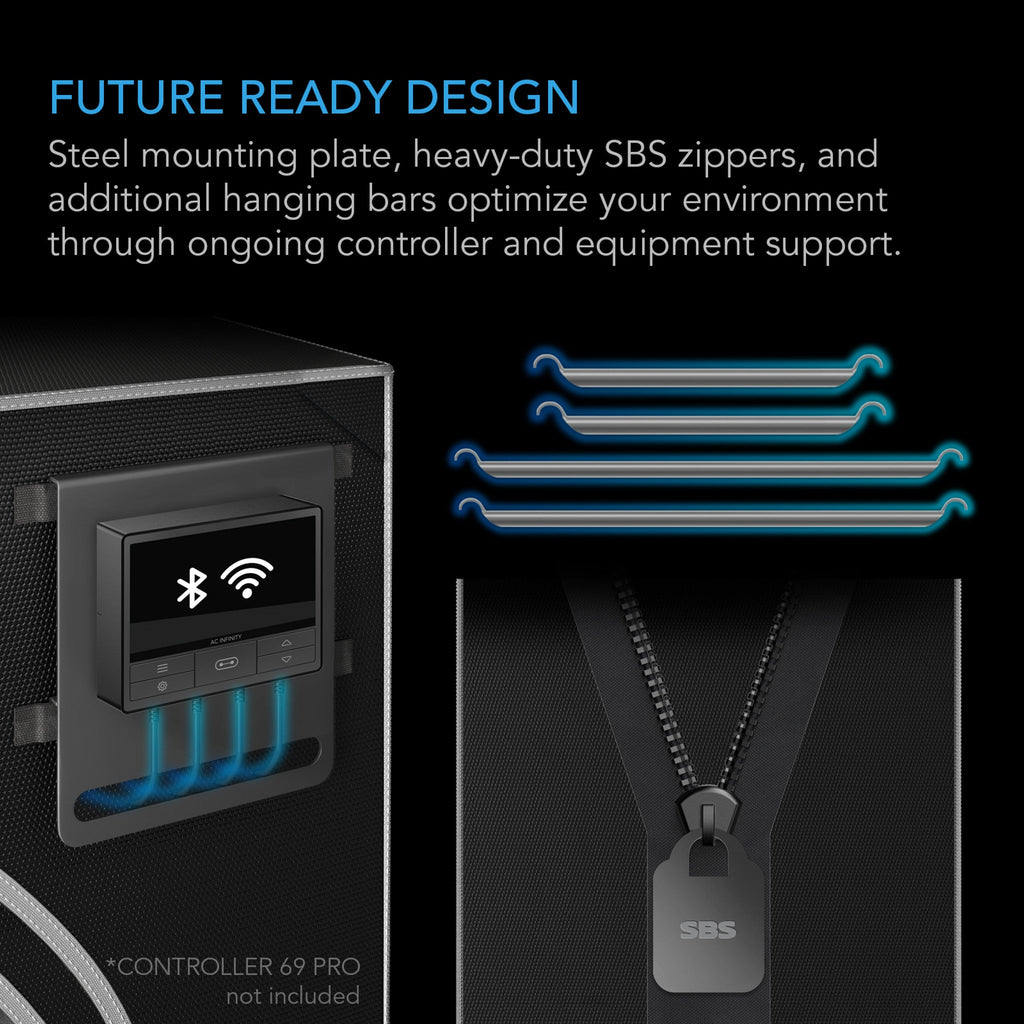

- Future ready design featuring controller mounting plate with passthrough for no light-leak cable management.
- 60” x 60” x 80” | 10 Plant Capacity | Viewing Window | 2x Side Doors | Reflective Floor Tray & Tool Bag

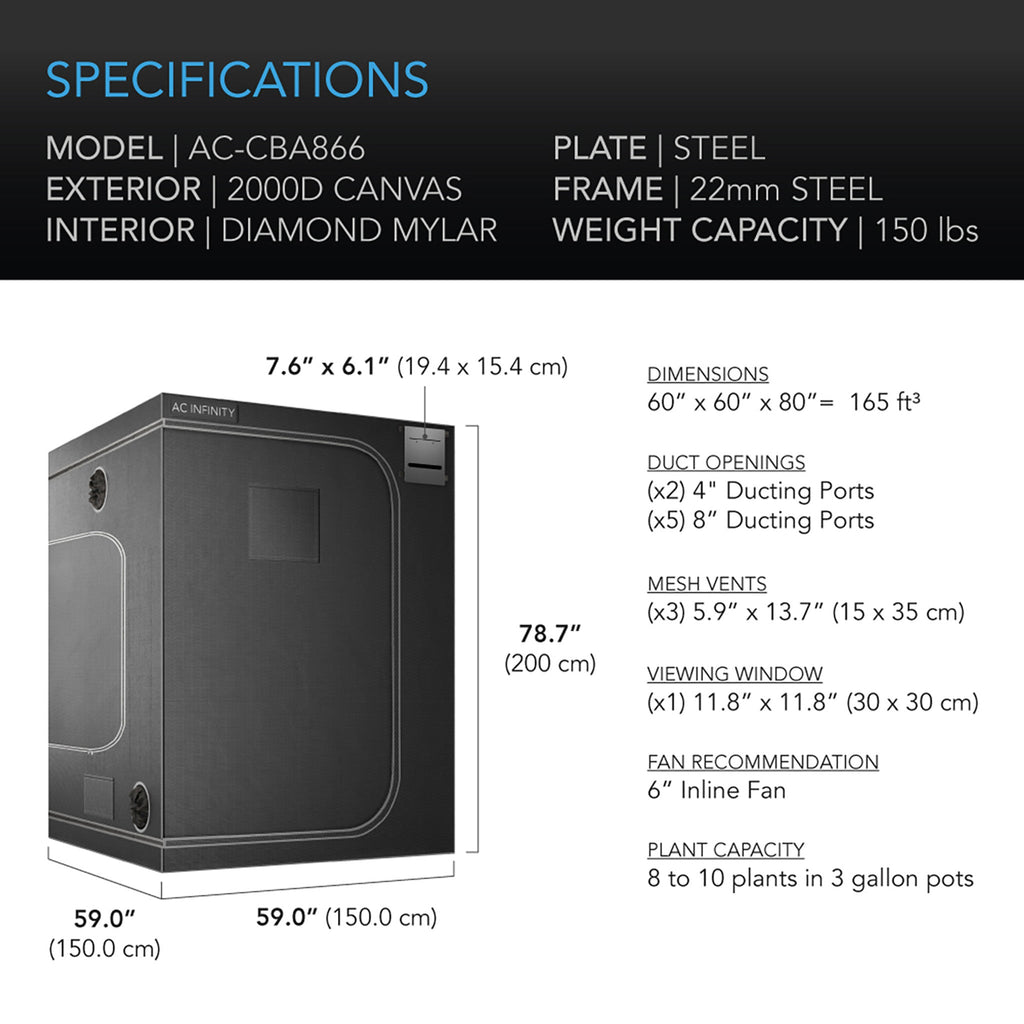

This tent is 152.4 x 152.4 x 203.4 CM L x W x H
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | CLOUDLAB 866 |
| Product Model | AC-CBA866 |
| UPC Code | 819137021587 |
| Product and Mounting Dimensions | |
| Tent Dimensions | 60" x 60" x 80" (152.4 x 152.4 x 203.2 cm) |
| Duct Opening Sizes | 4", 8". / 100 MM - 200 MM |
| Viewing Window Size | 11.81 x 11.81 in. (30.0 x 30.0 cm) |
| Rear Intake Hole Size | 5.90 x 13.77 in. (15.0 x 35.0 cm) |
| Side Intake Hole Size | 5.90 x 13.77 in. (15.0 x 35.0 cm) |
| Mounting Strap Length | 6.49 in. (16.5 cm) |
| Product Performance and Technical Specs | |
| Outer Tent Material | Oxford |
| Inner Tent Material | Mylar |
| Pole Material | Steel |
| Pole Thickness | 22 mm |
| Beam Weight Capacity | 150 lbs. / 68 kg. |
| Plant Capacity | 10 |
| Product Manual | |
| Product Manual |
 PDF |
