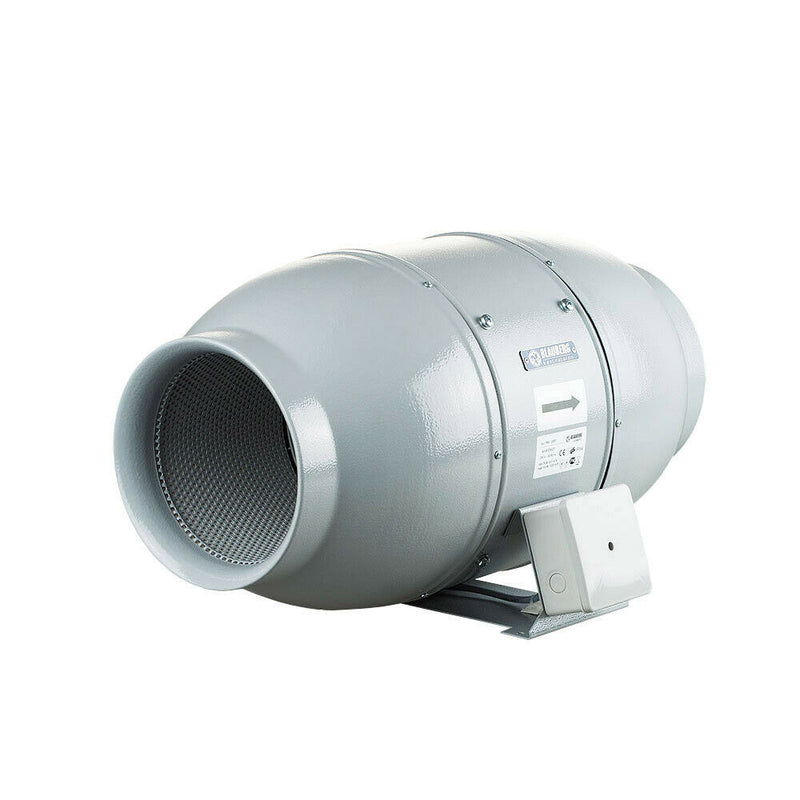

Blauberg Iso-Mix Turbo Silencer Fan (200mm)

Introducing the Blauberg Iso-Mix Turbo Silencer Fan (200mm)

Use -

Supply and extract ventilation systems installed in various premises requiring low noise level.

For ventilation air ducts requiring high pressure, powerful air flow and low noise level.Compatible with ∅ 150 up to ∅ 315 mm air ducts.

Design -

The casing is made of polymer coated steel, internally filled with 50 mm mineral wool thermal- and sound-insulating layer.

Special inner perforation of the casing and sound insulating material are designed for wide frequency sound absorbing.Mixed flow impeller made of high quality plastic.

The diffusor, the specially profiled impeller and directing vanes provide high performance and powerful pressure combined with low noise operation.

External airtight terminal block on the fan casing for power supply.

Mounting brackets on the fan casing for mounting to the floor, to the wall or ceiling.

Mounting -

Due to its compact design the fan is the ideal solution for mounting in limited spaces.The fan is suitable for mounting in any section of the ventilation system from intake to the end of the ductwork.

Motor -

220-240 V single phase at 50 Hz.All motors have a sealed ball bearing motor with a service life of up to 40 000 hours, are 2 speed with an exterior two speed switch and can be fitted with a speed controller.

All motors have manual reset thermal overload protection as required for inline duct fans AS/NZS60335-2-80:2004.
