Grower Tip
- Mount the fan high on the wall opposite your intake vents — exhausting rising hot air pulls fresh air right across the space.
- Set a minimum speed for constant background ventilation, then let temperature or humidity triggers ramp the fan up as the day heats.
- Running HID lights? Keep the sensor probe cord clear of ballast cords and wrap it in foil tape so RFI can't skew readings.
Features
Clears heat, moisture, odours and dust from greenhouses, sheds, garages and workshops with 96 Pa of static pressure.
Temperature, humidity and VPD triggers with dynamic speeds, a minimum-speed baseline, timers, cycles and schedules.
Program remotely on the AC Infinity app, set alarms and notifications, view climate history and export CSV data.
Weather and corrosion-resistant shutters open with airflow and close automatically when the fan is off.
Lightweight impeller reduces vibration, protected by steel wire guards and an IP-44 rated enclosure.
PWM speed control maximises airflow while reducing noise and power consumption, drawing 54W.
The controller's four ports power and program additional compatible EC fans, mixing AIRLIFT, CLOUDLINE and AIRTITAN series.
Fully enclosed, permanently lubricated motor with dual-ball bearings; mounts horizontally or vertically.
-
1
Choose the position
Mount high on the wall opposite any ventilation openings — heated air rises, so a high exhaust point circulates air best.
-
2
Mark the opening
Pick a wall section free of wires and pipes, then outline the 27.4 x 27.4cm mounting hole with a level and ruler.
-
3
Cut and drill
Cut the opening with a jigsaw or hand saw to suit the wall material, then mark and drill the four screw holes.
-
4
Fit the fan
Insert the unit from inside the room with the controller connectors and power cord facing in, and secure it with the included screws.
-
5
Connect the controller
Link the fan to the controller with the 3m UIS cord, plug the sensor probe into the 3.5mm jack and route it near your plants.
-
6
Power and program
Plug into a mains outlet, set your triggers on the controller, or pair the AC Infinity app over 2.4GHz WiFi.
What size hole do I need to cut for the Airlift T10?
The required mounting hole is 27.4 x 27.4cm, with the four mounting screw holes spaced 29 x 29cm centre to centre and sized for 7mm screws. The complete unit measures 33 x 33 x 19.8cm, so allow clearance either side of the wall for the shutter and fan body.
Can the Controller 69 Pro run more than one fan?
Yes. The controller has four ports that can power and program up to four compatible EC fans, and it can mix and match AIRLIFT shutter fans, CLOUDLINE inline fans and AIRTITAN crawl space fans. Splitters and daisy-chain adapters, sold separately, extend each port further.
Is the Airlift T10 weatherproof?
The unit is IP-44 rated — highly resistant to dust and liquids — and the steel shutters are weather and corrosion-resistant, closing automatically whenever the fan is off. It's built for harsh environments like greenhouse and shed walls, but it isn't submersible.
Will my grow lights interfere with the sensor probe?
They can. HID ballasts (MH, HPS, CMH) without electromagnetic shielding emit radio frequency interference that distorts climate readings. Keep the probe cord well away from ballast cords, wrap the cord and sensor head in aluminium foil tape if needed, and plug the light and fan into separate outlets.
Does it need WiFi to work?
No. The Controller 69 Pro runs all its programming standalone — temperature, humidity and VPD triggers, timers, cycles and schedules. Pairing the AC Infinity app over WiFi adds remote access, alarms, historical charts and CSV export. The controller connects to 2.4GHz networks only, not 5GHz.
Can I use my own shutter?
Yes. Remove the AIRLIFT's shutter by unscrewing the nuts and bolts from the fan guard, then reassemble the fan guard onto your existing shutter using the same mounting locations. This suits installs where a shutter is already fitted to the building.
Description

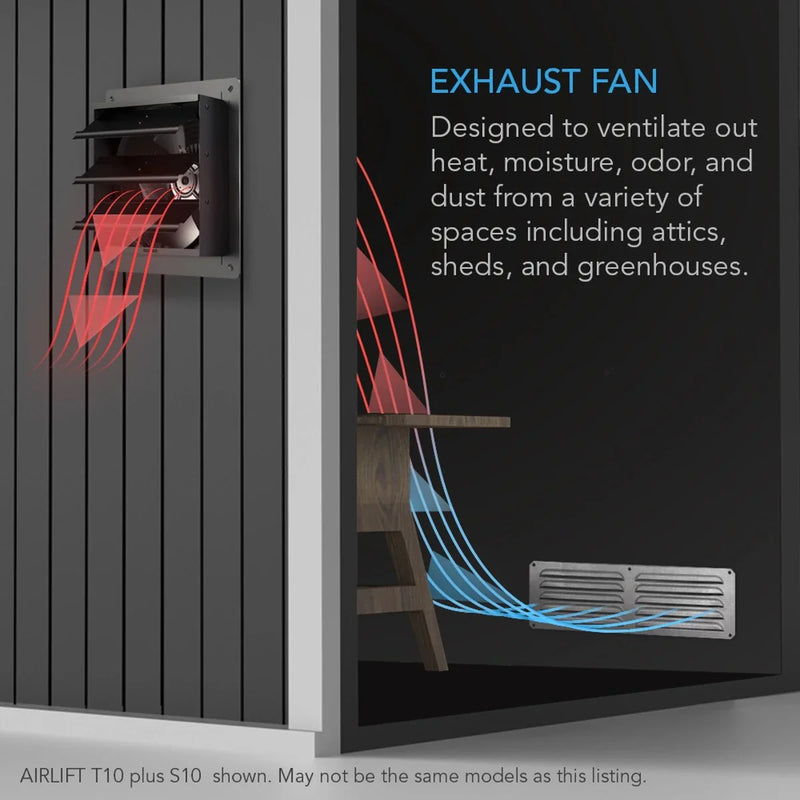

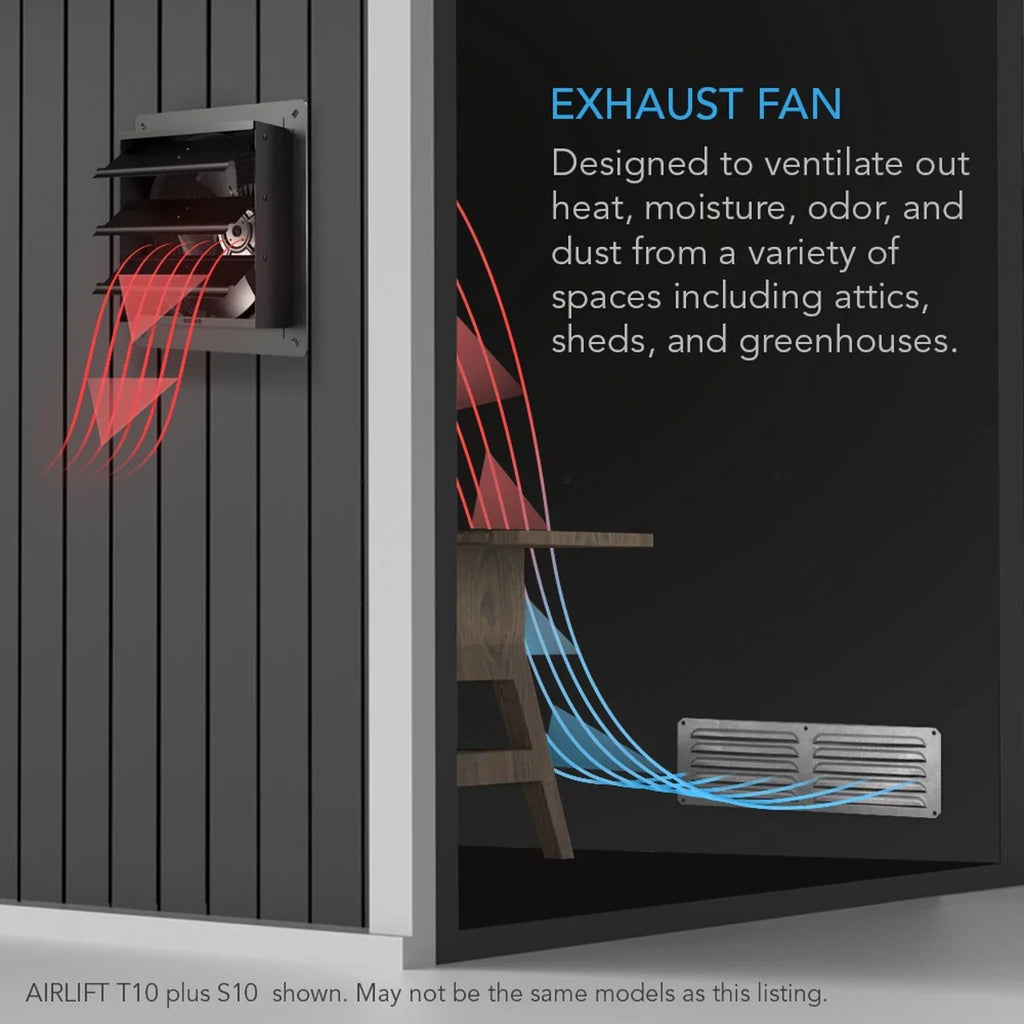

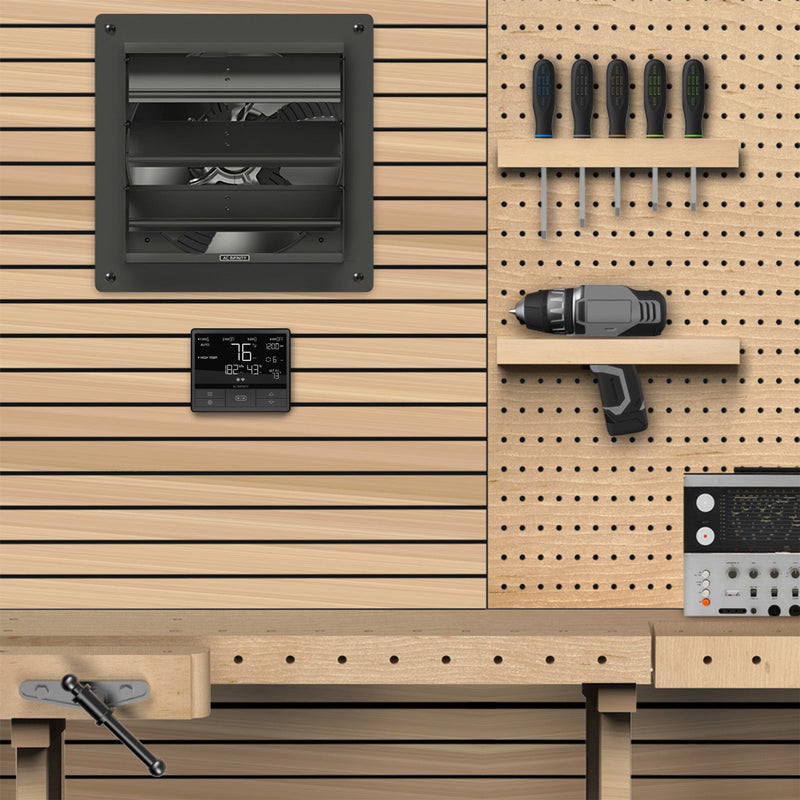

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds.
The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms, and buildings.

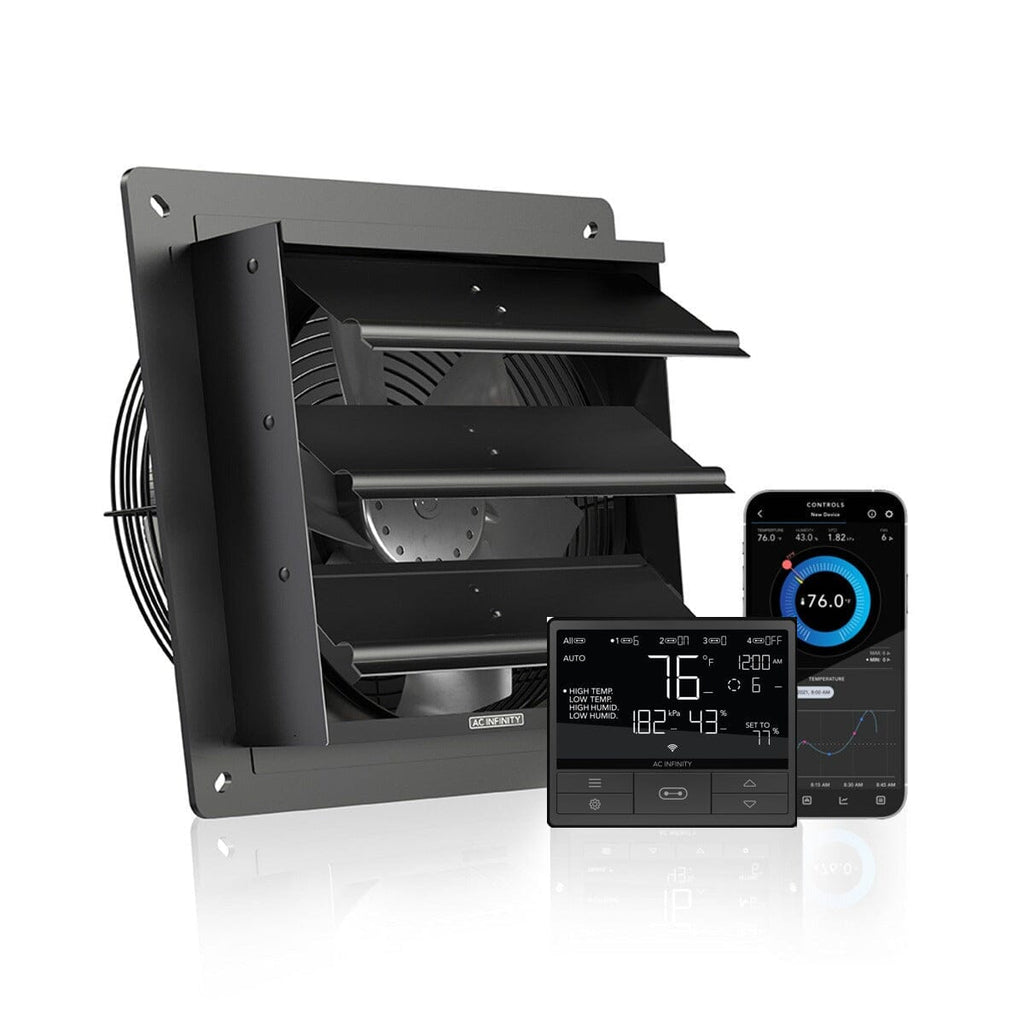

Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. Innovative EC motor with PWM control maximizes airflow while reducing energy consumption and noise levels.
Heavy-duty build features aluminum blades, steel wire guards, and steel shutters.
This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
SMART CONTROLLER

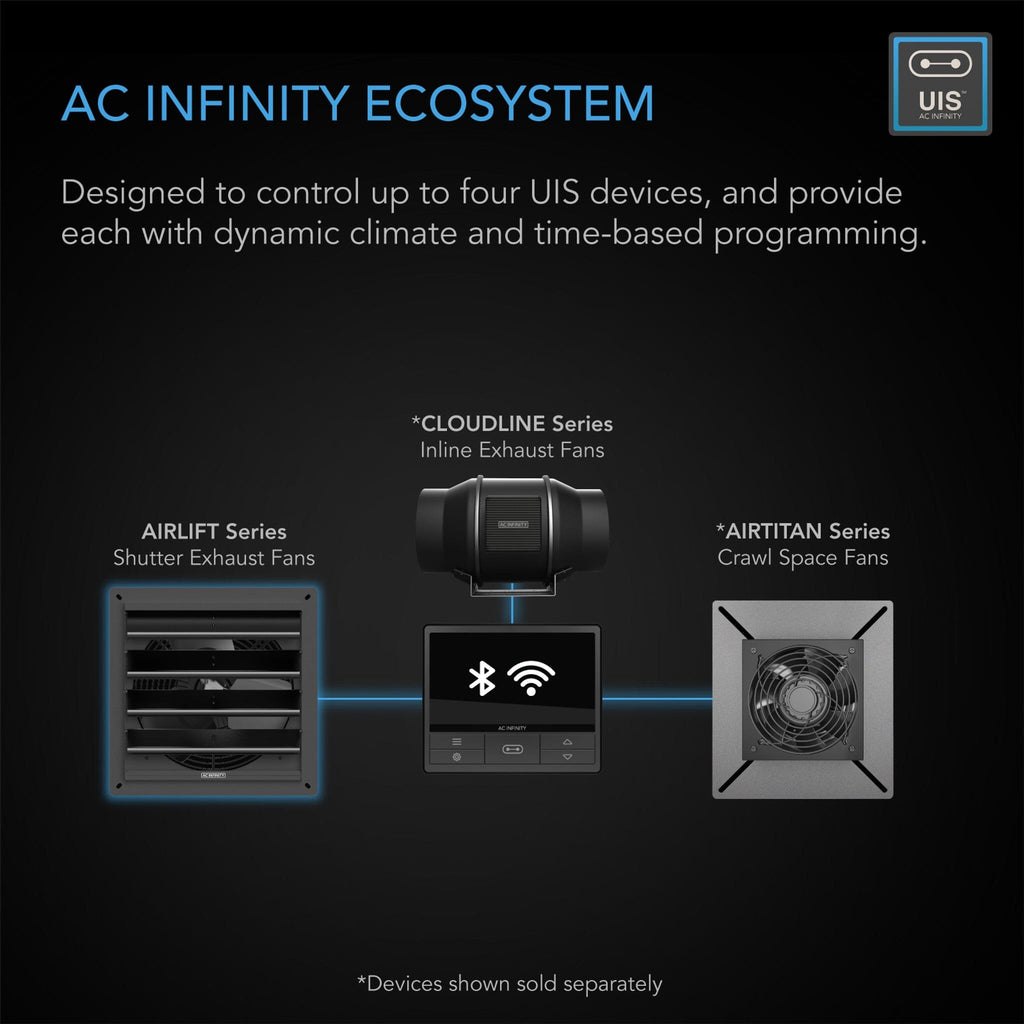

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can mix and match connectivity between AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.
HEAVY-DUTY PERFORMANCE

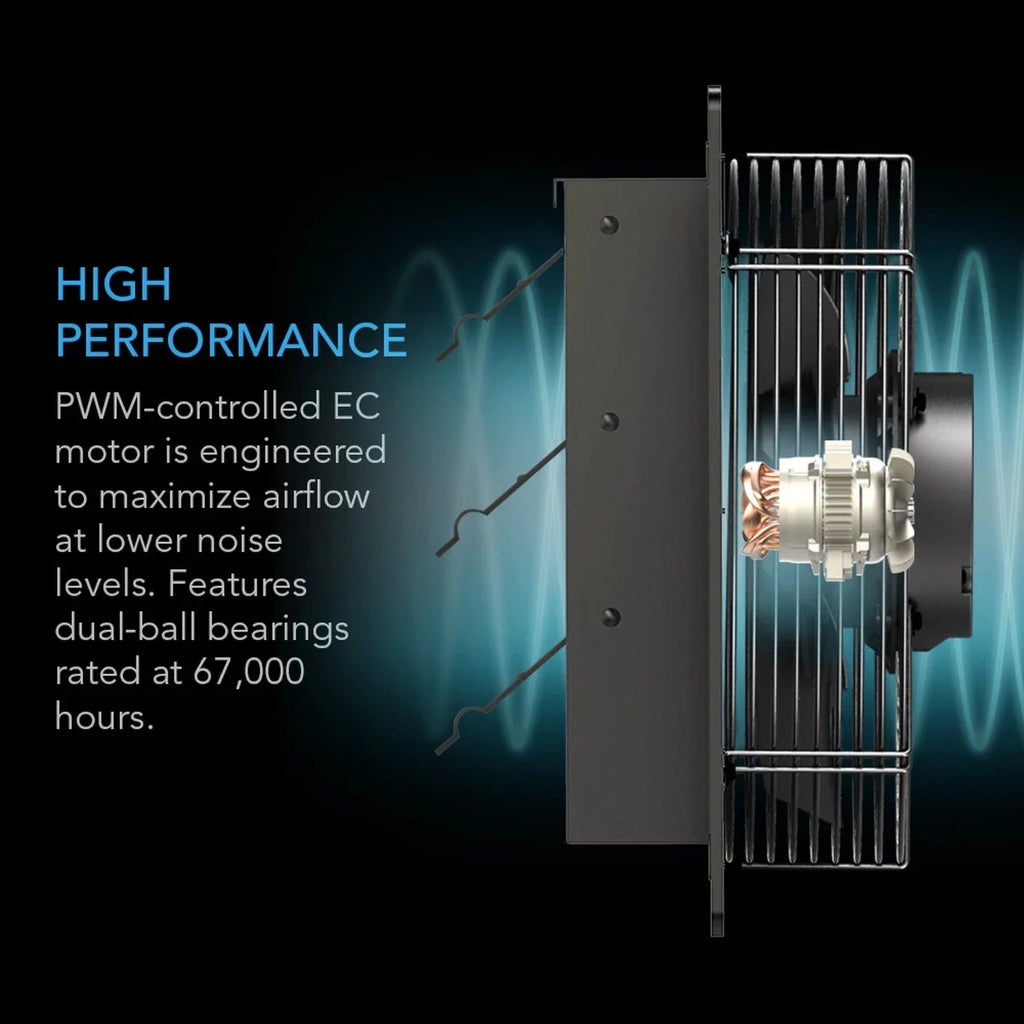

Features steel shutters that are weather and corrosion-resistant, and automatically close when not in use. The blades and impeller are constructed of lightweight aluminium, weight-balanced to reduce vibrations. Utilising an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
KEY FEATURES
- A high-airflow exhaust fan designed to ventilate out heat, moisture, odour, and dust from various spaces.
- Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
- Remotely connect via our WiFi app to access advance programs, alarms, notifications, and view climate data.
- Features steel shutters, aluminium blades, and IP-44 rated to be highly resistant to liquid and dust.
- Fan Size: 10” | Dimensions: 13.0 x 13.0 x 7.79 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

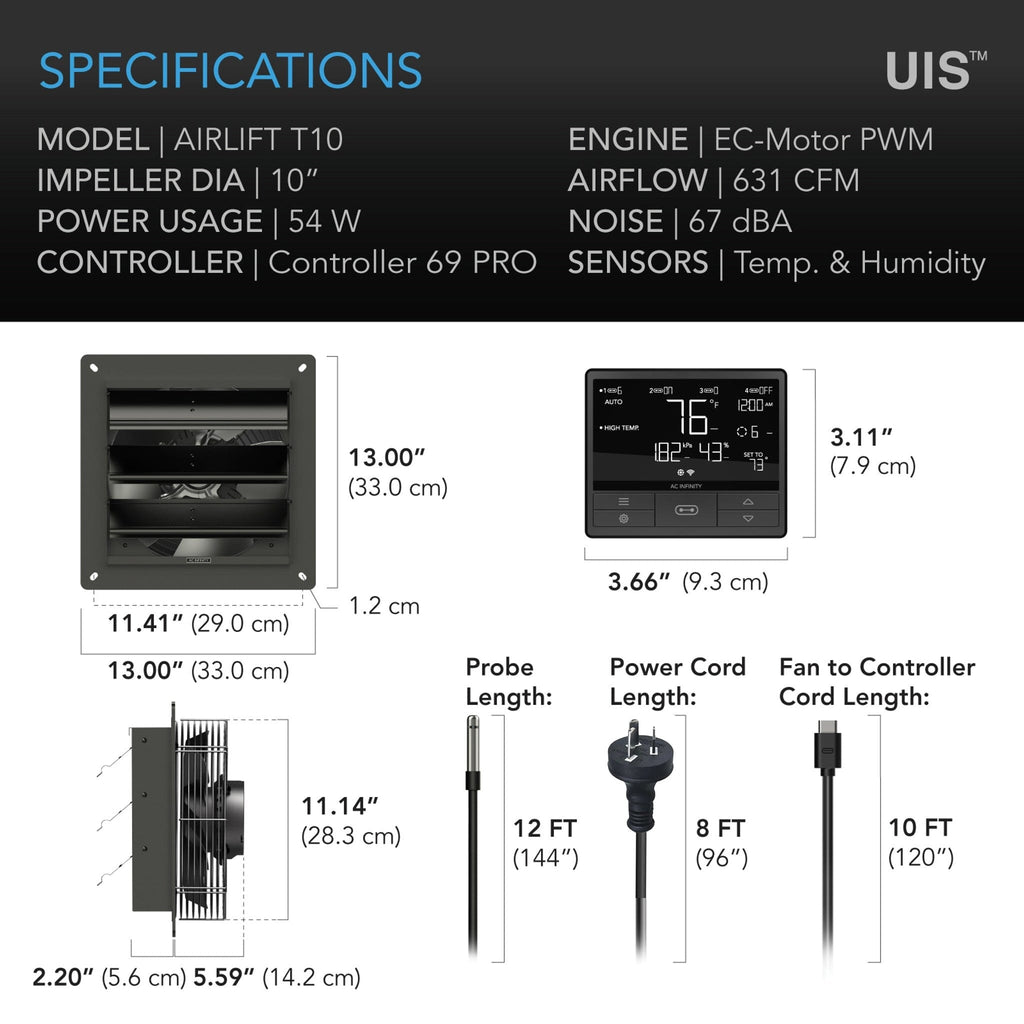

| Product Identification Shutter Fan Airlift T10 | |
| Manufacturer | AC Infinity Inc. |
| Product Name | AIRLIFT T10 |
| Product Model | AC-ALT10 |
| UPC Code | 819137020900 |
| Product and Mounting Dimensions - Fan Unit | |
| Total Dimensions | 13.0 x 13.0 x 7.79 in (33.0 x 33.0 x 19.8 cm) |
| Frontside Enclosure Dimensions | 10.62 x 10.62 in. x 2.20 in. (27.0 x 27.0 cm x 5.6 cm) |
| Required Mounting Hole | 10.78 x 10.78 in (27.4 x 27.4 cm) |
| Hole to Hole Distance | 11.41 x 11.41 in (29.0 x 29.0 cm) |
| Screw Hole Size | Ø 0.27 in (Ø 0.7 cm) |
| Cord Length to Controller | 120 in (10 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 3.66 x 3.11 x 0.98 in. (9.3 x 7.9 x 2.5 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Cord Length to Plug | 96 in (8 feet) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 631 CFM |
| Total Noise | 67 dBA |
| Static Pressure | 96 Pa |
| Operating Voltage | 100-240V AC |
| Power | 54W |
| Current | 1.0A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| CE Certification (Whole Product) |
 PDF |
| Product Manual | |
| Product Manual |
PDF |
Comes with Australian Power cord
