Grower Tip

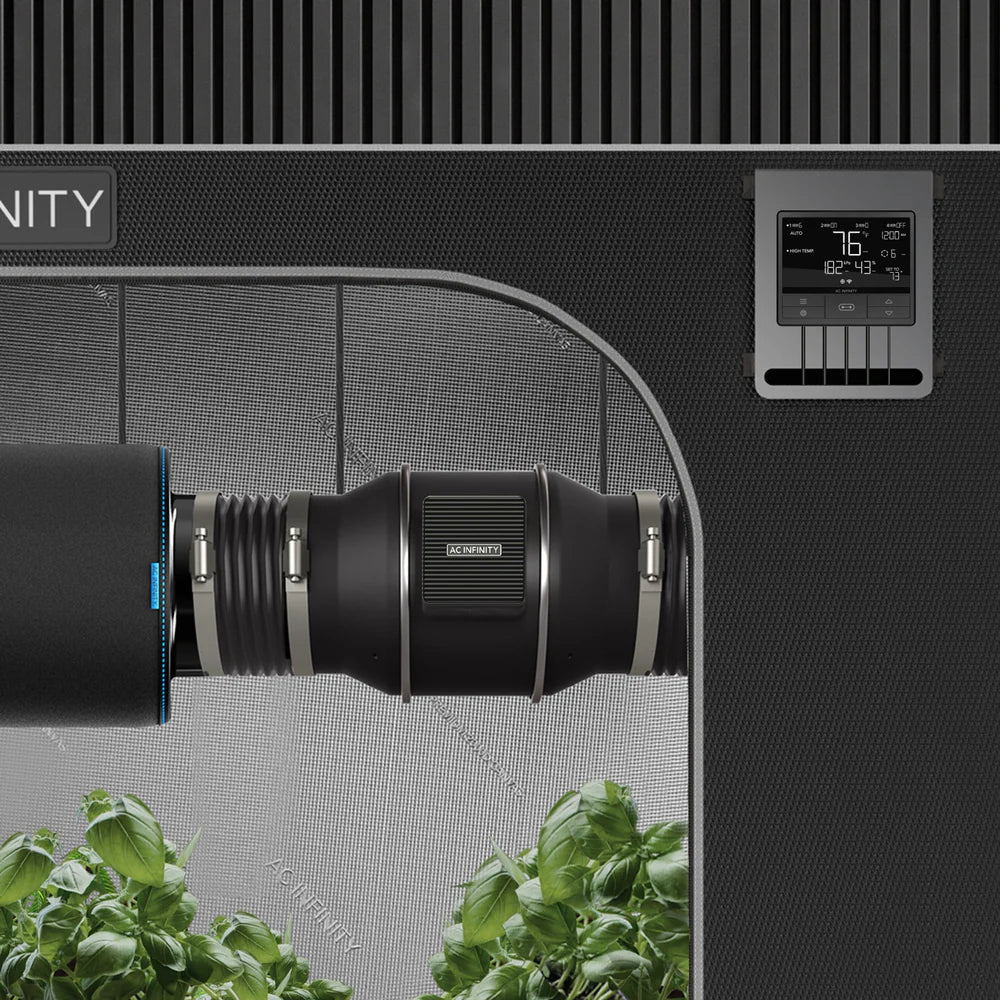

- Hang the carbon filter inside the tent at the top, with the fan pulling air through it and exhausting out — filter first, then fan.
- Seal every duct joint with foil tape so odour-laden air can't leak out before it passes through the filter.
- Let the Controller 69 Pro hold a minimum fan speed for constant fresh air, then ramp on temperature, humidity or VPD.
Features
Everything to ventilate and deodorise a grow tent: Cloudline Pro inline fan, carbon filter, ducting, clamps and hangers.
The 8" Cloudline Pro fan moves up to 807 CFM with a quiet PWM EC motor rated at 39 dBA.
A 1200+ IAV Australian charcoal filter with a rust-resistant gunmetal steel body traps odours and chemicals.
The included Controller 69 Pro adds WiFi app control, VPD/temp/humidity triggers, schedules and data logging.
Dual ball bearings give a 67,000-hour life, and IP-44 sealing resists dust and splashes.
-
1
Hang the filter
Suspend the carbon filter at the top of your tent using the included straps and rope clip hangers.
-
2
Connect the fan
Attach the Cloudline Pro fan to the filter so it pulls air through the filter, then out via ducting.
-
3
Run the ducting
Connect the flexible ducting to the fan's exhaust and out of the tent, sealing joints with clamps.
-
4
Wire the controller
Plug the fan into the Controller 69 Pro and position the probe inside the tent at canopy height.
-
5
Program it
Set a minimum speed plus temperature, humidity or VPD triggers in the AC Infinity app.

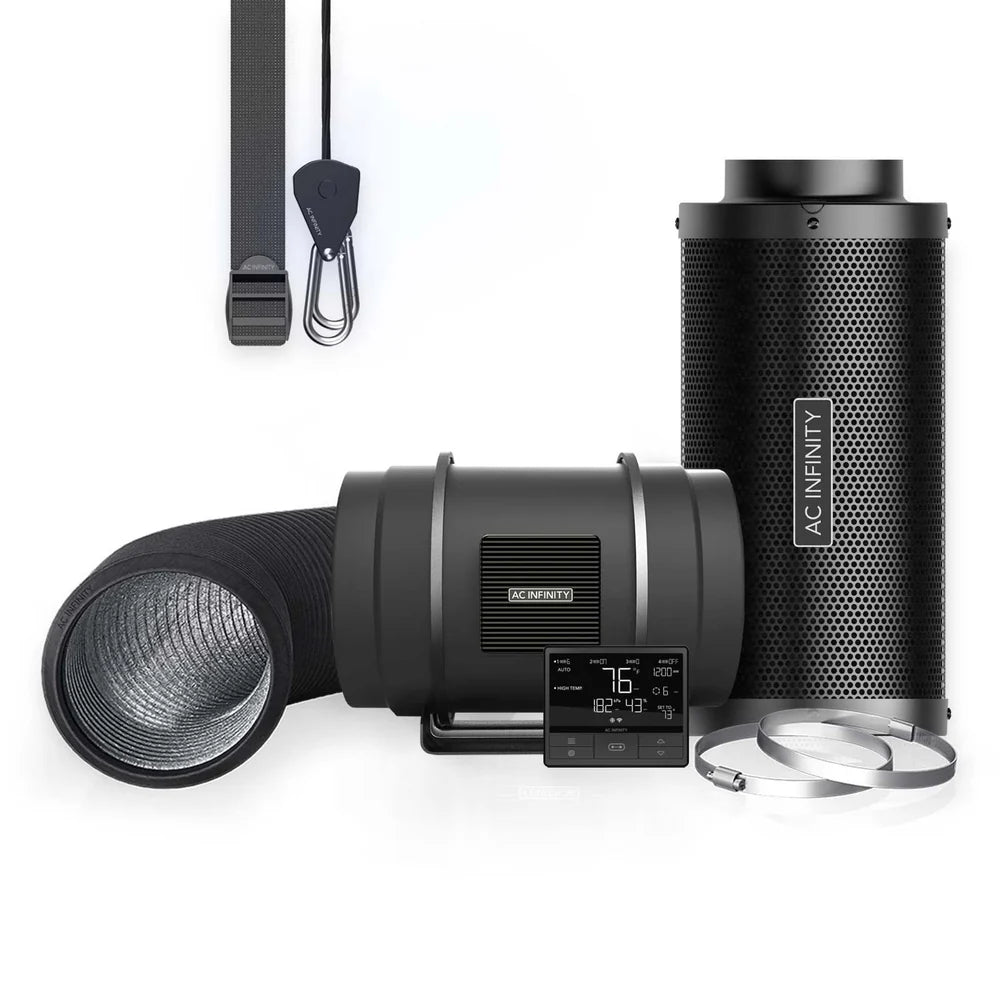

What's included in the kit?
A T8 Cloudline Pro inline fan, Controller 69 Pro with probe, an 8" (200mm) Australian carbon filter, flexible ducting, duct clamps, prefilter cloth and hanging straps.
What size grow space is it for?
The 8" fan moves up to 807 CFM, suiting larger tents and grow rooms. As a guide, size airflow to exchange your tent's air volume every minute or two.
How loud is it?
The Cloudline Pro fan is rated around 39 dBA at the tested speed, and running it below full speed via the controller keeps it quieter.
Do I need to buy a controller?
No. The Controller 69 Pro is included, adding WiFi app control plus VPD, temperature and humidity automation for the fan.
Does the filter suit humid conditions?
Yes. The steel-mesh filter has a powder-coated gunmetal finish to resist rust and corrosion in high-humidity grow spaces.
Description

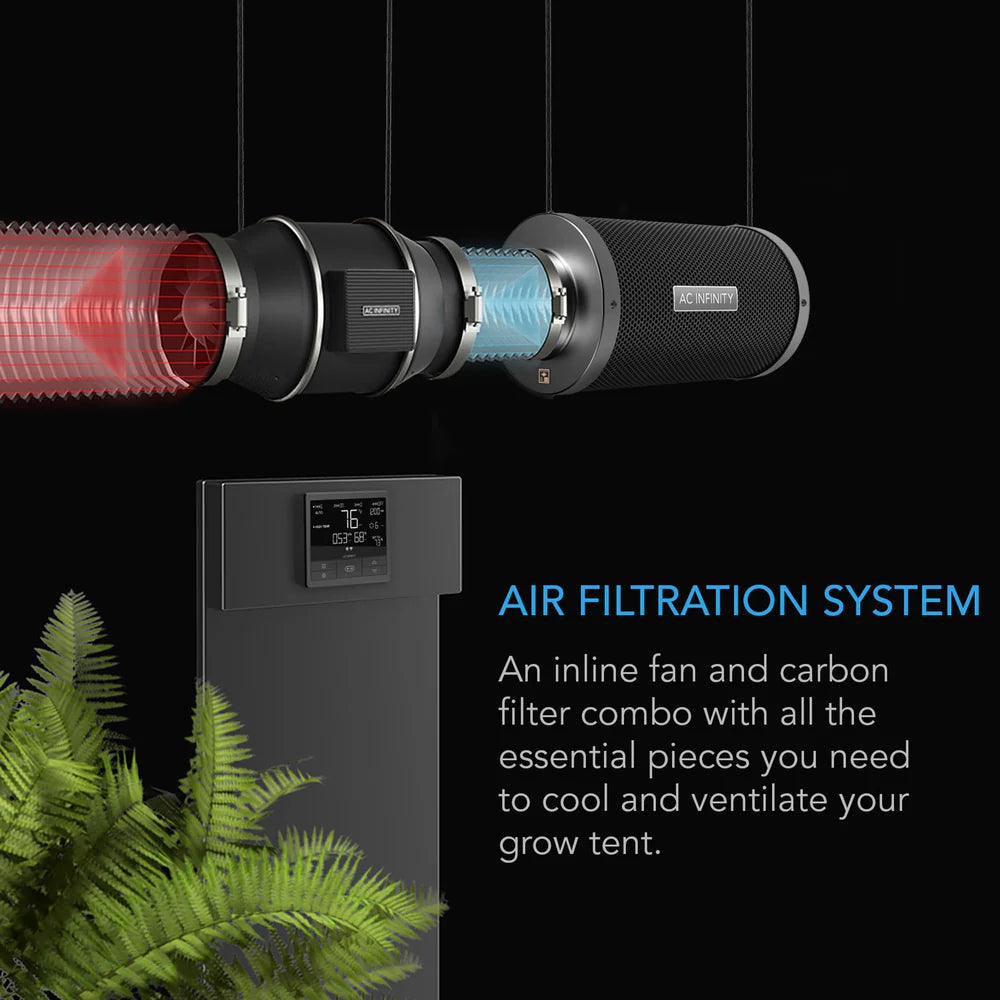

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE PRO Series fan that can deliver a powerful yet quieter performance. Paired with a rust-resistant carbon filter with a gunmetal finish using Australian virgin charcoal to block odours from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

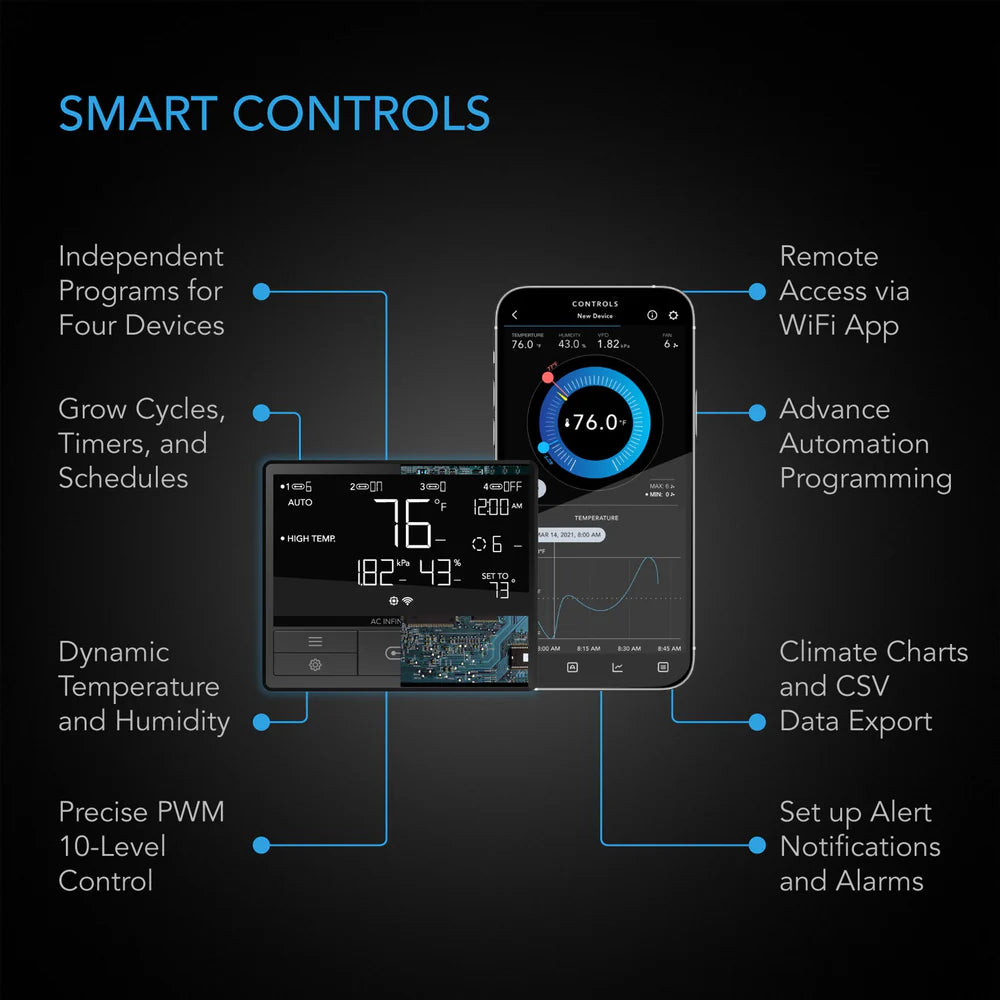

Intelligent Programming
CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature, humidity, and VPD in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

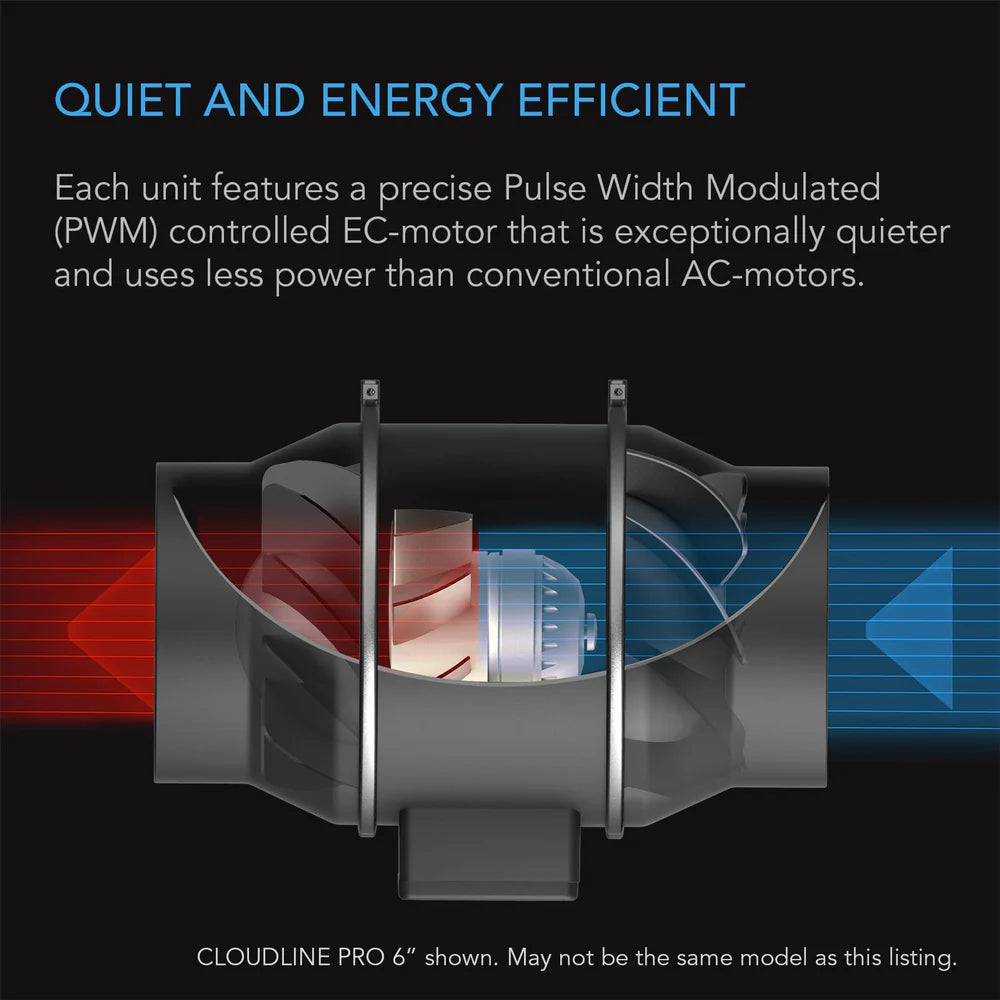

Quiet and Energy-Efficient Design
The included CLOUDLINE PRO Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 sealing that resists dust and splashing liquids.

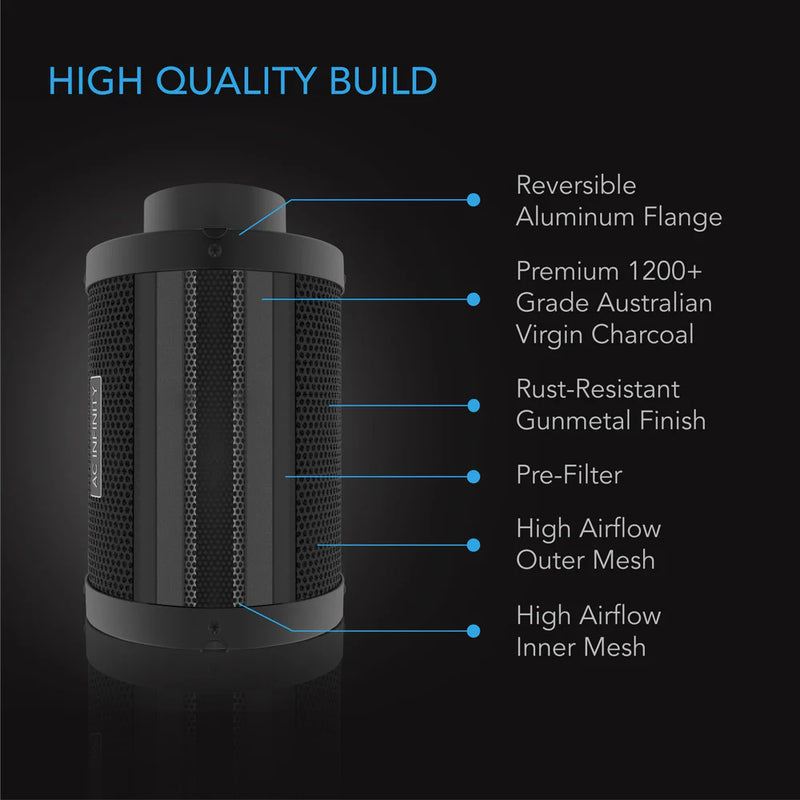

Premium Grade Carbon
The duct carbon filter effectively blocks out unwanted odors and chemicals using its bed of premium Australian charcoal. Featuring a 1200+ IAV rating, the activated carbon supports clean airflow more efficiently thanks to its increased adsorption rate and extended life rating. The filter’s durable steel mesh body is protected by a powder-coated gunmetal finish to better defend against rust and corrosion in high-humidity growing environments.
This kit incl.
1 x T8 Cloudline with Controller 69 Pro
1 x 8 Inch / 200 MM AC Infinity Carbon Filter
1 x 8 Inch / 200 MM Ducting with a 6M Length.
2 x 6 Inch / 200 MM Ducting clamps
Comes with Controller 69 Pro (for added wifi and VPD control).
- An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
- Features the CLOUDLINE PRO inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.
- Smart controller sets triggers, schedules, and grow cycles. Remotely access via WiFi app to enable automation.
- Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.
- Kit Duct Size: 8” | Fan Airflow: 807 CFM | Noise 42 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
| Product Identification T8 Air Filtration Kit | |
| Manufacturer | AC Infinity Inc. |
| Product Name | Air Filtration Kit PRO 8" |
| Product Model | AC-FKT8 |
| UPC Code | 819137022980 |
| Product Manual | |
| Product Manual |
 PDF |
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 8" |
| Total Dimensions | 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm) |
| Mounting Hole-To-Hole Distance | 3.94 x 3.70 in. (10.0 x 9.4 cm) |
| Screw Hole Size | Ø 0.217 in. (Ø 0.55 cm) |
| Cord Length to Controller | 72 in. (6 feet) |
| Cord Length to Plug | 72 in. (6 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Product Performance and Technical Specs | |
| Total Airflow | 807 CFM |
| Total Noise | 39 dBA |
| Static Pressure | 746 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 180 W |
| Average Power Usage | 78 W |
| Current | 2.3 A |
| Power Connector Type | Australian Power Plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
| CE Certification (Whole Product) |
PDF |
| RoHS Cert. (Whole Product) |
PDF |
| Product and Mounting Dimensions - Carbon Filter | |
| Duct Opening Size | 8" |
| Total Dimensions | 19.8 x 10.94 in.... |
