Grower Tip
- Start around 45.7cm above the canopy at 40% for seedlings, 80% vegetative and 100% flowering, then adjust for crop response.
- Remote-mount both drivers on a structurally sound wall when you want their heat sources positioned away from the fixture.
- Use the schedule controller's sunrise and sunset mode to ramp between the programmed minimum and maximum intensity levels.
- Magnetically mount compatible IONBEAM bars to the frame when adding supplementary intensity or spectrum.
Features
Algorithmically spaced bars distribute light across a large canopy while reducing concentrated hotspots.
Samsung LM301H EVO white diodes combine with 395nm, 660nm and 730nm supplementary diodes for full-spectrum output.
The guide lists 213x213cm vegetative, 183x183cm flowering and 152x152cm coverage with supplemental CO₂.
The included controller provides ten intensity levels, daily schedules and gradual sunrise and sunset transitions.
Two SOSEN drivers can remain frame-mounted or move to a suitable wall using the supplied extension leads.
Connect a compatible UIS controller for app-based automation, shared programming and grow-system integration.
The 100–277V AC, 50/60Hz fixture is supplied with an Australian power plug and carries an IP65 rating.
-
1
Check the support
Confirm the tent roof bars or overhead structure can securely support the 112x113cm fixture before installation.
-
2
Position the drivers
Fit both drivers to the centre columns, or mount them on a structurally sound wall with the supplied brackets and leads.
-
3
Hang the fixture
Clip the wire hangers to all four corner anchors, then attach the rope-clip carabiners to the roof support bars.
-
4
Connect both drivers
Join each driver to the light, connect the dual-driver power cord and wire the supplied daisy-chain adapter as shown in the manual.
-
5
Power the light
Plug the Australian power lead into a suitable outlet only after the fixture, drivers and controller cables are secure.
-
6
Set the programme
Enter the current time, choose intensity levels and configure the daily schedule or sunrise and sunset transition.
-
7
Add UIS control
Connect a compatible UIS controller when app access, grow recipes or shared environmental automation are required.
What area does the IONFRAME EVO10 cover?
The stage guide lists up to 213x213cm for vegetative growth, 183x183cm for flowering and 152x152cm when using supplemental CO₂ at 1200ppm or higher. The 150x150cm footprint also matches common 5x5ft tents. Actual mounting and intensity should be adjusted for the crop and environment.
What comes with the EVO10?
The package includes the IONFRAME EVO10 fixture, schedule controller, two LED drivers, driver brackets and leads, dual-driver power cord, daisy-chain adapter, rope clips, wire hangers, UIS cables, wire ties and mounting hardware. This model uses the manual's dedicated dual-driver connection sequence.
Is this the Australian-voltage version?
Yes. The Grow Kings listing specifies a 100–277V AC, 50/60Hz input and an Australian power plug. The fixture is rated at 1000W. Install it only on a suitable local circuit, keep connections secure and follow the included manual before powering the two-driver system.
What can the included schedule controller do?
It provides ten brightness levels, ON and OFF intensity settings, daily schedule times and gradual sunrise and sunset transitions. A compatible UIS controller such as Controller 69 Pro can add AC Infinity app access, shared automation and more advanced programming across connected grow devices.
Can the drivers be mounted away from the light?
Yes. The two drivers can mount on the fixture or on a structurally sound wall using the supplied brackets and driver extension leads. The EVO10 also includes the daisy-chain adapter needed to bring both drivers under the schedule controller through the manual's dual-driver wiring layout.
Description

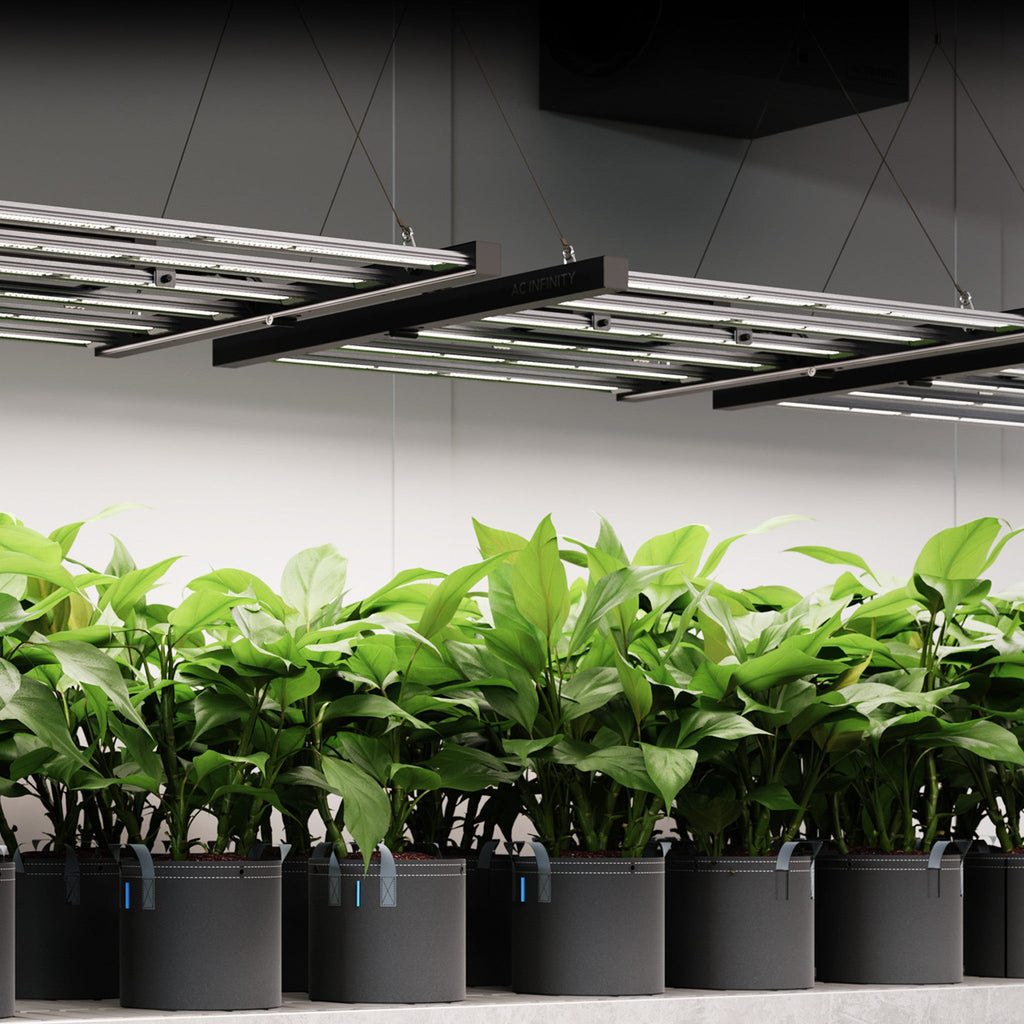

An indoor plant grow light designed for grow tents and large grow spaces to improve your plant's growth rate and its yields.
Utilizes Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots. Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminum build, which enables magnetic mounting and is IP-65-rated to withstand humid environments.
This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications.
The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately).

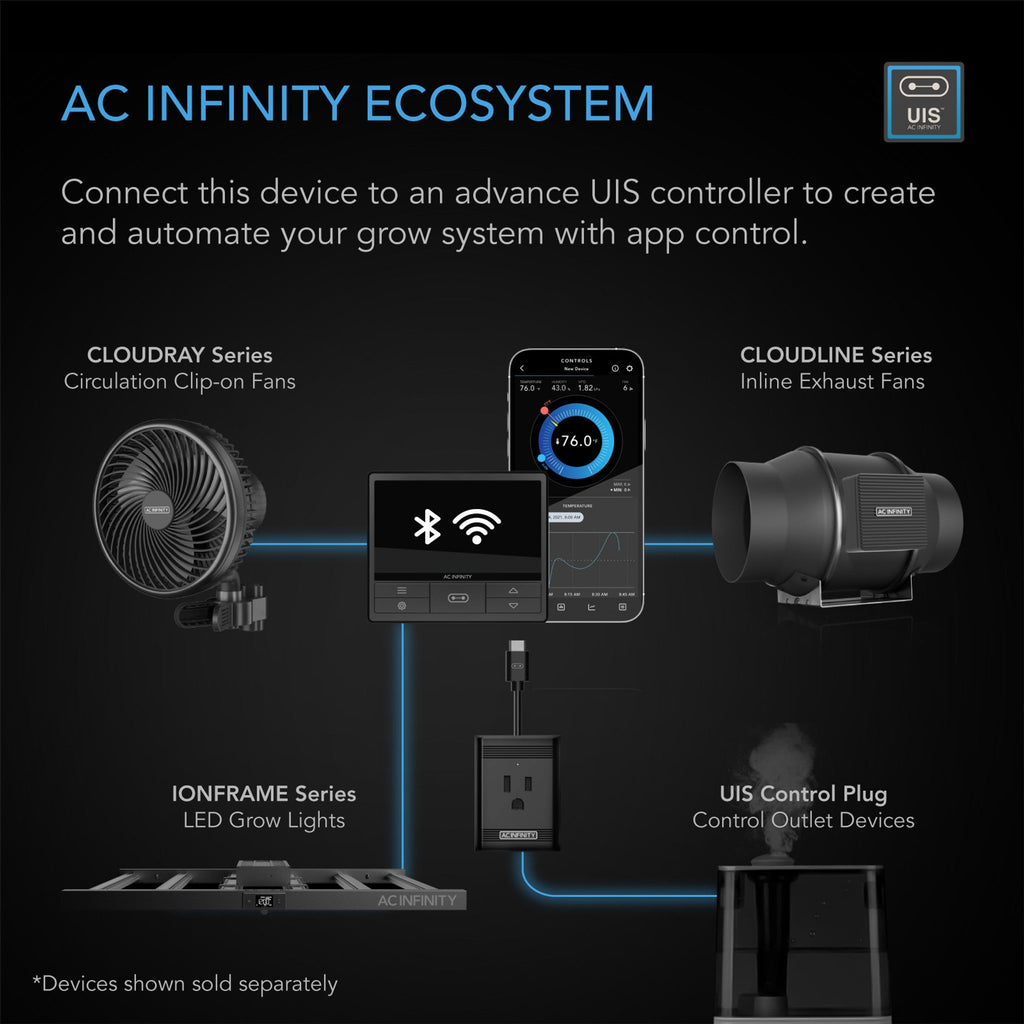

This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Industry-Leading LED Chips

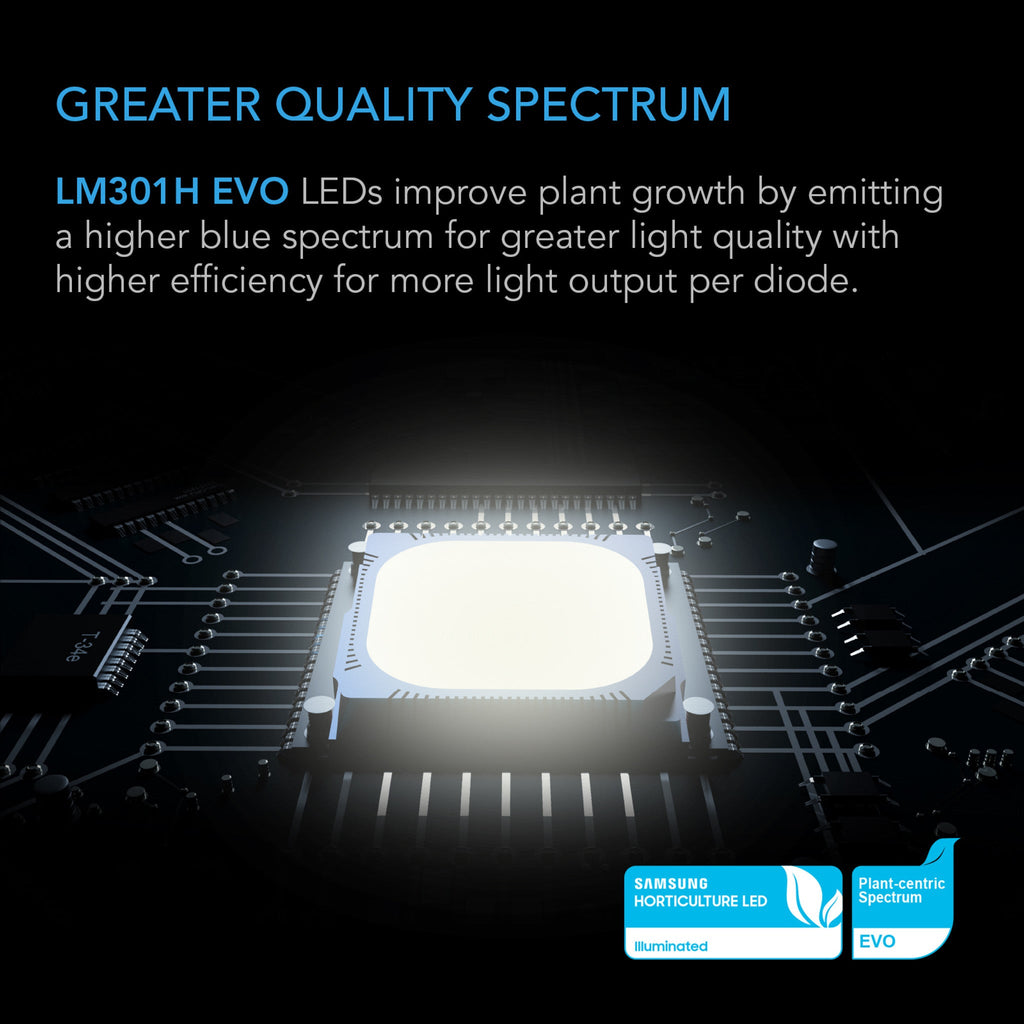

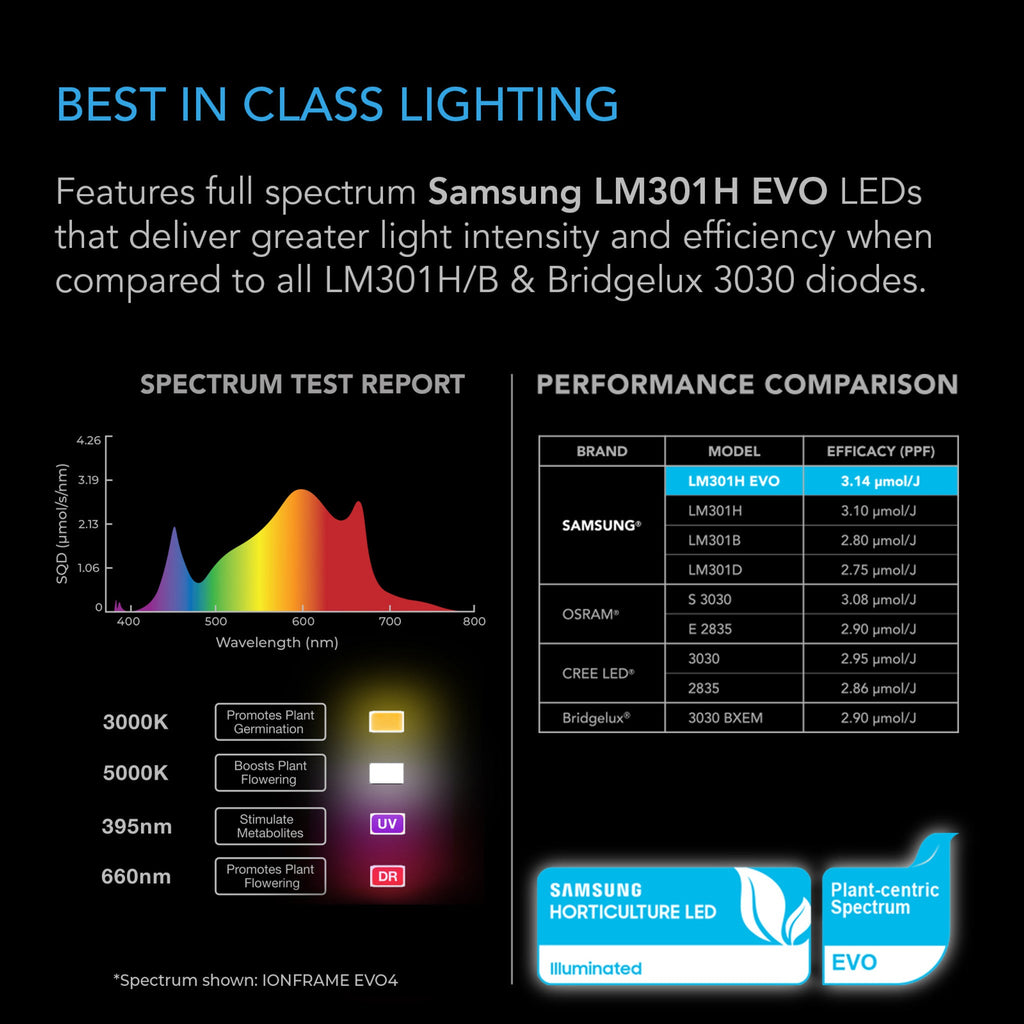

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (10) 395 nm UV diodes, (130) 660 nm OSRAM red diodes, and (10) 730 nm OSRAM far-red diodes to complete its full spectrum light output.
Schedule and Brightness Controls

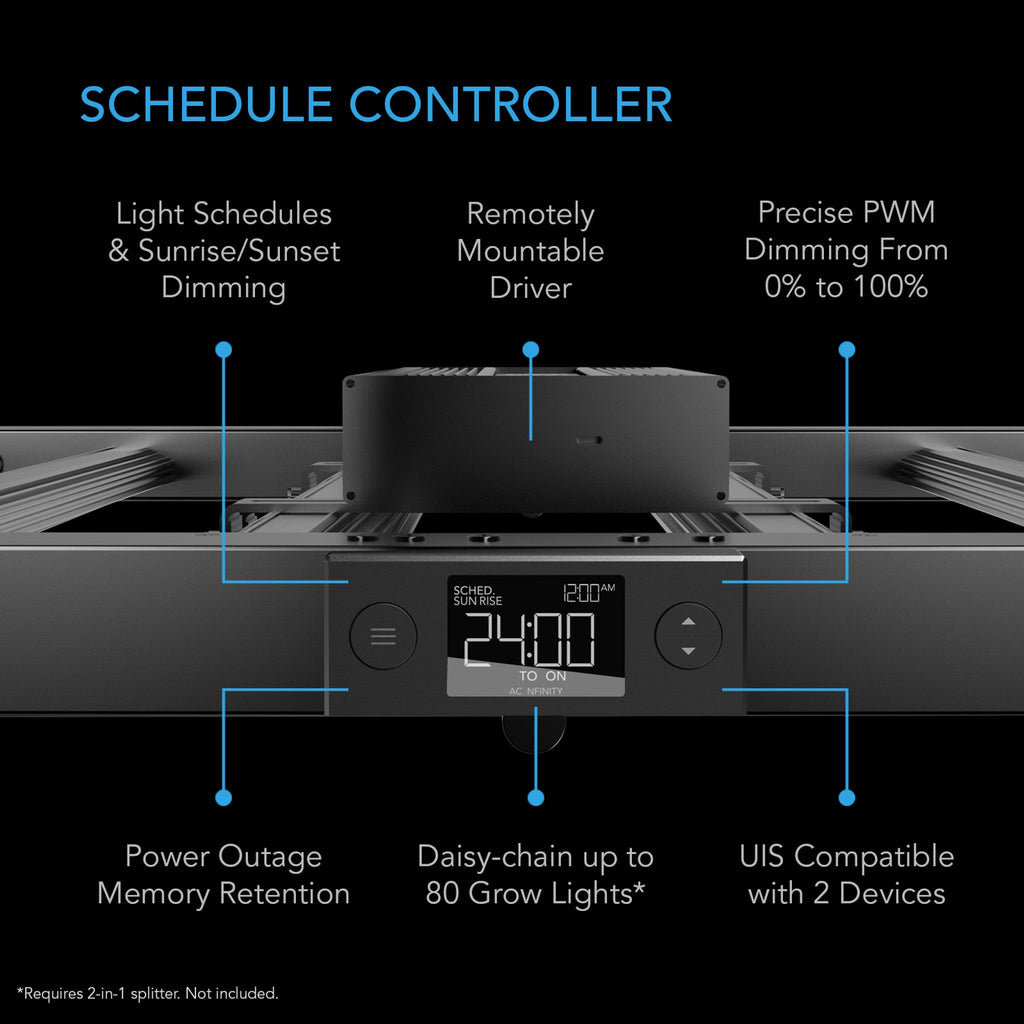

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customize this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement. Use this grow light with an advance UIS controller like CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
KEY FEATURES
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.

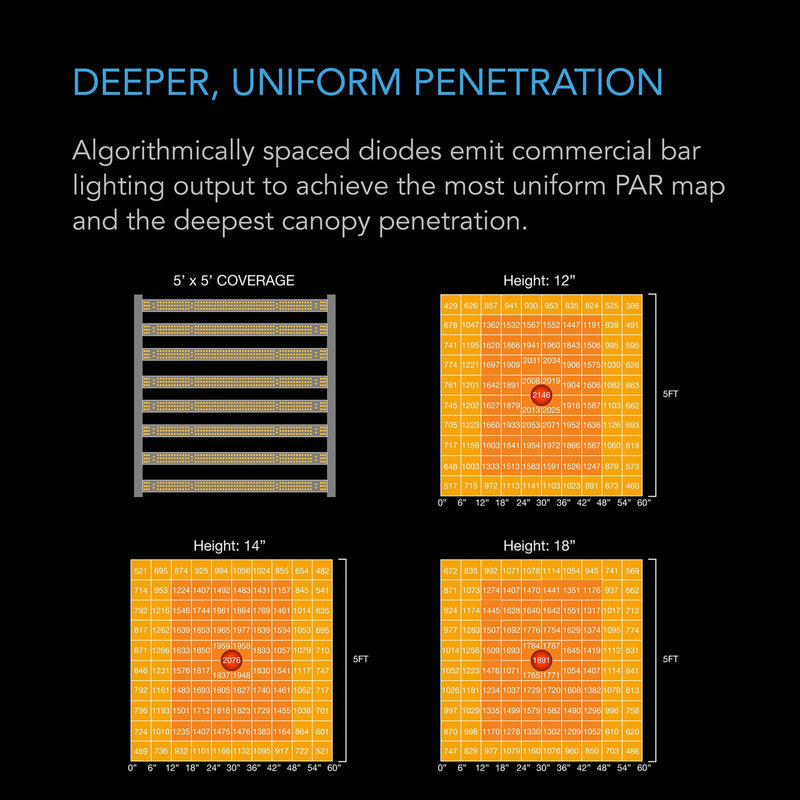

- Bar-style fixture with algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 7 x 7 ft. Veg. Coverage | 6 x 6 ft. Flower Coverage | Samsung LM301H EVO Chips | 3710 Diodes | 1000W | 2146 PPFD | ETL Cert. 5021417
| Product Identification | |
| Manufacturer | AC Infinity Inc. |

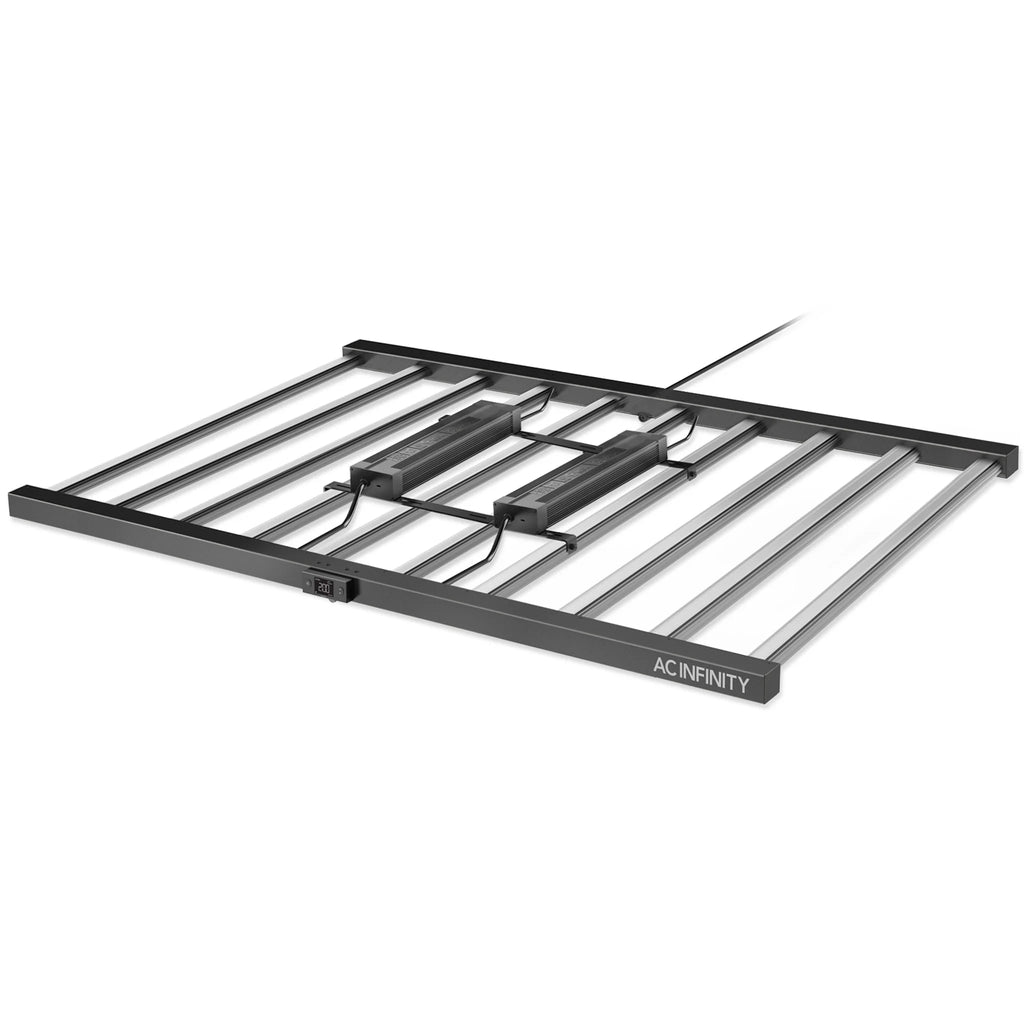

| Product Name | IONFRAME EVO10 |
| Product Model | AC-IF10K |
| UPC Code | 819137024083 |
| Product and Mounting Dimensions | |

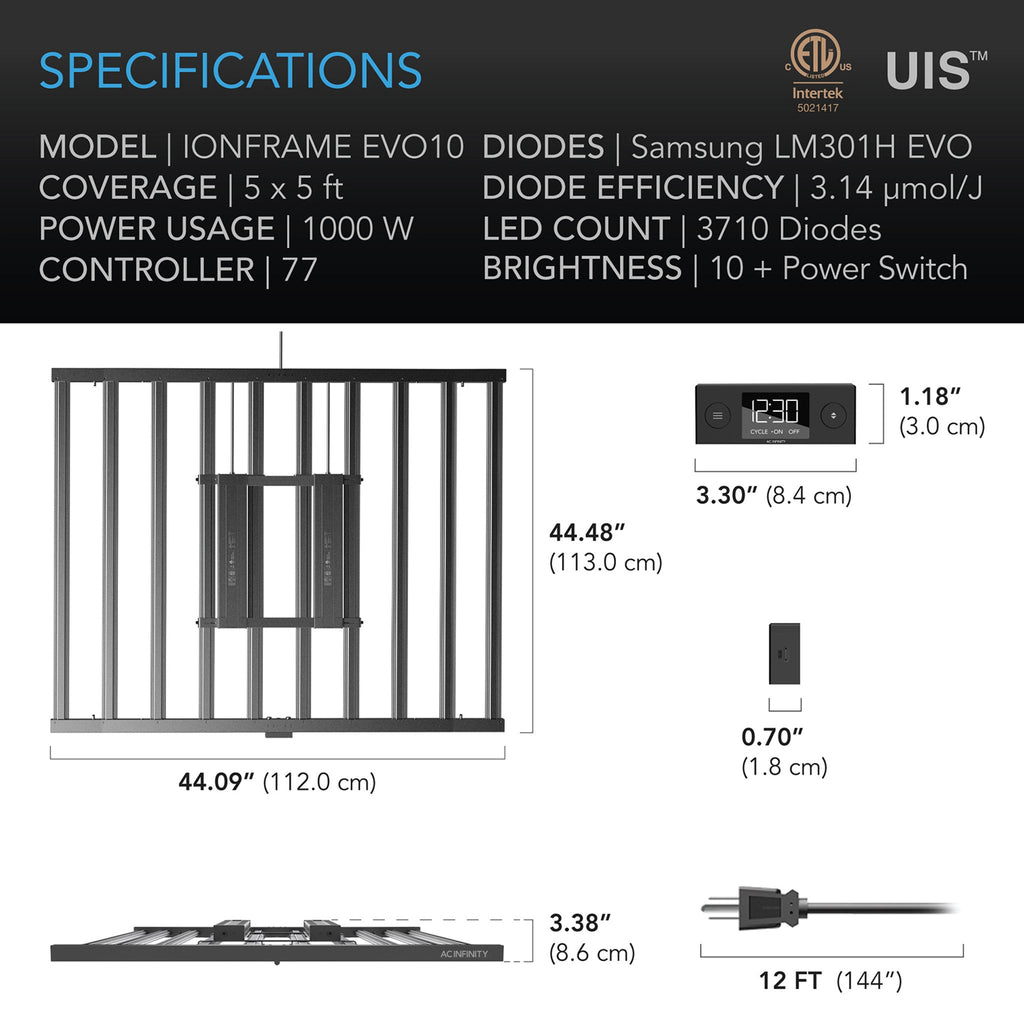

| Light Dimensions | 44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 5 x 5 ft. |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 3710 |
| Chip Count (EVO 3000K) | 2360 |
| Chip Count (EVO 5000K) | 1200 |
| Chip Count (Seoul 395 nm) | 10 |
| Chip Count (OSRAM 660 nm) | 130 |
| Chip Count (OSRAM 730 nm) | 10 |
| LED Driver | SOSEN-1000W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 2146 PPFD |
| Wattage | 1000 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 5.0 A (x2) |
| Controller | Schedule Controller |
| Power Connector Type | Australian Power Plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| ETL Certification |
 PDF |
| Product Manual | |
| Product Manual |
PDF |
...
