Description
Turbo-F 250 4E – Inline Axial Fan

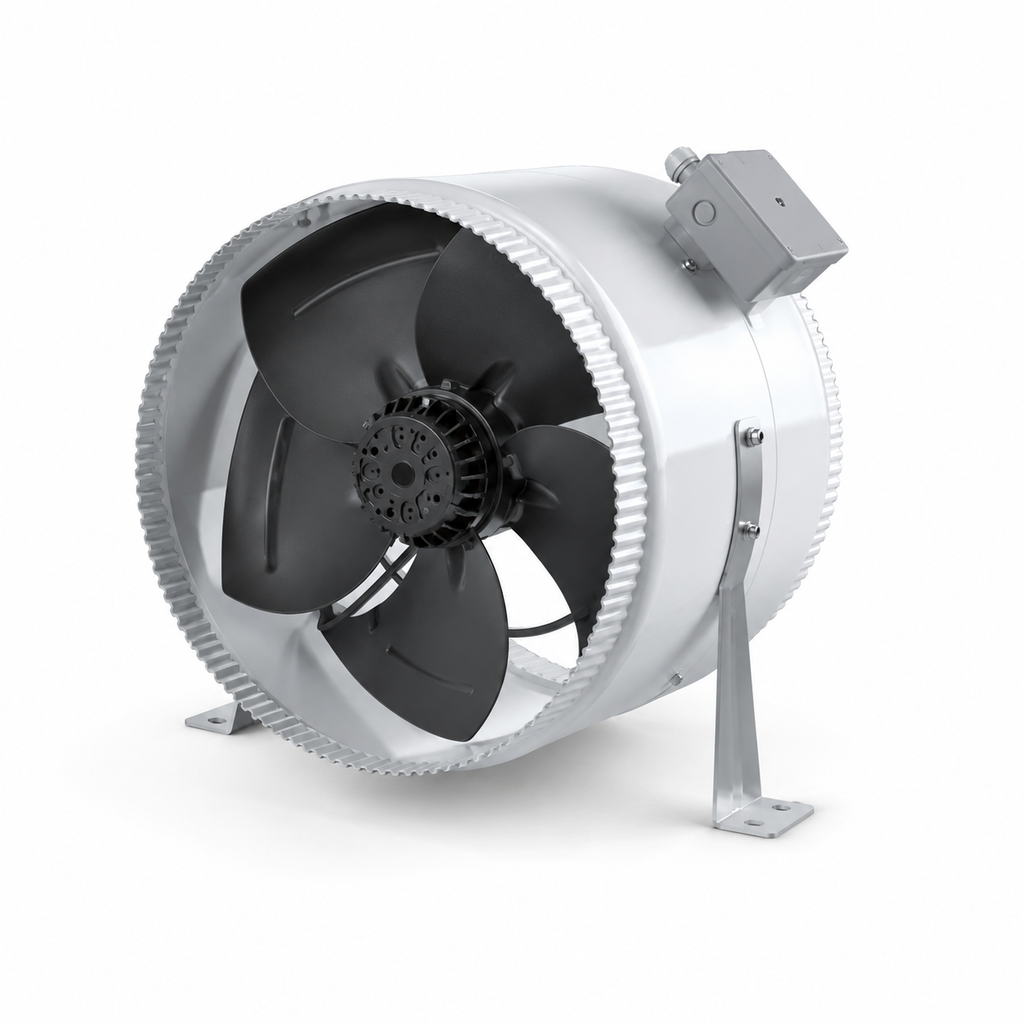

The Turbo-F 250 4E is a 250 mm, 4-pole inline axial fan designed for supply and exhaust ventilation systems where high airflow is required with low system resistance. Built with a coated steel fan casing and impeller, it offers reliable performance for ducted ventilation applications across commercial, industrial, and agricultural environments.
The fan casing features 30 mm deep corrugated sides for convenient duct attachment, while the external terminal box mounted to the fan casing allows for simple electrical connection and installation.
Key Features
- 250 mm 4-pole inline axial fan
- Suitable for supply and exhaust ventilation
- Designed for high airflow with relatively low system resistance
- Coated steel fan casing and impeller
- External terminal box mounted to the fan casing
- 30 mm deep corrugated casing sides for duct connection
- IPX4 protection rating
- Operating temperature range: -30°C to +60°C
| Specification | Turbo-F 250 4E |
|---|---|
| Part Number | BLATUBO-F2504E |
| Voltage | 1~230 V / 50 Hz |
| Power | 50 W |
| Current | 0.22 A |
| Maximum Air Flow | 800 m³/h / 222 l/s |
| Speed | 1380 RPM |
| Sound Pressure at 3 m | 55 dBA |
| Transported Air Temperature | -30°C to +60°C |
| Protection Rating | IPX4 |
